DI-10
COMBINATION METERS

*1: YD engine models only
*2: QR engine models only
TYPE 6
System diagram
Input/output signal chart
T: Transmit R: Receive
PKIA9635E
Signals ECM TCMESP/TCS/
ABS control
unitSteering
angle sensor4WD control
unitCombination
meter
4WD mode indicator lamp signalTR
4WD warning lamp signalTR
A/C compressor feedback signal TR
A/T position indicator lamp signal T R R
A/T self-diagnosis signal R T
ABS warning lamp signal T R
Accelerator pedal position signal T R R
Brake warning lamp signal T R
Closed throttle position signal T R
Engine and A/T integratedTR
RT
Engine coolant temperature signal TR
Engine speed signal T R R R
ESP OFF indicator lamp signal T R
MI signal TR
O/D OFF indicator signal T R
Output shaft revolution signal R T
Overdrive control switch signal R T
P·N range signal R T
SLIP indicator lamp signal T R
Steering angle sensor signal R T

COMBINATION METERS
DI-11
C
D
E
F
G
H
I
J
L
MA
B
DI

TYPE 7/TYPE 8
System diagram
Input/output signal chart
T: Transmit R: Receive
*: YD engine models onlyStop lamp switch signalRT
TR
Vehicle speed signalTRR
RT
Parking brake switch signalRT
Wide open throttle position signal T R
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR Signals ECM TCMESP/TCS/
ABS control
unitSteering
angle sensor4WD control
unitCombination
meter
SKIA9999E
Signals ECM ABS actuator and electric unit (control unit) Combination meter
A/C compressor feedback signal T R
ABS warning lamp signal T R
Engine coolant temperature signal T R
Engine speed signal T R
MI signal T R
Vehicle speed signalTR
RT
ASCD SET lamp signal T R
ASCD CRUISE lamp signal T R
Stop lamp switch signal T R
Glow indicator lamp signal* T R
A/C switch signal* R T

DI-12
COMBINATION METERS

TYPE 9
System diagram
Input/output signal chart
T: Transmit R: Receive
PKIC0343E
Signals ECM ESP/TCS/ABS control unit Steering angle sensor Combination meter
A/C switch signal RT
ABS warning lamp signal T R
Accelerator pedal position signal T R
Brake warning lamp signal T R
Engine coolant temperature signal TR
Engine speed signal T R R
ESP OFF indicator lamp signal T R
Glow indicator lamp signal TR
MI signal TR
Vehicle speed signalTR
RT
SLIP indicator lamp signal T R
Steering angle sensor signal R T
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR

DI-16
COMBINATION METERS

Wiring Diagram — METER —/LHD ModelsEKS00EH5
TKWA1606E

COMBINATION METERS
DI-19
C
D
E
F
G
H
I
J
L
MA
B
DI

Wiring Diagram — METER —/RHD ModelsEKS00EHM
TKWA1609E

DI-36
WARNING LAMPS

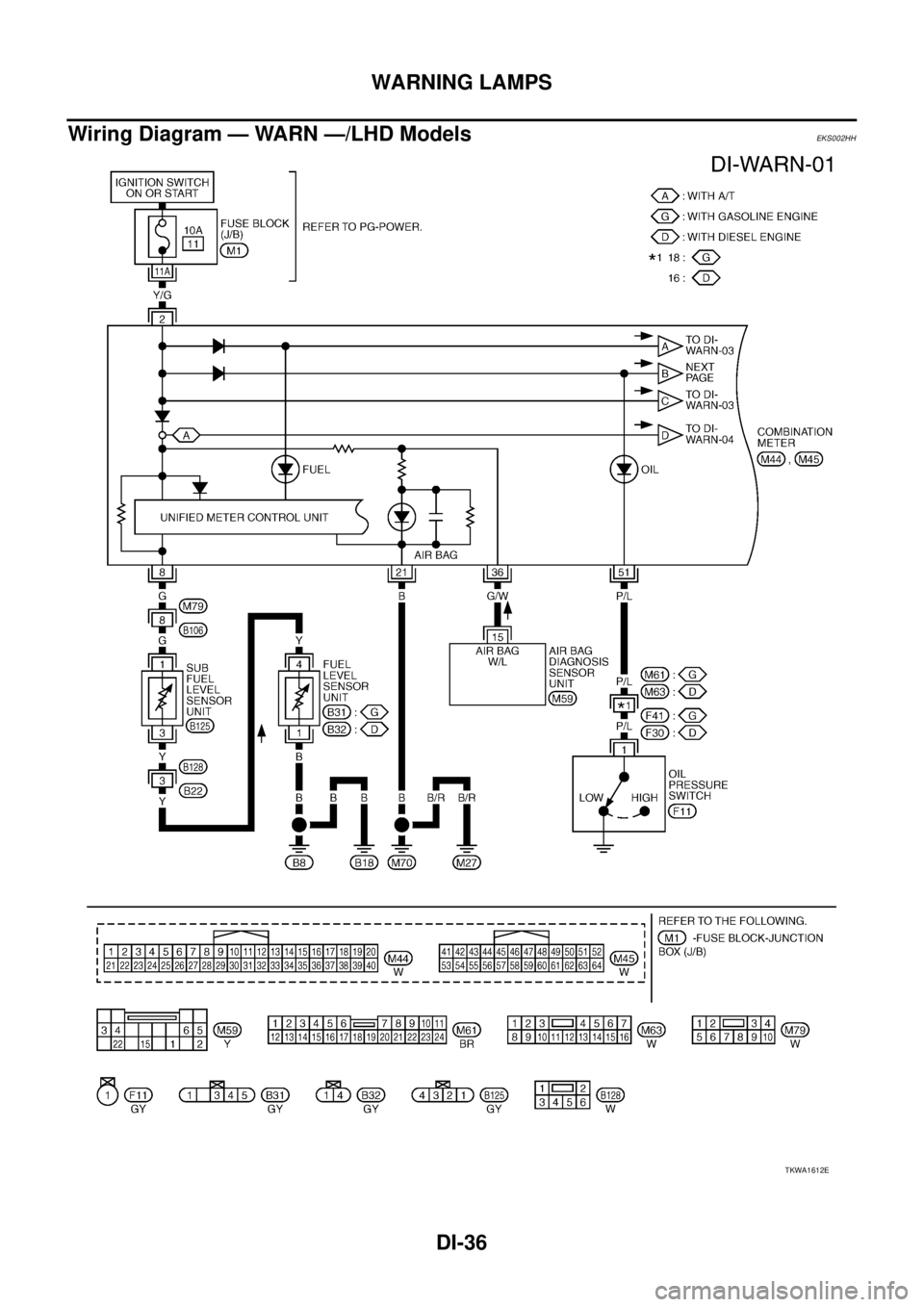

Wiring Diagram — WARN —/LHD ModelsEKS002HH
TKWA1612E

DI-44
WARNING LAMPS

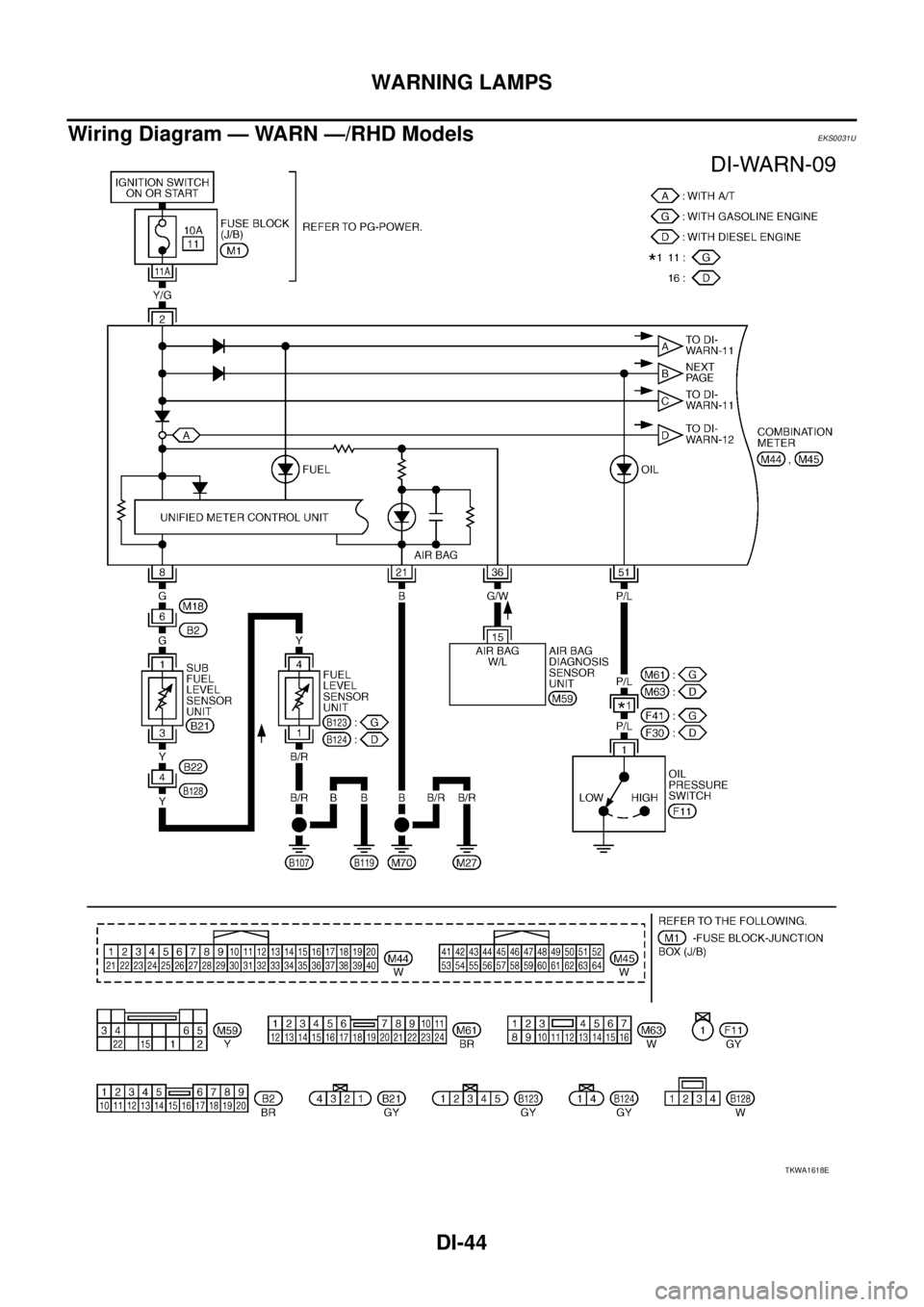

Wiring Diagram — WARN —/RHD ModelsEKS0031U
TKWA1618E

DI-52
WARNING LAMPS

Electrical Components InspectionEKS002HK
OIL PRESSURE SWITCH CHECK
Check continuity between the terminals of oil pressure switch and
ground.
DIODE CHECK

Check continuity using tester.

Diode is functioning properly if test results are as shown in the
figure.

Check diodes at the combination meter harness connector
instead of on the combination meter assembly. Refer to DI-36,
"Wiring Diagram — WARN —/LHD Models" or DI-44, "Wiring
Diagram — WARN —/RHD Models" .
NOTE:
Specification may vary depending on the type of tester. Before
performing this inspection, be sure to refer to the instruction
manual for the tester to be used.
Condition
Oil pressure [kPa (bar, kg/cm2 , psi)]Continuity
Engine running More than 29 (0.30, 0.3, 4) No
Engine stopped Less than 29 (0.30, 0.3, 4) Yes
ELF0044D
SKIB0607E
