2005 NISSAN X-TRAIL diagram

LT-28
HEADLAMP - CONVENTIONAL TYPE -

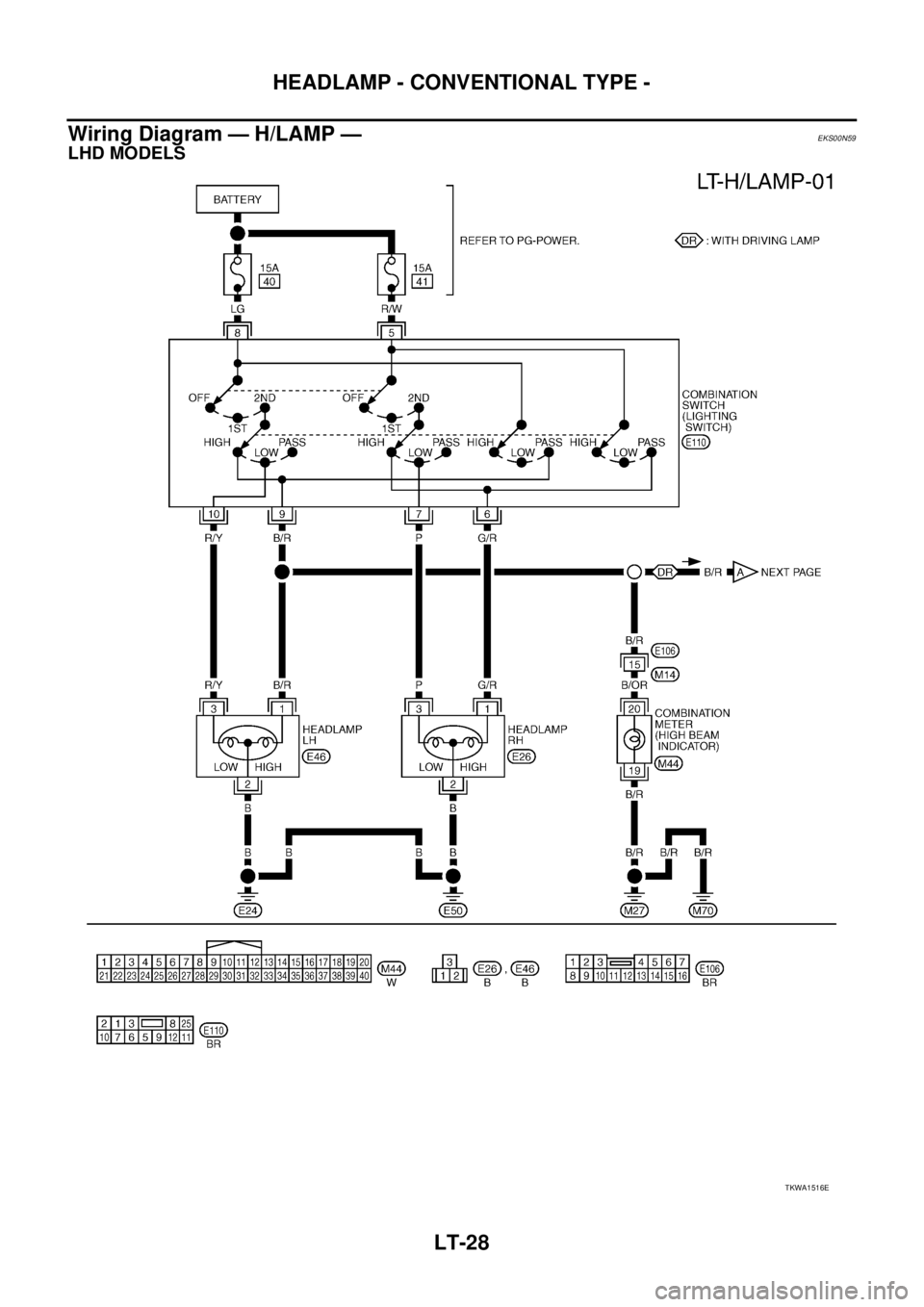

Wiring Diagram — H/LAMP — EKS00N59
LHD MODELS
TKWA1516E

HEADLAMP (WITH DAYTIME) - XENON TYPE -
LT-45
C
D
E
F
G
H
I
J
L
MA
B
LT

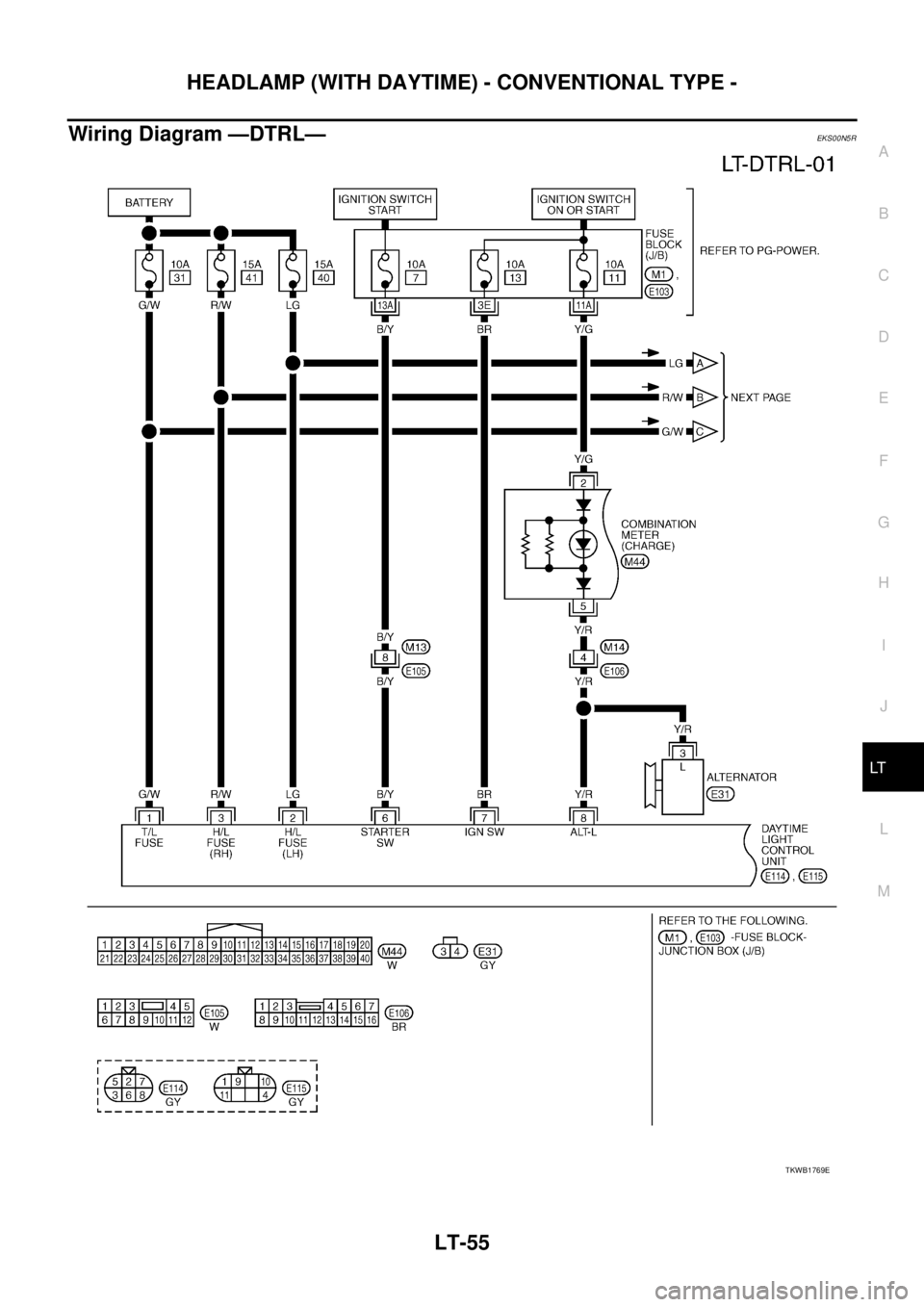

Wiring Diagram —DTRL—EKS00N5K
TKWB1125E

HEADLAMP (WITH DAYTIME) - CONVENTIONAL TYPE -
LT-55
C
D
E
F
G
H
I
J
L
MA
B
LT

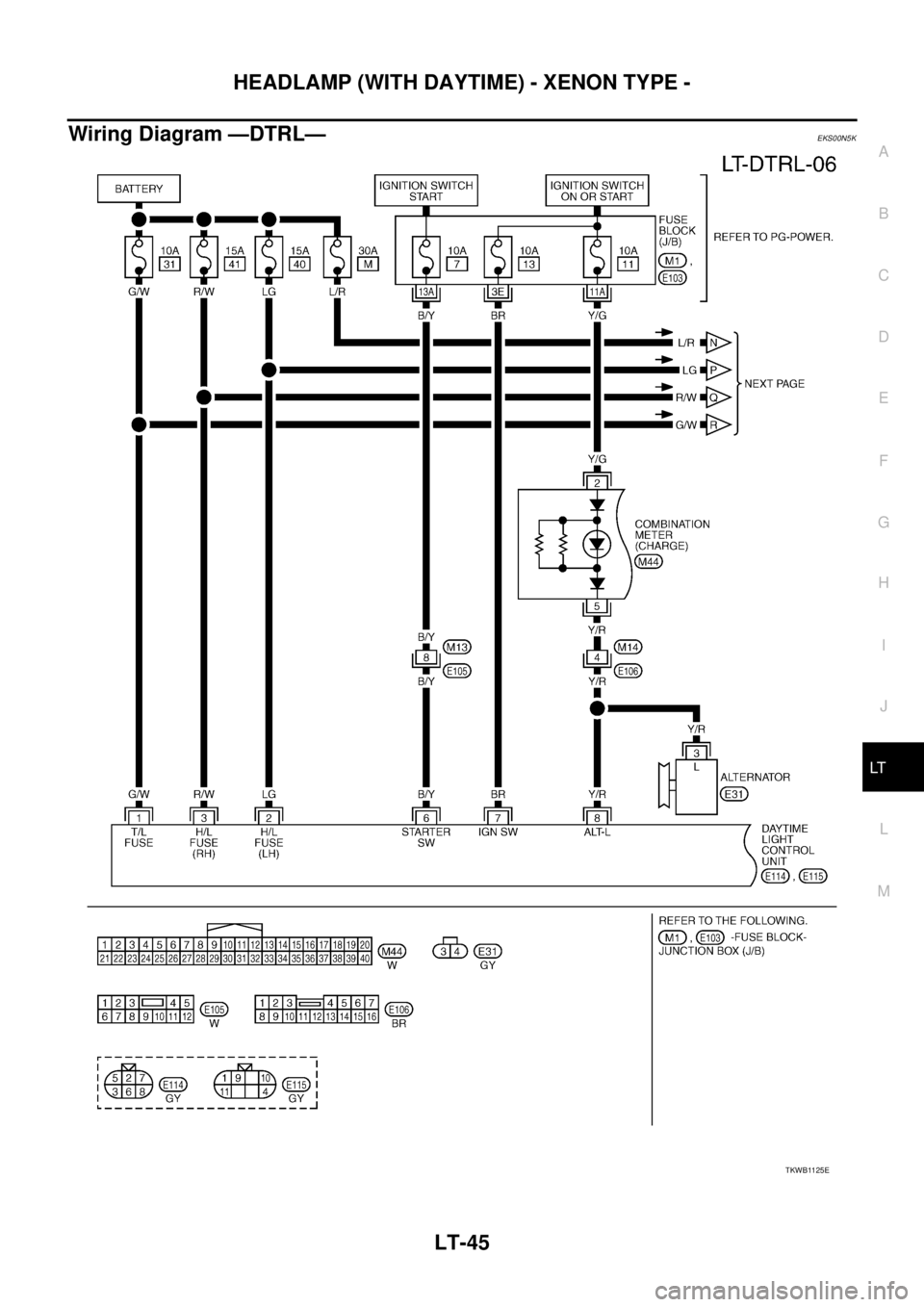

Wiring Diagram —DTRL—EKS00N5R
TKWB1769E

HEADLAMP AIMING CONTROL (MANUAL)
LT-61
C
D
E
F
G
H
I
J
L
MA
B
LT

HEADLAMP AIMING CONTROL (MANUAL)PFP:25190

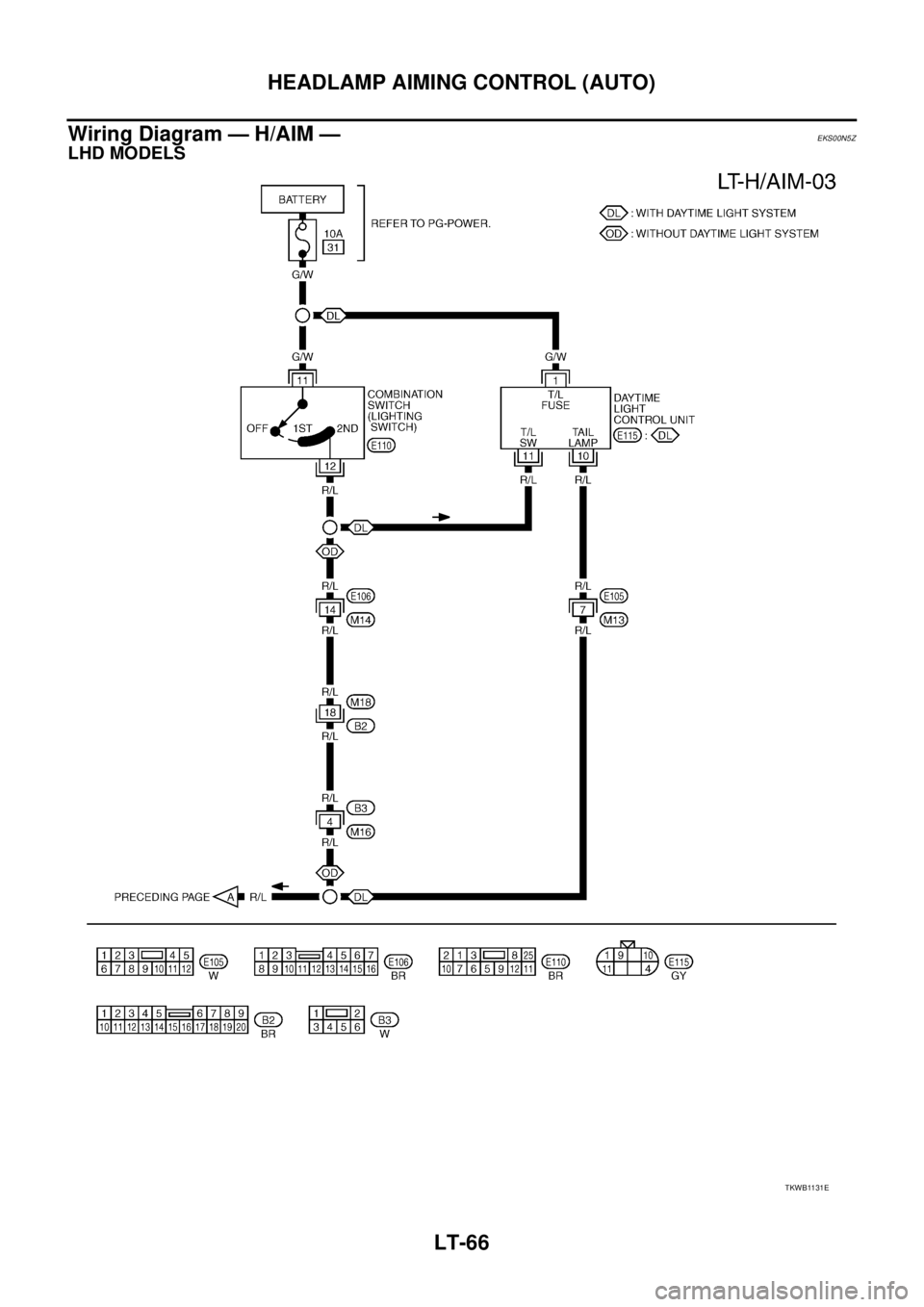

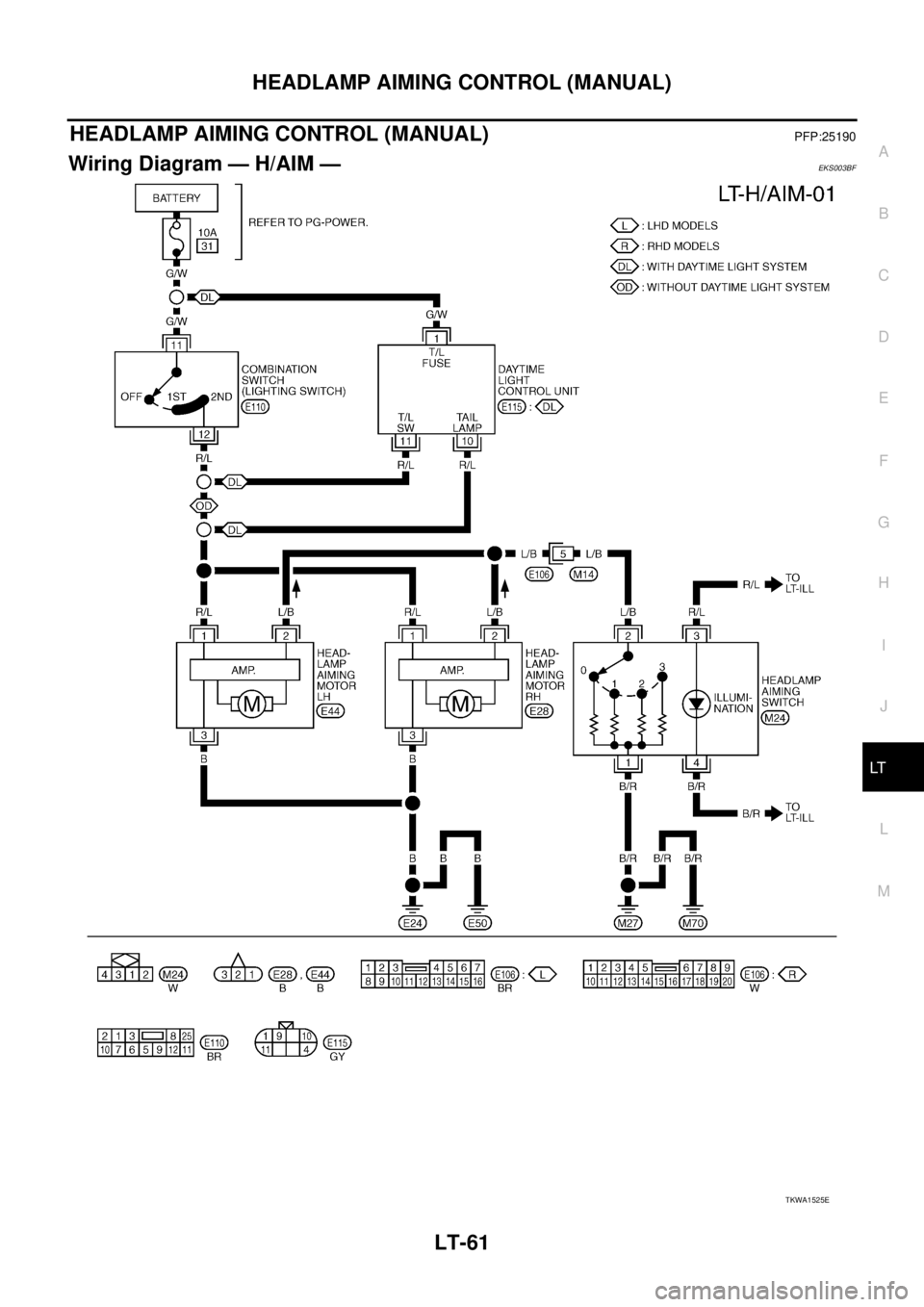

Wiring Diagram — H/AIM —EKS003BF
TKWA1525E

LT-66
HEADLAMP AIMING CONTROL (AUTO)

Wiring Diagram — H/AIM —EKS00N5Z
LHD MODELS
TKWB1131E

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-89
C
D
E
F
G
H
I
J
L
MA
B
LT

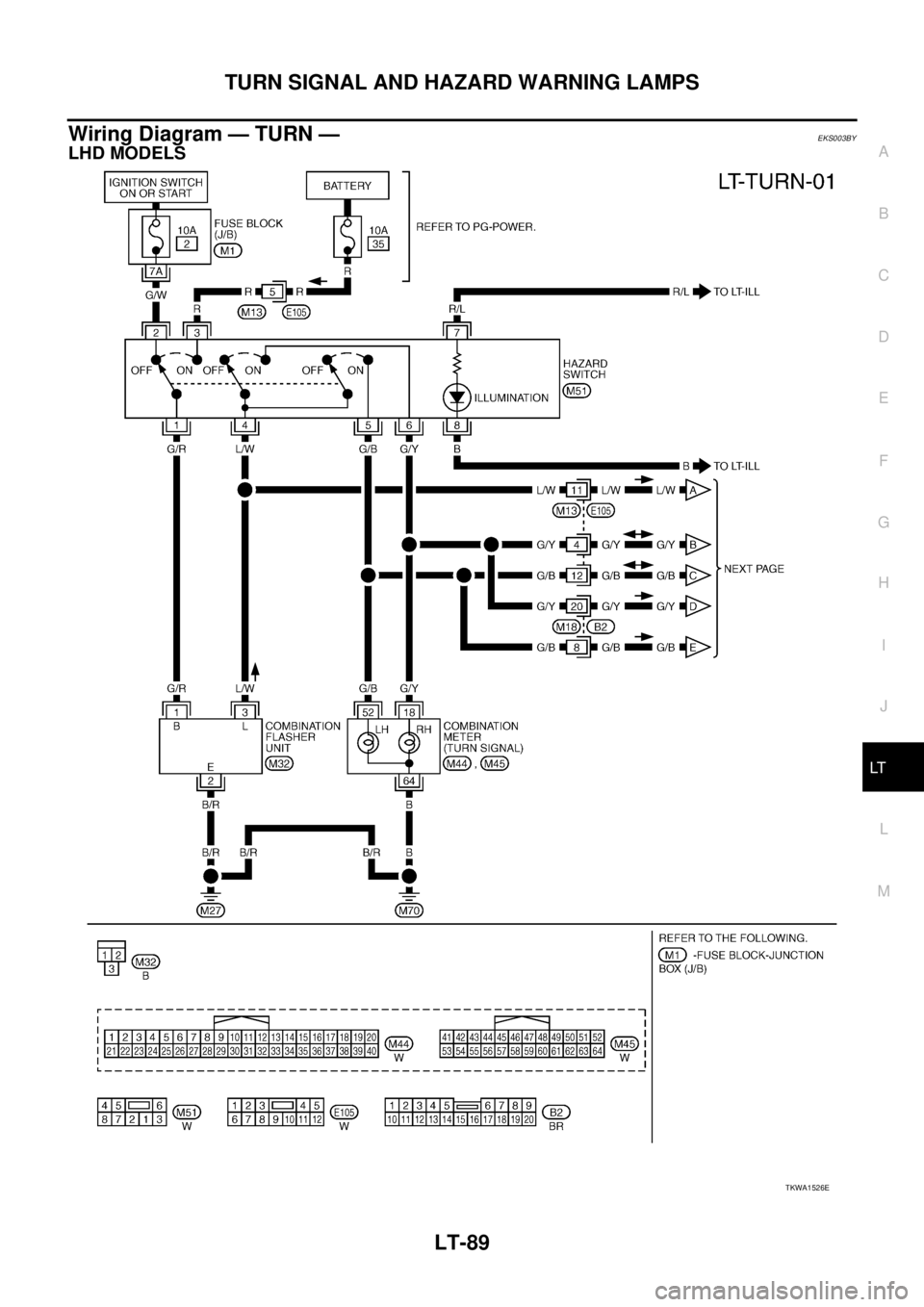

Wiring Diagram — TURN — EKS003BY
LHD MODELS
TKWA1526E

LT-96
LIGHTING AND TURN SIGNAL SWITCH

LIGHTING AND TURN SIGNAL SWITCHPFP:25540
Removal and InstallationEKS0034F
REMOVAL
1. Remove the steering column cover. Refer to IP-10, "INSTRU-
MENT PANEL ASSEMBLY" in “INSTRUMENT PANEL (IP)”
section.
2. Remove two screws, then remove the lighting and turn signal
switch from the spiral cable.
3. Disconnect the lighting and turn signal switch connector.
INSTALLATION
Installation is the reverse order of removal.
Switch Circuit InspectionEKS0034G
Using circuit tester, check continuity between the lighting and turn signal switch connector terminals in each
operation status of the switch.
Lighting switch is refer to LT- 2 8 , "
Wiring Diagram — H/LAMP —" .
Turn signal lamp switch is refer to LT- 8 9 , "
Wiring Diagram — TURN —" .
Front fog lamp switch is refer to LT- 1 0 9 , "
Wiring Diagram — F/FOG —" .
Rear fog lamp switch is refer to LT- 11 3 , "
Wiring Diagram — R/FOG —/Without Front Fog Lamp" ,LT- 11 4 , "Wir-
ing Diagram — R/FOG —/With Front Fog Lamp" .
SKIA0018E

LT-98
STOP LAMP

STOP LAMPPFP:26550

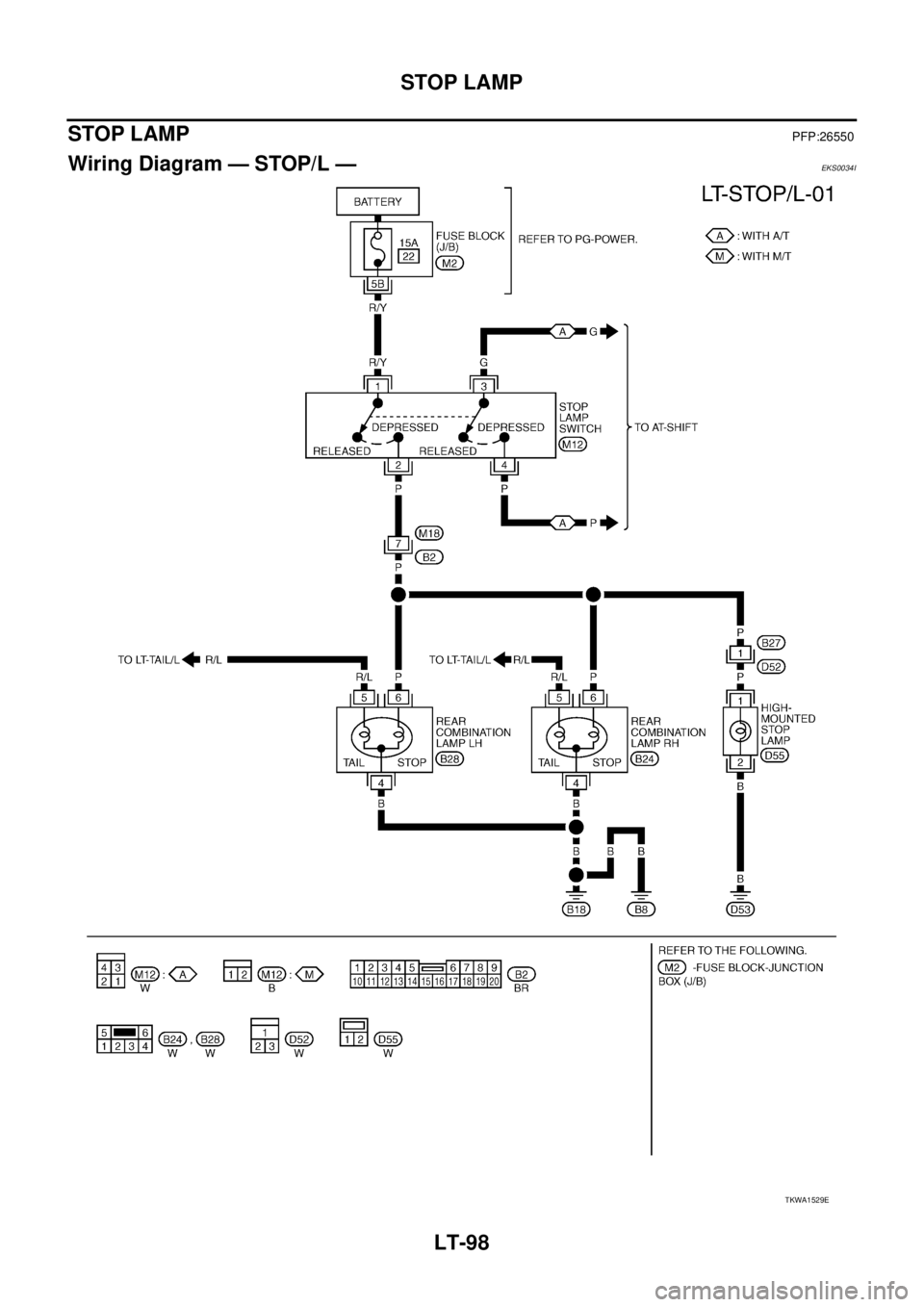

Wiring Diagram — STOP/L —EKS0034I
TKWA1529E
