2005 NISSAN X-TRAIL diagram

STEP LAMP
LT-145
C
D
E
F
G
H
I
J
L
MA
B
LT

STEP LAMPPFP:26420

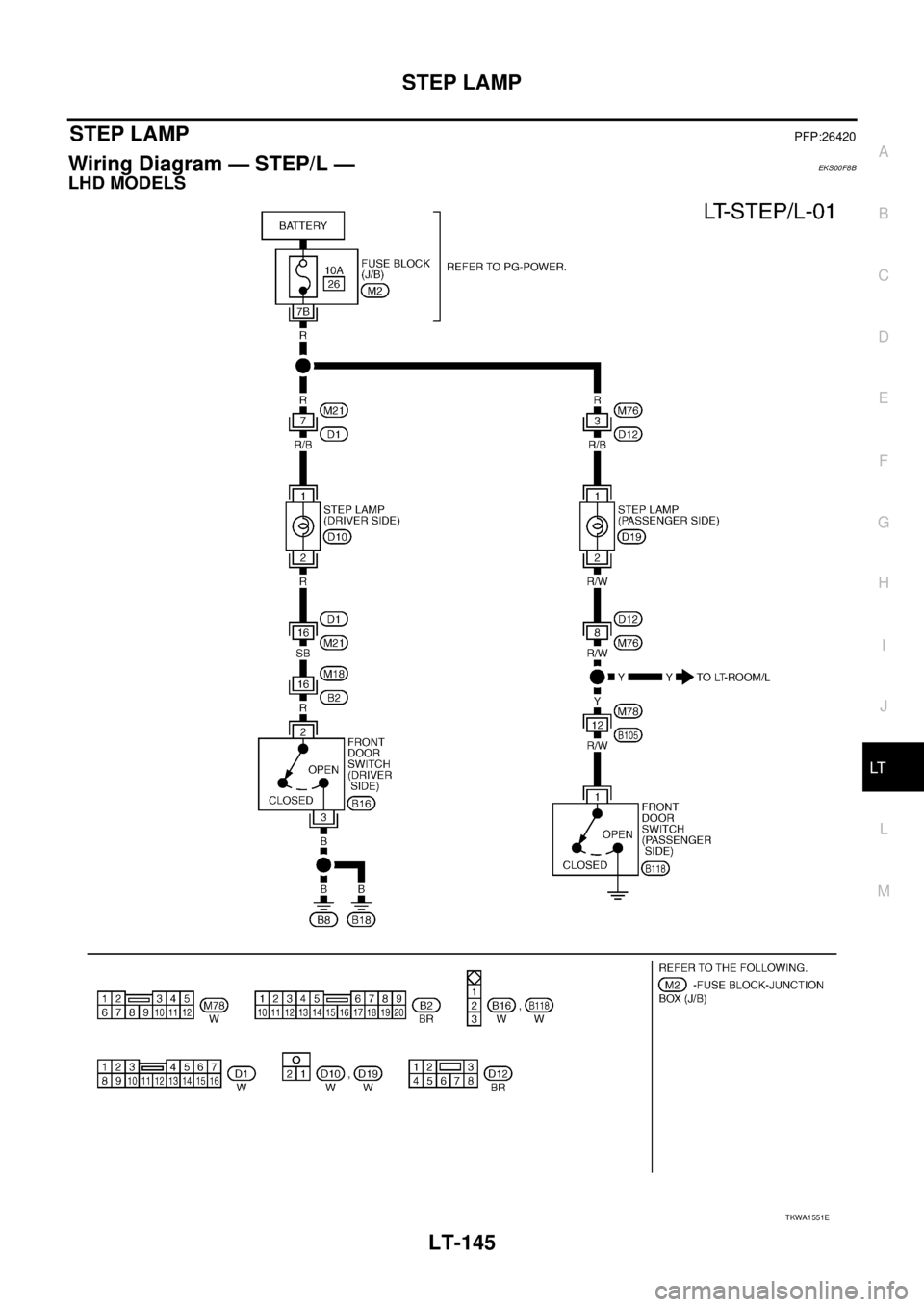

Wiring Diagram — STEP/L — EKS00F8B
LHD MODELS
TKWA1551E

LT-148
INTERIOR LAMP

INTERIOR LAMPPFP:28491

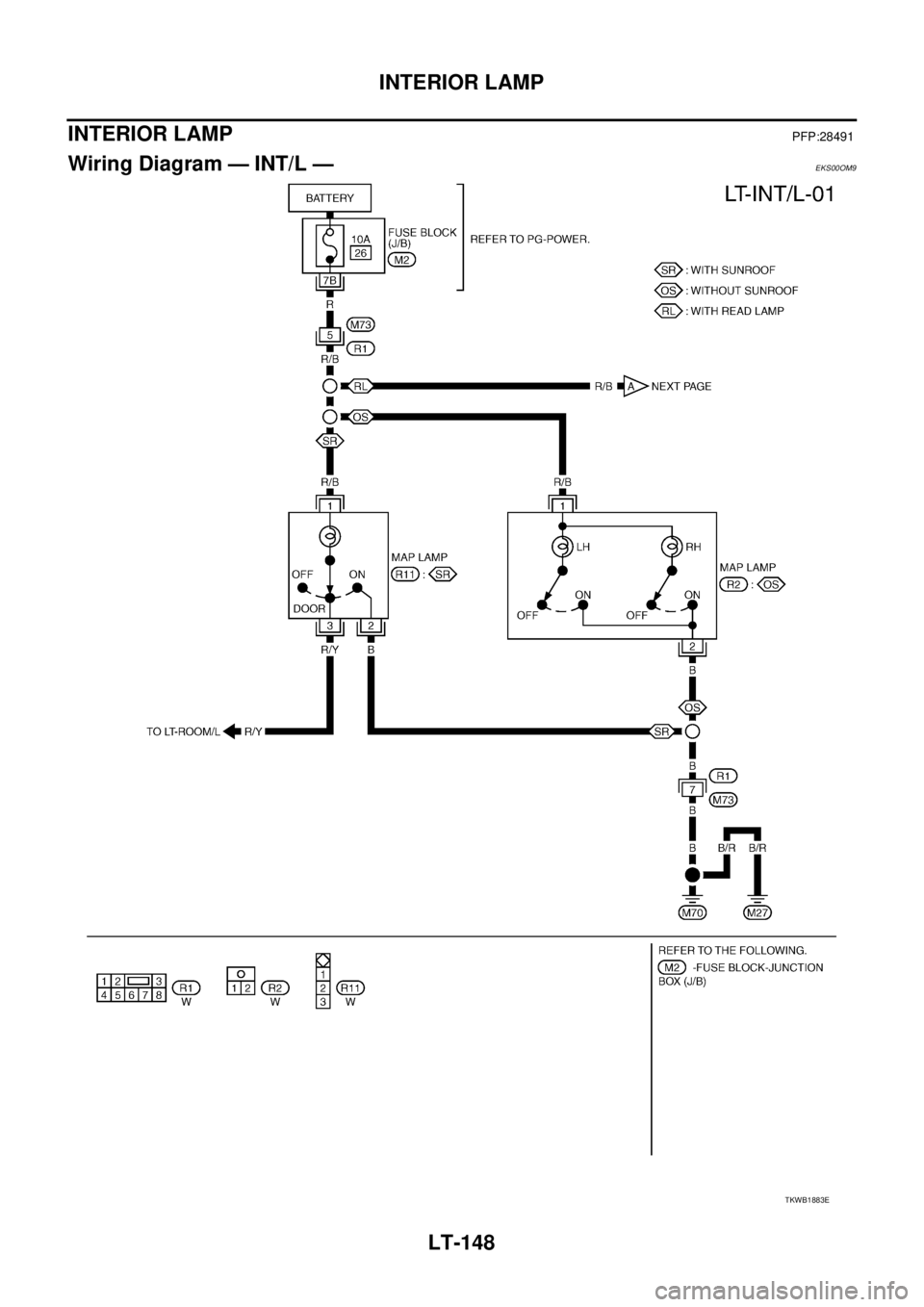

Wiring Diagram — INT/L —EKS00OM9
TKWB1883E

DI-1
DRIVER INFORMATION SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION DI
A
B
DI

DRIVER INFORMATION SYSTEM
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Wiring Diagrams and Trouble Diagnosis .................. 3
COMBINATION METERS ........................................... 4
System Description .................................................. 4
UNIFIED CONTROL METER ................................ 4
HOW TO CHANGE THE DISPLAY FOR ODO/
TRIP METER ........................................................ 4
POWER SUPPLY AND GROUND CIRCUIT ........ 4
WATER TEMPERATURE GAUGE ........................ 4
TACHOMETER ..................................................... 5
SPEEDOMETER ................................................... 5
FUEL GAUGE ....................................................... 5
AMBIENT TEMPERATURE INDICATOR .............. 5
CAN Communication ................................................ 6
CAN Communication Unit ........................................ 6
TYPE 1/TYPE 2 .................................................... 7
TYPE 3 .................................................................. 8
TYPE 4/TYPE 5 .................................................... 9
TYPE 6 ................................................................ 10
TYPE 7/TYPE 8 ................................................... 11
TYPE 9 ................................................................ 12
Component Parts and Harness Connector Location ... 13
Combination Meter ................................................. 14
CHECK ................................................................ 14
Schematic/LHD Models .......................................... 15
Wiring Diagram — METER —/LHD Models ........... 16
Schematic/RHD Models ......................................... 18
Wiring Diagram — METER —/RHD Models .......... 19
Terminals and Reference Value for Combination
Meter ...................................................................... 21
Meter/Gauges Operation and Odo/Trip Meter ........ 21
SELF-DIAGNOSIS FUNCTION .......................... 21
HOW TO ALTERNATE DIAGNOSIS MODE ....... 21
How to Perform Trouble Diagnosis ........................ 22
Diagnosis Flow ....................................................... 22
Power Supply and Ground Circuit Inspection ........ 23
Trouble Diagnosis Chart for Symptom ................... 24DIAGNOSIS RESULTS ....................................... 24
Fuel Level Sensor Signal Inspection [Gasoline
Engine Models] ....................................................... 25
FUEL GAUGE ..................................................... 25
LOW-FUEL WARNING LAMP ............................. 25
Fuel Level Sensor Signal Inspection [Diesel Engine
Models] ................................................................... 26
FUEL GAUGE ..................................................... 26
LOW-FUEL WARNING LAMP ............................. 26
Engine Speed Signal Inspection ............................. 28
Engine Coolant Temperature Signal Inspection ..... 28
Vehicle Speed Signal Inspection [With ESP] .......... 28
Vehicle Speed Signal Inspection [Without ESP] ..... 28
The Fuel Gauge Pointer Fluctuates, Indicator
Wrong Value or Varies ............................................ 28
The Fuel Gauge Does Not Move to FULL Position ... 29
Ambient Temperature Signal Inspection [Without
Auto A/C] ................................................................ 30
Ambient Temperature Signal Inspection [With Auto
A/C] ......................................................................... 31
Electrical Components Inspection .......................... 32
FUEL LEVEL SENSOR UNIT CHECK/GASO-
LINE ENGINE MODELS ..................................... 32
FUEL LEVEL SENSOR UNIT CHECK/DIESEL
ENGINE MODELS .............................................. 32
AMBIENT SENSOR CHECK ............................... 33
Removal and Installation for Combination Meter .... 33
REMOVAL ........................................................... 33
INSTALLATION ................................................... 33
Disassembly and Assembly for Combination Meter ... 34
DISASSEMBLY ................................................... 34
ASSEMBLY ......................................................... 34
WARNING LAMPS .................................................... 35
Schematic ............................................................... 35
Wiring Diagram — WARN —/LHD Models ............. 36
Wiring Diagram — WARN —/RHD Models ............ 44
Electrical Components Inspection .......................... 52
OIL PRESSURE SWITCH CHECK ..................... 52
DIODE CHECK ................................................... 52
A/T INDICATOR ........................................................ 53

DI-2 Wiring Diagram — AT/IND —/LHD Models ............ 53
Wiring Diagram — AT/IND —/RHD Models ............ 54
A/T Indicator Does Not Illuminate ........................... 55
WARNING CHIME ..................................................... 56
System Description ................................................. 56
POWER SUPPLY AND GROUND CIRCUIT ....... 56
LIGHT WARNING CHIME ................................... 56
SEAT BELT WARNING CHIME ........................... 56
KEY REMINDER WARNING CHIME [FOR RHD MODELS] ............................................................. 56
Wiring Diagram — CHIME —/LHD Models ............. 57
Wiring Diagram — CHIME —/RHD Models ............ 58
Symptom Chart ....................................................... 60
Power Supply and Ground Circuit Inspection ......... 60
Front Door Switch (Driver Side) Inspection ............. 61
Lighting Switch Input Signal Inspection .................. 62
CLOCK ...................................................................... 63
Wiring Diagram — CLOCK — ................................. 63

PRECAUTIONS
DI-3
C
D
E
F
G
H
I
J
L
MA
B
DI

PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS00367
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Wiring Diagrams and Trouble Diagnosis EKS00368
When reading wiring diagrams, refer to the following:

GI-14, "How to Read Wiring Diagrams" in GI section

PG-2, "POWER SUPPLY ROUTING" for power distribution circuit in PG section
When performing trouble diagnosis, refer to the following:

GI-10, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES" in GI section

GI-23, "How to Perform Efficient Diagnosis for an Electrical Incident" in GI section

COMBINATION METERS
DI-7
C
D
E
F
G
H
I
J
L
MA
B
DI

TYPE 1/TYPE 2
System diagram
Input/output signal chart
T: Transmit R: Receive
*: YD engine models only
PKIA6458E
Signals ECMABS actuator and
electric unit
(control unit)4WD control unit Combination meter
4WD mode indicator lamp signal T R
4WD warning lamp signalTR
A/C compressor feedback signal T R
ABS warning lamp signal T R
Accelerator pedal position signal T R
Engine coolant temperature signal T R
Engine speed signal T R R
MI signal T R
Parking brake switch signalRT
Stop lamp switch signal T R
Vehicle speed signalTRR
RT
ASCD SET lamp signal T R
ASCD CRUISE lamp signal T R
Stop lamp switch signal T R
Glow indicator lamp signal* T R
A/C switch signal* R T

DI-8
COMBINATION METERS

TYPE 3
System diagram
Input/output signal chart
T: Transmit R: Receive
PKIA6457E
Signals ECM TCMABS actuator
and electric unit
(control unit)4WD control
unitCombination
meter
4WD mode indicator lamp signalTR
4WD warning lamp signalTR
A/C compressor feedback signal TR
A/T position indicator lamp signal T R
A/T self-diagnosis signal R T
ABS warning lamp signal T R
Accelerator pedal position signal T R
Closed throttle position signal T R
Engine A/T integrated control signalTR
RT
Engine coolant temperature signal TR
Engine speed signal T R R
MI signal TR
O/D OFF indicator signal T R
Output shaft revolution signal R T
Overdrive control switch signal R T
P·N range signal R T
Parking brake switch signalRT
Stop lamp switch signalRT
TR
Vehicle speed signalTRR
RT
Wide open throttle position signal T R

COMBINATION METERS
DI-9
C
D
E
F
G
H
I
J
L
MA
B
DI

TYPE 4/TYPE 5
System diagram
Input/output signal chart
T: Transmit R: Receive ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR Signals ECM TCMABS actuator
and electric unit
(control unit)4WD control
unitCombination
meter
PKIA9634E
Signals ECMESP/TCS/ABS
control unitSteering angle
sensor4WD control
unitCombination
meter
4WD mode indicator lamp signalTR
4WD warning lamp signalTR
A/C compressor feedback signal*
2TR
A/C switch signal*
1RT
ABS warning lamp signal T R
Accelerator pedal position signal T R R
Brake warning lamp signal T R
Engine coolant temperature signal TR
Engine speed signal T R R R
ESP OFF indicator lamp signal T R
Glow indicator lamp signal*1 TR
MI signal TR
Stop lamp switch signal T R
Vehicle speed signalTRR
RT
SLIP indicator lamp signal T R
Parking brake switch signalRT
Steering angle sensor signal R T
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR
