ATC-106
TROUBLE DIAGNOSIS

*1AT C - 6 5 , "Operational Check".*2ATC-59, "FUNCTION CONFIRMA-
TION PROCEDURE", see No. 1.*3ATC-59, "
FUNCTION CONFIRMA-
TION PROCEDURE", see No. 5 to 7.
*4 QR engine: CO-9, "
Changing
Engine Coolant" or YD engine: CO-
32, "Changing Engine Coolant" .*5 QR engine; CO-13, "
Checking Radi-
ator Cap" or YD engine; CO-36,
"Checking Radiator Cap" .*6 QR engine; (WITH EURO-OBD) EC-
165, "DTC P0117, P0118 ECT SEN-
SOR" .
QR engine; (WITHOOUT EURO-
OBD) EC-652, "
DTC P0117, P0118
ECT SENSOR" .
YD engine; (WITH EURO-OBD) EC-
1093, "DTC P0117, P0118 ECT
SENSOR" .
YD engine; (WITHOUT EURO-OBD)
EC-1449, "
DTC P0117, P0118 ECT
SENSOR" .
*7AT C - 5 9 , "
FUNCTION CONFIRMA-
TION PROCEDURE", see No. 9.*8ATC-69, "
LAN System Circuit".*9ATC-82, "Blower Motor Circuit".
*10AT C - 7 6 , "
Air Mix Door Motor Cir-
cuit".

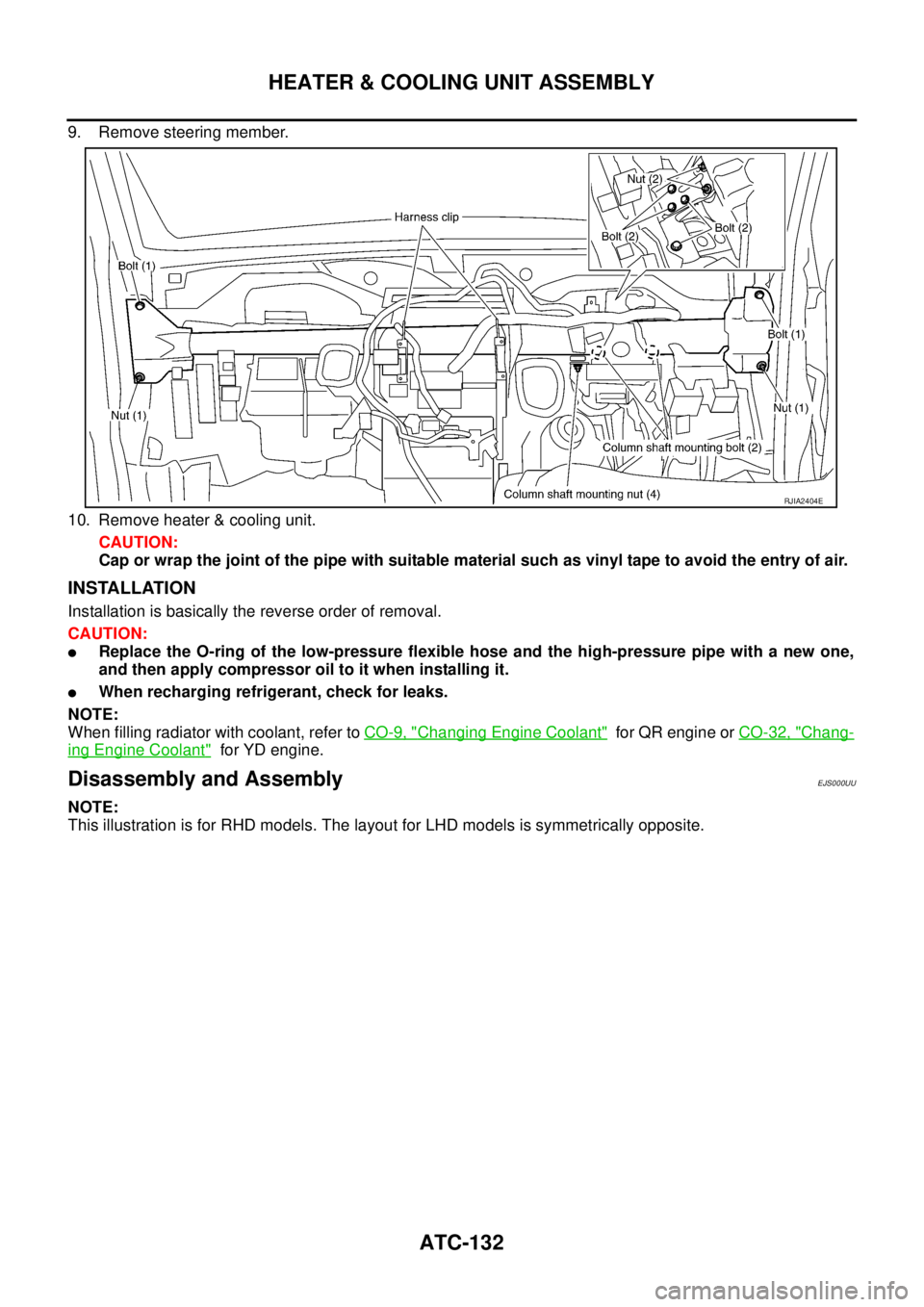

ATC-132
HEATER & COOLING UNIT ASSEMBLY

9. Remove steering member.
10. Remove heater & cooling unit.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:

Replace the O-ring of the low-pressure flexible hose and the high-pressure pipe with a new one,
and then apply compressor oil to it when installing it.

When recharging refrigerant, check for leaks.
NOTE:
When filling radiator with coolant, refer to CO-9, "
Changing Engine Coolant" for QR engine or CO-32, "Chang-
ing Engine Coolant" for YD engine.
Disassembly and AssemblyEJS000UU
NOTE:
This illustration is for RHD models. The layout for LHD models is symmetrically opposite.
RJIA2404E

MTC-20
TROUBLE DIAGNOSIS

*1 QR engine; CO-9, "Changing Engine
Coolant" or YD engine; CO-32,
"Changing Engine Coolant" .*2 QR engine; CO-13, "
Checking Radi-
ator Cap" or YD engine; CO-36,
"Checking Radiator Cap" .*3 QR engine; (WITH EURO-OBD) EC-
165, "DTC P0117, P0118 ECT SEN-
SOR" .
QR engine; (WITHOUT EURO-OBD)
EC-652, "
DTC P0117, P0118 ECT
SENSOR" .
YD engine; (WITH EURO-OBD) EC-
1093, "DTC P0117, P0118 ECT
SENSOR" .
YD engine; (WITHOUT EURO-OBD)
EC-1449, "
DTC P0117, P0118 ECT
SENSOR" .
*4 QR engine; CO-9, "
Changing Engine
Coolant" or YD engine; CO-32,
"Changing Engine Coolant" .*5 MTC-7, "
Operational Check" .*6MTC-3, "SYMPTOM TABLE".

MA-1
MAINTENANCE
L MAINTENANCE
CONTENTS
C
D
E
F
G
H
I
J
K
M
SECTION MA
A
B
MA

MAINTENANCE
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
Commercial Service Tools ........................................ 3
DESCRIPTION ............................................................ 4
Pre-Delivery Inspection Items .................................. 4
GENERAL MAINTENANCE ....................................... 6
General Maintenance ............................................... 6
PERIODIC MAINTENANCE ....................................... 7
Periodic Maintenance ............................................... 7
ENGINE AND EMISSION CONTROL MAINTE-
NANCE (QR20DE AND QR25DE PETROL
ENGINE) ............................................................... 7
CHASSIS AND BODY MAINTENANCE
(QR20DE AND QR25DE PETROL ENGINE) ....... 8
ENGINE AND EMISSION CONTROL MAINTE-
NANCE (YD22DDTI DIESEL ENGINE) ................ 9
CHASSIS AND BODY MAINTENANCE
(YD22DDTI DIESEL ENGINE) .............................. 9
MAINTENANCE UNDER SEVERE DRIVING
CONDITIONS ...................................................... 10
ENGINE AND EMISSION CONTROL MAINTE-
NANCE (QR20DE AND QR25DE PETROL
ENGINE) ............................................................. 12
CHASSIS AND BODY MAINTENANCE
(QR20DE AND QR25DE PETROL ENGINE) ..... 13
ENGINE AND EMISSION CONTROL MAINTE-
NANCE (YD22DDTI DIESEL ENGINE) .............. 14
CHASSIS AND BODY MAINTENANCE
(YD22DDTI DIESEL ENGINE) ............................ 14
MAINTENANCE UNDER SEVERE DRIVING
CONDITIONS ...................................................... 15
RECOMMENDED FLUIDS AND LUBRICANTS ...... 17
Fluids and Lubricants ............................................. 17
SAE Viscosity Number ........................................... 18
GASOLINE ENGINE ........................................... 18
DIESEL ENGINE ................................................. 18
Engine Coolant Mixture Ratio ................................ 19
ENGINE MAINTENANCE (QR20DE·QR25DE) ........ 20
Checking Drive Belts .............................................. 20
Tension Adjustment ................................................ 20Changing Engine Coolant ....................................... 20
DRAINING ENGINE COOLANT .......................... 20
REFILLING ENGINE COOLANT ......................... 21
FLUSHING COOLING SYSTEM ......................... 22
Checking Cooling System ...................................... 22
CHECKING COOLING SYSTEM HOSES ........... 22
CHECKING RADIATOR ...................................... 22
CHECKING RADIATOR CAP .............................. 22
CHECKING RADIATOR SYSTEM FOR LEAKS ... 23
Checking Fuel Lines ............................................... 24
Changing Air Cleaner Filter .................................... 24
VISCOUS PAPER TYPE ..................................... 24
Changing Engine Oil ............................................... 24
Changing Oil Filter .................................................. 25
REMOVAL ........................................................... 25
INSTALLATION ................................................... 25
INSPECTION AFTER INSTALLATION ................ 26
Checking and Changing Spark Plugs ..................... 26
REMOVAL ........................................................... 26
INSPECTION AFTER REMOVAL (EXCEPT FOR
RUSSIA) .............................................................. 26
INSPECTION AFTER REMOVAL (FOR RUS-
SIA) ..................................................................... 27
INSTALLATION ................................................... 28
Checking EVAP Vapor Lines .................................. 28
ENGINE MAINTENANCE (YD22DDTI) .................... 29
Checking Drive Belts .............................................. 29
Tension Adjustment ................................................ 29
A/C COMPRESSOR BELT .................................. 30
ALTERNATOR AND WATER PUMP BELT .......... 30
Changing Engine Coolant ....................................... 30
DRAINING ENGINE COOLANT .......................... 30
REFILLING ENGINE COOLANT ......................... 31
FLUSHING COOLING SYSTEM ......................... 32
Checking Cooling System ...................................... 32
CHECKING COOLING SYSTEM HOSES ........... 32
CHECKING RADIATOR ...................................... 32
CHECKING RADIATOR CAP .............................. 33
CHECKING RADIATOR SYSTEM FOR LEAKS ... 33
Checking Fuel Lines ............................................... 34

MA-2 Changing Fuel Filter ............................................... 34
REMOVAL ........................................................... 34
INSTALLATION .................................................... 35
INSPECTION AFTER INSTALLATION ................ 35
Changing Air Cleaner Filter .................................... 35
VISCOUS PAPER TYPE ..................................... 35
Changing Engine Oil ............................................... 35
Changing Oil Filter (TYPE A) .................................. 36
REMOVAL ........................................................... 36
INSTALLATION .................................................... 36
INSPECTION AFTER INSTALLATION ................ 36
Changing Oil Filter (TYPE B) .................................. 37
REMOVAL ........................................................... 37
INSTALLATION .................................................... 38
INSPECTION AFTER INSTALLATION ................ 38
Draining Water ........................................................ 38
CHASSIS AND BODY MAINTENANCE ................... 39
Checking Exhaust System ...................................... 39
Checking Clutch Fluid Level and Leaks ................. 39
Checking Clutch System ........................................ 39
Checking M/T Oil .................................................... 39
Changing M/T Oil .................................................... 40
Checking A/T Fluid ................................................. 40
Changing A/T Fluid ................................................. 41
Checking Transfer Oil ............................................. 41
Changing Transfer Oil ............................................. 42
Checking Propeller Shaft ........................................ 42
Checking Differential Gear Oil ................................ 43
Changing Differential Gear Oil ................................ 43
Balancing Wheels ................................................... 43
Rotation .................................................................. 43Checking Brake Fluid Level and Leaks ................... 44
Checking Brake Lines and Cables .......................... 44
Changing Brake Fluid ............................................. 44
Checking Disc Brake ............................................... 44
ROTOR ................................................................ 44
CALIPER .............................................................. 45
PAD ...................................................................... 45
Checking Steering Gear and Linkage ..................... 45
STEERING GEAR ............................................... 45
STEERING LINKAGE .......................................... 45
Checking Power Steering Fluid and Lines .............. 45
Axle and Suspension Parts ..................................... 46
Drive Shaft .............................................................. 46
Lubricating Locks, Hinges and Hood Latches ......... 46
Checking Seat Belts, Buckles, Retractors, Anchors
and Adjusters .......................................................... 47
Checking Body Corrosion ....................................... 48
HEMMED PANELS .............................................. 48
PANEL JOINT ...................................................... 48
PANEL EDGE ...................................................... 48
PARTS CONTACT ............................................... 48
PROTECTORS .................................................... 48
ANTI-CORROSION MATERIALS ........................ 48
DRAIN HOLES ..................................................... 48
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 49
Standard and Limit .................................................. 49
BELT DEFLECTION AND TENSION ................... 49
RADIATOR ........................................................... 49
ENGINE COOLANT CAPACITY .......................... 49
ENGINE OIL CAPACITY (APPROXIMATE) ........ 49
SPARK PLUG ...................................................... 49

PREPARATION
MA-3
C
D
E
F
G
H
I
J
K
MA
B
MA

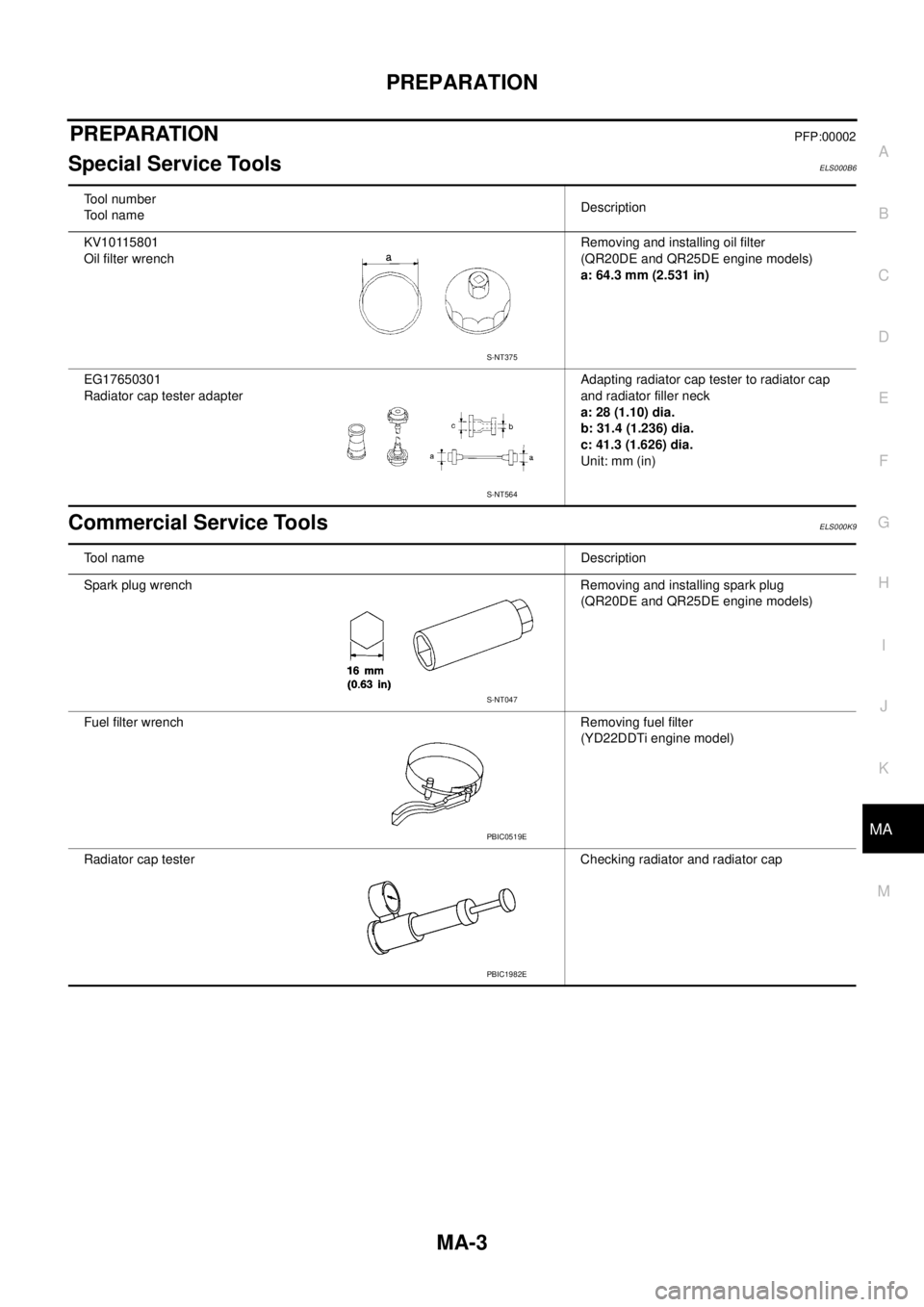

PREPARATIONPFP:00002
Special Service ToolsELS000B6
Commercial Service ToolsELS000K9
Tool number
Tool nameDescription
KV10115801
Oil filter wrenchRemoving and installing oil filter
(QR20DE and QR25DE engine models)
a: 64.3 mm (2.531 in)
EG17650301
Radiator cap tester adapterAdapting radiator cap tester to radiator cap
and radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)
S-NT375
S-NT564
Tool nameDescription
Spark plug wrench Removing and installing spark plug
(QR20DE and QR25DE engine models)
Fuel filter wrench Removing fuel filter
(YD22DDTi engine model)
Radiator cap tester Checking radiator and radiator cap
S-NT047
PBIC0519E
PBIC1982E

RECOMMENDED FLUIDS AND LUBRICANTS
MA-19
C
D
E
F
G
H
I
J
K
MA
B
MA

Engine Coolant Mixture RatioELS000AN
The engine cooling system is filled at the factory with a high-quality,
year-round and extended life engine coolant. The high quality engine
coolant contains the specific solutions effective for the anti-corrosion
and the anti-freeze function. Therefore, additional cooling system
additives are not necessary.
CAUTION:

When adding or replacing coolant, be sure to use only Gen-
uine NISSAN Anti-freeze Coolant (L250) or equivalent.
Because L250 is premixed type coolant.
The use of other types of engine coolant may damage your
cooling system.

When checking the engine coolant mixture ratio by the coolant
hydrometer, use the chart below to correct your hydrometer reading (specific gravity) according to coolant
temperature.
Mixed coolant specific gravity
Unit: specific gravity
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator. Wait until the engine and radiator cool down.
SMA089D
Engine coolant mixture
ratioCoolant temperature °C (°F)
15 (59) 25 (77) 35 (95) 45 (113)
30% 1.046 - 1.050 1.042 - 1.046 1.038 - 1.042 1.033 - 1.038
50% 1.076 - 1.080 1.070 - 1.076 1.065 - 1.071 1.059 - 1.065

MA-20
ENGINE MAINTENANCE (QR20DE·QR25DE)

ENGINE MAINTENANCE (QR20DE·QR25DE)PFP:00100
Checking Drive BeltsELS000ZC
WARNING:
Be sure to perform this step when the engine is stopped.

Make sure that the indicator (notch on fixed side) of drive belt auto-tensioner is within the possible use
range (between three line notches on moving side).
NOTE:

Check the drive belt auto-tensioner indication when the engine is cold.

When new drive belt is installed, the indicator (notch on fixed side) should be within the range “a” in the
figure.

Visually check entire drive belt for wear, damage or cracks.

If the indicator (notch on fixed side) is out of the possible use range or belt is damaged, replace drive belt.
Tension AdjustmentELS000ZD
Belt tensioning is not necessary, as it is automatically adjusted by drive belt auto-tensioner.
Changing Engine CoolantELS000ZE
WARNING:

To avoid being scalded, do not change engine coolant when engine is hot.

Wrap a thick cloth around radiator cap and carefully remove the cap. First, turn the cap a quarter
of a turn to release built-up pressure. Then turn the cap all the way.

Be careful not to allow engine coolant to contact drive belt.
DRAINING ENGINE COOLANT
1. Remove RH and LH undercovers.
2. Open radiator drain plug at the bottom of radiator, and then
remove radiator cap.
PBIC2622E
PBIC2250E
