2005 NISSAN X-TRAIL diagram

DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR
AT-175
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

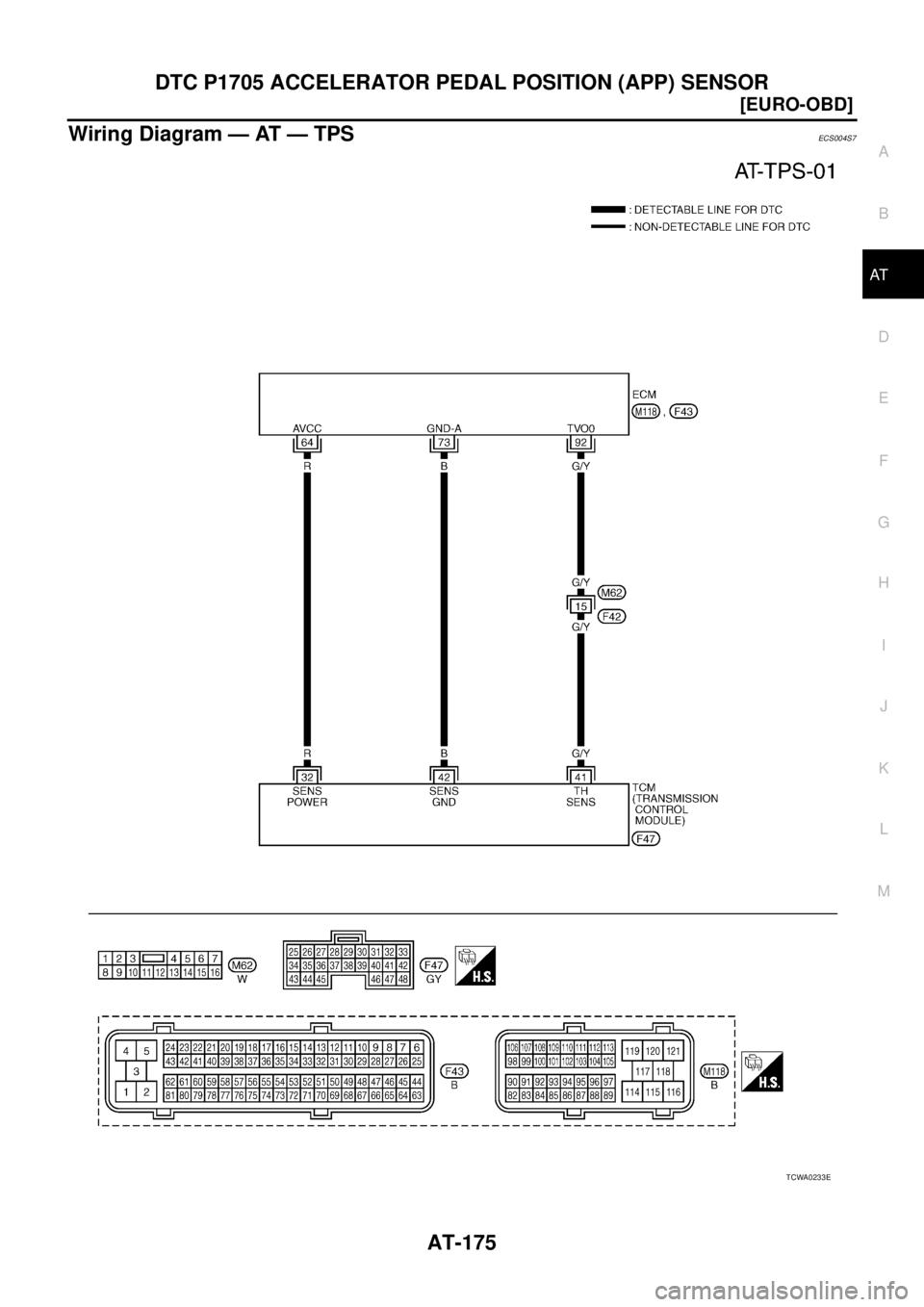

Wiring Diagram — AT — TPSECS004S7
TCWA0233E

AT-180
[EURO-OBD]
DTC P1760 OVERRUN CLUTCH SOLENOID VALVE

Wiring Diagram — AT — OVRCSVECS004SA
TCWA0042E

AT-186
[EURO-OBD]
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)

Wiring Diagram — AT — BA/FTSECS004SJ
TCWA0235E

AT-194
[EURO-OBD]
DTC VEHICLE SPEED SENSOR MTR

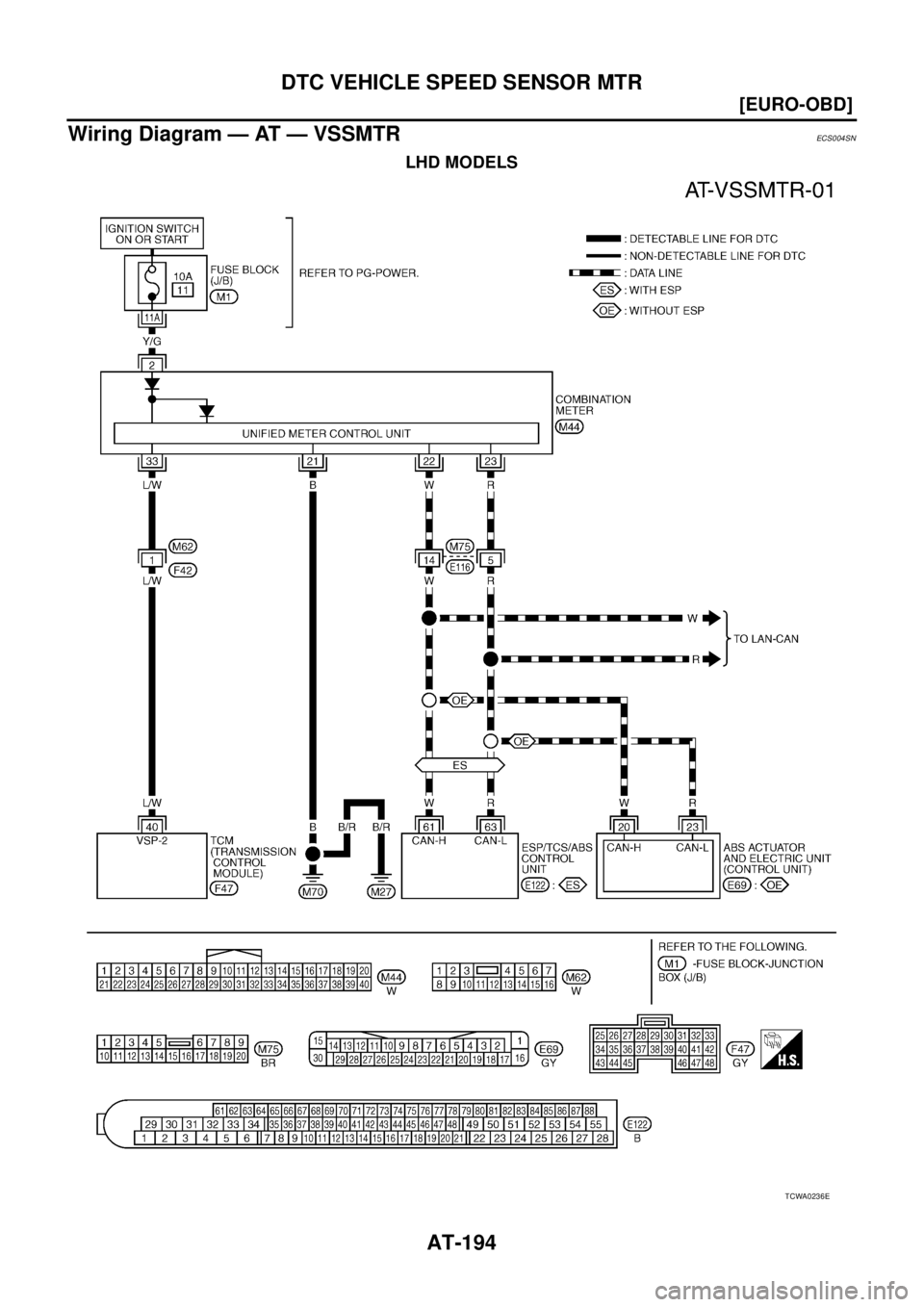

Wiring Diagram — AT — VSSMTRECS004SN
LHD MODELS
TCWA0236E

AT-202
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

TROUBLE DIAGNOSES FOR SYMPTOMSPFP:00100

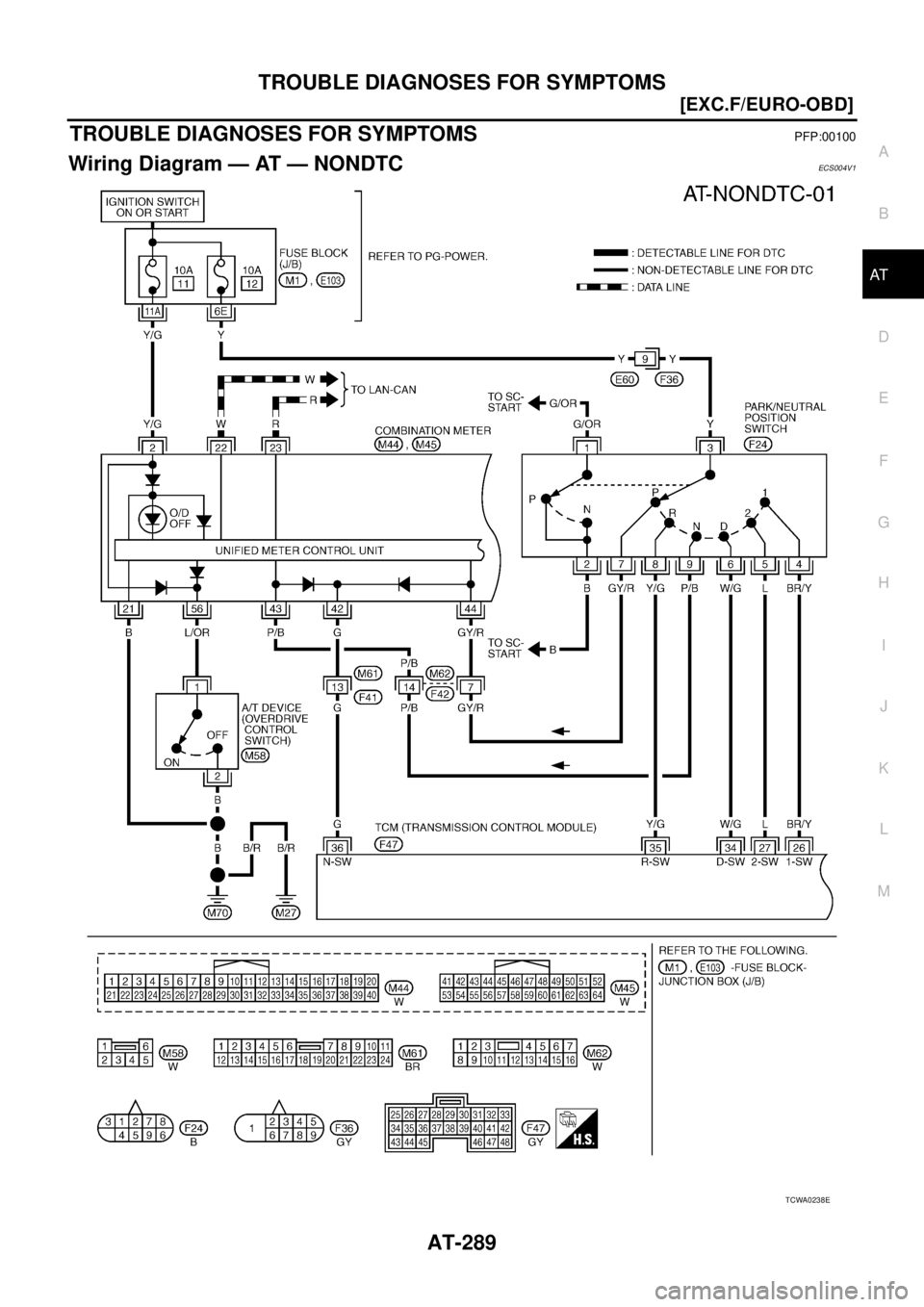

Wiring Diagram — AT — NONDTCECS004ST
TCWA0238E

AT-204
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

O/D OFF Indicator Lamp Does Not Come OnECS004SU
SYMPTOM:
O/D OFF indicator lamp does not come on for about 2 seconds
when turning ignition switch to “ON”.
1. CHECK TCM POWER SOURCE
1. Turn ignition switch to ON. (Do not start engine.)
2. Check voltage between TCM connector terminals 10, 19, 28 and ground.
3. Turn ignition switch to OFF.
4. Check voltage between TCM connector terminal 28 and ground.
OK or NG
OK >> GO TO 2.
NG >> Check the following items:

Harness for short or open between ignition switch and
TCM connector terminals 10, 19 and 28

Refer to AT- 3 9 5 , "Wiring Diagram — AT — MAIN" .

Ignition switch and fuse Refer to PG-2, "POWER SUPPLY ROUTING" .
2. CHECK TCM GROUND CIRCUIT
1. Turn ignition switch to OFF.
2. Disconnect TCM connector.
3. Check continuity between TCM connector terminals 25, 48 and
ground.
If OK, check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors. Refer to AT- 3 9 5 , "
Wiring Dia-
gram — AT — MAIN" .
3. CHECK COMBINATION METERS SYSTEM
Check combination meters system. Refer to DI-14, "
Combination Meter" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
SCIA4281E
Voltage: Battery voltage
Voltage: Battery voltage
SCIA0713E
Continuity should exist.
SCIA0766E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-289
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

TROUBLE DIAGNOSES FOR SYMPTOMSPFP:00100
Wiring Diagram — AT — NONDTCECS004V1
TCWA0238E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-291
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

O/D OFF Indicator Lamp Does Not Come OnECS00EBE
SYMPTOM:
O/D OFF indicator lamp does not come on for about 2 seconds
when turning ignition switch to “ON”.
1. CHECK TCM POWER SOURCE
1. Turn ignition switch to ON. (Do not start engine.)
2. Check voltage between TCM connector terminals 10, 19, 28 and ground.
3. Turn ignition switch to OFF.
4. Check voltage between TCM connector terminal 28 and ground.
OK or NG
OK >> GO TO 2.
NG >> Check the following items:

Harness for short or open between ignition switch and
TCM connector terminals 10, 19 and 28

Refer to AT- 3 9 5 , "Wiring Diagram — AT — MAIN" .

Ignition switch and fuse Refer to PG-2, "POWER SUPPLY ROUTING" .
2. CHECK TCM GROUND CIRCUIT
1. Turn ignition switch to OFF.
2. Disconnect TCM connector.
3. Check continuity between TCM connector terminals 25, 48 and
ground.
If OK, check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors. Refer to AT- 3 9 5 , "
Wiring Dia-
gram — AT — MAIN" .
3. CHECK COMBINATION METERS SYSTEM
Check combination meters system. Refer to DI-14, "
Combination Meter" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
SCIA4281E
Voltage: Battery voltage
Voltage: Battery voltage
SCIA0713E
Continuity should exist.
SCIA0766E
