PRECAUTIONS
Service NoticeEDS001V7
After overhaul refill the transfer with new transfer oil.
Check the oil level or replace the oil only with the vehicle parked on level ground.
During removal or installation, keep inside of transfer clear of dust or dirt.
Replace all tires at the same time. Always use tires of the proper size and the same brand and pattern.
Fitting improper size and unusual wear tires applies excessive force to vehicle mechanism and can cause
longitudinal vibration.
Disassembly should be done in a clean work area.
Before proceeding with disassembly, thoroughly clean the transfer. It is important to prevent the internal
parts from becoming contaminated by dirt or other foreign matter.
Check for the correct installation status prior to removal or disassembly. If matching marks are required,
be certain they do not interfere with the function of the parts when applied.
All parts should be carefully cleaned with a general purpose, non-flammable solvent before inspection or
reassembly.
Check appearance of the disassembled parts for damage, deformation, and unusual wear. Replace them
with a new ones if necessary.
Gaskets, seals, O-rings and lock nuts should be replaced any time when the transfer is disassembled.
In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to outside. If
tightening sequence is specified, use it.
Observe the specified torque when assembling.
Clean and flush the parts sufficiently and blow-dry them.
Be careful not to damage sliding surfaces and mating surfaces.
Use lint-free cloth or towels for wiping parts clean. Common shop rags can leave fibers that could interfere
with the operation of the transfer.
Wiring Diagrams and Trouble DiagnosisEDS001V8
When reading wiring diagrams, refer to the following:
GI-14, "How to Read Wiring Diagrams".
PG-2, "POWER SUPPLY ROUTING".
When performing trouble diagnosis, refer to the following:
GI-10, "How to Follow Trouble Diagnoses".
GI-23, "How to Perform Efficient Diagnosis for an Electrical Incident".
Page 2815 of 4555
ALL MODE 4X4 SYSTEM
TF-11
C
E
F
G
H
I
J
K
L
MA
B
TF
ALL MODE 4X4 SYSTEMPFP:47850
Power Transfer DiagramEDS001VA
System DescriptionEDS001VB
ELECTRIC CONTROLLED COUPLING
Operation Principle
1. The 4WD control unit supplies command current to electric con-
trolled coupling (4WD solenoid).
2. The control clutch is engaged by electromagnet and torque is
detected in control clutch.
3. The cam operates in response to control clutch torque and
applies pressure to main clutch.
4. The main clutch transmits torque to front wheels according to
pressing power.
Transmission torque to the rear wheels is determined accord-
ing to command current.
4WD CONTROL UNIT
4WD controls distribution of drive power between front-wheel
drive (100:0) and 4WD (50:50) conditions according to signals
from sensors.
Self-diagnosis can be done with CONSULT-II.
SDIA1607E
SFIA0284E
SDIA1844E
SDIA2285E
Page 2817 of 4555
ALL MODE 4X4 SYSTEM
TF-13
C
E
F
G
H
I
J
K
L
MA
B
TF
System DiagramEDS001VC
Large difference in diameter of front/rear tiresSlow flashing: 1 time/2 seconds
(Continuing to flash until turning ignition switch OFF)
Other than above (system normal) OFFCondition 4WD warning lamp
SDIA1866E
Page 2819 of 4555
ALL MODE 4X4 SYSTEM
TF-15
C
E
F
G
H
I
J
K
L
MA
B
TF
TYPE 1/TYPE 2
System diagram
Input/output signal chart
T: Transmit R: Receive
*: YD engine models only
PKIA6458E
Signals ECMABS actuator and
electric unit
(control unit)4WD control unit Combination meter
4WD mode indicator lamp signal T R
4WD warning lamp signalTR
A/C compressor feedback signal T R
ABS warning lamp signal T R
Accelerator pedal position signal T R
Engine coolant temperature signal T R
Engine speed signal T R R
MI signal T R
Parking brake switch signalRT
Stop lamp switch signal T R
Vehicle speed signalTRR
RT
ASCD SET lamp signal T R
Stop lamp switch signal T R
Glow indicator lamp signal* T R
A/C switch signal* R T
Page 2820 of 4555
TF-16
ALL MODE 4X4 SYSTEM
TYPE 3
System diagram
Input/output signal chart
T: Transmit R: Receive
PKIA6457E
Signals ECM TCMABS actuator
and electric unit
(control unit)4WD control
unitCombination
meter
4WD mode indicator lamp signalTR
4WD warning lamp signalTR
A/C compressor feedback signal TR
A/T position indicator lamp signal T R
A/T self-diagnosis signal R T
ABS warning lamp signal T R
Accelerator pedal position signal T R
Closed throttle position signal T R
Engine A/T integrated control signalTR
RT
Engine coolant temperature signal TR
Engine speed signal T R R
MI signal TR
O/D OFF indicator signal T R
Output shaft revolution signal R T
Overdrive control switch signal R T
P·N range signal R T
Parking brake switch signalRT
Stop lamp switch signalRT
TR
Vehicle speed signalTRR
RT
Wide open throttle position signal T R
Page 2821 of 4555
ALL MODE 4X4 SYSTEM
TF-17
C
E
F
G
H
I
J
K
L
MA
B
TF
TYPE 4/TYPE 5
System diagram
Input/output signal chart
T: Transmit R: Receive ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR Signals ECM TCMABS actuator
and electric unit
(control unit)4WD control
unitCombination
meter
PKIA9634E
Signals ECMESP/TCS/ABS
control unitSteering angle
sensor4WD control
unitCombination
meter
4WD mode indicator lamp signalTR
4WD warning lamp signalTR
A/C compressor feedback signal*
2TR
A/C switch signal*
1RT
ABS warning lamp signal T R
Accelerator pedal position signal T R R
Brake warning lamp signal T R
Engine coolant temperature signal TR
Engine speed signal T R R R
ESP OFF indicator lamp signal T R
Glow indicator lamp signal*1 TR
MI signal TR
Stop lamp switch signal T R
Vehicle speed signalTRR
RT
SLIP indicator lamp signal T R
Parking brake switch signalRT
Steering angle sensor signal R T
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR
Page 2822 of 4555
TF-18
ALL MODE 4X4 SYSTEM
*1: YD engine models only
*2: QR engine models only
TYPE 6
System diagram
Input/output signal chart
T: Transmit R: Receive
PKIA9635E
Signals ECM TCMESP/TCS/
ABS control
unitSteering
angle sensor4WD control
unitCombination
meter
4WD mode indicator lamp signalTR
4WD warning lamp signalTR
A/C compressor feedback signal TR
A/T position indicator lamp signal T R R
A/T self-diagnosis signal R T
ABS warning lamp signal T R
Accelerator pedal position signal T R R
Brake warning lamp signal T R
Closed throttle position signal T R
Engine and A/T integratedTR
RT
Engine coolant temperature signal TR
Engine speed signal T R R R
ESP OFF indicator lamp signal T R
MI signal TR
O/D OFF indicator signal T R
Output shaft revolution signal R T
Overdrive control switch signal R T
P·N range signal R T
SLIP indicator lamp signal T R
Steering angle sensor signal R T
Page 2826 of 4555
TF-22
TROUBLE DIAGNOSIS

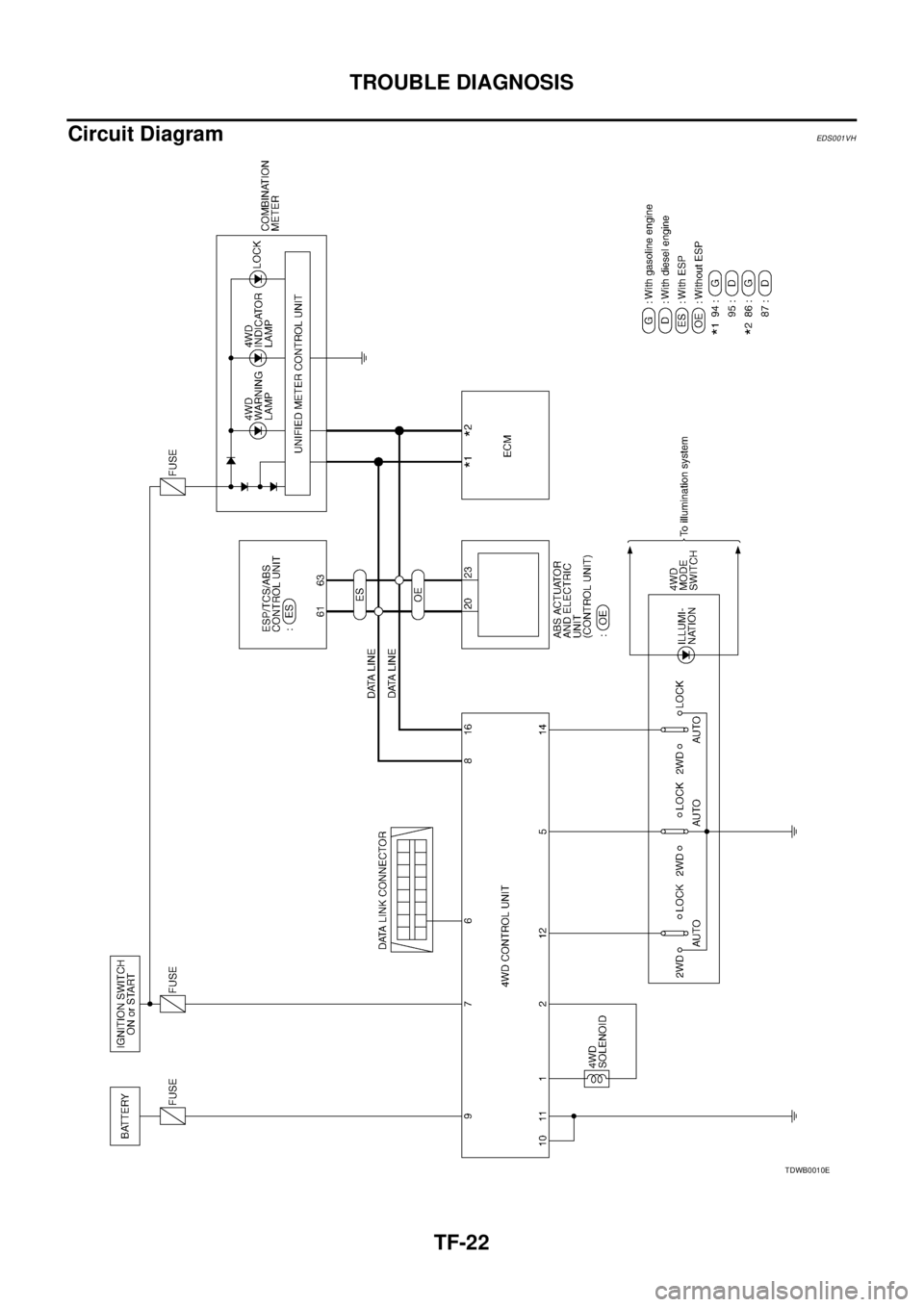

Circuit DiagramEDS001VH
