CAN COMMUNICATION

TYPE 7/TYPE 8
System diagram
Input/output signal chart
T: Transmit R: Receive Accelerator pedal position signal T R
Closed throttle position signal T R
Engine A/T integrated control signalTR
RT
Engine coolant temperature signal TR
Engine speed signal T R R
MI signal TR
O/D OFF indicator signal T R
Output shaft revolution signal R T
Overdrive control switch signal R T
P·N range signal R T
Parking brake switch signalRT
Stop lamp switch signalRT
TR
Vehicle speed signalTRR
RT
Wide open throttle position signal T R
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR Signals ECM TCMABS actuator
and electric unit
(control unit)4WD control
unitCombination
meter
SKIA9999E
Signals ECM ABS actuator and electric unit (control unit) Combination meter
A/C compressor feedback signal T R
ABS warning lamp signal T R
Engine coolant temperature signal T R
Engine speed signal T R

TROUBLE DIAGNOSIS
BRC-17
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

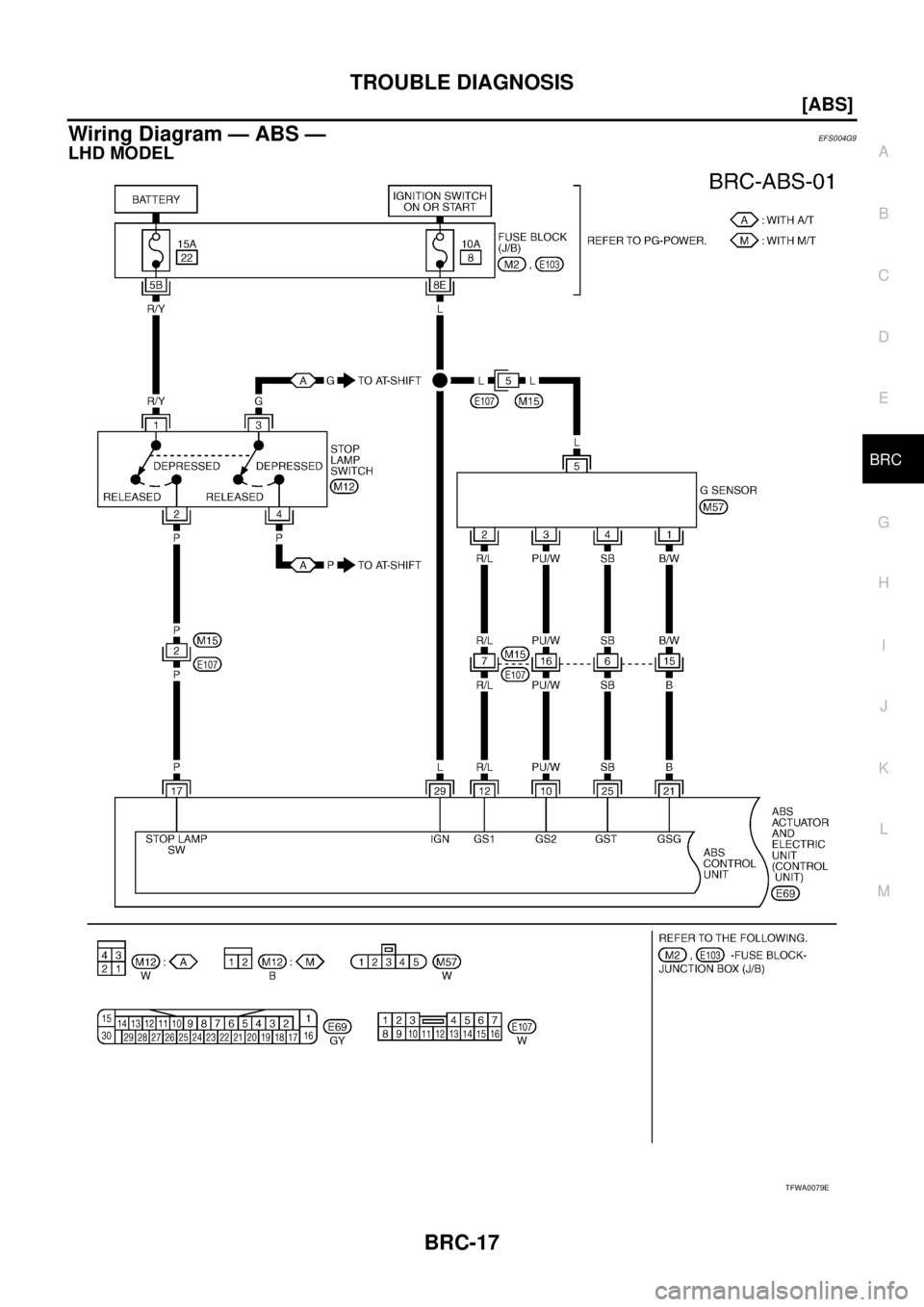

Wiring Diagram — ABS —EFS004G9
LHD MODEL
TFWA0079E

SYSTEM DESCRIPTION
BRC-53
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

SYSTEM DESCRIPTIONPFP:00000
System DiagramEFS0019X
ESP FunctionEFS0019W
1. The Electronic Stability Program is called the ESP for short. ESP is indicated as ESP on CONSULT-II
screen.
2. In addition to the ABS/TCS function, ESP detects a driver's steering operation amount and brake opera-
tion amount from steering angle sensor and pressure sensor. Using the information from yaw rate/side G
sensor and wheel sensors, ESP judges the driving condition (conditions of understeer and oversteer) to
improve the stability by controlling brake on 4 wheels and engine output.
3. During ESP operation, SLIP indicator lamp flashes to inform the driver of the operation.
CAUTION:

During ESP operation, body and the brake pedal lightly vibrate and their mechanical noise may be
heard. This is a normal condition.

If vehicle is rotated on a turn table, or rolled and rocked on a ship, the ABS warning lamp,
ESP OFF indicator lamp, and SLIP indicator lamp may turn on. In this case, start engine on a nor-
mal road again. If the ABS warning lamp, ESP OFF indicator lamp, and SLIP indicator lamp turn
off after the restart, it is normal.

When driving in a steep slope such as a bank, ABS warning lamp, ESP OFF indicator lamp, and
SLIP indicator lamp may turn on. In this case, start the engine on a normal road again. If ABS
warning lamp, ESP OFF indicator lamp, and SLIP indicator lamp turn off after the restart, it is nor-
mal.
TCS FunctionEFS0019V
1. With the wheel sensor signals from 4 wheels, the ESP/TCS/ABS control unit detects a wheel spin. If a
wheel spins, the control unit controls brake fluid pressure to the spinning wheel, and cuts the fuel to the
engine. It also closes the throttle valve to reduce the engine torque. Furthermore, throttle position is con-
trolled to the appropriate engine torque.
2. If a wheel spins, the TCS system works and function by applying brake fluid pressure to the spinning
wheel.
SFIA2012E

SYSTEM DESCRIPTION
BRC-55
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

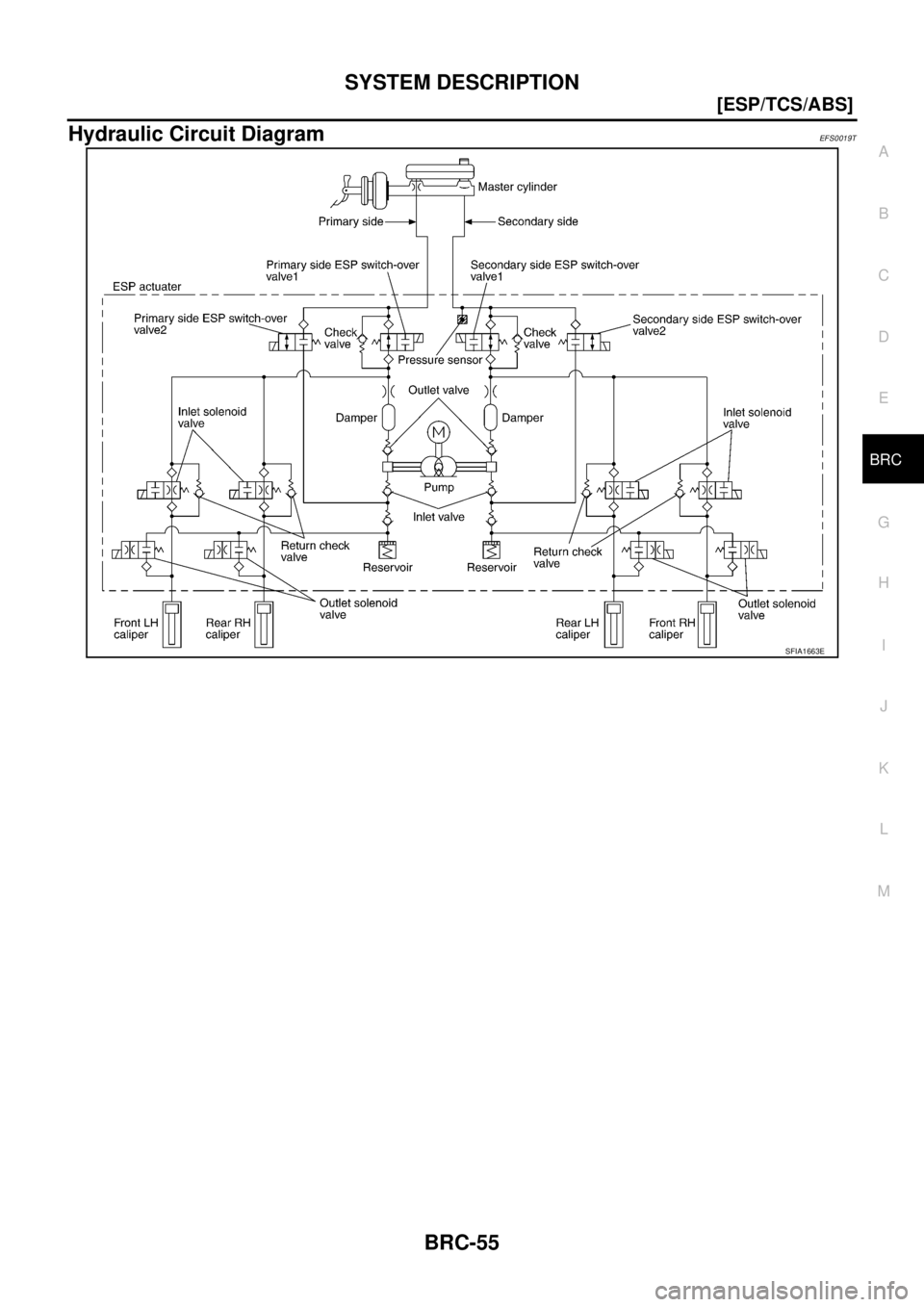

Hydraulic Circuit DiagramEFS0019T
SFIA1663E

BRC-56
[ESP/TCS/ABS]
CAN COMMUNICATION

CAN COMMUNICATIONPFP:23710
System DescriptionEFS0067I
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitEFS0067J
TYPE 4/TYPE 5
System diagram
Input/output signal chart
T: Transmit R: Receive Body typeWagon
Axle4WD 2WD
Engine YD22DDTi QR25DE YD22DDTi
Transmission M/T A/T M/T
Brake controlESP
CAN system type 4 5 6 9
ECM×× × ×
TCM×
ESP/TCS/ABS control unit×× × ×
ABS actuator and electric unit (control unit)
Steering angle sensor×× × ×
4WD control unit×× ×
Combination meter×× × ×
PKIA9634E
Signals ECMESP/TCS/ABS
control unitSteering angle
sensor4WD control
unitCombination
meter
4WD mode indicator lamp signalTR
4WD warning lamp signalTR
A/C compressor feedback signal*
2TR

CAN COMMUNICATION
BRC-57
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

*1: YD engine models only
*2: QR engine models only
TYPE 6
System diagram
Input/output signal chart
T: Transmit R: Receive A/C switch signal*
1RT
ABS warning lamp signal T R
Accelerator pedal position signal T R R
Brake warning lamp signal T R
Engine coolant temperature signal TR
Engine speed signal T R R R
ESP OFF indicator lamp signal T R
Glow indicator lamp signal*1 TR
MI signal TR
Stop lamp switch signal T R
Vehicle speed signalTRR
RT
SLIP indicator lamp signal T R
Parking brake switch signalRT
Steering angle sensor signal R T
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR Signals ECMESP/TCS/ABS
control unitSteering angle
sensor4WD control
unitCombination
meter
PKIA9635E
Signals ECM TCMESP/TCS/
ABS control
unitSteering
angle sensor4WD control
unitCombination
meter
4WD mode indicator lamp signalTR
4WD warning lamp signalTR
A/C compressor feedback signal TR

BRC-58
[ESP/TCS/ABS]
CAN COMMUNICATION

TYPE 9
System diagram
A/T position indicator lamp signal T R R
A/T self-diagnosis signal R T
ABS warning lamp signal T R
Accelerator pedal position signal T R R
Brake warning lamp signal T R
Closed throttle position signal T R
Engine and A/T integratedTR
RT
Engine coolant temperature signal TR
Engine speed signal T R R R
ESP OFF indicator lamp signal T R
MI signal TR
O/D OFF indicator signal T R
Output shaft revolution signal R T
Overdrive control switch signal R T
P·N range signal R T
SLIP indicator lamp signal T R
Steering angle sensor signal R T
Stop lamp switch signalRT
TR
Vehicle speed signalTRR
RT
Parking brake switch signalRT
Wide open throttle position signal T R
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR Signals ECM TCMESP/TCS/
ABS control
unitSteering
angle sensor4WD control
unitCombination
meter
PKIC0343E

TROUBLE DIAGNOSIS
BRC-65
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

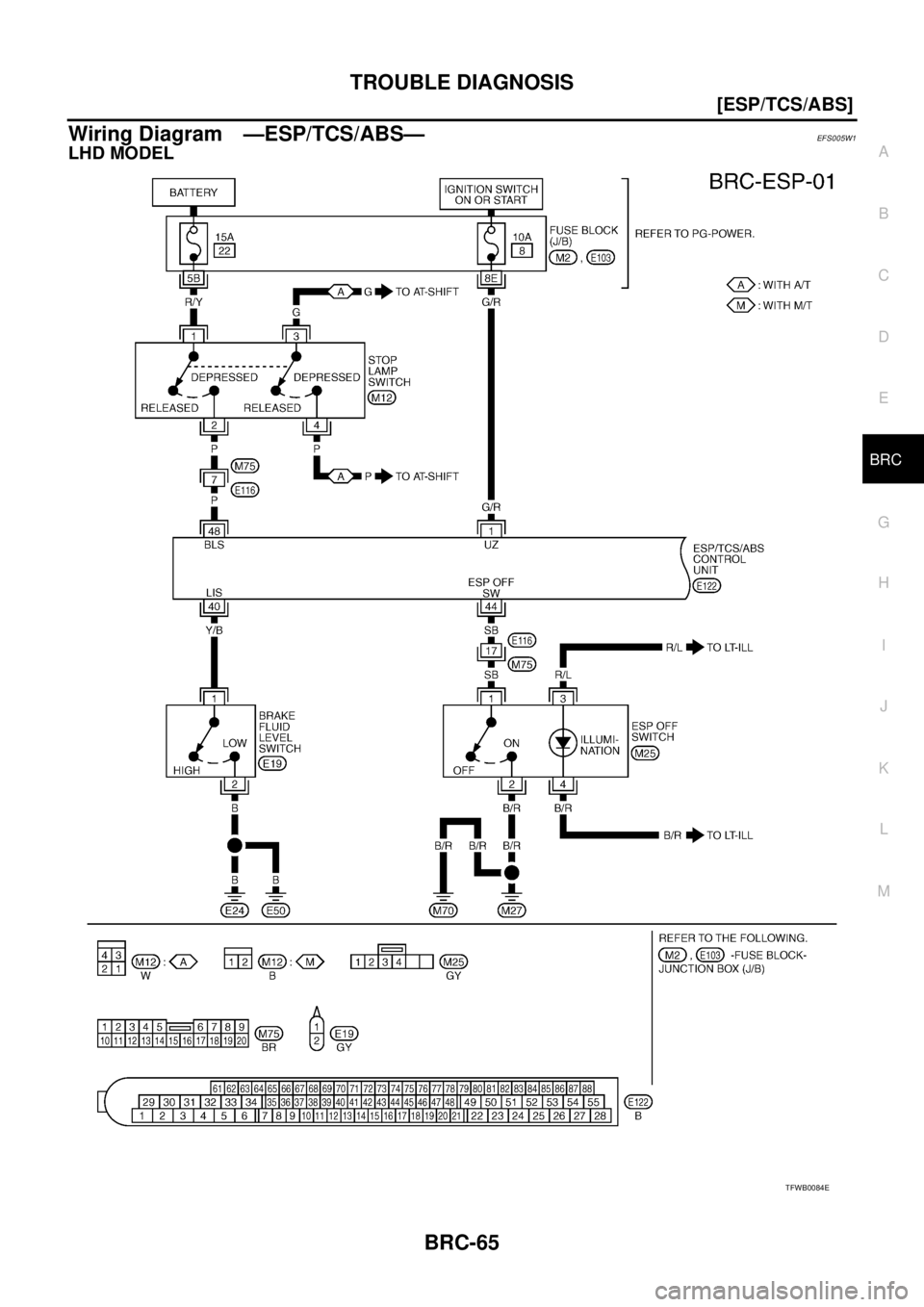

Wiring Diagram —ESP/TCS/ABS—EFS005W1
LHD MODEL
TFWB0084E
