2005 NISSAN X-TRAIL diagram

AT-330
[ALL]
CAN COMMUNICATION LINE

Wiring Diagram — AT — CANECS004UM
TCWA0234E

AT-334
[ALL]

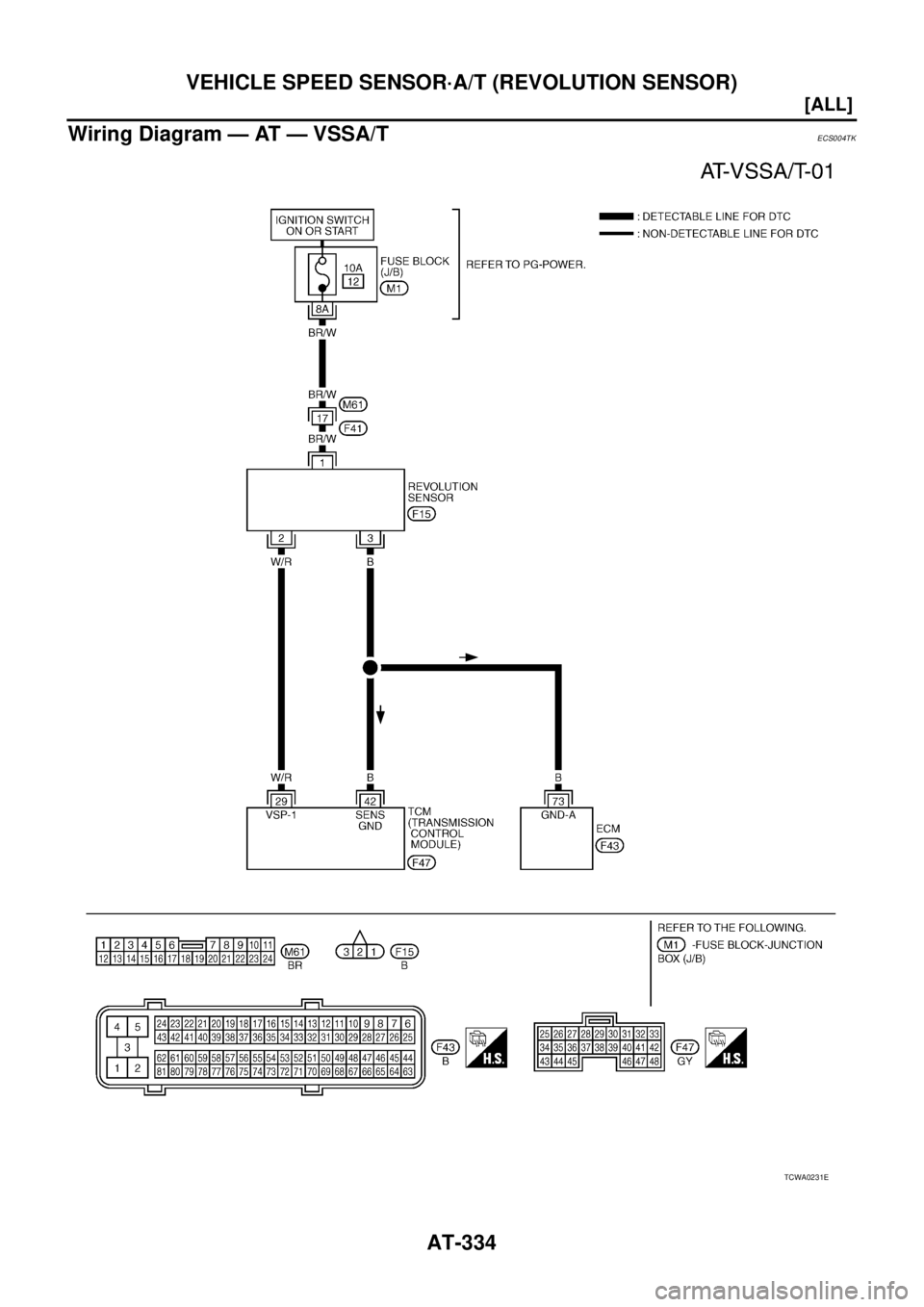

VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)

Wiring Diagram — AT — VSSA/TECS004TK
TCWA0231E

AT-336
[ALL]
VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)

2. CHECK REVOLUTION SENSOR
With CONSULT-II
1. Start engine.
2. Check power supply to revolution sensor by voltage between TCM connector terminals. Refer to AT- 3 9 5 ,
"Wiring Diagram — AT — MAIN" and AT- 3 3 4 , "Wiring Diagram — AT — VSSA/T" .
3. If OK check the pulse when vehicle cruises.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
Item Connector
No. Terminal No. (Wire color) Data (Approx.)
TCM F46, F47 10 (BR/W) - 42 (B)
Battery voltage
19 (BR/W) - 42 (B)
Name Condition
Revolution sensorWhen moving at 20 km/h (12 MPH), use the CONSULT-II
pulse frequency measuring function.
CAUTION:
Connect the diagnosis data link cable to the data link
connector.
Item Connector
No. Te r m i n a l
No. (Wire
color) Name Data
(Approx.)
TCM F47 29 (W/R) Revolution sensor 450 Hz
SCIA2344E

AT-338
[ALL]
VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)

6. CHECK HARNESS BETWEEN TCM AND REVOLUTION SENSOR (POWER)
1. Turn ignition switch OFF.
2. Disconnect the TCM connector and revolution sensor harness connector.
3. Check continuity between TCM connector and revolution sensor
harness connector. Refer to AT- 2 1 , "
Circuit Diagram" and AT-
395, "Wiring Diagram — AT — MAIN" .
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> Fuse or ignition switch are malfunctioning.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK HARNESS BETWEEN TCM AND REVOLUTION SENSOR (SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect the TCM connector and revolution sensor harness connector.
3. Check continuity between TCM connector and revolution sensor
harness connector.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK DTC
Perform AT- 3 3 2 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F46 10 (BR/W)
Ye s
Revolution sensor F15 1 (Y)
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F46 19 (BR/W)
Ye s
Revolution sensor F15 1 (Y)
SCIA2617E
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F47 42 (B)
Ye s
Revolution sensor F15 3 (B)
SCIA2618E

DTC VEHICLE SPEED SENSOR MTR
AT-341
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

Wiring Diagram — AT — VSSMTRECS004TN
LHD models
TCWA0236E

ACCELE RATOR PEDAL POSITION (APP) SENSOR
AT-347
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

Wiring Diagram — AT — TPSECS004TQ
TCWA0233E

AT-352
[ALL]
SHIFT SOLENOID VALVE A

Wiring Diagram — AT — SSV/AECS004TT
TCWA0040E

AT-358
[ALL]

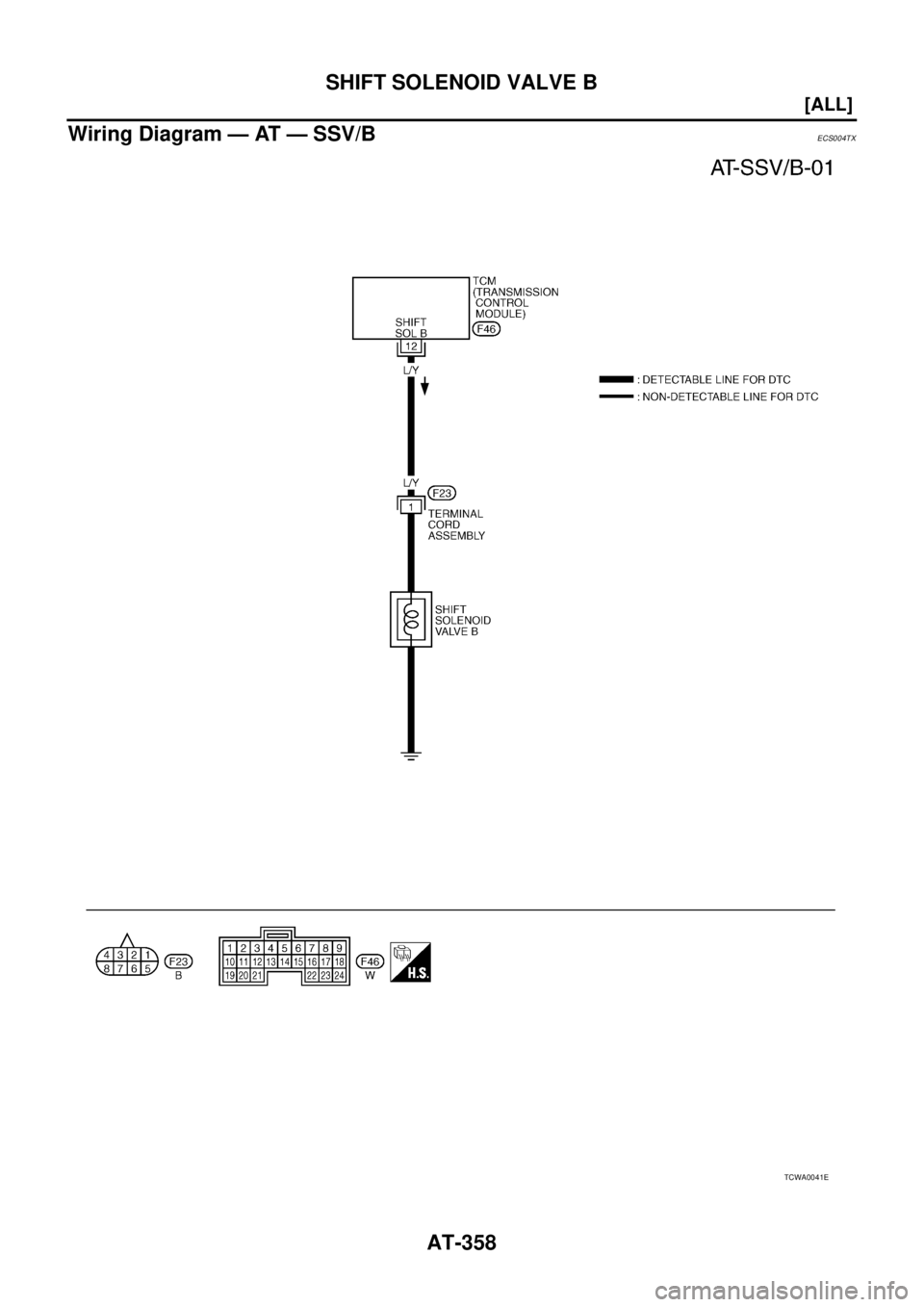

SHIFT SOLENOID VALVE B

Wiring Diagram — AT — SSV/BECS004TX
TCWA0041E
