2005 NISSAN X-TRAIL diagram

FUEL TRANSPORT PUMP
EC-1683
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

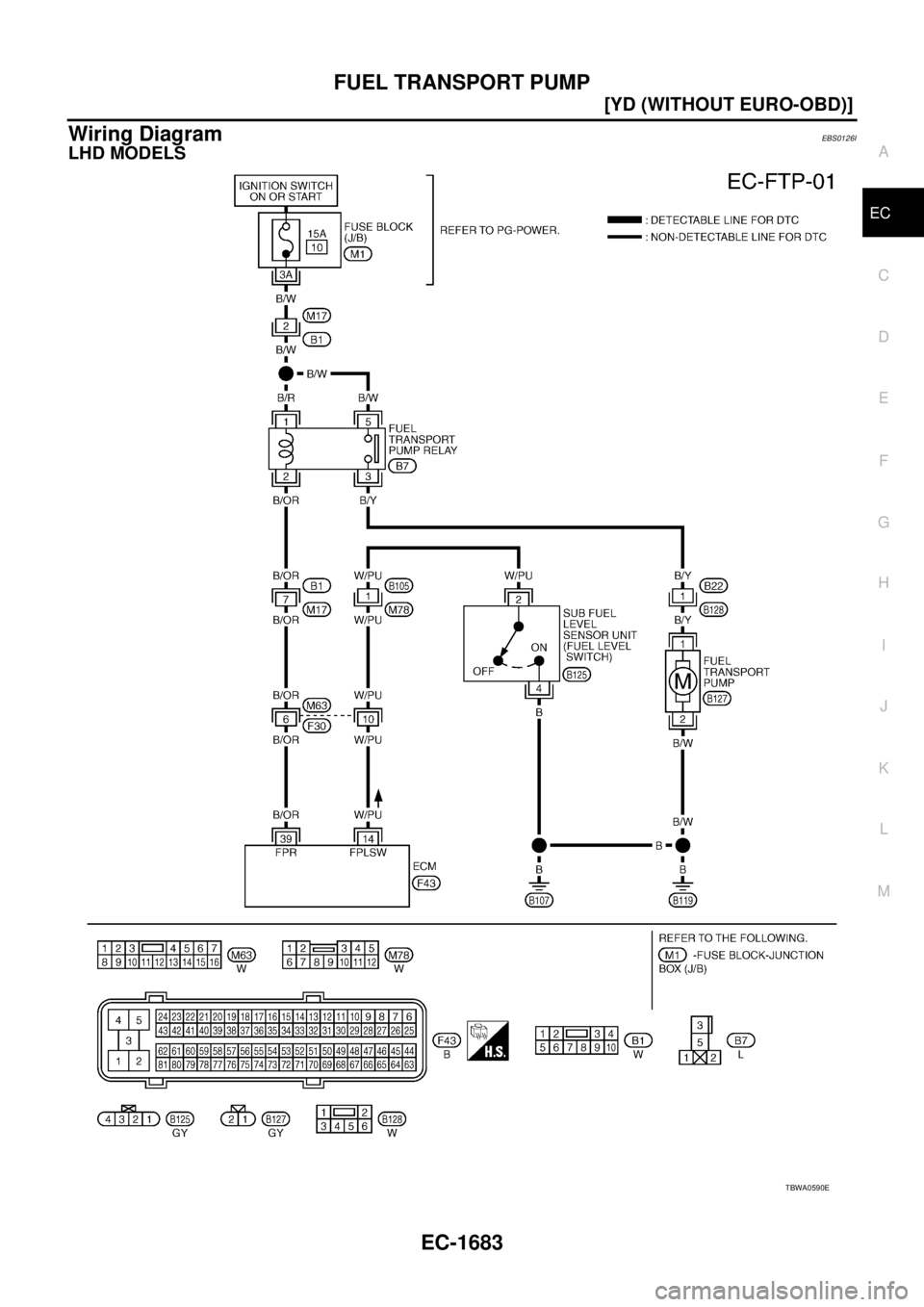

Wiring DiagramEBS0126I
LHD MODELS
TBWA0590E

FUEL TRANSPORT PUMP
EC-1687
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

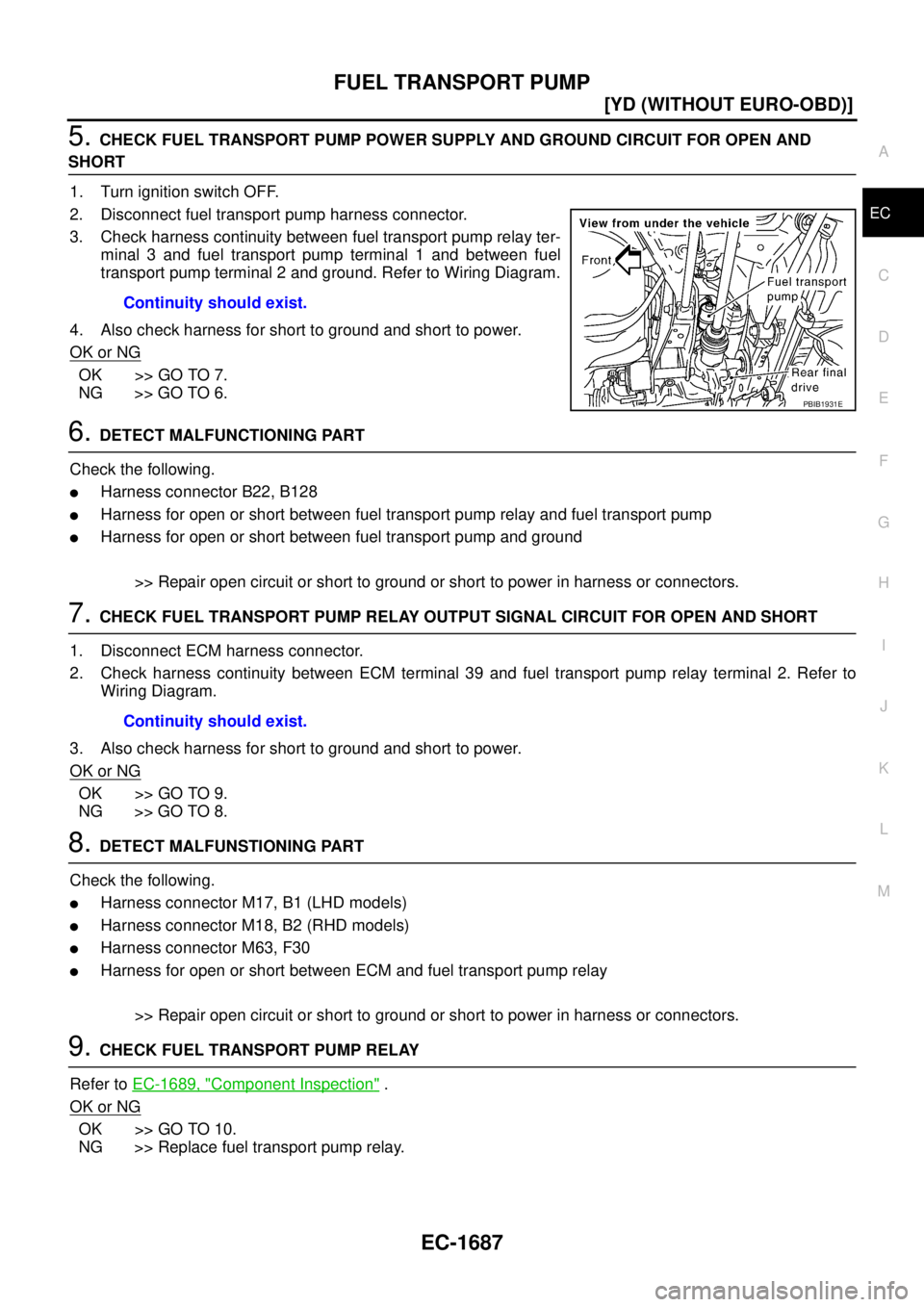

5. CHECK FUEL TRANSPORT PUMP POWER SUPPLY AND GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Disconnect fuel transport pump harness connector.
3. Check harness continuity between fuel transport pump relay ter-
minal 3 and fuel transport pump terminal 1 and between fuel
transport pump terminal 2 and ground. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connector B22, B128

Harness for open or short between fuel transport pump relay and fuel transport pump

Harness for open or short between fuel transport pump and ground
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK FUEL TRANSPORT PUMP RELAY OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 39 and fuel transport pump relay terminal 2. Refer to
Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNSTIONING PART
Check the following.

Harness connector M17, B1 (LHD models)

Harness connector M18, B2 (RHD models)

Harness connector M63, F30

Harness for open or short between ECM and fuel transport pump relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK FUEL TRANSPORT PUMP RELAY
Refer to EC-1689, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace fuel transport pump relay.Continuity should exist.
PBIB1931E
Continuity should exist.

EC-1688
[YD (WITHOUT EURO-OBD)]
FUEL TRANSPORT PUMP

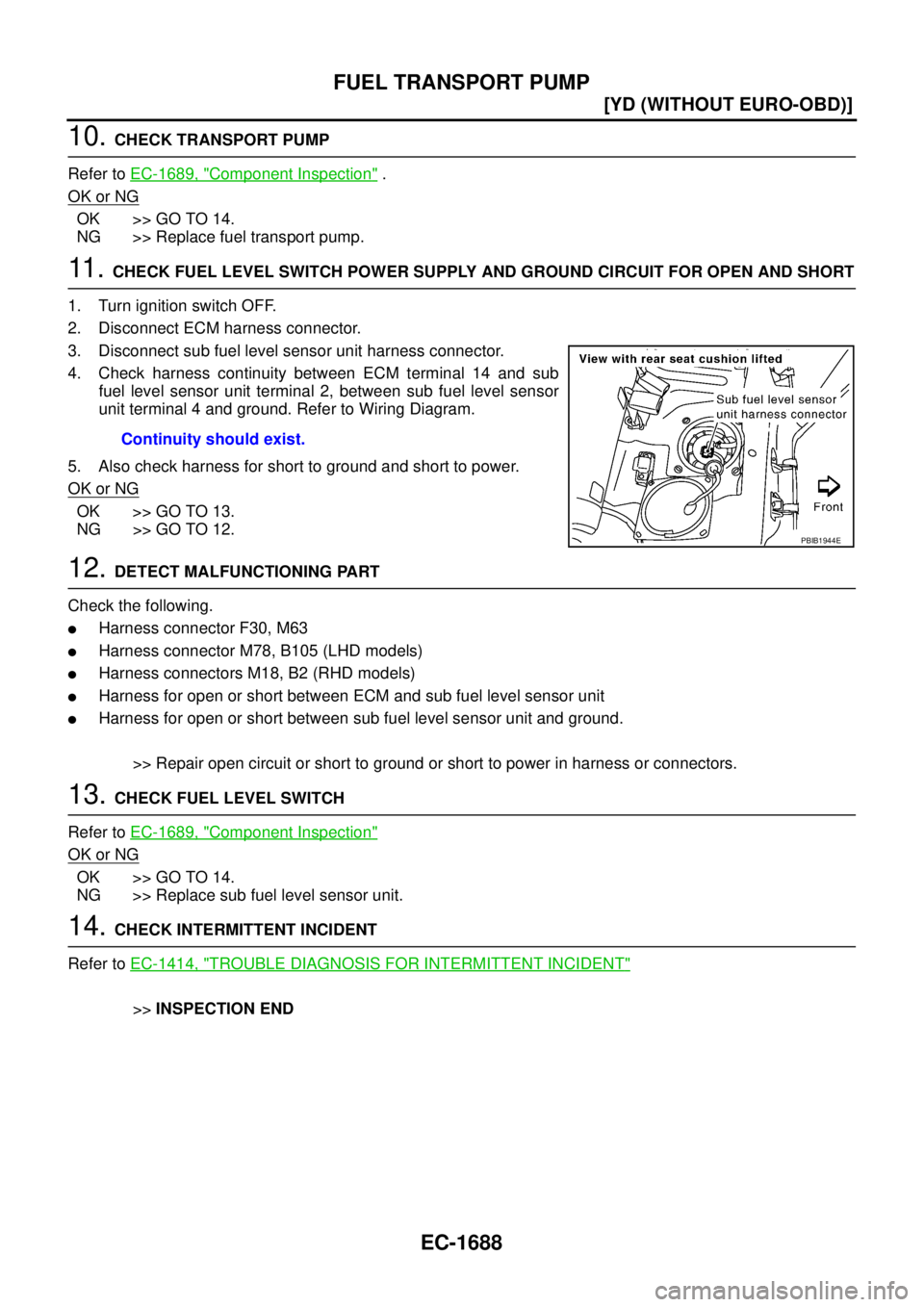

10. CHECK TRANSPORT PUMP
Refer to EC-1689, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace fuel transport pump.
11 . CHECK FUEL LEVEL SWITCH POWER SUPPLY AND GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect sub fuel level sensor unit harness connector.
4. Check harness continuity between ECM terminal 14 and sub
fuel level sensor unit terminal 2, between sub fuel level sensor
unit terminal 4 and ground. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 13.
NG >> GO TO 12.
12. DETECT MALFUNCTIONING PART
Check the following.

Harness connector F30, M63

Harness connector M78, B105 (LHD models)

Harness connectors M18, B2 (RHD models)

Harness for open or short between ECM and sub fuel level sensor unit

Harness for open or short between sub fuel level sensor unit and ground.
>> Repair open circuit or short to ground or short to power in harness or connectors.
13. CHECK FUEL LEVEL SWITCH
Refer to EC-1689, "
Component Inspection"
OK or NG
OK >> GO TO 14.
NG >> Replace sub fuel level sensor unit.
14. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"
>>INSPECTION END Continuity should exist.
PBIB1944E

ASCD INDICATOR
EC-1693
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

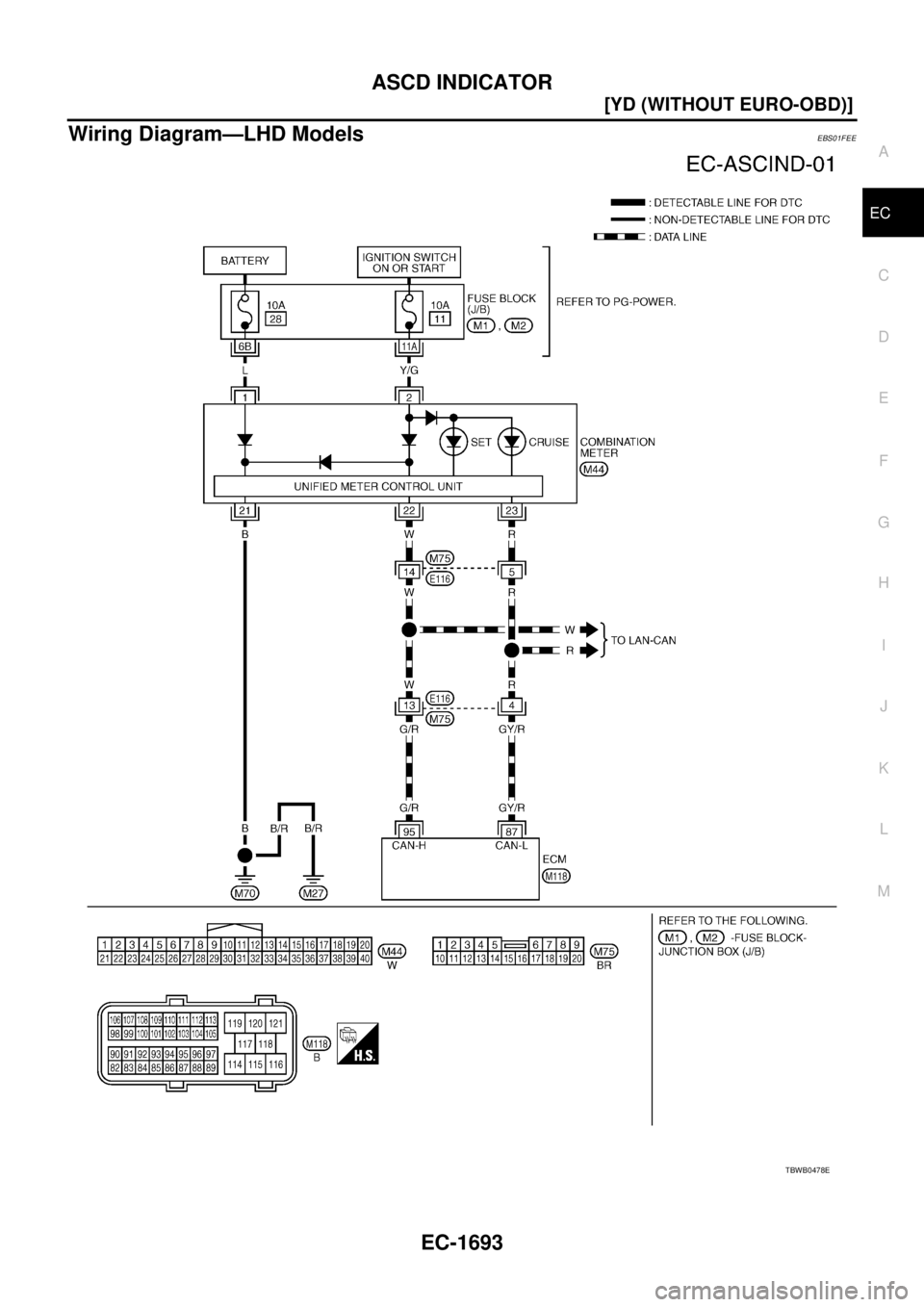

Wiring Diagram—LHD ModelsEBS01FEE
TBWB0478E

EC-1694
[YD (WITHOUT EURO-OBD)]
ASCD INDICATOR

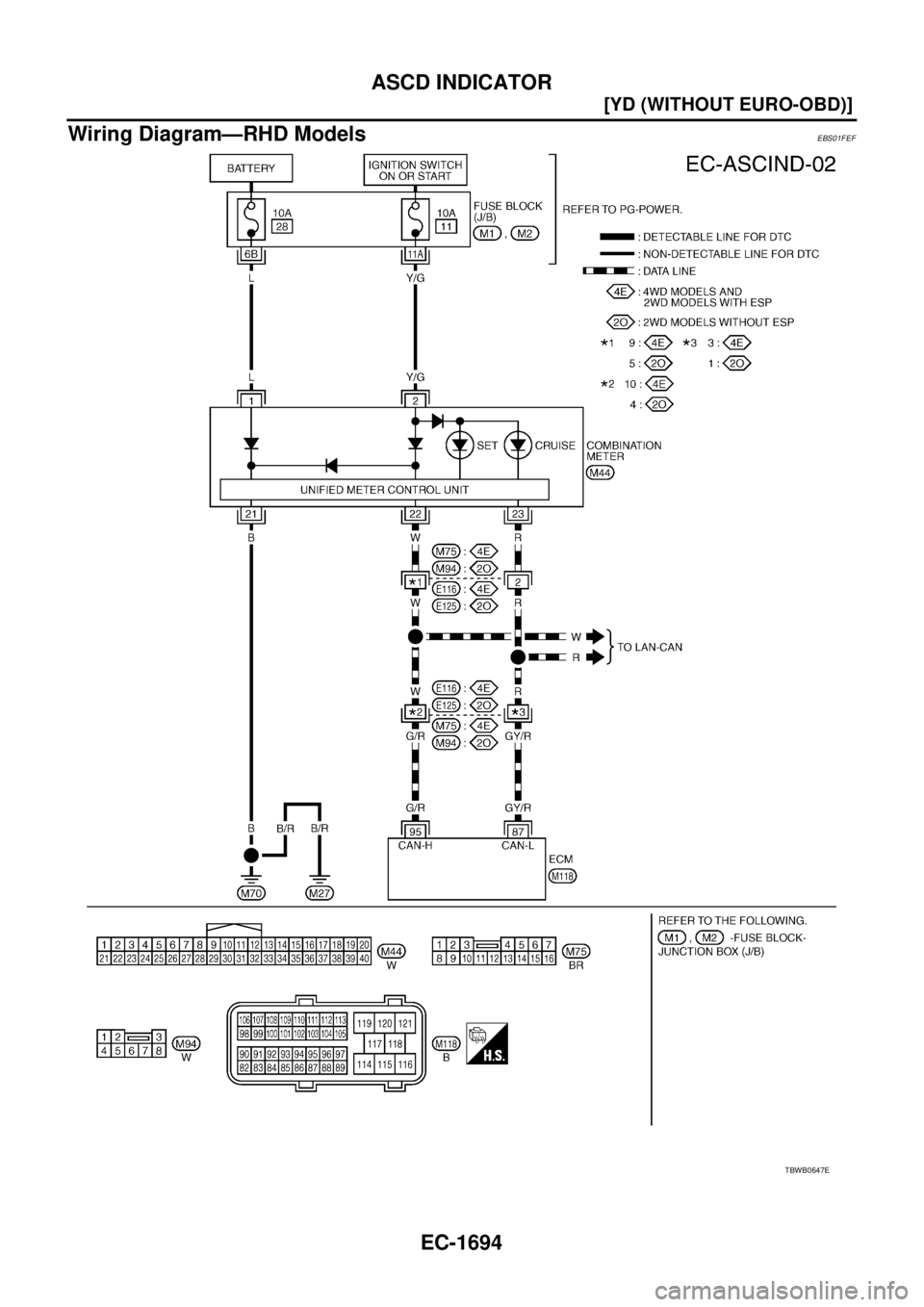

Wiring Diagram—RHD ModelsEBS01FEF
TBWB0647E

EC-1696
[YD (WITHOUT EURO-OBD)]
START SIGNAL

START SIGNALPFP:48750

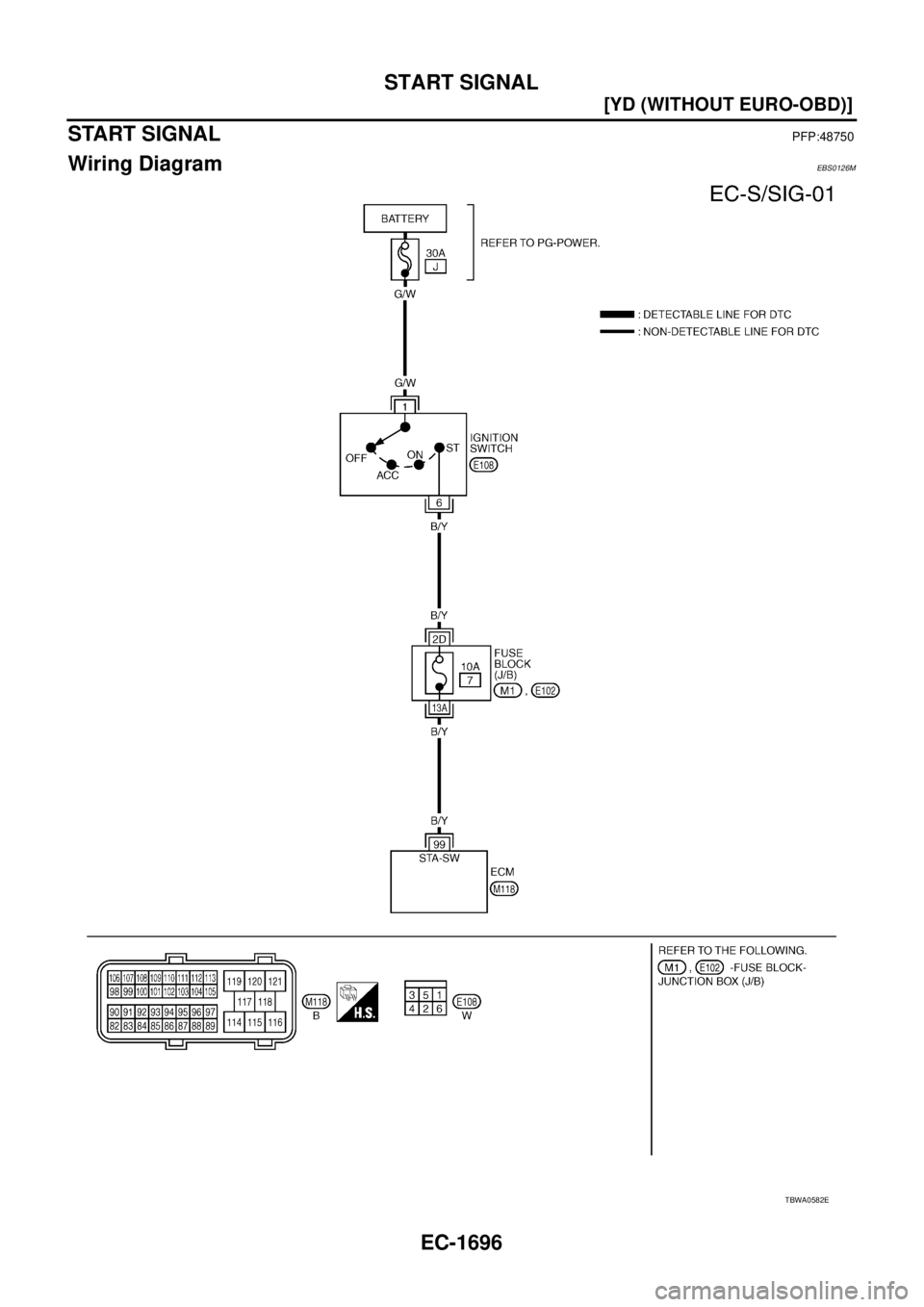

Wiring DiagramEBS0126M
TBWA0582E

START SIGNAL
EC-1697
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

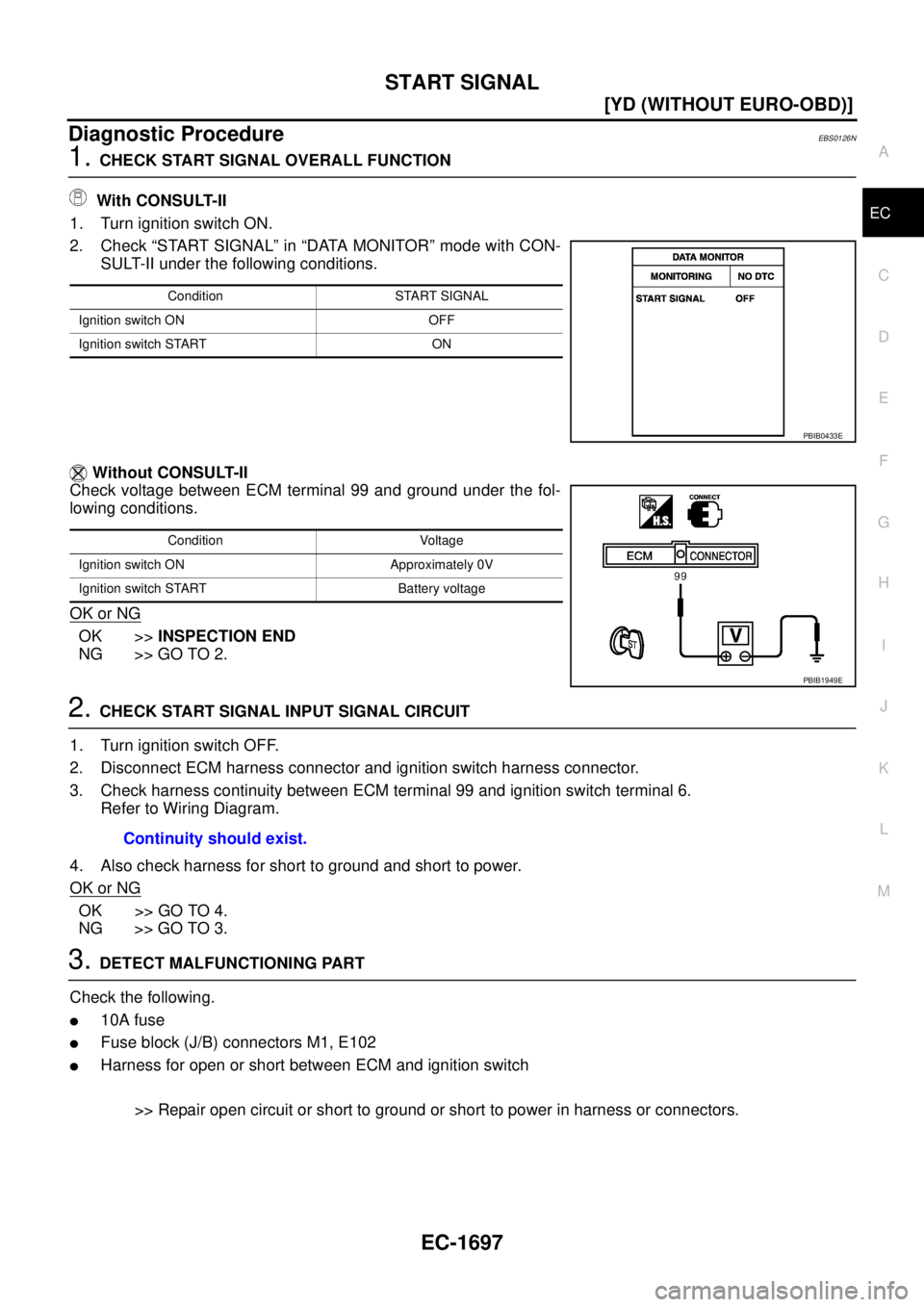

Diagnostic ProcedureEBS0126N
1. CHECK START SIGNAL OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch ON.
2. Check “START SIGNAL” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.
Without CONSULT-II
Check voltage between ECM terminal 99 and ground under the fol-
lowing conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK START SIGNAL INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector and ignition switch harness connector.
3. Check harness continuity between ECM terminal 99 and ignition switch terminal 6.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

10A fuse

Fuse block (J/B) connectors M1, E102

Harness for open or short between ECM and ignition switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
Condition START SIGNAL
Ignition switch ON OFF
Ignition switch START ON
PBIB0433E
Condition Voltage
Ignition switch ON Approximately 0V
Ignition switch START Battery voltage
PBIB1949E
Continuity should exist.

MI & DATA LINK CONNECTORS
EC-1699
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

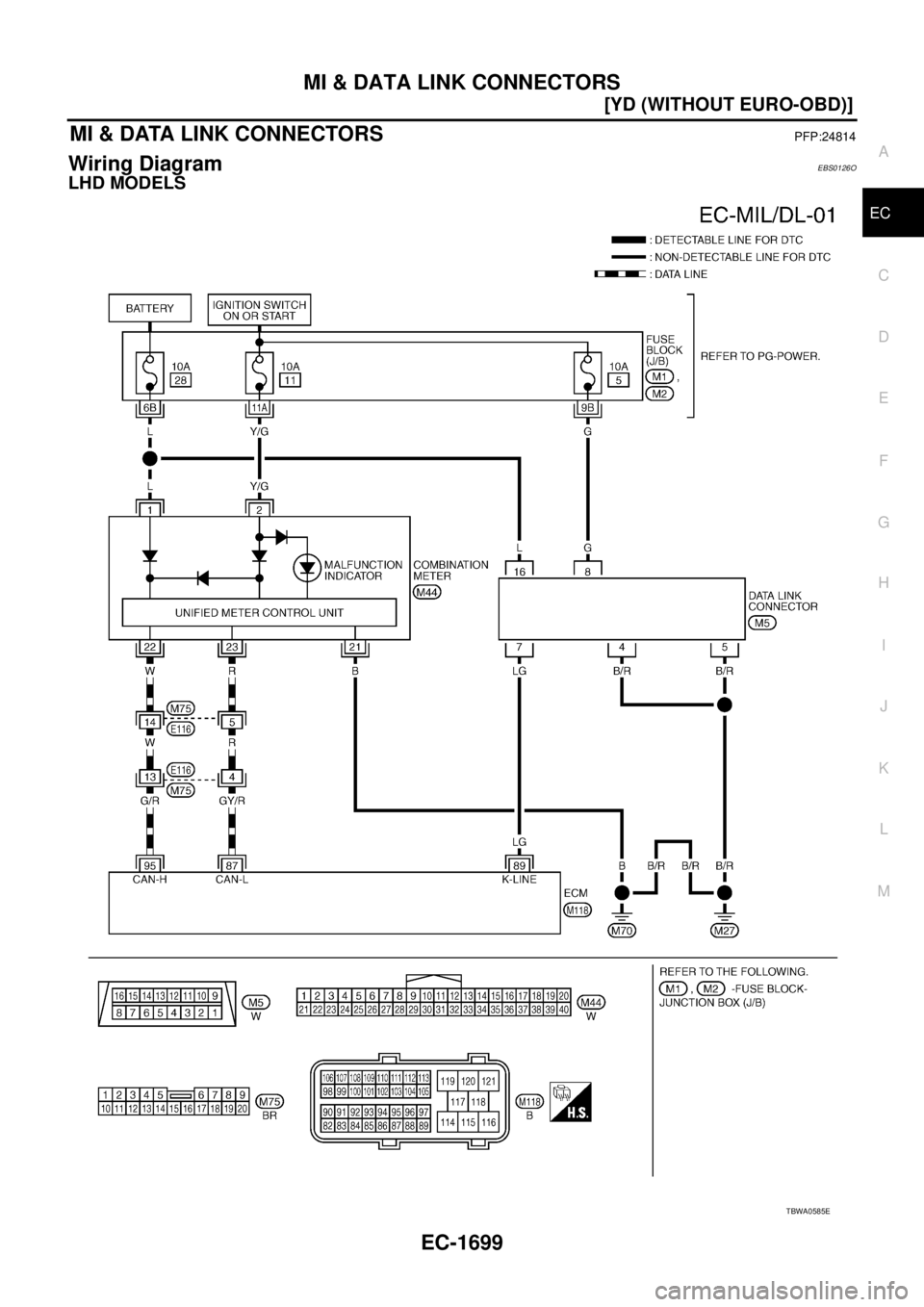

MI & DATA LINK CONNECTORSPFP:24814
Wiring DiagramEBS0126O
LHD MODELS
TBWA0585E
