DTC P0686 ECM RELAY
EC-1587
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

3. CHECK ECM INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM relay.
2. Check harness continuity between ECM terminal 119 and ECM
relay terminal 5, ECM terminals 120 and ECM relay terminal 7.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F30, M63

Harness for open or short between ECM and ECM relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK ECM RELAY
Refer to EC-1587, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace ECM relay.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END

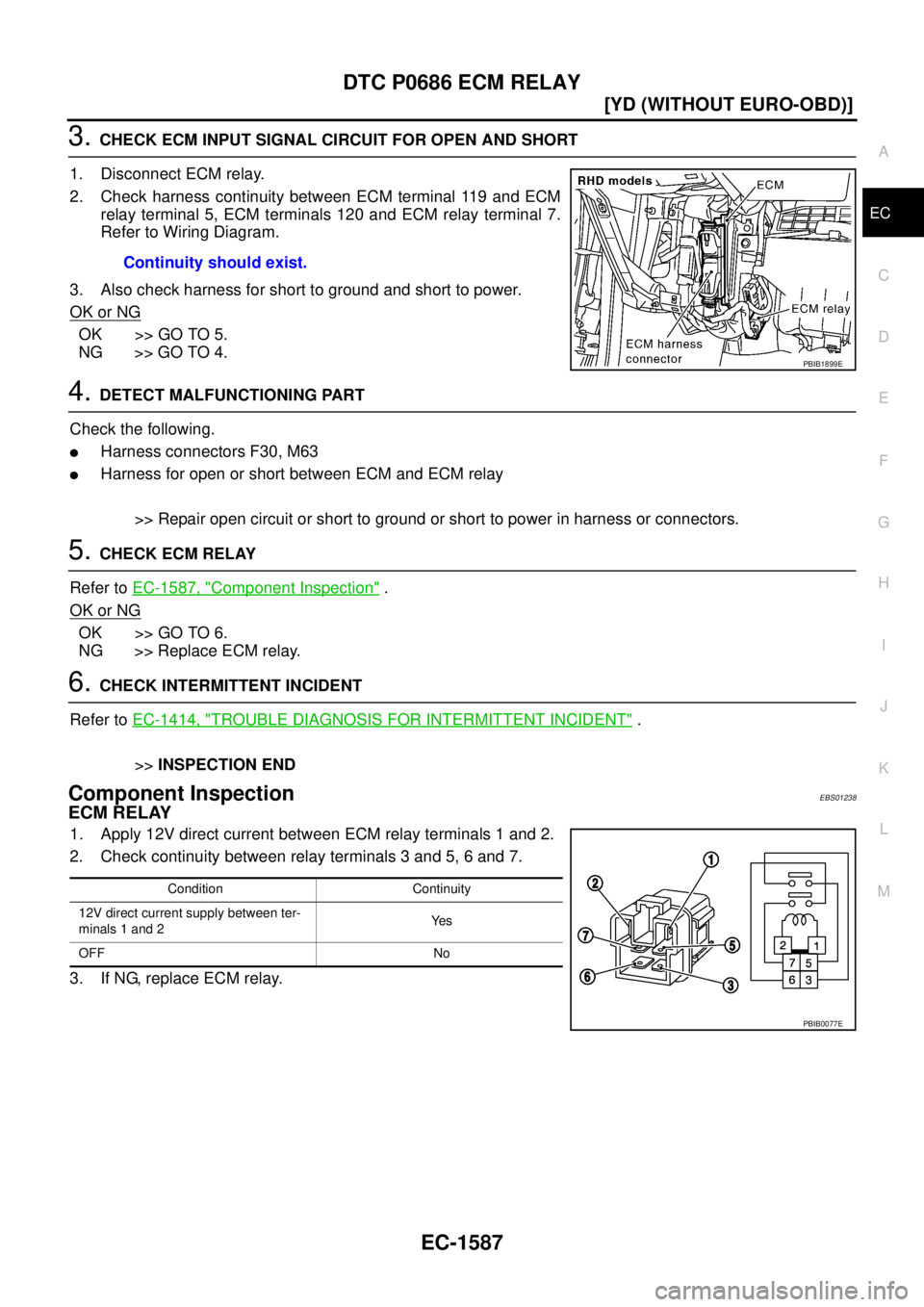

Component InspectionEBS01238
ECM RELAY
1. Apply 12V direct current between ECM relay terminals 1 and 2.
2. Check continuity between relay terminals 3 and 5, 6 and 7.
3. If NG, replace ECM relay.Continuity should exist.
PBIB1899E
Condition Continuity
12V direct current supply between ter-
minals 1 and 2Ye s
OFF No
PBIB0077E

EC-1592
[YD (WITHOUT EURO-OBD)]

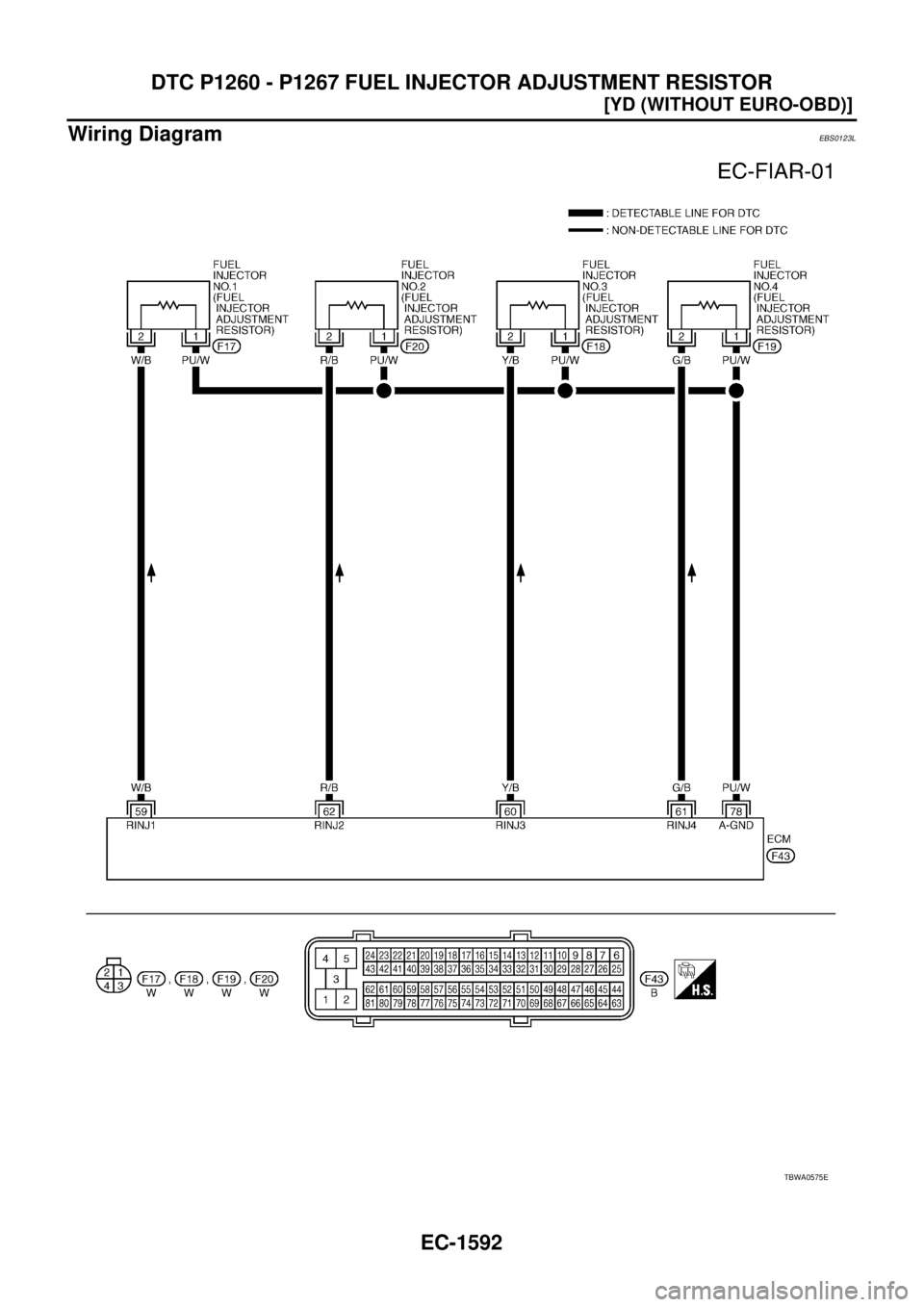

DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTOR

Wiring DiagramEBS0123L
TBWA0575E

EC-1598
[YD (WITHOUT EURO-OBD)]

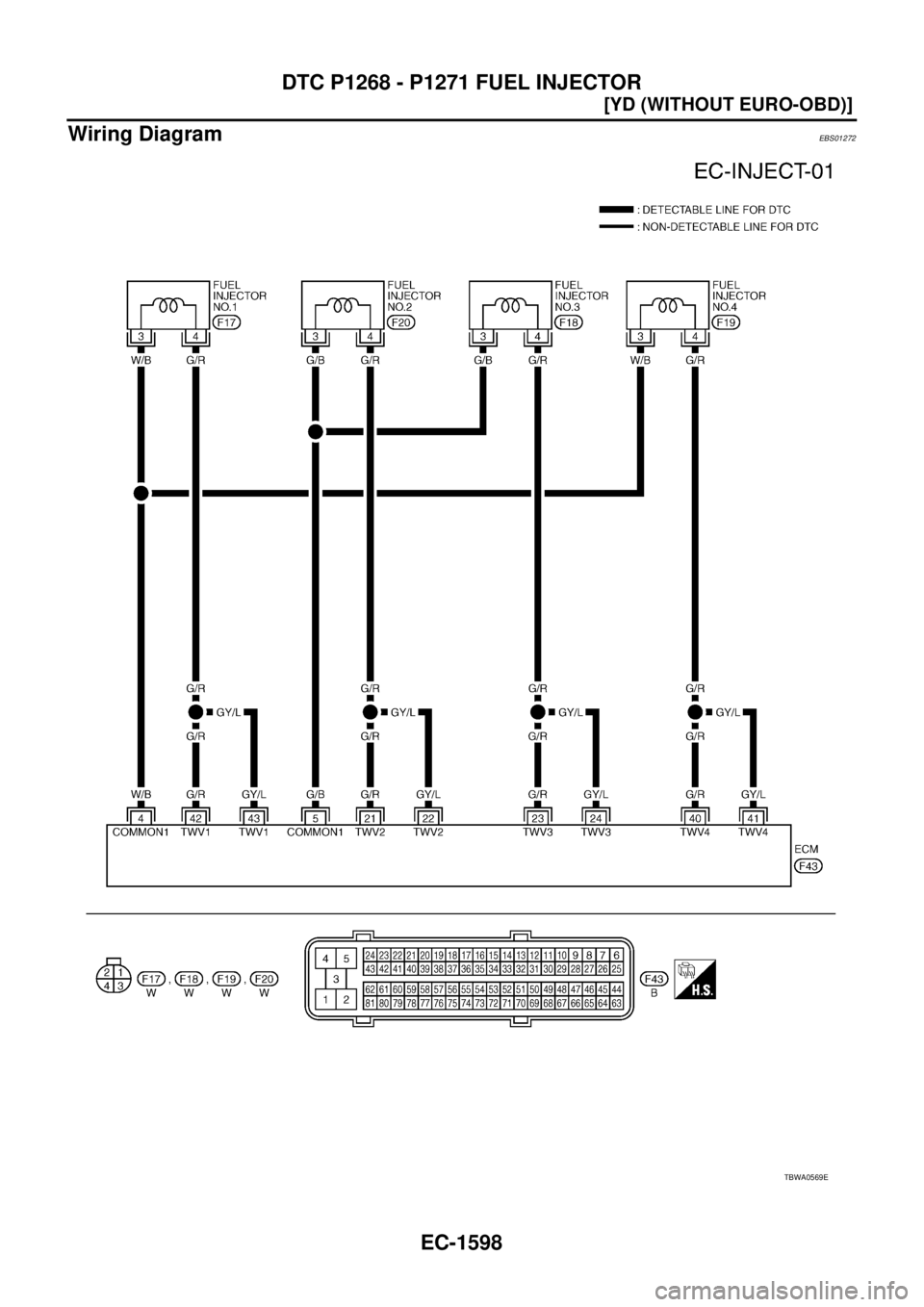

DTC P1268 - P1271 FUEL INJECTOR

Wiring DiagramEBS01272
TBWA0569E

EC-1600
[YD (WITHOUT EURO-OBD)]
DTC P1268 - P1271 FUEL INJECTOR

Diagnostic ProcedureEBS01273
1. CHECK FUEL INJECOR POWER SUPPLY CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect fuel injector harness connector.
4. Check harness continuity between the following terminals corre-
sponding to the malfunctioning cylinder. Refer to Wiring Dia-
gram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
2. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between the following terminals corresponding to the malfunctioning cylinder.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK FUEL INJECTOR-I
Refer to EC-1601, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace fuel injector.
DTCTerminal
Cylinder
ECM Fuel injector
P1268 4 3 No.1
P1269 5 3 No.2
P1270 5 3 No.3
P1271 4 3 No.4
Continuity should exist.
PBIB1896E
DTCTerminal
Cylinder
ECM Fuel injector
P1268 42, 43 4 No.1
P1269 21, 22 4 No.2
P1270 23, 24 4 No.3
P1271 40, 41 4 No.4
Continuity should exist.

EC-1604
[YD (WITHOUT EURO-OBD)]

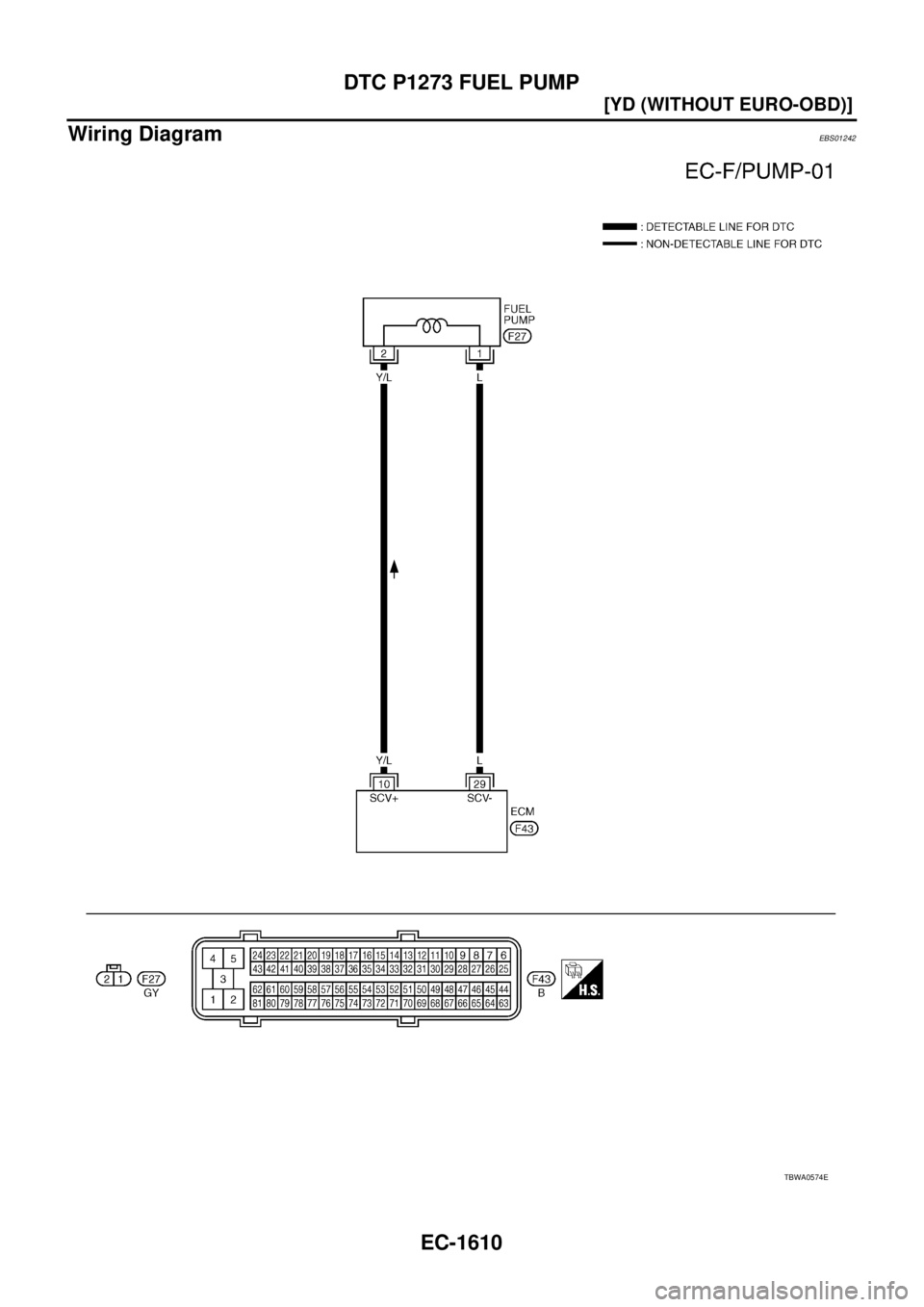

DTC P1272 FUEL PUMP

Wiring DiagramEBS012AW
TBWA0574E

EC-1606
[YD (WITHOUT EURO-OBD)]
DTC P1272 FUEL PUMP

2. PERFORM FUEL PUMP LEARNING VALUE CLEARING
NOTE:
If the DTC is detected because of air mixed with fuel (i.e.: caused by lack of fuel), it may become normal by
performing following procedure.
With CONSULT-II
1. Turn ignition switch ON.
2. Perform Fuel Pump Learning value clearing. Refer to EC-1370, "
Fuel Pump Learning Value Clearing" .
3. Start engine and let it idle for at least 60 seconds.
4. Select “SELF-DIAG RESULT” mode with CONSULT-II.
5. Touch “ERASE”.
6. Perform EC-1602, "
DTC Confirmation Procedure" , again.
7. Is DTC detected again?
Without CONSULT-II
1. Turn ignition switch ON.
2. Perform Fuel Pump Learning Value Clearing. Refer to EC-1370, "
Fuel Pump Learning Value Clearing" .
3. Start engine and let it idle for at least 60 seconds.
4. Erase the Diagnostic Test Mode II (Self-diagnostic results) memory. Refer to EC-1375
.
5. Perform EC-1602, "
DTC Confirmation Procedure" , again.
6. Is DTC detected again?
Ye s o r N o
Yes >> GO TO 3.
No >>INSPECTION END
3. CHECK FUEL PUMP POWER SUPPLY CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector and fuel pump harness
connectors.
3. Check harness continuity between ECM terminal 10 and fuel pump terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB1943E
Continuity should exist.

DTC P1272 FUEL PUMP
EC-1607
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

4. CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 29 and fuel pump terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK FUEL PUMP
Refer to EC-1607, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 8.
6. CHECK FUEL RAIL PRESSURE SENSOR
Refer to EC-1471, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace fuel rail.
7. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace.
8. REPLACE FUEL PUMP
1. Replace fuel pump.
2. Perform Fuel Pump Learning Value Clearing. Refer to EC-1370, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END
Component InspectionEBS012AP
FUEL PUMP
1. Check continuity between fuel supply pump terminals 1 and 2.
2. If NG, replace fuel pump.
Removal and InstallationEBS0123W
FUEL RAIL
Refer to EM-167, "INJECTION TUBE AND FUEL INJECTOR" . Continuity should exist.
Continuity should exist.
SEF807Z

EC-1610
[YD (WITHOUT EURO-OBD)]
DTC P1273 FUEL PUMP

Wiring DiagramEBS01242
