EC-1564
[YD (WITHOUT EURO-OBD)]
DTC P0580, P0581 ASCD STEERING SWITCH
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M206, M202
Combination switch (spiral cable)
Harness for open and short between ECM and ASCD steering switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK ASCD STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 102 and ASCD steering switch terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M206, M202
Combination switch (spiral cable)
Harness for open and short between ECM and ASCD steering switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK ASCD STEERING SWITCH
Refer to EC-1564, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace ASCD steering switch.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS01FE0
ASCD STEERING SWITCH
1. Disconnect ASCD steering switch.
2. Check continuity between ASCD steering switch terminals 1 and
2 with pushing each switch.Continuity should exist.
Switch Condition Resistance (Ω)
MAINPressed Approx. 0
Released Approx. 4,000
CANCELPressed Approx. 250
Released Approx. 4,000
RESUME/ACCELERATEPressed Approx. 1,480
Released Approx. 4,000
PBIB2880E
Page 1975 of 4555
DTC P0628, P0629 FUEL PUMP
EC-1571
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

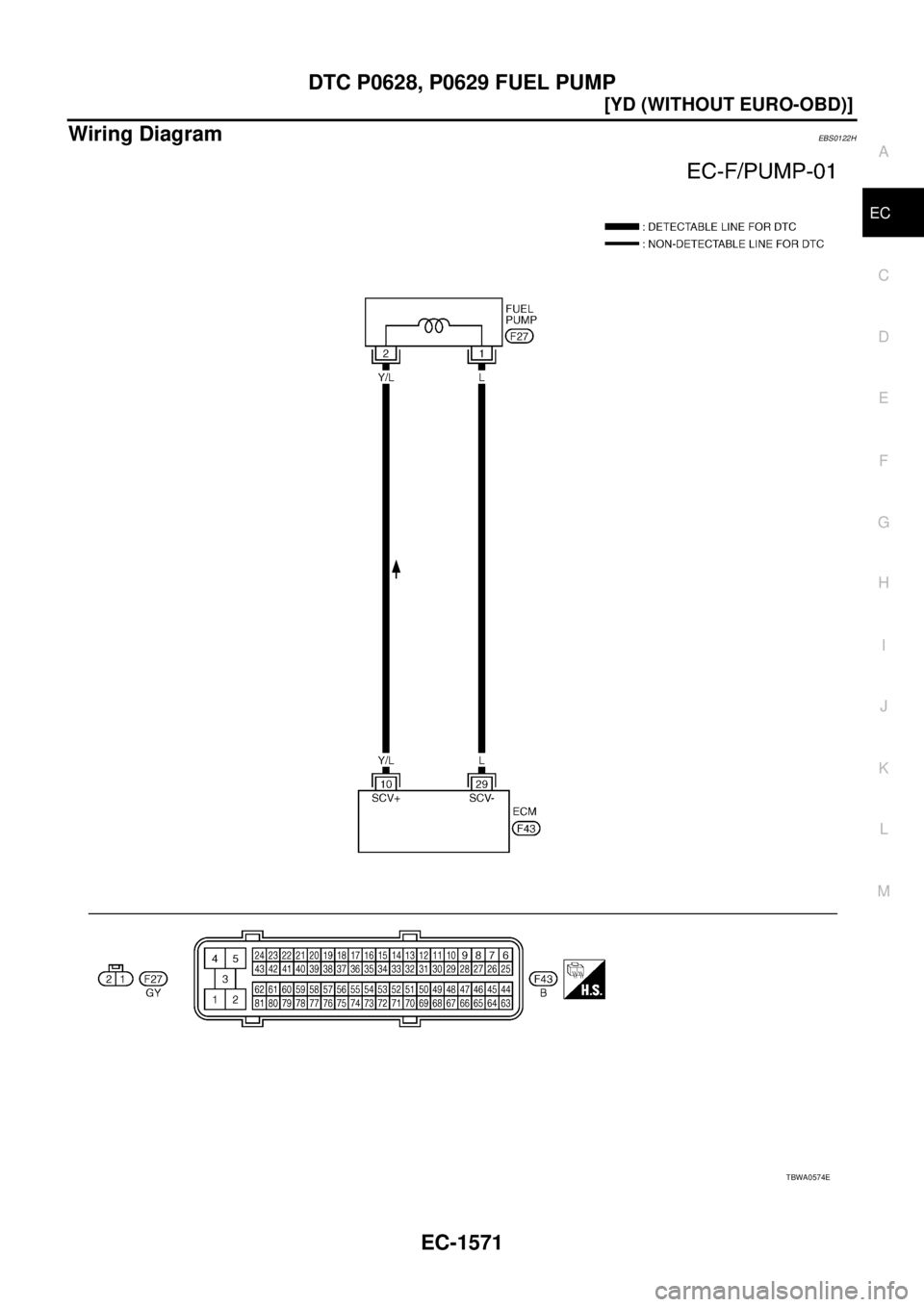

Wiring DiagramEBS0122H
TBWA0574E
Page 1977 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual DTC P0628, P0629 FUEL PUMP
EC-1573
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

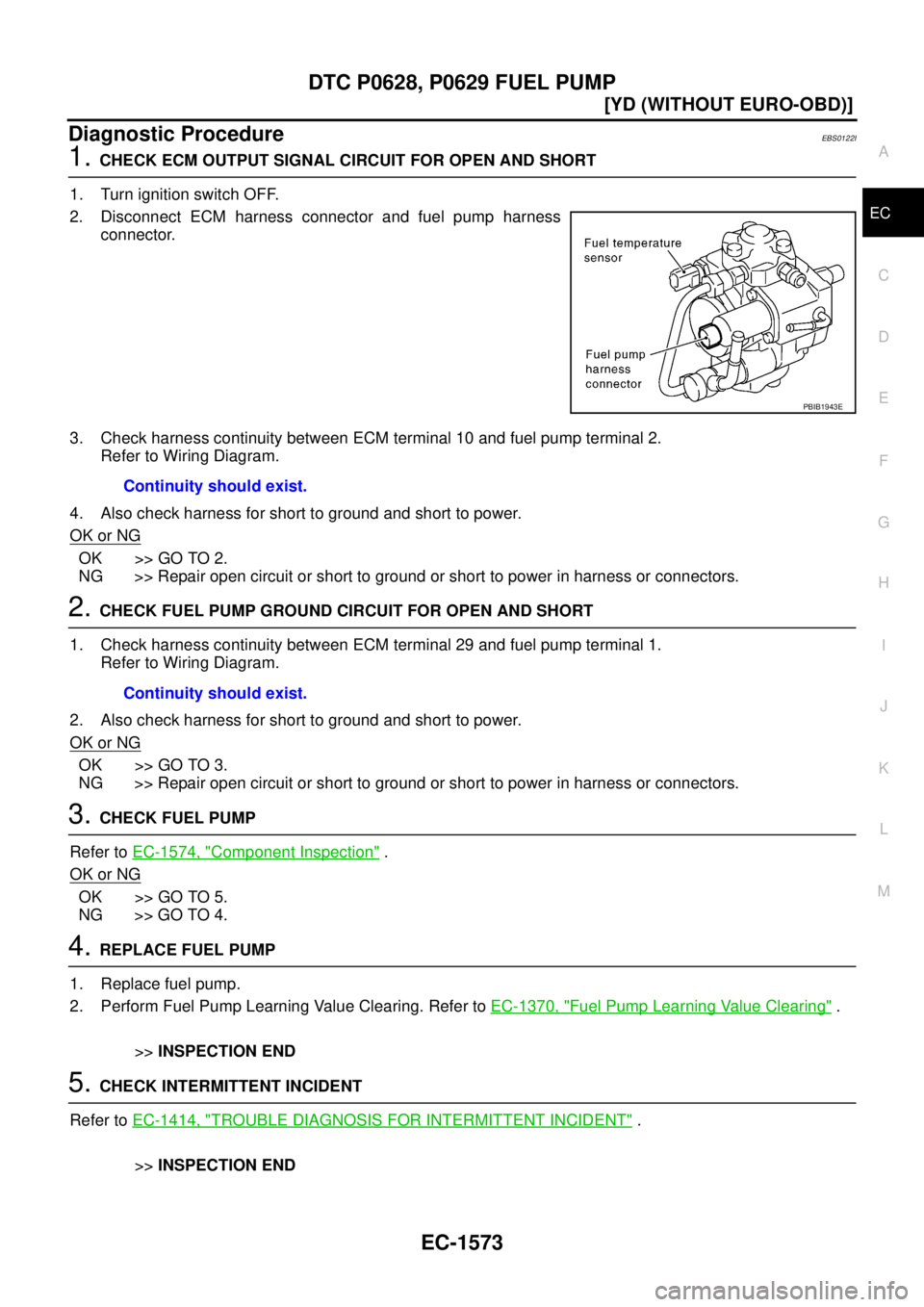

Diagnostic ProcedureEBS0122I
1. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2 NISSAN X-TRAIL 2005 Service Repair Manual DTC P0628, P0629 FUEL PUMP
EC-1573
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS0122I
1. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2](/manual-img/5/57403/w960_57403-1976.png)
DTC P0628, P0629 FUEL PUMP
EC-1573
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS0122I
1. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector and fuel pump harness
connector.
3. Check harness continuity between ECM terminal 10 and fuel pump terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
2. CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 29 and fuel pump terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK FUEL PUMP
Refer to EC-1574, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. REPLACE FUEL PUMP
1. Replace fuel pump.
2. Perform Fuel Pump Learning Value Clearing. Refer to EC-1370, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END
5. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
PBIB1943E
Continuity should exist.
Continuity should exist.
Page 1980 of 4555
EC-1576
[YD (WITHOUT EURO-OBD)]
DTC P0642, P0643 SENSOR POWER SUPPLY

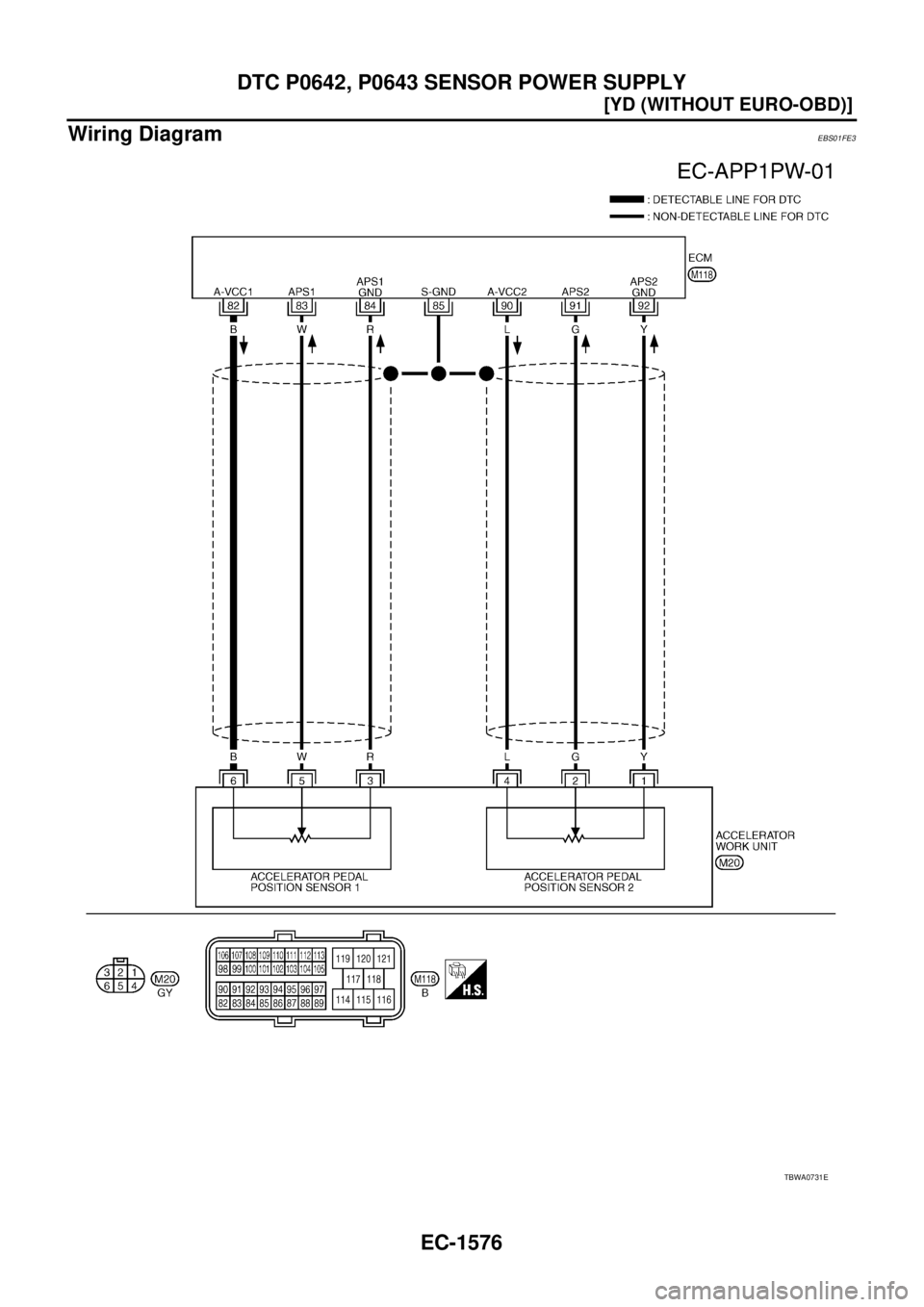

Wiring DiagramEBS01FE3
TBWA0731E
Page 1984 of 4555
EC-1580
[YD (WITHOUT EURO-OBD)]
DTC P0652, P0653 SENSOR POWER SUPPLY

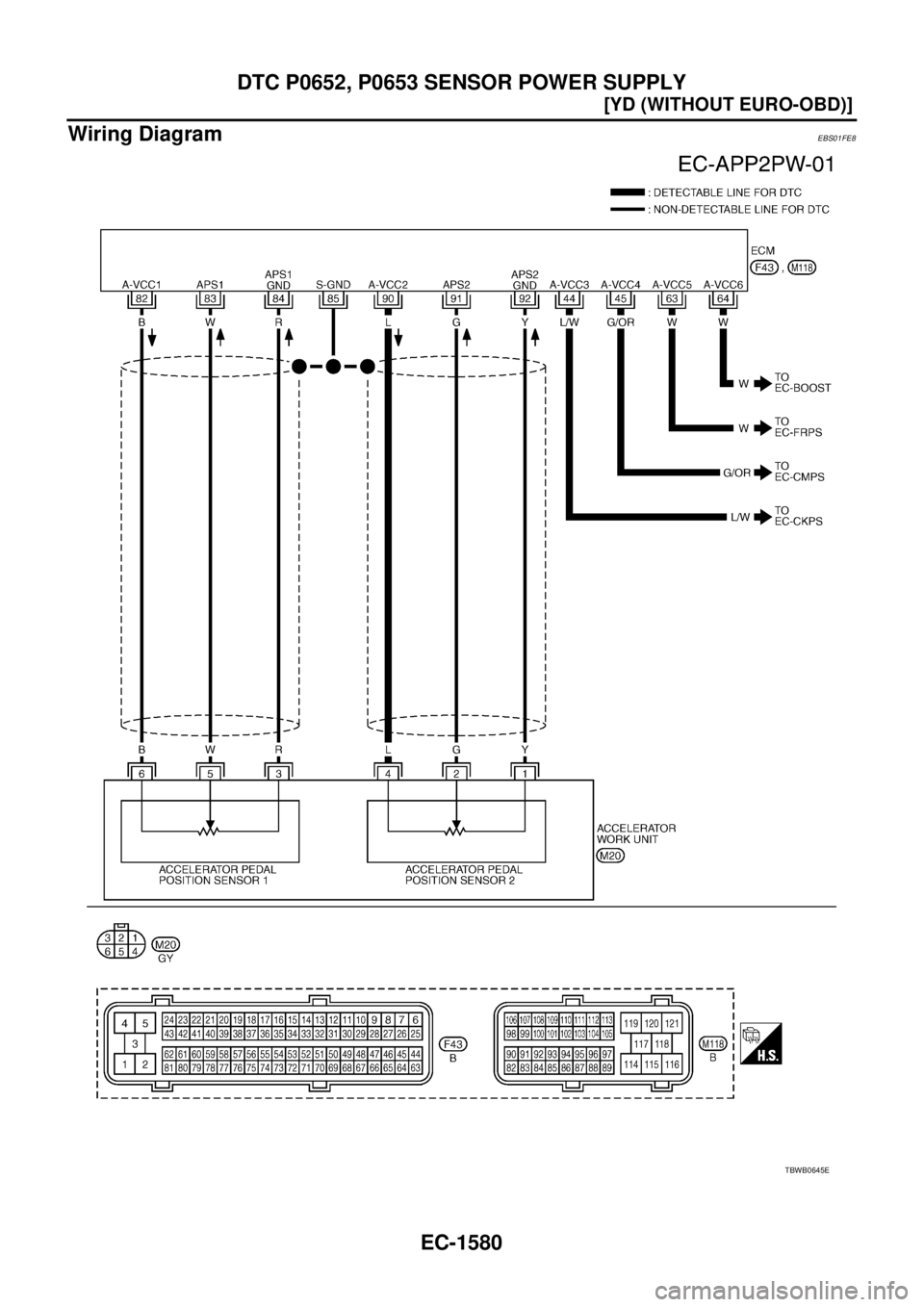

Wiring DiagramEBS01FE8
TBWB0645E
Page 1986 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual EC-1582
[YD (WITHOUT EURO-OBD)]
DTC P0652, P0653 SENSOR POWER SUPPLY
2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignit NISSAN X-TRAIL 2005 Service Repair Manual EC-1582
[YD (WITHOUT EURO-OBD)]
DTC P0652, P0653 SENSOR POWER SUPPLY
2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignit](/manual-img/5/57403/w960_57403-1985.png)
EC-1582
[YD (WITHOUT EURO-OBD)]
DTC P0652, P0653 SENSOR POWER SUPPLY
2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 4 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK SENSOR POWER SUPPLY CIRCUITS
Check the following.
Harness for short to power and short to ground, between the following terminals.
ECM pin terminal.
OK or NG
OK >> GO TO 4.
NG >> Repair short to ground or short to power in harness or connectors.
4. CHECK COMPONENTS
Check the following.
Crankshaft position sensor (Refer to EC-1517, "Component Inspection" .)
Camshaft position sensor (Refer to EC-1530, "Component Inspection" .)
Fuel rail pressure sensor (Refer to EC-1471, "Component Inspection" .)
Turbocharger boost sensor (Refer to EC-1511, "Component Inspection" .)
OK or NG
OK >> GO TO 5.
NG >> Replace malfunctioning component.
PBIB1893E
Voltage: Approximately 5.3V
PBIB0915E
ECM terminal Sensor terminal Reference Wiring Diagram
90 APP sensor terminal 1EC-1495
44 Crankshaft position sensor terminal 1EC-1513
45 Camshaft position sensor terminal 3EC-1530
63 Fuel rail pressure sensor terminal 1EC-1526
64 Turbocharger boost sensor terminal 1EC-1508
Page 1989 of 4555
DTC P0686 ECM RELAY
EC-1585
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

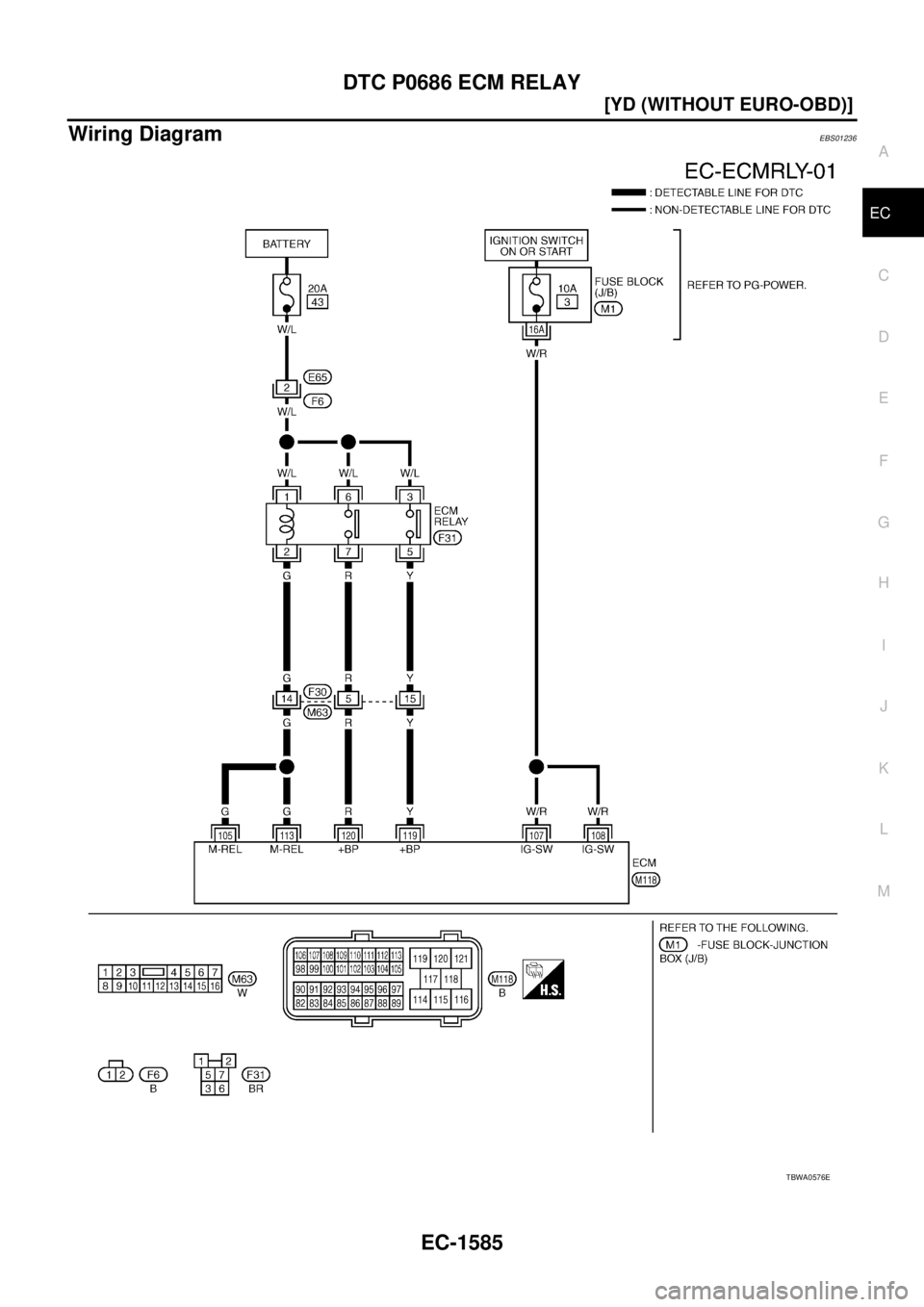

Wiring DiagramEBS01236
TBWA0576E
Page 1990 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual EC-1586
[YD (WITHOUT EURO-OBD)]
DTC P0686 ECM RELAY
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring NISSAN X-TRAIL 2005 Service Repair Manual EC-1586
[YD (WITHOUT EURO-OBD)]
DTC P0686 ECM RELAY
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring](/manual-img/5/57403/w960_57403-1989.png)
EC-1586
[YD (WITHOUT EURO-OBD)]
DTC P0686 ECM RELAY
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS01237
1. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR SHORT TO GROUND
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminals 105, 113 and ground.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F30, M63
Harness for open or short between ECM and ECM relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage)
105 G ECM relay (self-shutoff)[Ignition switch ON]
[Ignition switch OFF]
For a few seconds after turning ignition
switch OFFApproximately 1.2V
[Ignition switch OFF]
More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
113 G ECM relay (self-shutoff)[Ignition switch ON]
[Ignition switch OFF]
For a few seconds after turning ignition
switch OFFApproximately 1.2V
[Ignition switch OFF]
More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
11 9
120Y
RPower supply for ECM[Ignition switch ON]BATTERY VOLTAGE
(11 - 14V)
Continuity should not exist.
