DTC P0340 CMP SENSOR
EC-1529
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

3. CHECK CMP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect camshaft position (CMP) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between CMP sensor terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
4. CHECK CMP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 66 and CMP sensor terminal 2.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK CMP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 47 and CMP sensor terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground or short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK CAMSHAFT POSITION SENSOR
Refer to EC-1530, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace camshaft position sensor.
PBIB1890E
Voltage: Approximately 5.3V
MBIB1010E
Continuity should exist.
Continuity should exist.

EC-1532
[YD (WITHOUT EURO-OBD)]
DTC P0341 CMP SENSOR

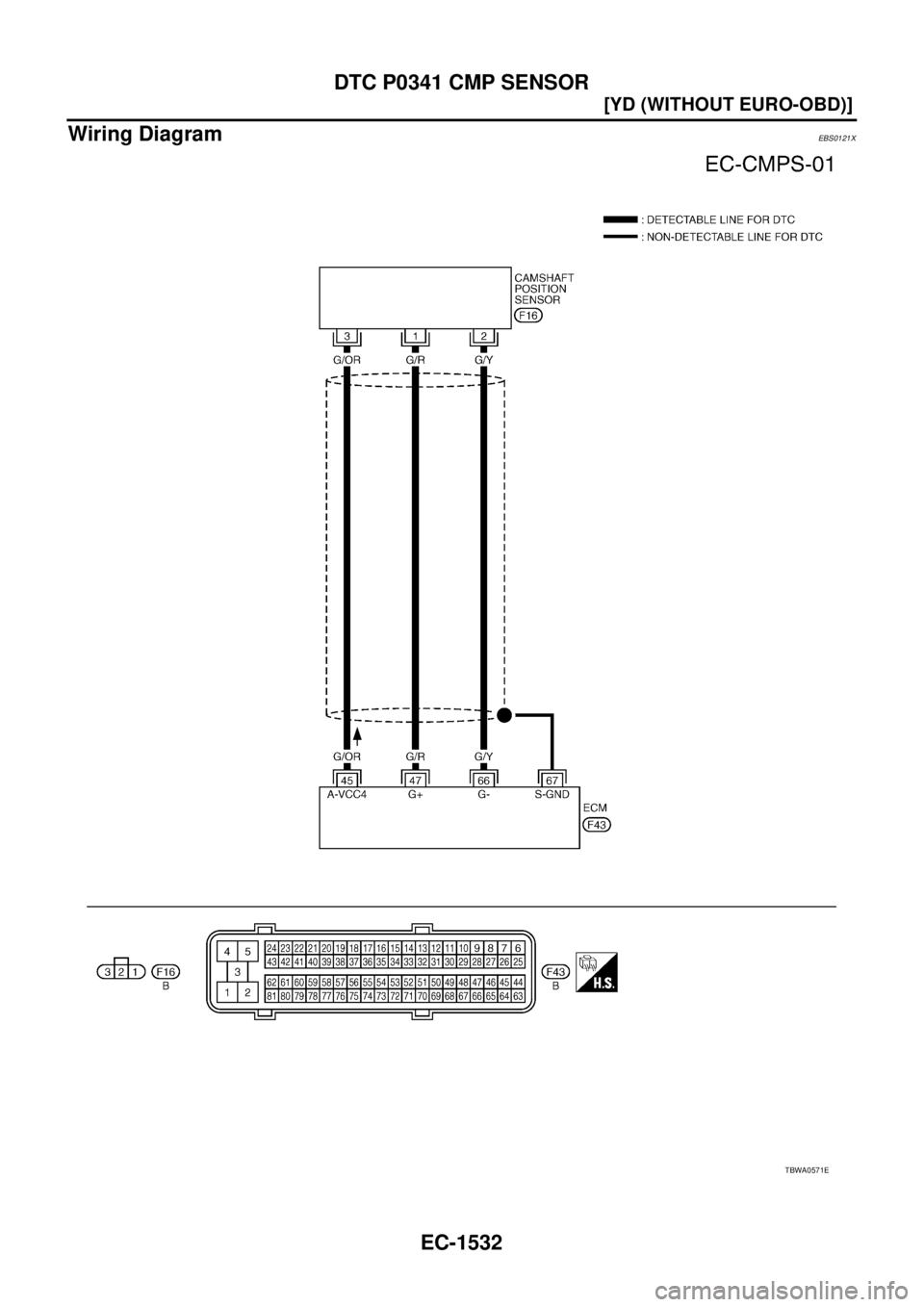

Wiring DiagramEBS0121X
TBWA0571E

DTC P0341 CMP SENSOR
EC-1535
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

3. CHECK CMP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect camshaft position (CMP) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between CMP sensor terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
4. CHECK CMP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 66 and CMP sensor terminal 2.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK CMP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 47 and CMP sensor terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground or short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK CAMSHAFT POSITION SENSOR
Refer to EC-1537, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace camshaft position sensor.
PBIB1890E
Voltage: Approximately 5.3V
MBIB1010E
Continuity should exist.
Continuity should exist.

DTC P0504 ASCD BRAKE SWITCH
EC-1547
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

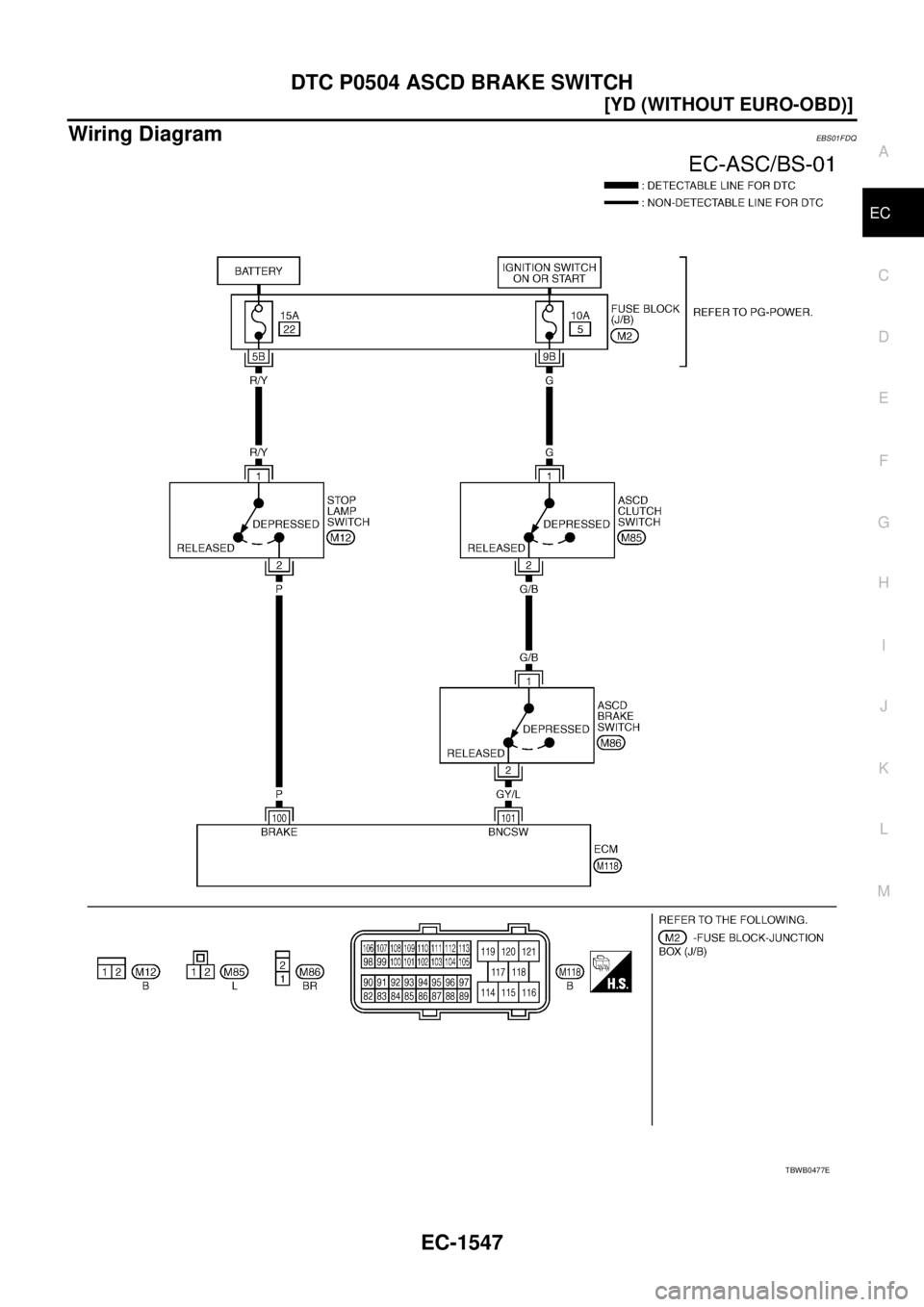

Wiring Diagram EBS01FDQ
TBWB0477E

EC-1550
[YD (WITHOUT EURO-OBD)]
DTC P0504 ASCD BRAKE SWITCH

3. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector (1).
–ASCD brake switch harness connector (2)
–ASCD clutch switch harness connector (3)
3. Check voltage between stop lamp switch terminal 1 and ground
with CONSULT -II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector M2

15A fuse

Harness for open or short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 100 and stop lamp switch terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK STOP LAMP SWITCH
Refer to EC-1552, "
Component Inspection"
OK or NG
OK >> GO TO 14.
NG >> Replace stop lamp switch.
PBIB2878E
Voltage: Battery voltage
PBIB0117E
Continuity should exist.

EC-1552
[YD (WITHOUT EURO-OBD)]
DTC P0504 ASCD BRAKE SWITCH

9. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector M2

10A fuse

Harness for open or short between ASCD clutch switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
10. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ASCD clutch switch terminal 2 and ASCD brake switch terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK ASCD CLUTCH SWITCH
Refer to EC-1552, "
Component Inspection"
OK or NG
OK >> GO TO 14.
NG >> Replace ASCD clutch switch.
12. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 101 and ASCD brake switch terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 13.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
13. CHECK ASCD BRAKE SWITCH
Refer to EC-1552, "
Component Inspection"
OK or NG
OK >> GO TO 14.
NG >> Replace ASCD brake switch.
14. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS01FDS
ASCD BRAKE SWITCH
1. Turn ignition switch OFF.Continuity should exist.
Continuity should exist.

DTC P0580, P0581 ASCD STEERING SWITCH
EC-1559
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Wiring DiagramEBS01FDX
LHD MODELS
TBWB0475E

DTC P0580, P0581 ASCD STEERING SWITCH
EC-1563
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SW”, “RESUME/ACC SW”, “SET SW” and “CANCEL SW” in “DATA MONITOR” mode with
CONSULT-II.
3. Check each item indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 102 and ground under the
following conditions.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
3. CHECK ASCD STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ASCD steering switch (1) harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between ASCD steering switch termi-
nal 2 and ECM terminal 103. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
Switch Monitor item Condition Indication
MAIN MAIN SWPressed ON
Released OFF
CANCEL CANCEL SWPressed ON
Released OFF
RESUME/ACCEL-
ERATERESUME/ACC SWPressed ON
Released OFF
SET/COAST SET SWPressed ON
Released OFF
SEC006D
Switch Condition Voltage (V)
MAINPressed Approx. 0.3
Released Approx. 4.3
CANCELPressed Approx. 1.3
Released Approx. 4.3
RESUME/ACCELER-
AT EPressed Approx. 3.3
Released Approx. 4.3
SET/COASTPressed Approx. 2.3
Released Approx. 4.3
MBIB0043E
Continuity should exist.
PBIB2879E
