2005 NISSAN X-TRAIL torque

CYLINDER BLOCK
EM-253
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

MAIN BEARING OIL CLEARANCE
Method by Measurement

Install main bearings to cylinder block and bearing cap, and
tighten the bolts to the specified torque. Refer to EM-235,
"ASSEMBLY" . Then, measure the inner diameter of main bear-
ings.
(Bearing clearance) = (Bearing inner diameter) − (Crankshaft
main journal diameter)

If out of the standard, check main bearing housing inner diame-
ter and crankshaft main journal diameter, and select appropriate
main bearing to adjust clearance to specifications. Refer to EM-
244, "HOW TO SELECT MAIN BEARING" .
Method of Using Plastigage

Remove contamination such as engine oil and dust completely
from crankshaft main journal and each bearing surface.

Cut plastigage slightly shorter than bearing width. Place it in
crankshaft turning direction, avoiding oil holes.

Install main bearings and bearing cap and tighten to the speci-
fied torque. Refer to EM-235, "
ASSEMBLY" for the tightening
procedure.
CAUTION:
Do not rotate crankshaft.

Remove main bearings and bearing caps, and measure plasti-
gage width using scale on plastigage bag.
NOTE:
If out of specification, take same action mentioned in “Method by Measurement”.
CRUSH HEIGHT OF MAIN BEARING

When bearing cap is removed after being tightened to the speci-
fied torque with main bearings installed, the tip end of bearing
must protrude. Refer to EM-235, "
ASSEMBLY" .

If out of the standard, replace main bearings.
CRUSH HEIGHT OF CONNECTING ROD BEARING

When connecting rod bearing cap is removed after being tight-
ened to the specified torque with connecting rod bearings
installed, the tip end of bearing must protrude. Refer to EM-235,
"ASSEMBLY" .

If out of the standard, replace connecting rod bearings.Standard : 0.039 - 0.066 mm (0.0015 - 0.0026 in)
PBIC1644E
EM142
Standard : There must be crush height.
SEM502G
Standard : There must be crush height.
PBIC1646E

CYLINDER BLOCK
EM-255
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

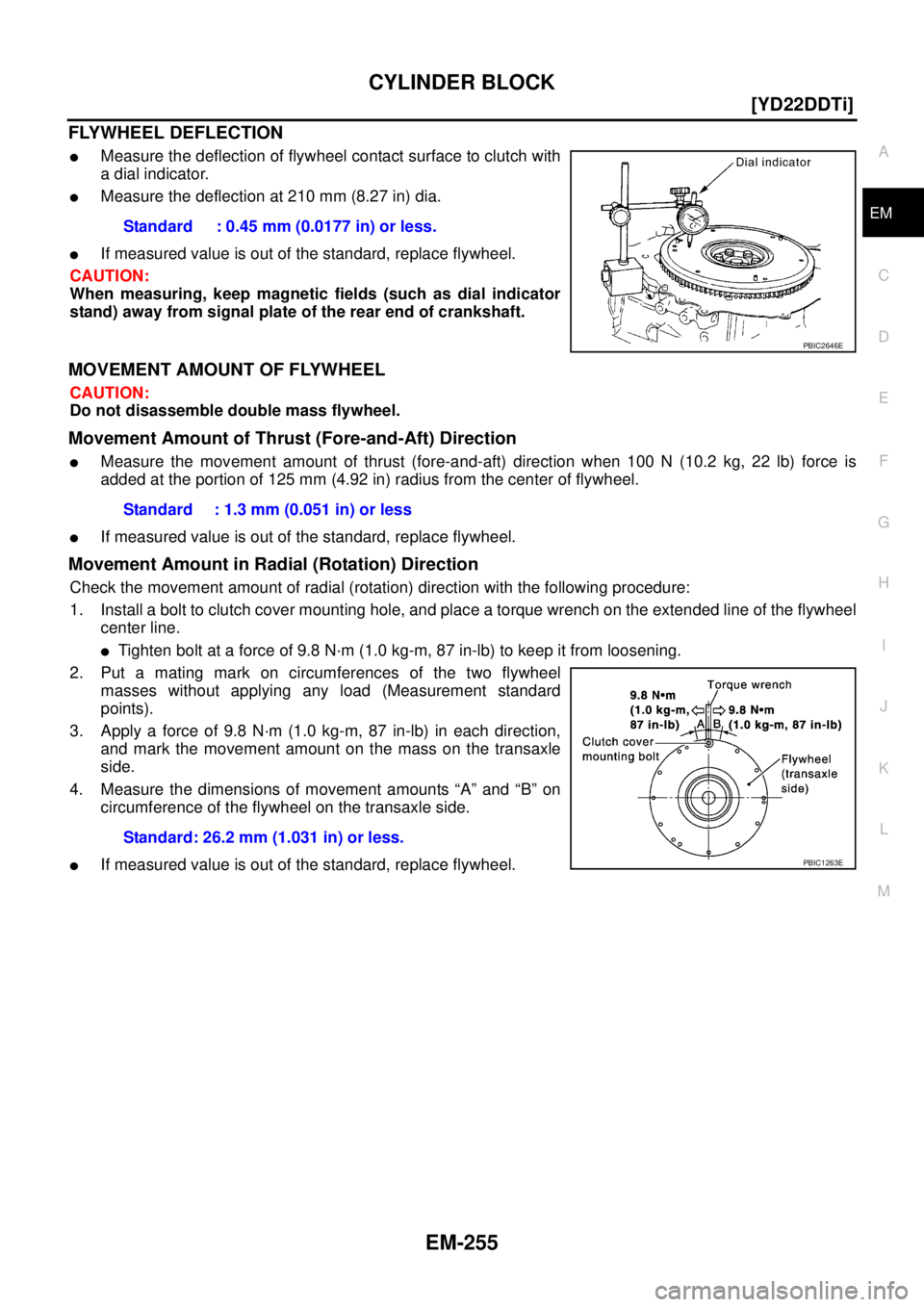

FLYWHEEL DEFLECTION

Measure the deflection of flywheel contact surface to clutch with
a dial indicator.

Measure the deflection at 210 mm (8.27 in) dia.

If measured value is out of the standard, replace flywheel.
CAUTION:
When measuring, keep magnetic fields (such as dial indicator
stand) away from signal plate of the rear end of crankshaft.
MOVEMENT AMOUNT OF FLYWHEEL
CAUTION:
Do not disassemble double mass flywheel.
Movement Amount of Thrust (Fore-and-Aft) Direction

Measure the movement amount of thrust (fore-and-aft) direction when 100 N (10.2 kg, 22 lb) force is
added at the portion of 125 mm (4.92 in) radius from the center of flywheel.

If measured value is out of the standard, replace flywheel.
Movement Amount in Radial (Rotation) Direction
Check the movement amount of radial (rotation) direction with the following procedure:
1. Install a bolt to clutch cover mounting hole, and place a torque wrench on the extended line of the flywheel
center line.

Tighten bolt at a force of 9.8 N·m (1.0 kg-m, 87 in-lb) to keep it from loosening.
2. Put a mating mark on circumferences of the two flywheel
masses without applying any load (Measurement standard
points).
3. Apply a force of 9.8 N·m (1.0 kg-m, 87 in-lb) in each direction,
and mark the movement amount on the mass on the transaxle
side.
4. Measure the dimensions of movement amounts “A” and “B” on
circumference of the flywheel on the transaxle side.

If measured value is out of the standard, replace flywheel.Standard : 0.45 mm (0.0177 in) or less.
PBIC2646E
Standard : 1.3 mm (0.051 in) or less
Standard: 26.2 mm (1.031 in) or less.
PBIC1263E

EM-266
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)

Bearing Oil Clearance
Unit: mm (in)
Tightening TorqueEBS01FCN
*1: Parts to be tightened in particular orders.
1)-: Order of tightening when tightening two or more times separately.
Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)*2
Connecting rod bearing oil
clearanceStandard 0.031 - 0.061 (0.0012 - 0.0024)
Idler pulley Nut A 35 (3.6, 26)
Alternator Nut C 21.5 (2.2, 16)
Nut D 50.5 (5.2, 37)
Charge air cooler Bracket 22 (2.2, 16)
Charge air cooler cover
7.0 (0.71, 62)*
2
EGR volume control valve 70 (7.1, 52)
EGR cooler Exhaust manifold side 64.5 (6.6, 48)
EGR volume control
valve side70 (7.1, 52)
EGR volume control valve bracket 23.5 (2.4, 17)
Exhaust manifold insulator
7.4 (0.75, 65)*
2
*1 Exhaust manifold31 (3.2, 23)
Turbocharger48.5 (4.9, 36)
Catalyst48.5 (4.9, 36)
Catalyst rear diffuser33.5 (3.4, 25)
Catalyst insulator Catalyst side
7.4 (0.75, 65)*
2
Catalyst rear diffuser
side9.6 (0.97, 85)*
2
Oil pan lower
7 (0.7, 62)*2
Oil pan drain plug34 (3.5, 25)
Oil strainer17 (1.7, 13)
*1 Oil pan upper M6 bolt
7 (0.7, 62)*
2
M8 bolt 21.5 (2.2, 16)
M10 bolt 33.5 (3.4, 25)
Vacuum pump23.5 (2.4, 17)
Cylinder head rear cover M6 bolt
9.7 (0.98, 86) *
2
M8 bolt 17 (1.7, 13)
Injection tube Nozzle side 23.0 (2.3, 17)
Fuel rail side 23.0 (2.3, 17)
Injection tube center23.0 (2.3, 17)
Nozzle support26.2 (2.7, 19)
Spill tube Nozzle side 18.7 (1.9, 14)
Cylinder head side 18.7 (1.9, 14)
Fuel rail57.5 (5.9, 42)
Fuel pump31.4 (3.2, 23)
Fuel pump sprocket39 (4.0, 29)

LU-1
ENGINE LUBRICATION SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION LU
A
LU

ENGINE LUBRICATION SYSTEM
QR
PRECAUTIONS .......................................................... 3
Precautions for Liquid Gasket .................................. 3
LIQUID GASKET APPLICATION PROCEDURE ..... 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
LUBRICATION SYSTEM ............................................ 5
Lubrication Circuit .................................................... 5
System Chart ........................................................... 6
ENGINE OIL ............................................................... 7
Inspection ................................................................. 7
ENGINE OIL LEVEL ............................................. 7
ENGINE OIL APPEARANCE ................................ 7
ENGINE OIL LEAKAGE ........................................ 7
OIL PRESSURE CHECK ...................................... 7
Changing Engine Oil ................................................ 8
OIL FILTER ............................................................... 10
Removal and Installation ........................................ 10
REMOVAL ........................................................... 10
INSTALLATION ................................................... 10
INSPECTION AFTER INSTALLATION ............... 10
OIL COOLER .............................................................11
Removal and Installation ......................................... 11
REMOVAL ............................................................ 11
INSPECTION AFTER REMOVAL ........................ 11
INSTALLATION .................................................... 11
INSPECTION AFTER INSTALLATION ................ 11
OIL PUMP ................................................................. 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13
INSPECTION AFTER INSTALLATION ............... 13
Disassembly and Assembly ................................... 13
DISASSEMBLY ................................................... 13
INSPECTION AFTER DISASSEMBLY ............... 14
ASSEMBLY ......................................................... 15
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 16
Standard and Limit ................................................. 16
OIL PRESSURE .................................................. 16ENGINE OIL CAPACITY (APPROXIMATE) ........ 16
OIL PUMP ........................................................... 16
REGULATOR VALVE .......................................... 16
Tightening Torque ................................................... 16
YD22DDTi
PRECAUTIONS ........................................................ 17
Precautions for Liquid Gasket ................................ 17
LIQUID GASKET APPLICATION PROCEDURE ... 17
PREPARATION ......................................................... 18
Special Service Tools ............................................. 18
Commercial Service Tools ...................................... 18
LUBRICATION SYSTEM .......................................... 19
Lubrication Circuit ................................................... 19
ENGINE OIL .............................................................. 20
Inspection ............................................................... 20
ENGINE OIL LEVEL ............................................ 20
ENGINE OIL APPEARANCE .............................. 20
ENGINE OIL LEAKAGE ...................................... 20
ENGINE OIL PRESSURE CHECK ..................... 20
Changing Engine Oil ............................................... 21
OIL FILTER ............................................................... 23
Removal and Installation (TYPE A) ........................ 23
REMOVAL ........................................................... 23
INSTALLATION ................................................... 23
INSPECTION AFTER INSTALLATION ................ 23
Removal and Installation (TYPE B) ........................ 24
REMOVAL ........................................................... 24
INSTALLATION ................................................... 25
INSPECTION AFTER INSTALLATION ................ 25
OIL FILTER BRACKET ............................................. 26
Removal and Installation (TYPE A) ........................ 26
REMOVAL ........................................................... 26
INSTALLATION ................................................... 26
INSPECTION AFTER INSTALLATION ................ 26
Removal and Installation (TYPE B) ........................ 27
REMOVAL ........................................................... 27
INSTALLATION ................................................... 27
INSPECTION AFTER INSTALLATION ................ 27

LU-2 OIL COOLER ............................................................ 28
Removal and Installation ........................................ 28
REMOVAL ........................................................... 28
INSPECTION AFTER REMOVAL ........................ 28
INSTALLATION .................................................... 28
INSPECTION AFTER INSTALLATION ................ 28
OIL PUMP ................................................................. 30
Removal and Installation ........................................ 30
REMOVAL ........................................................... 30
INSTALLATION .................................................... 30INSPECTION AFTER INSTALLATION ................ 30
Disassembly and Assembly .................................... 30
DISASSEMBLY .................................................... 30
INSPECTION AFTER DISASSEMBLY ................ 30
ASSEMBLY .......................................................... 32
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 33
Standard and Limit .................................................. 33
OIL PRESSURE .................................................. 33
OIL PUMP ............................................................ 33
REGULATOR VALVE ........................................... 33
OIL CAPACITY (APPROXIMATE) ....................... 33
Tightening Torque ................................................... 33

LU-16
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitEBS00KO9
OIL PRESSURE
*: Engine oil temperature at 80° (176°F)
ENGINE OIL CAPACITY (APPROXIMATE)
Unit: (Imp qt)
OIL PUMP
Unit: mm (in)
REGULATOR VALVE
Unit: mm (in)
Tightening TorqueEBS00KOA
Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)* Engine speed
rpm Approximate discharge pressure*
kPa (bar, kg/cm
2 , psi)
Idle speed More than 98 (0.98, 1.0, 14)
2,000 More than 294 (2.94, 3.0, 43)
Drain and refillWith oil filter change 4.1 (3-5/8)
Without oil filter change 3.7 (3-1/4)
Dry engine (Overhaul)4.7 (4-1/8)
Front cover to outer rotor radial clearance 0.114 - 0.179 (0.0045 - 0.0070)
Inner rotor to outer rotor tip clearance Below 0.220 (0.0087)
Front cover to inner rotor side clearance 0.030 - 0.070 (0.0012 - 0.0028)
Front cover to outer rotor side clearance 0.060 - 0.110 (0.0024 - 0.0043)
Inner rotor to front cover clearance 0.035 - 0.070 (0.0014 - 0.0028)
Regulator valve to valve hole clearance 0.040 - 0.097 (0.0016 - 0.0038)
Oil pressure switch14.8 (1.5, 11)
Oil pan drain plug34.3 (3.5, 25)
Oil filter17.6 (1.8, 13)
Oil pump cover Bolt 7.0 (0.71, 62)*
Screw 6.9 (0.70, 61)*
Regulator valve plug54.0 (5.5, 40)
Oil cooler39.2 (4.0, 29)
Oil cooler bracket21.6 (2.2, 16)

SERVICE DATA AND SPECIFICATIONS (SDS)
LU-33
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
LU

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitEBS00CTZ
OIL PRESSURE
OIL PUMP
Unit: mm (in)
REGULATOR VALVE
Unit: mm (in)
OIL CAPACITY (APPROXIMATE)
Unit: · (Imp qt)
Tightening TorqueEBS00B0F
Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)* Engine speed rpm
Approximate discharge pressure kPa (bar, kg/cm
2 , psi)
Idle speed
2,000140 (1.40, 1.43, 20.3) or more
270 (2.70, 2.75, 39.2) or more
Oil pump housing to outer rotor radial clearance 0.114 - 0.260 (0.0045 - 0.0102)
Inner rotor to outer rotor tip clearance Below 0.18 (0.0071)
Oil pump housing to inner rotor side clearance 0.050 - 0.090 (0.0020 - 0.0035)
Oil pump housing to outer rotor side clearance 0.030 - 0.190 (0.0012 - 0.0075)
Inner rotor to oil pump housing clearance 0.045 - 0.091 (0.0018 - 0.0036)
Regulator valve to valve hole clearance 0.040 - 0.097 (0.0016 - 0.0038)
With oil filter change 5.2 (4-5/8 Imp qt)
Without oil filter change 4.9 (4-3/8 Imp qt)
Dry engine (engine overhaul) 6.3 (5-1/2 Imp qt)
Oil pressure switch15 (1.5, 11)
Oil pan drain plug34 (3.5, 25)
Oil filter bracket21.5 (2.2, 16)
Oil filter (TYPE A)18 (1.8, 13)
Oil filler body (TYPE B) 22 (2.2, 16)
Oil pump cover Bolts 6.9 (0.7, 61)*
Screws 6.9 (0.7, 61)*
Regulator plug54 (5.5, 40)
Water hose connector 23.6 (2.4, 17)
Oil cooler24.5 (2.5, 18)

CO-1
ENGINE COOLING SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION CO
A
CO

ENGINE COOLING SYSTEM
QR
PRECAUTIONS .......................................................... 3
Precautions for Liquid Gasket .................................. 3
LIQUID GASKET APPLICATION PROCEDURE ..... 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
OVERHEATING CAUSE ANALYSIS .......................... 5
Troubleshooting Chart .............................................. 5
COOLING SYSTEM .................................................... 7
Cooling Circuit .......................................................... 7
System Chart ........................................................... 8
ENGINE COOLANT .................................................... 9
Inspection ................................................................. 9
LEVEL CHECK ..................................................... 9
LEAK CHECK ....................................................... 9
Changing Engine Coolant ........................................ 9
DRAINING ENGINE COOLANT ........................... 9
REFILLING ENGINE COOLANT ........................ 10
FLUSHING COOLING SYSTEM ......................... 10
RADIATOR ................................................................ 12
Removal and Installation ........................................ 12
REMOVAL ........................................................... 12
INSTALLATION ................................................... 13
INSPECTION AFTER INSTALLATION ............... 13
Checking Radiator Cap .......................................... 13
Checking Radiator .................................................. 13
RADIATOR (ALUMINUM TYPE) .............................. 15
Disassembly and Assembly ................................... 15
PREPARATION ................................................... 15
DISASSEMBLY ................................................... 15
ASSEMBLY ......................................................... 16
INSPECTION ...................................................... 18
COOLING FAN ......................................................... 19
Removal and Installation ........................................ 19
REMOVAL ........................................................... 19INSTALLATION ................................................... 19
Disassembly and Assembly .................................... 20
DISASSEMBLY ................................................... 20
INSPECTION AFTER DISASSEMBLY ................ 20
ASSEMBLY ......................................................... 20
WATER PUMP .......................................................... 21
Removal and Installation ........................................ 21
REMOVAL ........................................................... 21
INSPECTION AFTER REMOVAL ....................... 22
INSTALLATION ................................................... 22
INSPECTION AFTER INSTALLATION ................ 22
THERMOSTAT AND WATER CONTROL VALVE .... 23
Removal and Installation ........................................ 23
REMOVAL ........................................................... 23
INSPECTION AFTER REMOVAL ....................... 24
INSTALLATION ................................................... 24
INSPECTION AFTER INSTALLATION ................ 24
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 25
Standard and Limit .................................................. 25
CAPACITY ........................................................... 25
RADIATOR .......................................................... 25
THERMOSTAT .................................................... 25
WATER CONTROL VALVE ................................. 25
Tightening Torque ................................................... 25
YD22DDTi
PRECAUTIONS ........................................................ 26
Precautions For Liquid Gasket ............................... 26
LIQUID GASKET APPLICATION PROCEDURE ... 26
PREPARATION ......................................................... 27
Special Service Tools ............................................. 27
Commercial Service Tools ...................................... 27
OVERHEATING CAUSE ANALYSIS ........................ 28
Troubleshooting Chart ............................................ 28
COOLING SYSTEM .................................................. 30
Cooling Circuit ........................................................ 30
System Chart .......................................................... 31
ENGINE COOLANT .................................................. 32
Inspection ............................................................... 32
