2005 NISSAN X-TRAIL torque

INJECTION TUBE AND FUEL INJECTOR
EM-169
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

8. Remove fuel injector as follows:
a. Remove nozzle support.
b. Remove fuel injector. While rotating it to left and right, raise it to
remove.
CAUTION:

Handle fuel injector carefully without giving any impact.

Do not disassemble fuel injector.
c. If nozzle gasket remains in cylinder head, hook it with tip of a
flat-bladed screwdriver and pull it out.
d. Remove O-ring from fuel injector.
INSTALLATION

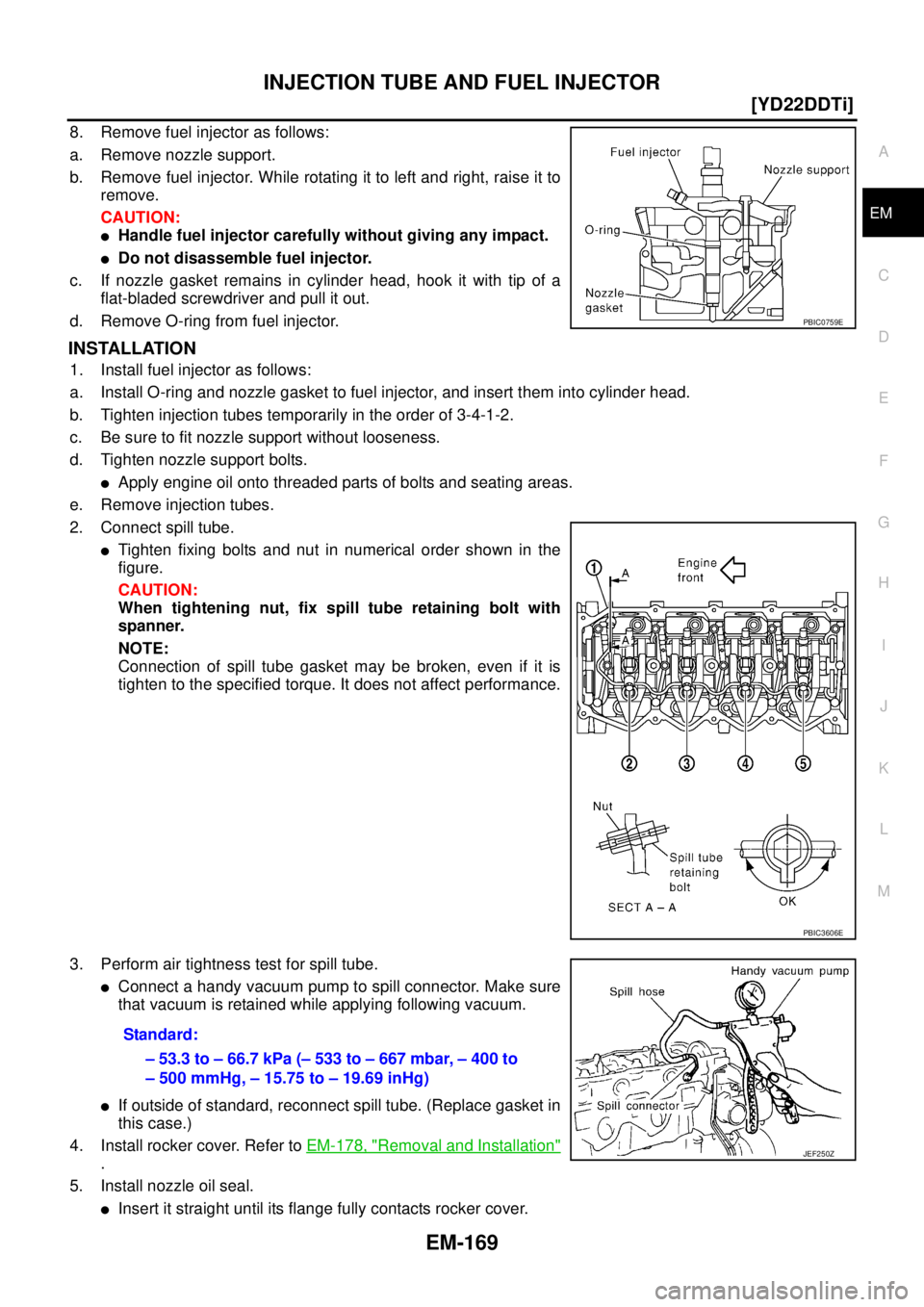

1. Install fuel injector as follows:
a. Install O-ring and nozzle gasket to fuel injector, and insert them into cylinder head.
b. Tighten injection tubes temporarily in the order of 3-4-1-2.
c. Be sure to fit nozzle support without looseness.
d. Tighten nozzle support bolts.

Apply engine oil onto threaded parts of bolts and seating areas.
e. Remove injection tubes.
2. Connect spill tube.

Tighten fixing bolts and nut in numerical order shown in the
figure.
CAUTION:
When tightening nut, fix spill tube retaining bolt with
spanner.
NOTE:
Connection of spill tube gasket may be broken, even if it is
tighten to the specified torque. It does not affect performance.
3. Perform air tightness test for spill tube.

Connect a handy vacuum pump to spill connector. Make sure
that vacuum is retained while applying following vacuum.

If outside of standard, reconnect spill tube. (Replace gasket in
this case.)
4. Install rocker cover. Refer to EM-178, "
Removal and Installation"
.
5. Install nozzle oil seal.

Insert it straight until its flange fully contacts rocker cover.
PBIC0759E
PBIC3606E
Standard:
– 53.3 to – 66.7 kPa (– 533 to – 667 mbar, – 400 to
– 500 mmHg, – 15.75 to – 19.69 inHg)
JEF250Z

ROCKER COVER
EM-179
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM


Loosen holding bolts in reverse order of that shown in the fig-
ure and remove.
6. Remove rocker cover gasket.
INSTALLATION
1. Apply 3.0 mm (0.118 in) dia. on locations shown in the figure.

Use Genuine Liquid Gasket or equivalent.
2. Install rocker cover gasket to rocker cover.
3. Tighten holding bolts in numerical order shown in the figure.
Re-tighten to the same torque in the same order as above.
4. Install nozzle oil seal.

Insert it straight until flange fully contacts rocker cover.
5. Install remaining parts in the reverse order of removal.
6. Before starting engine, bleed air from fuel piping. Refer to FL-18, "
Air Bleeding" .
INSPECTION AFTER INSTALLATION
Start engine and increase engine speed to check for fuel leak.
CAUTION:
Do not touch the engine immediately after stopped as engine becomes extremely hot.
NOTE:
Use mirrors for checking at points out of clear sight.
SBIA0175E
JEM248G
: 7.8 N·m (0.8 kg-m, 69 in-lb)
SBIA0175E

EM-182
[YD22DDTi]
CAMSHAFT

Camshaft Journal Oil Clearance
CAMSHAFT JOURNAL DIAMETER

Measure outer diameter of camshaft journal with micrometer.
CAMSHAFT BRACKET INNER DIAMETER

Install camshaft bracket and tighten bolts to the specified torque. Refer to EM-184, "INSTALLATION" for
the tightening procedure.

Measure inner diameter of camshaft bracket using the inside
micrometer.
CAMSHAFT OIL CLEARANCE CALCULATIONS

(Oil clearance) = (Camshaft bracket inner diameter) – (Camshaft journal diameter)

If out of standard, refer to the standard value of each unit, then replace the camshaft and/or cylinder head.
NOTE:
As the camshaft bracket is manufactured with the cylinder head, it is impossible to replace only the cam-
shaft bracket.

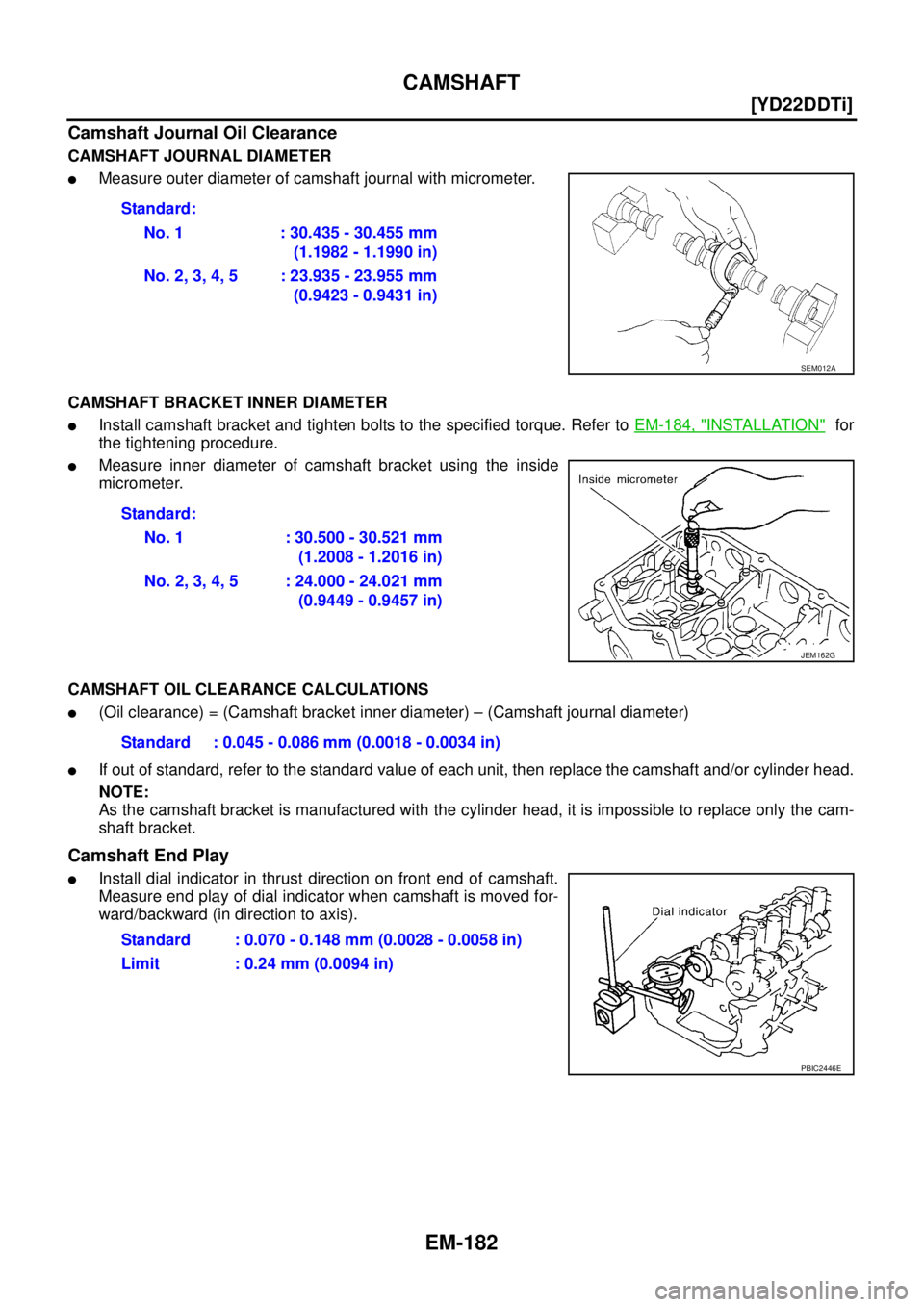

Camshaft End Play

Install dial indicator in thrust direction on front end of camshaft.
Measure end play of dial indicator when camshaft is moved for-
ward/backward (in direction to axis).Standard:
No. 1 : 30.435 - 30.455 mm
(1.1982 - 1.1990 in)
No. 2, 3, 4, 5 : 23.935 - 23.955 mm
(0.9423 - 0.9431 in)
SEM012A
Standard:
No. 1 : 30.500 - 30.521 mm
(1.2008 - 1.2016 in)
No. 2, 3, 4, 5 : 24.000 - 24.021 mm
(0.9449 - 0.9457 in)
JEM162G
Standard : 0.045 - 0.086 mm (0.0018 - 0.0034 in)
Standard : 0.070 - 0.148 mm (0.0028 - 0.0058 in)
Limit : 0.24 mm (0.0094 in)
PBIC2446E

CYLINDER BLOCK
EM-237
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

7. Install main bearing caps.

Identify main bearing caps by the punched mark. Install cor-
rectly matching the journal No. on the bearing cap and the
journal with the front mark facing forward.

Main bearing caps are commonly processed with the cylinder
block. Therefore, caps and cylinder block should be replaced
as a set.
8. Check the main bearing cap bolts for deformation. Refer to EM-254, "
MAIN BEARING CAP BOLT
DEFORMATION" .
9. With the TORX socket (size: E14, commercial service tool),
tighten the main bearing cap bolts according to the following
procedure:
a. Apply engine oil to the threaded part and seat surface of each
bolt.
b. Tighten all bolts in numerical order shown in the figure.
c. Put alignment marks (with paint) on each bolt and the main
bearing cap, all in the same direction. (When using a protractor)
d. Then, tighten 90 degrees. (angle tightening)
CAUTION:
Always use either the angle wrench (special service tool) or
protractor during angle tightening. Avoid tightening based
on visual checks alone.

After tightening bolts to specified torque, make sure that
crankshaft rotates smoothly.

Check crankshaft end play. Refer to EM-245, "CRANKSHAFT
END PLAY" .
10. Check the outer diameter of connecting rod bolts. Refer to EM-
254, "CONNECTING ROD BOLT DEFORMATION" .
11. Install piston to connecting rod.
a. Using the snap ring pliers, install snap rings to groove on piston rear side.

Fit snap ring correctly into grooves.
b. Install pistons to connecting rods.

Using the industrial use dryer, heat pistons up to approx. 60 to
70°C (140 to 158°F) until piston pin can be pressed down by
finger touch. Then insert piston pin into piston and connecting
rod from front side of piston toward rear.
JEM225G
: 27 N·m (2.8 kg-m, 20 ft-lb)
JEM200G
JEM226G
PBIC0089E

EM-248
[YD22DDTi]
CYLINDER BLOCK

CONNECTING ROD BEND AND TORSION

Use connecting rod aligner to check bend and torsion.

If it exceeds the limit, replace connecting rod assembly.
CONNECTING ROD BIG END INNER DIAMETER

Install connecting rod caps without connecting rod bearings and
tighten connecting rod nuts to the specified torque. Refer to EM-
235, "ASSEMBLY" .

Using inside micrometer, measure connecting rod big end inner
diameter.

If out of the standard, replace connecting rod.
CONNECTING ROD BUSHING OIL CLEARANCE
Connecting Rod Bushing Inner Diameter
Use inside micrometer to measure bushing inner diameter.Bend limit : 0.12 mm (0.0047 in)/100 mm (3.94 in)
Torsion limit : 0.12 mm (0.0047 in)/100 mm (3.94 in)
PBIC2077E
Standard : 55.000 - 55.013 mm (2.1654 - 2.1659 in)
PBIC1641E
Standard : 28.026 - 28.038 mm (1.1034 - 1.1039 in)
PBIC0120E

CYLINDER BLOCK
EM-249
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

Piston Pin Outer Diameter
Use micrometer to measure piston pin outer diameter.
Calculation of Connecting Rod Bushing Clearance
(Connecting rod bushing clearance) = (Connecting rod bushing inner diameter) − (Piston pin outer diameter)

If it exceeds the limit, replace connecting rod and/or piston and piston pin assembly. Refer to EM-242,
"HOW TO SELECT CONNECTING ROD BEARING" and/or EM-242, "HOW TO SELECT PISTON" .
CYLINDER BLOCK TOP SURFACE DISTORTION

Using scraper, remove gasket installed onto cylinder block sur-
face. Remove contamination such as engine oil, scale, and car-
bon.
CAUTION:
Keep broken pieces of gasket clear of engine oil and engine
coolant passages.

Use straightedge and feeler gauge to check block upper surface
for six distortion.

If it exceeds the limit, replace cylinder block.
MAIN BEARING HOUSING INNER DIAMETER

Without installing main bearings, install main bearing caps, and
tighten bolts to the specified torque. Refer to EM-235, "
ASSEM-
BLY" .

Measure the inner diameter of main bearing housing with a bore
gauge.

If the measurement is out of the standard, replace cylinder block
and main bearing caps.
NOTE:
These components cannot be replaced as a single unit, because
they were processed together.Standard : 27.995 - 28.000 mm (1.1022 - 1.1024 in)
PBIC0117E
Standard : 0.026 - 0.044 mm (0.0010 - 0.0017 in)
Limit : 0.057 mm (0.0022 in)
Limit : 0.1 mm (0.004 in)
SEM501G
Standard : 66.654 - 66.681 mm (2.6242 - 2.6252 in)
PBIC1643E

CYLINDER BLOCK
EM-251
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

2. Install main bearing caps and tighten bolts to the specified torque. Refer to EM-235, "ASSEMBLY" . This
will prevent distortion of cylinder bores.
3. Cut cylinder bore.
NOTE:

When any cylinder needs boring, all other cylinders must also be bored.

Do not cut too much out of cylinder bore at a time. Cut only 0.05 mm (0.0020 in) or so at a time.
4. Hone cylinders to obtain the specified piston-to-cylinder bore clearance.
5. Measure finished cylinder bore for the out-of-round and taper.
NOTE:

Measurement should be done after cylinder bore cools down.
CRANKSHAFT MAIN JOURNAL DIAMETER

Use micrometer to measure main journal diameter.

If out of the standard, measure the main bearing oil clearance.
then use the undersize bearing. Refer to EM-253, "
MAIN BEAR-
ING OIL CLEARANCE" .
CRANKSHAFT PIN JOURNAL DIAMETER

Use micrometer to measure crankshaft pin journal diameter.

If out of the standard, measure the connecting rod bearing oil
clearance. then use the undersize bearing. Refer to EM-252,
"CONNECTING ROD BEARING OIL CLEARANCE" .

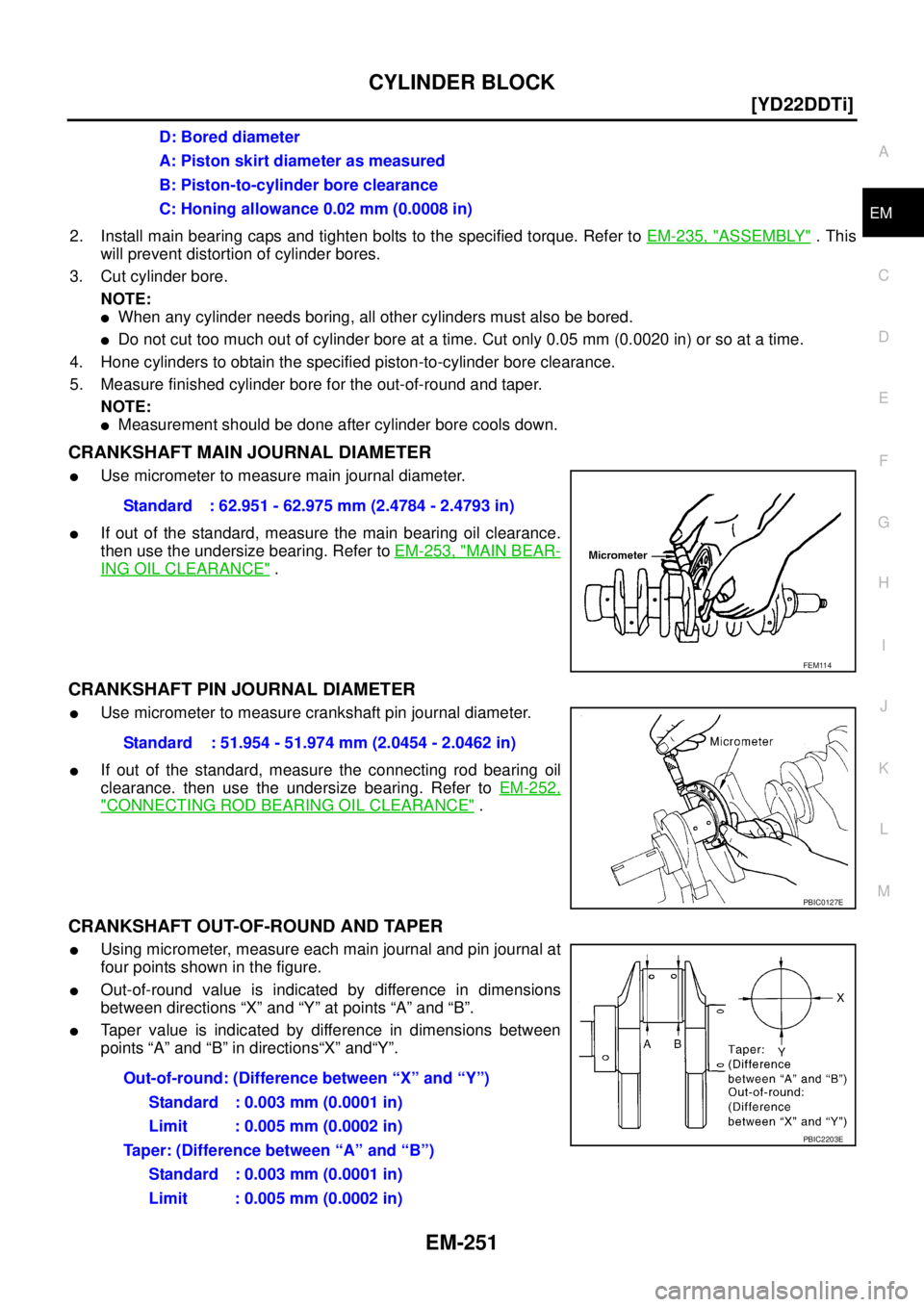

CRANKSHAFT OUT-OF-ROUND AND TAPER

Using micrometer, measure each main journal and pin journal at
four points shown in the figure.

Out-of-round value is indicated by difference in dimensions
between directions “X” and “Y” at points “A” and “B”.

Taper value is indicated by difference in dimensions between
points “A” and “B” in directions“X” and“Y”.D: Bored diameter
A: Piston skirt diameter as measured
B: Piston-to-cylinder bore clearance
C: Honing allowance 0.02 mm (0.0008 in)
Standard : 62.951 - 62.975 mm (2.4784 - 2.4793 in)
FEM114
Standard : 51.954 - 51.974 mm (2.0454 - 2.0462 in)
PBIC0127E
Out-of-round: (Difference between “X” and “Y”)
Standard : 0.003 mm (0.0001 in)
Limit : 0.005 mm (0.0002 in)
Taper: (Difference between “A” and “B”)
Standard : 0.003 mm (0.0001 in)
Limit : 0.005 mm (0.0002 in)
PBIC2203E

EM-252
[YD22DDTi]
CYLINDER BLOCK


If the measured value exceeds the limit, correct or replace crankshaft.

If corrected, measure the bearing oil clearance of the corrected main journal and/or pin journal. Then
select the main bearing or connecting rod bearing. Refer to EM-253, "
MAIN BEARING OIL CLEARANCE"
and/or EM-252, "CONNECTING ROD BEARING OIL CLEARANCE" .

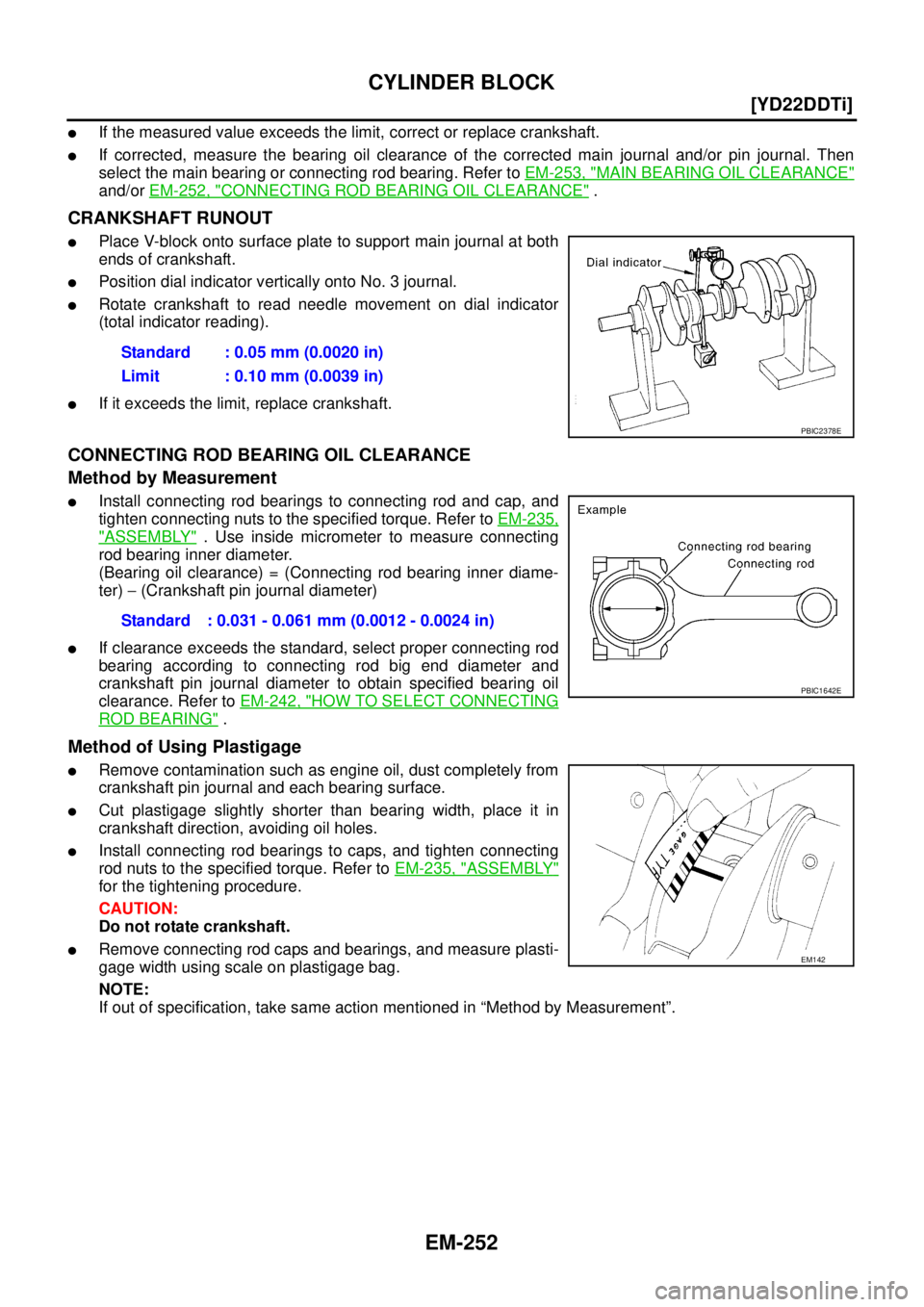

CRANKSHAFT RUNOUT

Place V-block onto surface plate to support main journal at both
ends of crankshaft.

Position dial indicator vertically onto No. 3 journal.

Rotate crankshaft to read needle movement on dial indicator
(total indicator reading).

If it exceeds the limit, replace crankshaft.
CONNECTING ROD BEARING OIL CLEARANCE
Method by Measurement

Install connecting rod bearings to connecting rod and cap, and
tighten connecting nuts to the specified torque. Refer to EM-235,
"ASSEMBLY" . Use inside micrometer to measure connecting
rod bearing inner diameter.
(Bearing oil clearance) = (Connecting rod bearing inner diame-
ter) − (Crankshaft pin journal diameter)

If clearance exceeds the standard, select proper connecting rod
bearing according to connecting rod big end diameter and
crankshaft pin journal diameter to obtain specified bearing oil
clearance. Refer to EM-242, "
HOW TO SELECT CONNECTING
ROD BEARING" .
Method of Using Plastigage

Remove contamination such as engine oil, dust completely from
crankshaft pin journal and each bearing surface.

Cut plastigage slightly shorter than bearing width, place it in
crankshaft direction, avoiding oil holes.

Install connecting rod bearings to caps, and tighten connecting
rod nuts to the specified torque. Refer to EM-235, "
ASSEMBLY"
for the tightening procedure.
CAUTION:
Do not rotate crankshaft.

Remove connecting rod caps and bearings, and measure plasti-
gage width using scale on plastigage bag.
NOTE:
If out of specification, take same action mentioned in “Method by Measurement”.Standard : 0.05 mm (0.0020 in)
Limit : 0.10 mm (0.0039 in)
PBIC2378E
Standard : 0.031 - 0.061 mm (0.0012 - 0.0024 in)
PBIC1642E
EM142
