DTC P0122, P0123 APP SENSOR
EC-1099
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P0122, P0123 APP SENSORPFP:18002
DescriptionEBS0118W
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensors detect the accelera-
tor pedal position and sends a signal to the ECM. The ECM uses the
signal to determine the amount of fuel to be injected.
CONSULT-II Reference Value in Data Monitor ModeEBS0118X
Specification data are reference values.
*: These signals are converted by ECM internally. Thus, these differ from ECM terminals voltage.
On Board Diagnosis LogicEBS0118Z
These self-diagnoses have the one trip detection logic.
MI will not light up for these self-diagnoses.
NOTE:

If DTC P0122 or P0123 is displayed with DTC P0642 or P0643, first perform trouble diagnosis for
DTC P0642 or P0643. Refer to EC-1236, "
DTC P0642, P0643 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureEBS01190
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If DTC is detected, go to EC-1103, "
Diagnostic Procedure" .
PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL POS SEN*

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.2 - 0.7V
Accelerator pedal: Fully depressed 3.9 - 4.9V
ACCEL SEN 2*

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.1 - 0.4V
Accelerator pedal: Fully depressed 1.9 - 2.4V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0122
0122Accelerator pedal position
sensor 1 circuit low inputAn excessively low voltage from the APP sensor
1 is sent to ECM.

Harness or connectors
(The APP sensor 1 circuit is open or
shorted.)

Accelerator pedal position sensor
(Accelerator pedal position sensor 1) P0123
0123Accelerator pedal position
sensor 1 circuit high inputAn excessively high voltage from the APP sensor
1 is sent to ECM.
SEF817Y

EC-1100
[YD (WITH EURO-OBD)]
DTC P0122, P0123 APP SENSOR

WITH GST
Follow the procedure “WITH CONSULT-II” above.

DTC P0122, P0123 APP SENSOR
EC-1101
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Wiring DiagramEBS01191
TBWA0567E

EC-1102
[YD (WITH EURO-OBD)]
DTC P0122, P0123 APP SENSOR

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
82 BAccelerator pedal position
sensor 1 power supply[Ignition switch ON]Approximately 5.3V
83 WAccelerator pedal position
sensor 1[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully released0.5 - 1.0V
[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully depressed4.2 - 5.2V
84 RAccelerator pedal position
sensor 1 ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
85 —Sensor ground
(Accelerator pedal posi-
tion sensor shield circuit)[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
90 LAccelerator pedal position
sensor 2 power supply[Ignition switch ON]Approximately 5.3V
91 GAccelerator pedal position
sensor 2[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully released0.4 - 0.7V
[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully depressed2.2 - 2.7V
92 YAccelerator pedal position
sensor 2 ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V

DTC P0122, P0123 APP SENSOR
EC-1103
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureEBS01192
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.

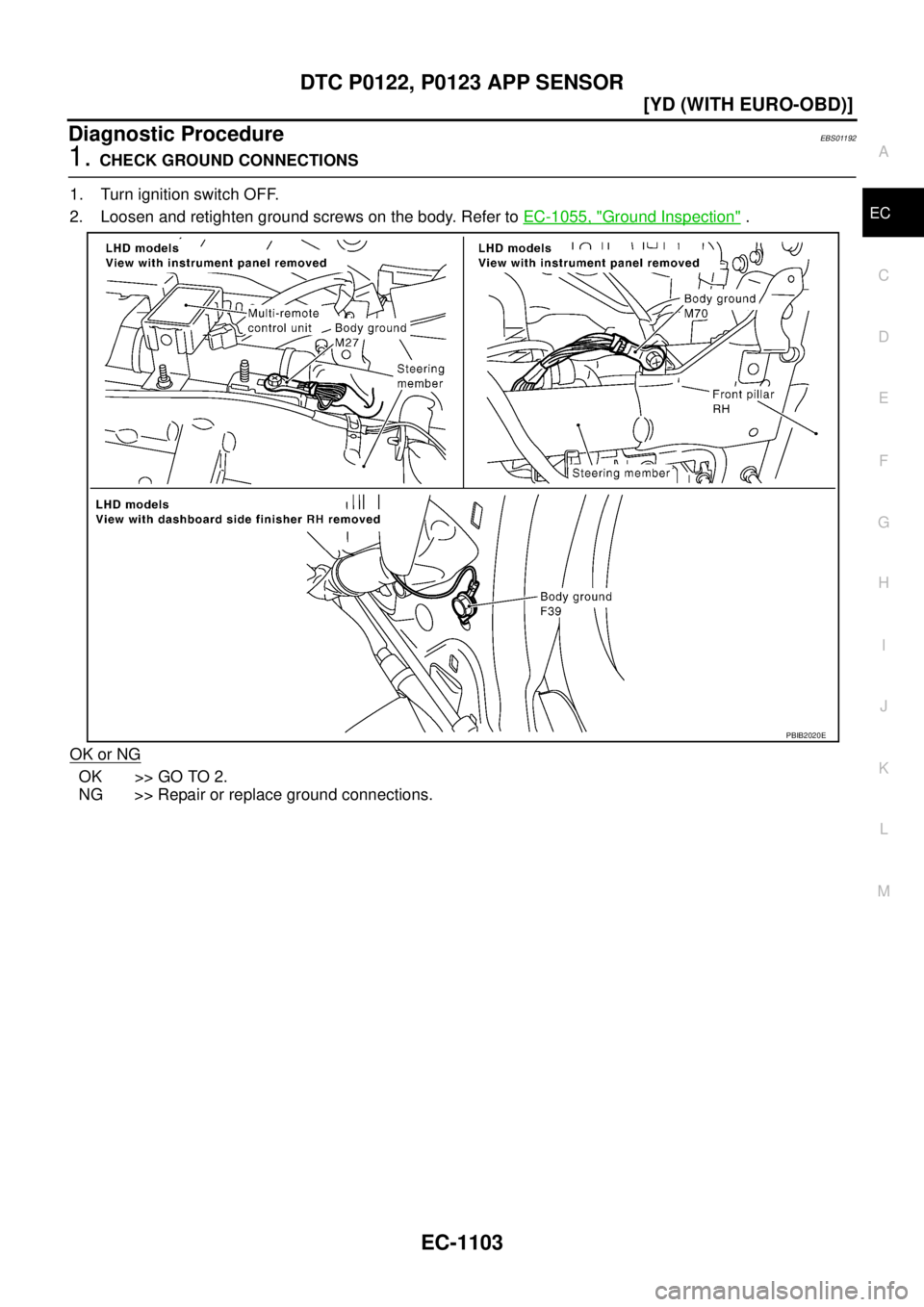

2. Loosen and retighten ground screws on the body. Refer to EC-1055, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2020E

EC-1104
[YD (WITH EURO-OBD)]
DTC P0122, P0123 APP SENSOR

2. CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 6 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK APP SENSOR 1 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 3 and ECM terminal 84.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 83 and APP sensor terminal 5.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK APP SENSOR
Refer to EC-1105, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace accelerator pedal assembly.
PBIB1893E
Voltage: Approximately 5.3V
PBIB0914E
Continuity should exist.
Continuity should exist.

DTC P0122, P0123 APP SENSOR
EC-1105
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

6. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS01193
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.

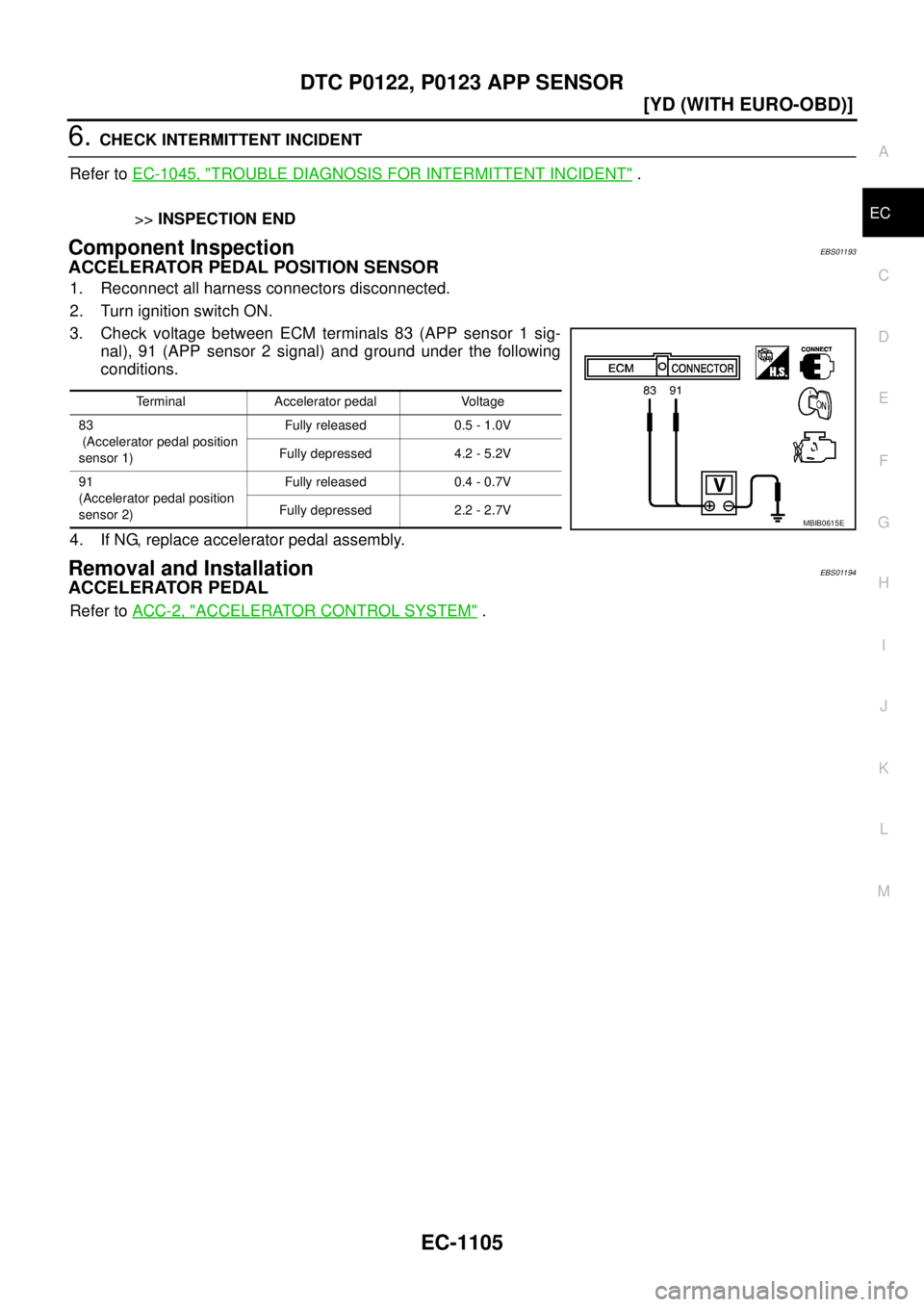

3. Check voltage between ECM terminals 83 (APP sensor 1 sig-
nal), 91 (APP sensor 2 signal) and ground under the following
conditions.
4. If NG, replace accelerator pedal assembly.
Removal and InstallationEBS01194
ACCELERATOR PEDAL
Refer to ACC-2, "ACCELERATOR CONTROL SYSTEM" .
Terminal Accelerator pedal Voltage
83
(Accelerator pedal position
sensor 1)Fully released 0.5 - 1.0V
Fully depressed 4.2 - 5.2V
91
(Accelerator pedal position
sensor 2)Fully released 0.4 - 0.7V
Fully depressed 2.2 - 2.7V
