ENGINE CONTROL SYSTEM
EC-991
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

4WD Models With ESP
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
T: Transmit R: Receive Glow indicator lamp signal T R
A/C switch signal R TSignals ECMABS actuator and
electric unit
(control unit)4WD control unit Combination meter
Signals ECMESP/TCS/ABS
control unitSteering angle
sensor4WD control
unitCombination
meter
4WD mode indicator lamp signalTR
4WD warning lamp signalTR
A/C switch signal RT
ABS warning lamp signal T R
Accelerator pedal position signal T R R
Brake warning lamp signal T R
Engine coolant temperature signal TR
Engine speed signal T R R R
ESP OFF indicator lamp signal T R
Glow indicator lamp signal TR
MI signal TR
Stop lamp switch signal T R
Vehicle speed signalTRR
RT
SLIP indicator lamp signal T R
Parking brake switch signalRT
Steering angle sensor signal R T
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR
PKIA9634E

EC-992
[YD (WITH EURO-OBD)]
ENGINE CONTROL SYSTEM

2WD Models Without ESP
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
T: Transmit R: Receive
SKIA9999E
Signals ECM ABS actuator and electric unit (control unit) Combination meter
A/C compressor feedback signal T R
ABS warning lamp signal T R
Engine coolant temperature signal T R
Engine speed signal T R
MI signal T R
Vehicle speed signalTR
RT
ASCD SET lamp signal T R
ASCD CRUISE lamp signal T R
Stop lamp switch signal T R
Glow indicator lamp signal T R
A/C switch signal R T

ENGINE CONTROL SYSTEM
EC-993
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2WD Models With ESP
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
T: Transmit R: Receive
PKIC0343E
Signals ECM ESP/TCS/ABS control unit Steering angle sensor Combination meter
A/C switch signal RT
ABS warning lamp signal T R
Accelerator pedal position signal T R
Brake warning lamp signal T R
Engine coolant temperature signal TR
Engine speed signal T R R
ESP OFF indicator lamp signal T R
Glow indicator lamp signal TR
MI signal TR
Vehicle speed signalTR
RT
SLIP indicator lamp signal T R
Steering angle sensor signal R T
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR

TROUBLE DIAGNOSIS
EC-1025
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

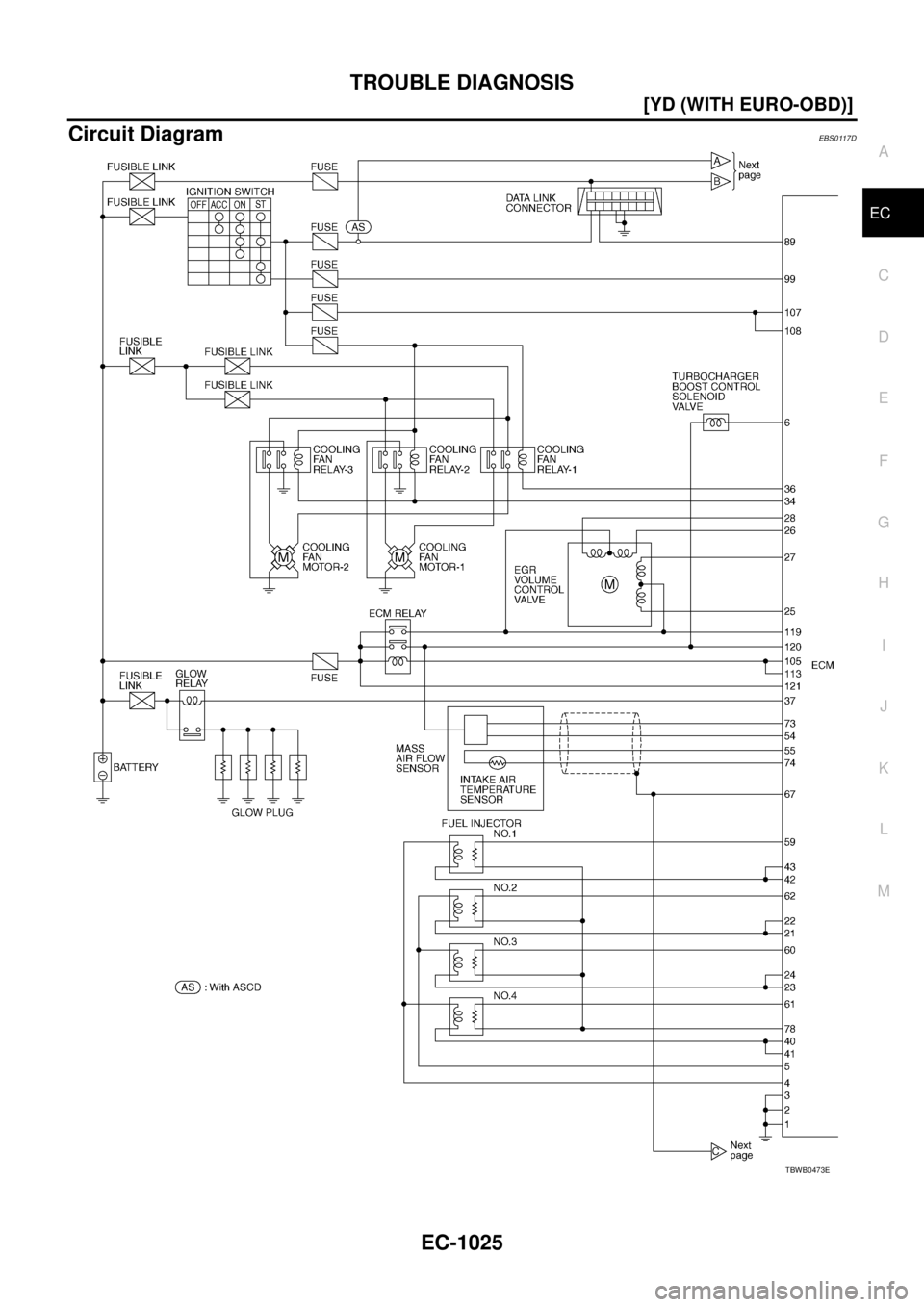

Circuit DiagramEBS0117D
TBWB0473E

EC-1046
[YD (WITH EURO-OBD)]
POWER SUPPLY AND GROUND CIRCUIT

POWER SUPPLY AND GROUND CIRCUITPFP:24110

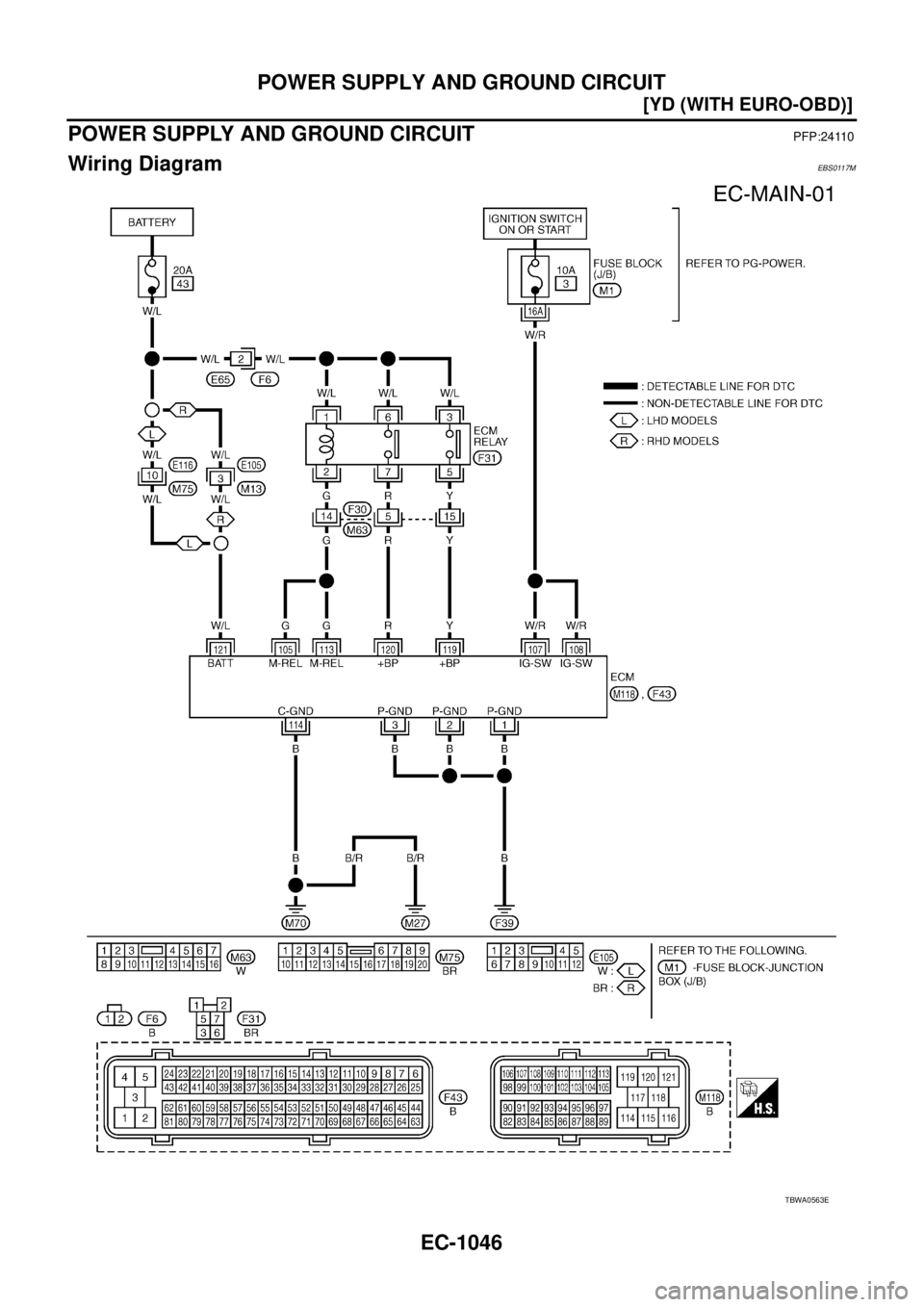

Wiring DiagramEBS0117M
TBWA0563E

POWER SUPPLY AND GROUND CIRCUIT
EC-1049
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

4. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.

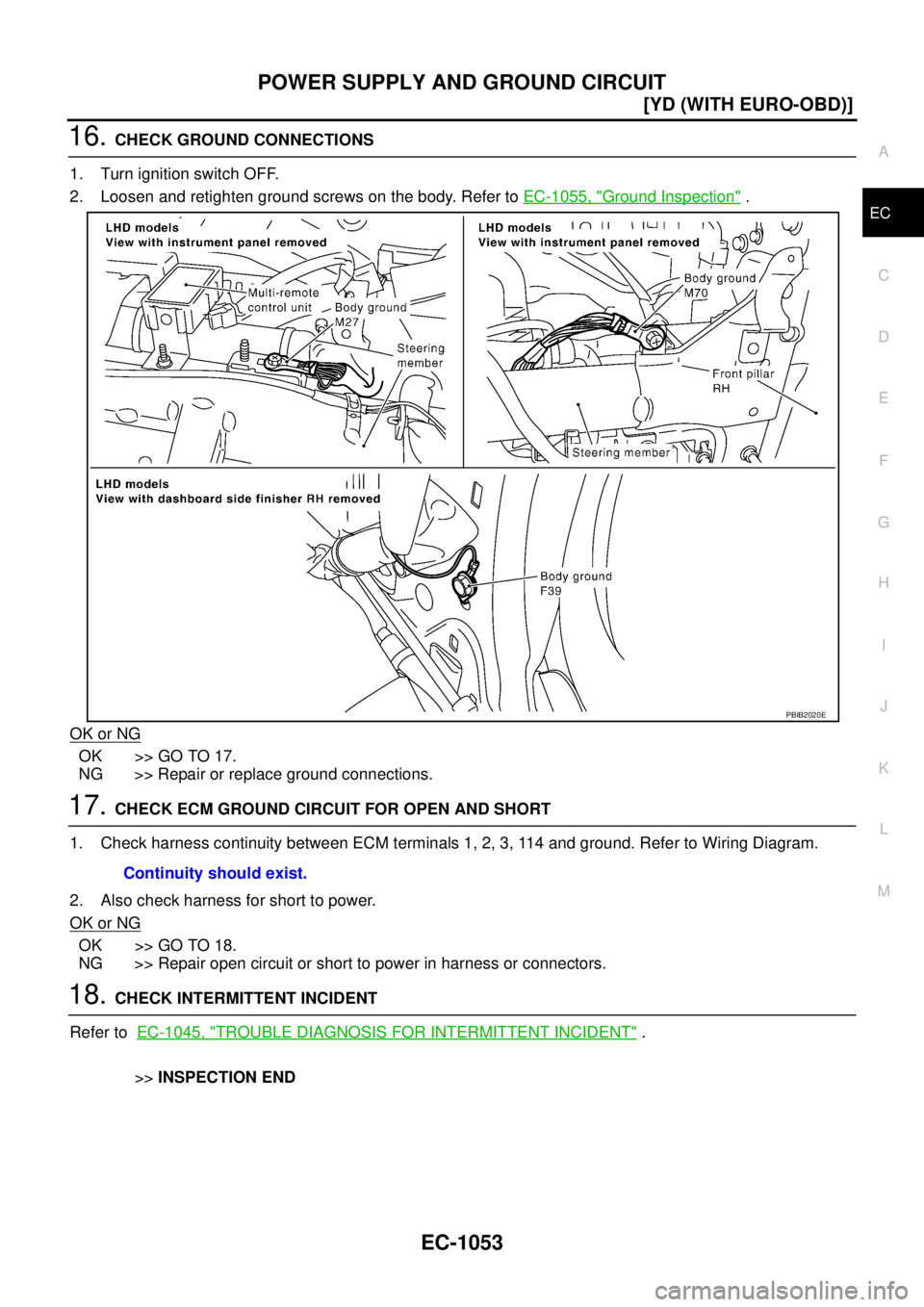

2. Loosen and retighten ground screws on the body. Refer to EC-1055, "
Ground Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace ground connections.
5. CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminals 1, 2, 3, 114 and ground. Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to power in harness or connectors.
PBIB2020E
Continuity should exist.

POWER SUPPLY AND GROUND CIRCUIT
EC-1051
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

9. CHECK OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals 105, 113 and ECM relay terminal 2. Refer to Wiring
Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F30, M63

Harness for open or short between ECM and ECM relay.
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK ECM POWER SUPPLY CIRCUIT-IV
1. Check harness continuity between ECM terminal 119 and ECM relay terminal 5, ECM terminal 120 and
ECM relay terminal 7. Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 13.
NG >> GO TO 12.
12. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F30, M63

Harness for open or short between ECM and ECM relay.
>> Repair open circuit or short to ground or short to power in harness or connectors.
13. CHECK ECM RELAY
Refer to EC-1054, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace ECM relay.Continuity should exist.
Continuity should exist.

POWER SUPPLY AND GROUND CIRCUIT
EC-1053
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

16. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.

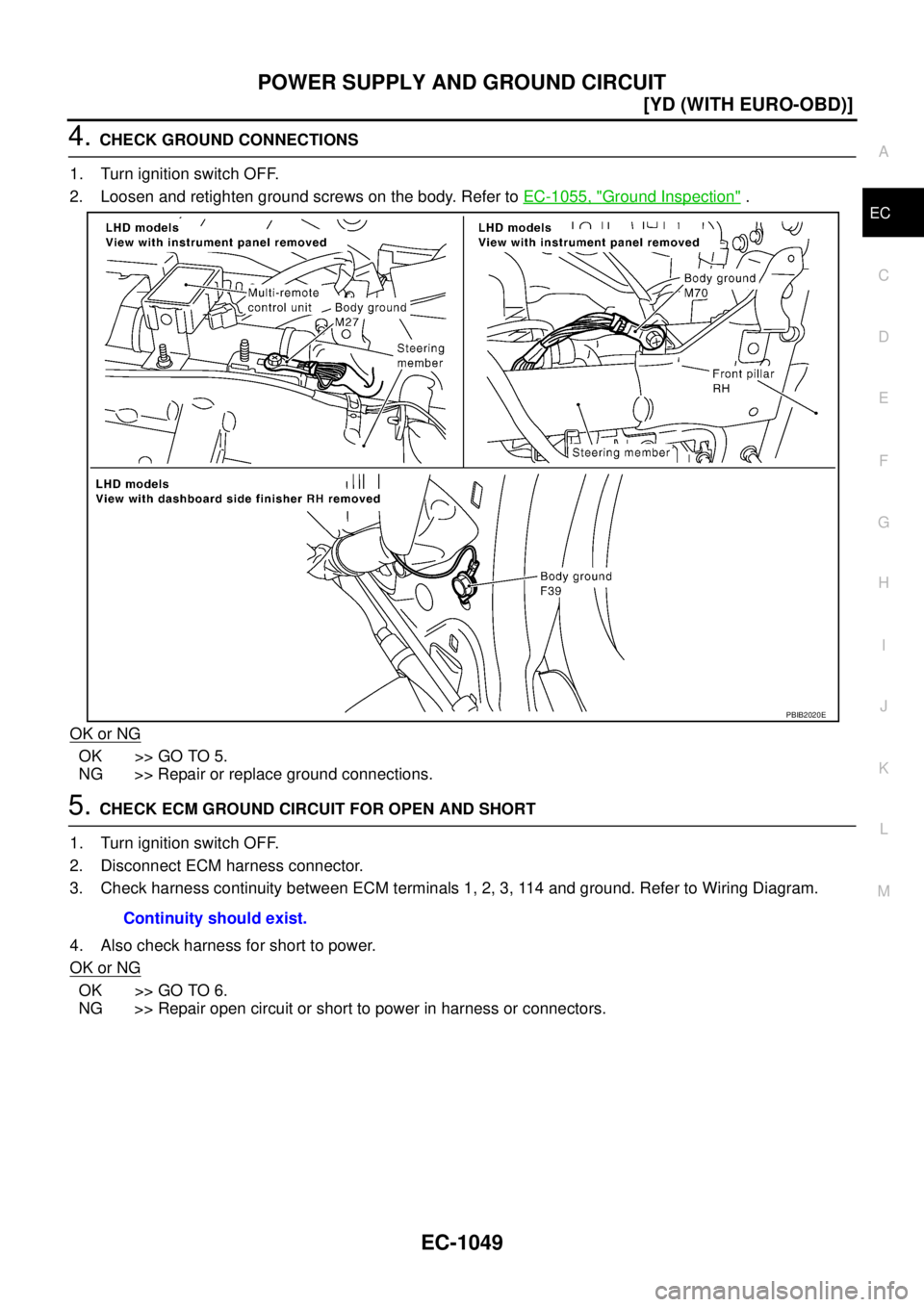

2. Loosen and retighten ground screws on the body. Refer to EC-1055, "
Ground Inspection" .
OK or NG
OK >> GO TO 17.
NG >> Repair or replace ground connections.
17. CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminals 1, 2, 3, 114 and ground. Refer to Wiring Diagram.
2. Also check harness for short to power.
OK or NG
OK >> GO TO 18.
NG >> Repair open circuit or short to power in harness or connectors.
18. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
PBIB2020E
Continuity should exist.
