ASCD BRAKE SWITCH
EC-951
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

9. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ASCD brake switch terminal 2 and ECM terminal 108.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 10.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
10. CHECK ASCD BRAKE SWITCH
Refer toEC-953, "
Component Inspection" .
OK or NG
OK >> GO TO 15.
NG >> Replace ASCD brake switch.

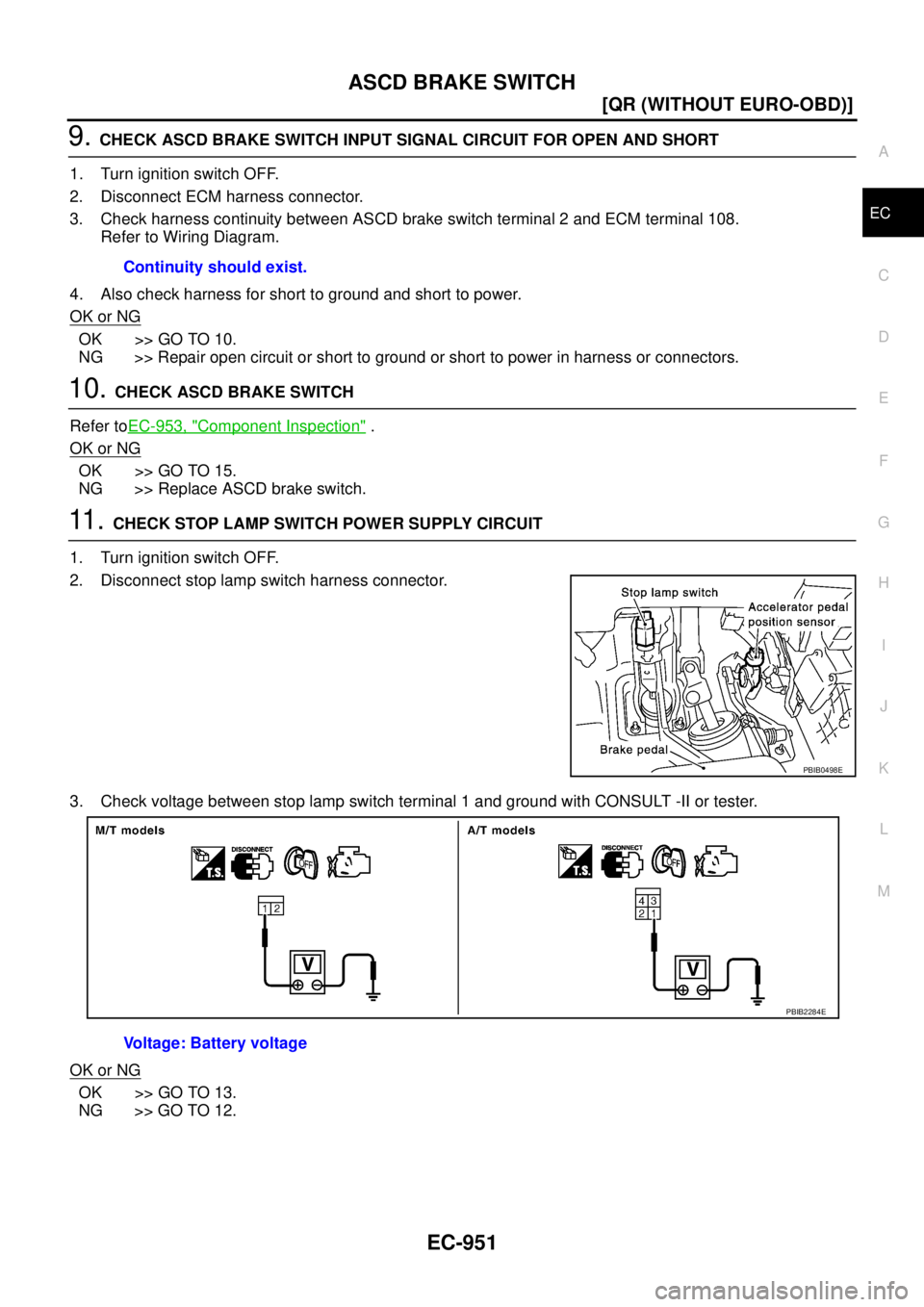

11 . CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT -II or tester.
OK or NG
OK >> GO TO 13.
NG >> GO TO 12.Continuity should exist.
PBIB0498E
Voltage: Battery voltage
PBIB2284E

EC-952
[QR (WITHOUT EURO-OBD)]
ASCD BRAKE SWITCH

12. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector M2

15A fuse

Harness for open or short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
13. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 14.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
14. CHECK STOP LAMP SWITCH
Refer to EC-953, "
Component Inspection"
OK or NG
OK >> GO TO 15.
NG >> Replace stop lamp switch.
15. CHECK INTERMITTENT INCIDENT
Refer to EC-624, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.

ASCD INDICATOR
EC-955
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Wiring DiagramEBS01FBX
LHD MODELS
TBWA0764E

EC-958
[QR (WITHOUT EURO-OBD)]
MI & DATA LINK CONNECTORS

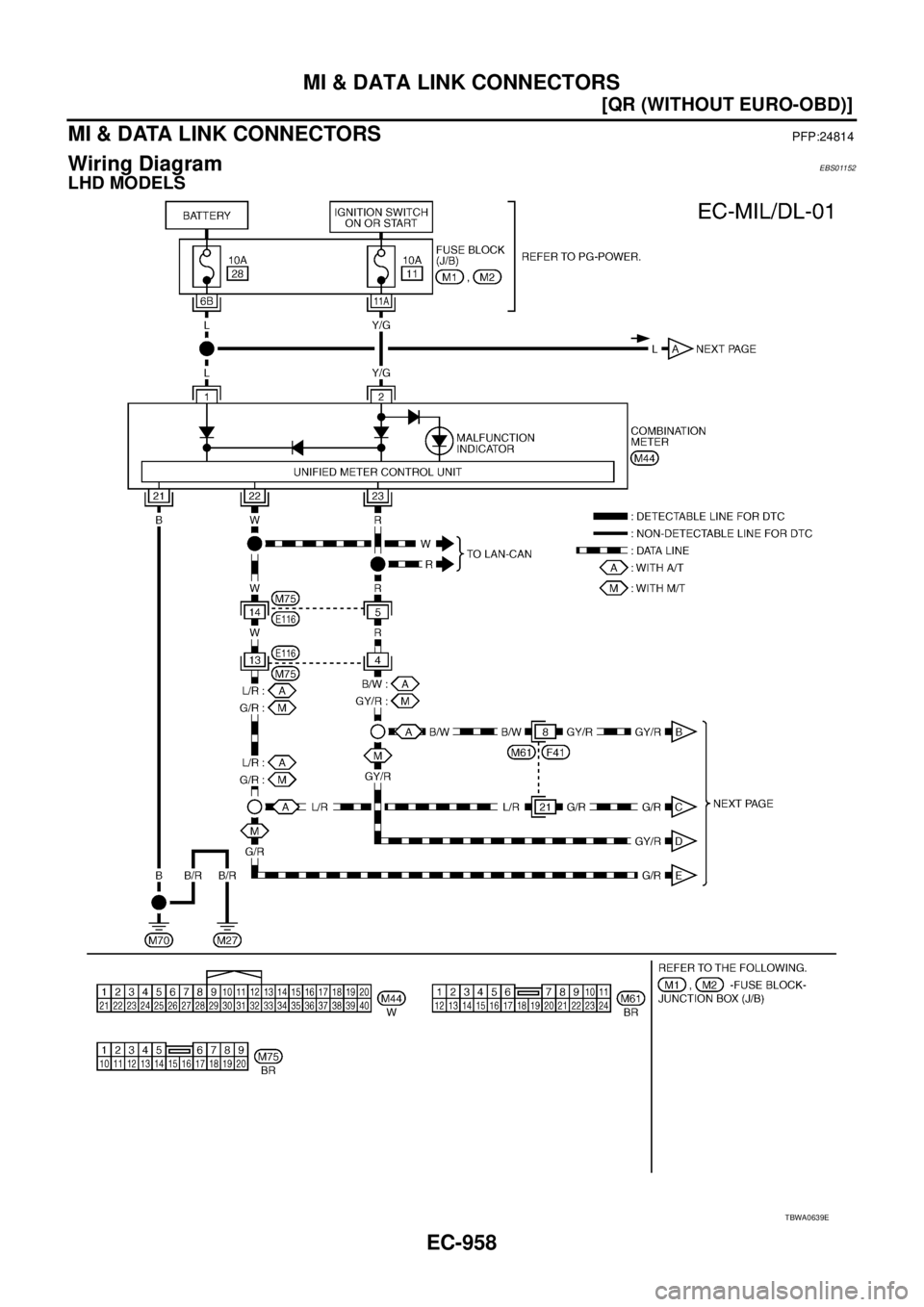

MI & DATA LINK CONNECTORSPFP:24814
Wiring DiagramEBS01152
LHD MODELS
TBWA0639E

EC-982
[YD (WITH EURO-OBD)]
PRECAUTIONS

Wiring Diagrams and Trouble DiagnosisEBS0116S
When you read Wiring diagrams, refer to the following:

GI-14, "How to Read Wiring Diagrams".

PG-2, "POWER SUPPLY ROUTING" for power distribution circuit
When you perform trouble diagnosis, refer to the following:

GI-10, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES".

GI-23, "How to Perform Efficient Diagnosis for an Electrical Incident".

EC-984
[YD (WITH EURO-OBD)]
ENGINE CONTROL SYSTEM

ENGINE CONTROL SYSTEMPFP:23710

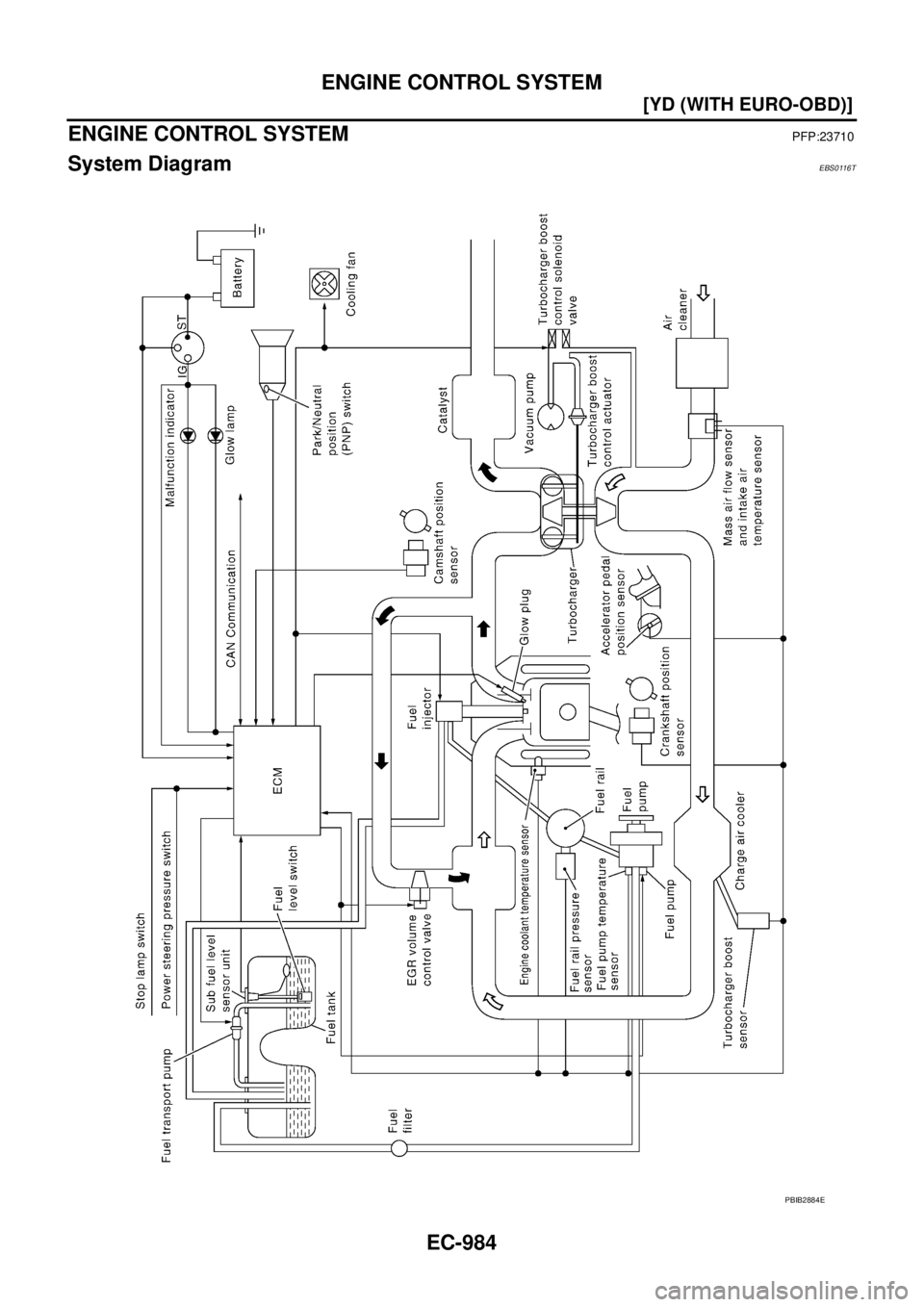

System DiagramEBS0116T
PBIB2884E

ENGINE CONTROL SYSTEM
EC-985
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

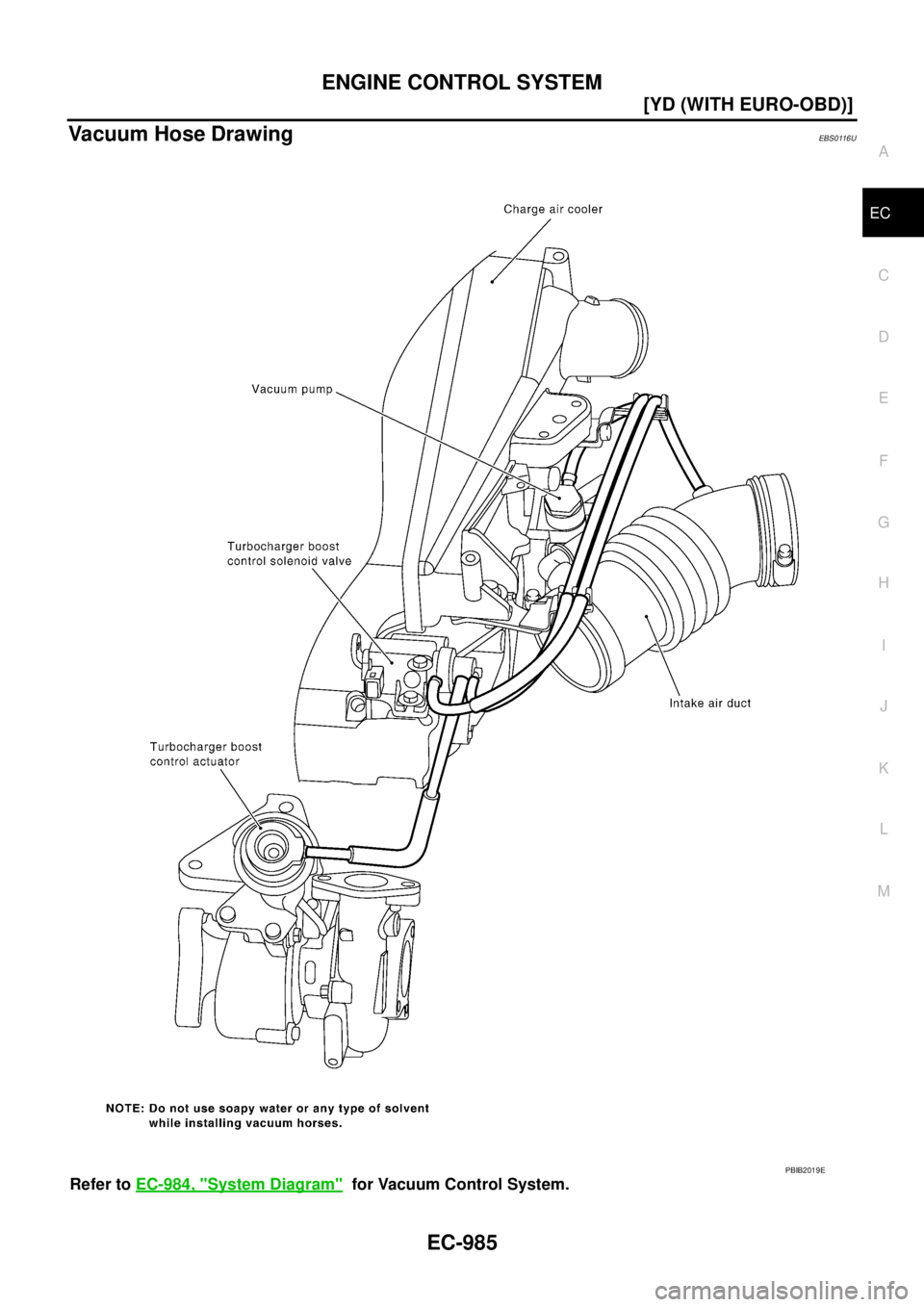

Vacuum Hose DrawingEBS0116U
Refer to EC-984, "System Diagram" for Vacuum Control System.
PBIB2019E

EC-990
[YD (WITH EURO-OBD)]
ENGINE CONTROL SYSTEM

×: Applicable
4WD Models Without ESP
SYSTEM DIAGRAM
INPUT/OUTPUT SIGNAL CHART
T: Transmit R: Receive Steering angle sensor××
4WD control unit××
Combination meter×××× Body typeWagon
Axle 4WD 2WD
EngineYD22DDTi
TransmissionM/T
Brake control ABS ESP ABS ESP
PKIA6458E
Signals ECMABS actuator and
electric unit
(control unit)4WD control unit Combination meter
4WD mode indicator lamp signal T R
4WD warning lamp signalTR
A/C compressor feedback signal T R
ABS warning lamp signal T R
Accelerator pedal position signal T R
Engine coolant temperature signal T R
Engine speed signal T R R
MI signal T R
Parking brake switch signalRT
Stop lamp switch signal T R
Vehicle speed signalTRR
RT
ASCD SET lamp signal T R
ASCD CRUISE lamp signal T R
Stop lamp switch signal T R
