DI-22
COMBINATION METERS

7. Push the odo/trip meter switch. Each meter/gauge should indi-
cate as shown in the figure while pushing odo/trip meter switch.
(At this time, the low-fuel warning lamp goes off.)
How to Perform Trouble DiagnosisEKS00EH8
1. Confirm the symptom or customer complaint.
2. Perform diagnosis according to diagnosis flow. Refer to DI-22, "
Diagnosis Flow" .
3. According to the trouble diagnosis chart, repair or replace the cause of the symptom. Refer to DI-24,
"Trouble Diagnosis Chart for Symptom" .
4. Does the meter operate normally? If so, GO TO 5. If not, GO TO 2.
5. INSPECTION END
Diagnosis FlowEKS00EH9
1. CHECK WARNING LAMP ILLUMINATION
1. Turn ignition switch ON.
2. Make sure that warning lamps (such as MIL and oil pressure warning lamp) illuminate.
Does warning lamp illuminate?
YES >> GO TO 2.
NO >> Check ignition power supply circuit of combination meter. Refer to DI-23, "
Power Supply and
Ground Circuit Inspection" .
2. CHECK SELF-DIAGNOSIS OPERATION
Perform combination meter self-diagnosis. Refer to DI-21, "
SELF-DIAGNOSIS FUNCTION" .
Does self
-diagnosis function operate?
YES >> GO TO 3.
NO >> Check battery power supply of combination meter and ground system. Refer to DI-23, "
Power
Supply and Ground Circuit Inspection" .
3. CHECK ODO/TRIP METER OPERATION
Check segment display status of odo/trip meter.
Is the display normal?
YES >> GO TO 4.
NO >> Replace combination meter.
SKIA8921E
SKIA8920E

COMBINATION METERS
DI-23
C
D
E
F
G
H
I
J
L
MA
B
DI

4. CHECK LOW-FUEL WARNING LAMP ILLUMINATION
During fuel warning lamp check, confirm illumination of low-fuel warning lamp.
OK or NG
OK >> GO TO 5.
NG >> Replace combination meter.
5. CHECK METER CIRCUIT
Check indication of each meter/gauge in self-diagnosis mode.
OK or NG
OK >> Go to diagnosis results. Refer to DI-24, "Trouble Diag-
nosis Chart for Symptom" .
NG >> Replace combination meter.
Power Supply and Ground Circuit InspectionEKS00EHA
1. CHECK FUSES
Check for blown combination meter fuses.
OK or NG
OK >> GO TO 2.
NG >> Be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-80, "
FUSE AND
FUSIBLE LINK BOX" .
2. CHECK POWER SUPPLY CIRCUIT
Check voltage between combination meter and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness between combination meter and fuse.
Condition of odo/trip meter switch Fuel warning lamp
Pushed Does not illuminate.
Released Illuminates.
SKIA8921E
Unit Power source Fuse No.
Combination meterBattery 28
Ignition switch (ON) 11
Terminals Ignition switch position
(+)
(–) OFF ON
Connector Terminal (Wire color)
M442 (Y/G)
Ground0 V Battery voltage
1 (L) Battery voltage Battery voltage
SKIA8922E

DI-24
COMBINATION METERS

3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect combination meter connector.
3. Check continuity between combination meter harness connector
M44 terminals 21 (B) and ground.
OK or NG
OK >> INSPECTION END
NG >> Check ground harness.
Trouble Diagnosis Chart for SymptomEKS00EHB
DIAGNOSIS RESULTS
Continuity should exist.
SKIB0601E
Symptom Possible cause
Tachometer indication is malfunction. Refer to DI-28, "
Engine Speed Signal Inspection" .
Low−fuel warning lamp indication is irregular.
Refer toDI-25, "
Fuel Level Sensor Signal Inspection [Gasoline Engine Mod-
els]" or DI-26, "Fuel Level Sensor Signal Inspection [Diesel Engine Models]" .
Fuel gauge indication is malfunction.
Water temperature gauge indication is malfunction. Refer to DI-28, "
Engine Coolant Temperature Signal Inspection" .
Indication is irregular for the speedometer and odo/trip
meter.Refer to DI-28, "
Vehicle Speed Signal Inspection [With ESP]" or
DI-28, "
Vehicle Speed Signal Inspection [Without ESP]".
A/T position indicator is malfunction. Refer to DI-55, "
A/T Indicator Does Not Illuminate" .
Ambient temperature indicator is malfunction.Refer to DI-30, "
Ambient Temperature Signal Inspection [Without Auto A/C]"
or DI-31, "
Ambient Temperature Signal Inspection [With Auto A/C]" .

COMBINATION METERS
DI-25
C
D
E
F
G
H
I
J
L
MA
B
DI

Fuel Level Sensor Signal Inspection [Gasoline Engine Models]EKS00EHC
The following symptoms are not malfunction.
FUEL GAUGE

Depending on vehicle posture or driving circumstance, the fuel level changes and the pointer may fluctu-
ate.

If the vehicle is fueled with the ignition switch ON, the pointer will move slowly.
LOW-FUEL WARNING LAMP
Depending on vehicle posture or driving circumstance, the fuel level changes and the warning lamp ON timing
may change.
1. CHECK HARNESS CONNECTOR
Check combination meter and fuel level sensor unit terminals (meter side, unit side, harness side) for loose-
ness or bent terminals.
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK COMBINATION METER CIRCUIT
1. Disconnect combination meter connector and sub fuel level sen-
sor unit connector.
2. Check continuity between combination meter harness connector
M44 terminal 8 (G) and sub fuel level sensor unit harness con-
nector B125
*1 or B21*2 terminal 1 (G).
3. Check continuity between combination meter harness connector
M44 terminal 8 (G) and ground.
NOTE:
*1: LHD models, *2: RHD models
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK FUEL LEVEL SENSOR CIRCUIT
1. Disconnect fuel level sensor unit connector.
2. Check continuity between sub fuel level sensor unit harness
connector B125
*1 or B21*2 terminal 3 (Y) and fuel level sensor
unit harness connector B31
*1 or B123*2 terminal 4 (Y).
3. Check continuity between sub fuel level sensor unit harness
connector B125
*1 or B21*2 terminal 3 (Y) and ground.
NOTE:
*1: LHD models, *2: RHD models
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.Continuity should exist.
Continuity should not exist.
SKIA8924E
Continuity should exist.
Continuity should not exist.
SKIA8925E

DI-26
COMBINATION METERS

4. CHECK GROUND CIRCUIT
Check continuity between fuel level sensor unit harness connector
B31
*1 terminal 1 (B) or B123*2 terminal 1 (B/R) and ground.
NOTE:
*1: LHD models, *2: RHD models
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK FUEL LEVEL SENSOR
Check fuel level sensor units. Refer to DI-25, "
Fuel Level Sensor Signal Inspection [Gasoline Engine Models]"
.
OK or NG
OK >> GO TO 6.
NG >> Replace fuel level sensor unit or sub fuel level sensor unit.
6. CHECK INSTALLATION CONDITION
Check fuel level sensor unit installation, and check whether the float arm interferes or binds with any of the
internal components in the fuel tank.
OK or NG
OK >> Replace combination meter.
NG >> Install fuel level sensor unit properly.
Fuel Level Sensor Signal Inspection [Diesel Engine Models]EKS00EJA
The following symptoms are not malfunction.
FUEL GAUGE

Depending on vehicle posture or driving circumstance, the fuel level changes and the pointer may fluctu-
ate.

If the vehicle is fueled with the ignition switch ON, the pointer will move slowly.
LOW-FUEL WARNING LAMP
Depending on vehicle posture or driving circumstance, the fuel level changes and the warning lamp ON timing
may change.
1. CHECK HARNESS CONNECTOR
Check combination meter and fuel level sensor unit terminals (meter side, unit side, harness side) for loose-
ness or bent terminals.
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.Continuity should exist.
SKIA8926E

WARNING LAMPS
DI-35
C
D
E
F
G
H
I
J
L
MA
B
DI

WARNING LAMPSPFP:24814

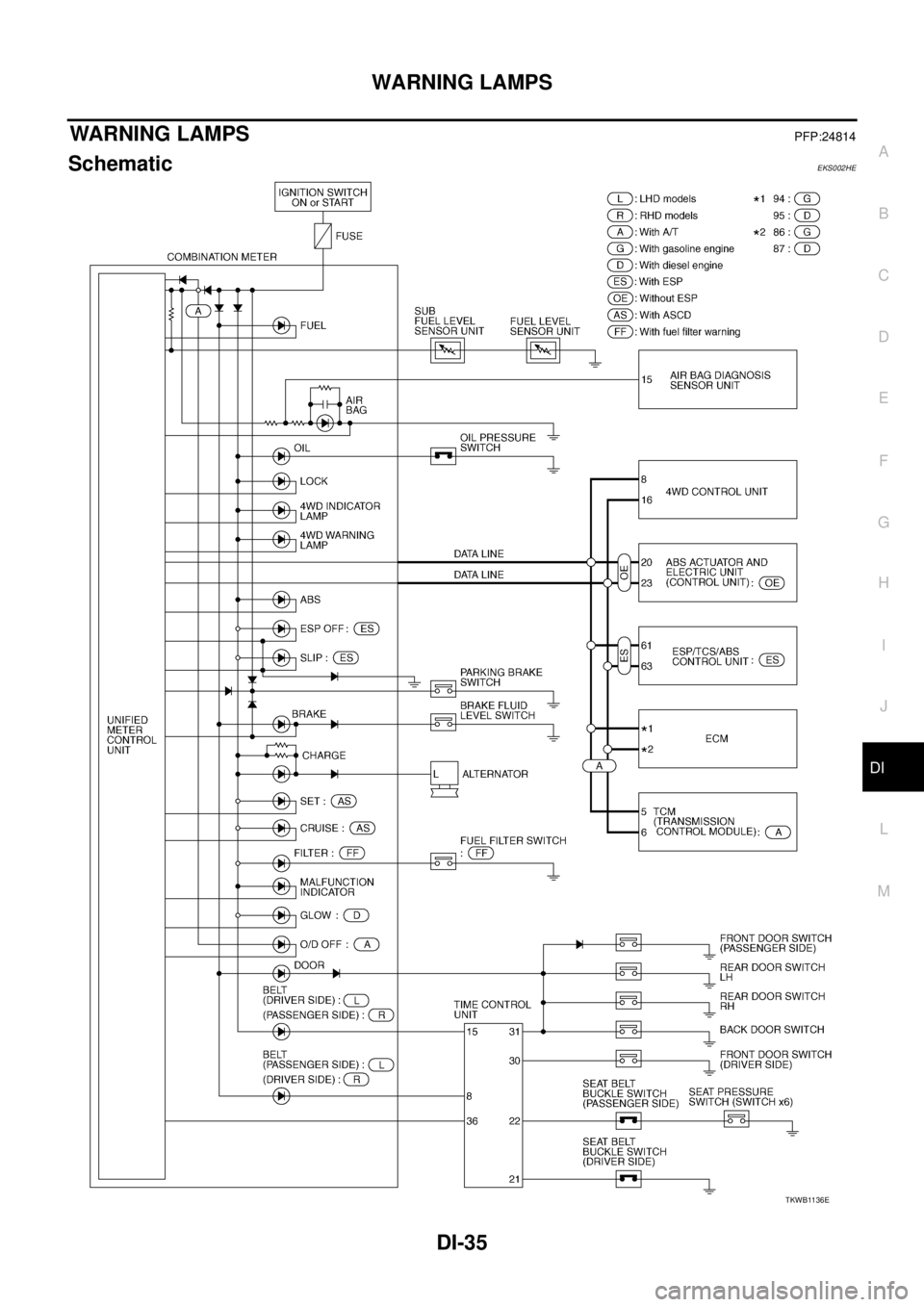

SchematicEKS002HE
TKWB1136E

DI-36
WARNING LAMPS

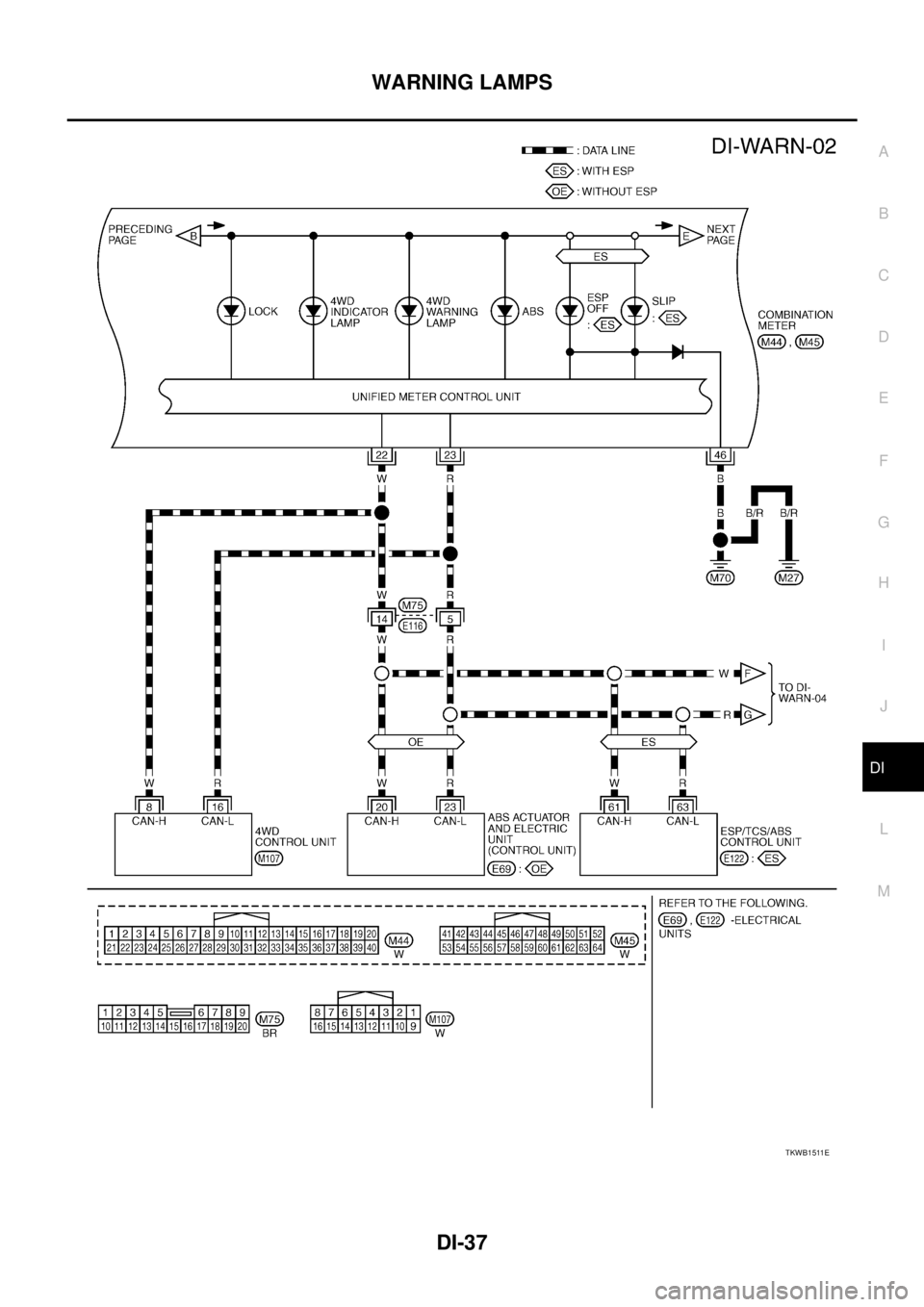

Wiring Diagram — WARN —/LHD ModelsEKS002HH
TKWA1612E

WARNING LAMPS
DI-37
C
D
E
F
G
H
I
J
L
MA
B
DI

TKWB1511E
