2005 NISSAN X-TRAIL warning

SC-16
CHARGING SYSTEM

Trouble DiagnosisEKS00319
Before performing an alternator test, make sure that the battery is fully charged. A 30-volt voltmeter and suit-
able test probes are necessary for the test. The alternator can be checked easily by referring to the Inspection
Ta b l e .

Before starting, inspect the fusible link.

Use fully charged battery.
WITH IC REGULATOR
NOTE:

If the inspection result is OK even though the charging system is malfunctioning, check the “B” terminal
connection. (Check the tightening torque and voltage drop.)

Check condition of rotor coil, rotor slip ring, brush and stator coil. If necessary, replace malfunctioning
parts with new ones.
MALFUNCTION INDICATOR
The IC regulator warning function activates to illuminate charge warning lamp, if any of the following symp-
toms occur while alternator is operating:

Excessive voltage is produced.

No voltage is produced.
PKIA3570E

LT-2 LOW BEAM OPERATION (DAYTIME LIGHT
SYSTEM CANCEL OPERATION) ....................... 41
HIGH BEAM OPERATION/FLASH-TO-PASS
OPERATION ........................................................ 42
DAYTIME LIGHT SYSTEM OPERATION ............ 42
DRIVING LAMP OPERATION ............................. 42
XENON HEADLAMP ........................................... 43
Schematic ............................................................... 44
Wiring Diagram —DTRL— ..................................... 45
Trouble Diagnoses .................................................. 50
DAYTIME LIGHT CONTROL UNIT INSPECTION
TABLE ................................................................. 50
Bulb Replacement .................................................. 50
Aiming Adjustment .................................................. 50
Removal and Installation ........................................ 50
HEADLAMP (WITH DAYTIME) - CONVENTIONAL
TYPE - ....................................................................... 51
System Description ................................................. 51
DESCRIPTION .................................................... 51
LOW BEAM OPERATION (DAYTIME LIGHT
SYSTEM CANCEL OPERATION) ....................... 51
HIGH BEAM OPERATION/FLASH-TO-PASS
OPERATION ........................................................ 52
DAYTIME LIGHT SYSTEM OPERATION ............ 52
DRIVING LAMP OPERATION ............................. 52
Schematic ............................................................... 54
Wiring Diagram —DTRL— ..................................... 55
Trouble Diagnoses .................................................. 60
DAYTIME LIGHT CONTROL UNIT INSPECTION
TABLE ................................................................. 60
Bulb Replacement .................................................. 60
Aiming Adjustment .................................................. 60
Removal and Installation ........................................ 60
HEADLAMP AIMING CONTROL (MANUAL) ........... 61
Wiring Diagram — H/AIM — ................................... 61
Removal and Installation ........................................ 62
Switch Circuit Inspection ........................................ 62
HEADLAMP AIMING CONTROL (AUTO) ................ 63
Component Parts and Harness Connector Location ... 63
System Description ................................................. 63
OUTLINE ............................................................. 63
HEADLAMP AIMING CONTROL OPERATION ... 64
Schematic ............................................................... 65
Wiring Diagram — H/AIM — ................................... 66
LHD MODELS ..................................................... 66
Terminals and Reference Values of Daytime Light
Control Unit ............................................................. 68
Terminals and Reference Values for Height Sensor ... 68
How to Proceed With Trouble Diagnosis ................ 68
CONSULT-II Functions (HEADLAMP LEVELIZER) ... 69
CONSULT-II BASIC OPERATION ....................... 69
WORK SUPPORT ............................................... 70
DATA MONITOR .................................................. 70
ACTIVE TEST ..................................................... 71
SELF-DIAG RESULTS ........................................ 71
Check Aiming Control System ................................ 73
Symptom Chart ....................................................... 74
Headlamp Aiming Motor Does Not Operate (Both
Sides) ..................................................................... 74Headlamp Aiming Motor Does Not Operate (One
Side) ........................................................................ 77
DTC B2081 [INITIAL NOT DONE] .......................... 78
DTC B2082 [SENSOR OUT OF RANGE] ............... 79
DTC B2083 [SEN SIG NOT PLAUSIBLE] .............. 79
DTC B2084 [VOLTAGE UNDER LIMIT] .................. 80
DTC B2085 [LOW BEAM SIG OPEN LINE] ........... 81
DTC B2086 [FRQ. OVER LIMIT] ............................ 82
DTC B2087 [SHORT TO GROUND] ....................... 82
DTC B2088 [SHORT TO BATTERY] ...................... 84
Removal and Installation of Height Sensor ............. 86
REMOVAL ............................................................ 86
INSTALLATION .................................................... 86
TURN SIGNAL AND HAZARD WARNING LAMPS ... 87
System Description ................................................. 87
TURN SIGNAL OPERATION ............................... 87
HAZARD LAMP OPERATION ............................. 88

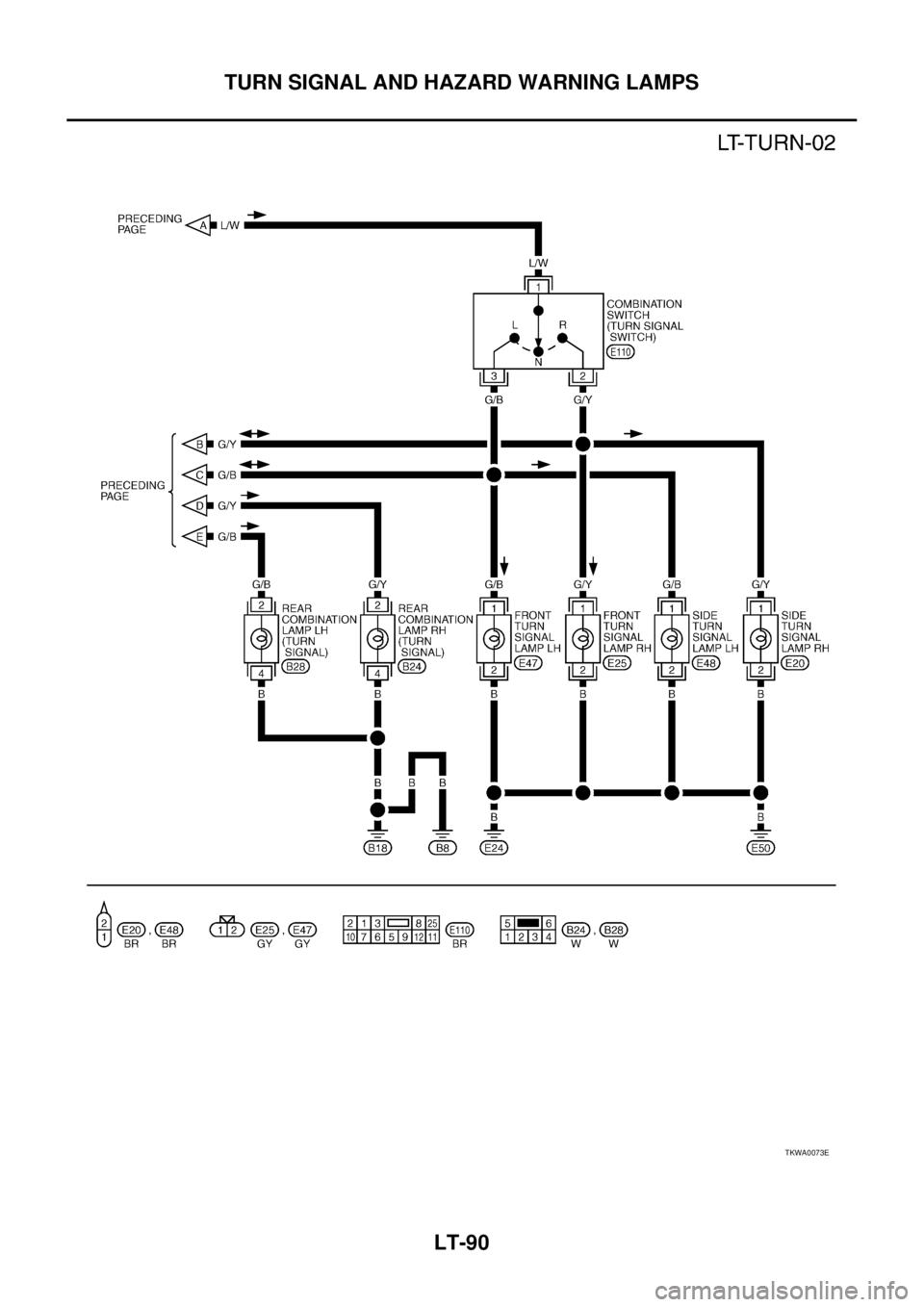

Wiring Diagram — TURN — ................................... 89
LHD MODELS ...................................................... 89
RHD MODELS ..................................................... 91
Trouble Diagnoses .................................................. 93
Electrical Components Inspection ........................... 93
COMBINATION FLASHER UNIT CHECK ........... 93
Bulb Replacement ................................................... 94
FRONT TURN SIGNAL LAMP ............................. 94
SIDE TURN SIGNAL LAMP ................................. 94
REAR TURN SIGNAL LAMP ............................... 94
Removal and Installation of Front Turn Signal Lamp ... 94
REMOVAL ............................................................ 94
INSTALLATION .................................................... 94
Removal and Installation of Side Turn Signal Lamp ... 95
REMOVAL ............................................................ 95
INSTALLATION .................................................... 95
Removal and Installation of Rear Turn Signal Lamp ... 95
LIGHTING AND TURN SIGNAL SWITCH ................ 96
Removal and Installation ......................................... 96
REMOVAL ............................................................ 96
INSTALLATION .................................................... 96
Switch Circuit Inspection ......................................... 96
HAZARD SWITCH ..................................................... 97
Removal and Installation ......................................... 97
REMOVAL ............................................................ 97
INSTALLATION .................................................... 97
STOP LAMP .............................................................. 98
Wiring Diagram — STOP/L — ................................ 98
Bulb Replacement ................................................... 99
STOP LAMP ........................................................ 99
HIGH-MOUNTED STOP LAMP ........................... 99
Removal and Installation ......................................... 99
STOP LAMP ........................................................ 99
HIGH-MOUNTED STOP LAMP ........................... 99
BACK-UP LAMP .....................................................100
Wiring Diagram — BACK/L — ..............................100
GASOLINE ENGINE ..........................................100
DIESEL ENGINE ...............................................101
Bulb Replacement .................................................102
Removal and Installation .......................................102
PARKING, LICENSE PLATE AND TAIL LAMPS ....103
Wiring Diagram — TAIL/L — .................................103

LT-4
PRECAUTION

PRECAUTION PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS0079M
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precaution EKS003KS

Do not touch the glass of bulb directly by hand. Keep grease and other oily matters away from it. Do not
touch bulb by hand while it is lit or right after being turned off. Burning may result.

Do not leave bulb out of headlamp reflector for a long time because dust, moisture smoke, etc. may affect
the performance of the headlamp. When replacing the bulb, be sure to replace it with a new one.

Adjust aiming by tightening aiming screw. (To adjust it toward loosening side, first loosen adjusting screw,
and then make adjustment by tightening.)

To remove soil or sealant of bulbs, do not use organic solvent (thinner, gasoline, etc.)

When replacing bulb, be sure to hold bulb socket and pull it out straight. If wiring harness of the bulb is
pulled at an angle, the bulb may be caught in the lamp, making it difficult to take out.
Wiring Diagrams and Trouble Diagnosis EKS003KT
When you read wiring diagrams, refer to the following:

Refer to GI-14, "How to Read Wiring Diagrams" in GI section

Refer to PG-2, "POWER SUPPLY ROUTING" for power distribution circuit in PG section
When you perform trouble diagnosis, refer to the following:

Refer to GI-10, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES" in GI section

Refer toGI-23, "How to Perform Efficient Diagnosis for an Electrical Incident" in GI section

HEADLAMP - XENON TYPE -
LT-17
C
D
E
F
G
H
I
J
L
MA
B
LT

Trouble Diagnoses EKS00N4Y
WARNING:

Xenon headlamp has a high-tension current generating area. Be extremely careful when removing
and installing. Be certain to disconnect battery negative cable prior to removing or installing.

When xenon headlamp is lit, never touch harness (covered with red or amber insulation), bulb
itself or bulb socket with your bare hands

Never service a xenon headlamp with wet hands.

When checking body side harness with a circuit tester, be certain to disconnect harness connec-
tor from xenon headlamp.

When xenon headlamp is lit, xenon bulb must be installed in headlamp housing. (Never turn on
xenon headlamp, if bulb is out of headlamp housing.)
CAUTION:
Make sure to install bulb securely; if xenon bulb is improperly installed in its socket, high-tension cur-
rent leaks occur. This may lead to a melted bulb and/or bulb socket.
Symptom Possible cause Repair order
Headlamp does not operates.1. 30A fuse
2. HID relay circuit
3. Lighting switch
4. Headlamp ground circuit1. Check 30A fuse (letter M, located in fuse and fusible link
box).
2. Check lighting switch.
3. Check harness between lighting switch terminal and
ground.
Headlamp LH (low and high beam)
does not operate, but headlamp RH
(low and high beam) does operate.1. 15A fuse
2. 20A fuse
3. HID relay LH
4. HID relay LH circuit1. Check 15A fuse (No.40, located in fuse and fusible link
box).
2. Check 20A fuse (No.52, located in fuse and fusible link
box). Verify battery positive voltage is present at terminal
5 of HID relay LH.
3. Check HID relay LH.
Headlamp RH (low and high beam)
does not operate, but headlamp LH
(low and high beam) does operate.1. 15A fuse
2. 20A fuse
3. HID relay RH
4. HID relay RH circuit1. Check 15A fuse (No.41, located in fuse and fusible link
box).
2. Check 20A fuse (No. 51, located in fuse and fusible link
box). Verify battery positive voltage is present at terminal
5 of HID relay RH.
3. Check HID relay RH.
LH high beam does not operate, but
LH low beam operates.1. Bulb
2. Open in high beam LH circuit
3. Lighting switch
4. Headlamp LH ground circuit1. Check bulb.
2. Check the following.
–Harness between headlamp LH and lighting switch for
open circuit.
3. Check lighting switch.
4. Check harness between headlamp LH and ground.
LH low beam does not operate, but
LH high beam operates.1. 20A fuse
2. HID relay LH
3. Open in LH low beam circuit
4. LH low beam ground circuit
5. Xenon bulb
6. HID control unit1. Check 20A fuse (No52, located in fuse and fusible link
box). Verify battery positive voltage is present at terminal
5 of HID relay LH.
2. Check HID relay LH.
3. Check harness between HID relay LH terminal 3 and
headlamp LH terminal 2 for an open circuit.
4. Check harness between headlamp LH and ground.
5. Replace xenon bulb with other side bulb or new one. (If
headlamps illuminate correctly, replace bulb.)
6. Replace HID control unit with other side control unit or
new one. (If headlamps illuminate correctly, replace con-
trol unit.)

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-87
C
D
E
F
G
H
I
J
L
MA
B
LT

TURN SIGNAL AND HAZARD WARNING LAMPSPFP:26120
System Description EKS003BX
TURN SIGNAL OPERATION
With the hazard switch in the OFF position and the ignition switch in the ON or START position, power is sup-
plied

through 10A fuse [No. 2, located in fuse block (J/B)]

through hazard switch terminal 2

through hazard switch terminal 1

to combination flasher unit terminal 1,

through combination flasher unit terminal 3

to turn signal switch terminal 1.
Ground is supplied

to combination flasher unit terminal 2

through grounds M27 and M70.
LH Turn Signal Lamp
When the turn signal switch is moved to the left position, power is supplied

through turn signal switch terminal 3

to front turn signal lamp LH terminal 1

to side turn signal lamp LH terminal 1

to combination meter terminal 52, and

to rear combination lamp LH terminal 2.
Ground is supplied

to front turn signal lamp LH terminal 2

through grounds E24 and E50,

to side turn signal lamp LH terminal 2

through grounds E24 and E50,

to rear combination lamp LH terminal 4

through grounds B8 and B18,

to combination meter terminal 64

through grounds M27 and M70.
With power and ground supplied, the combination flasher unit controls the flashing of the LH turn signal lamps.
RH Turn Signal Lamp
When the turn signal switch is moved to the right position, power is supplied

through turn signal switch terminal 2

to front turn signal lamp RH terminal 1

to side turn signal lamp RH terminal 1

to combination meter terminal 18, and

to rear combination lamp RH terminal 2.
Ground is supplied

to front turn signal lamp RH terminal 2

through grounds E24 and E50,

to side turn signal lamp RH terminal 2

through grounds E24 and E50,

to rear combination lamp RH terminal 4

through grounds B8 and B18,

to combination meter terminal 64

through grounds M27 and M70.

LT-88
TURN SIGNAL AND HAZARD WARNING LAMPS

With power and ground supplied, the combination flasher unit controls the flashing of the RH turn signal
lamps.
HAZARD LAMP OPERATION
Power is supplied at all times

through 10A fuse (No. 35, located in the fuse and fusible link box)

to hazard switch terminal 3.
With the hazard switch in the ON position, power is supplied

through hazard switch terminal 1

to combination flasher unit terminal 1,

through combination flasher unit terminal 3

to hazard switch terminal 4.
Ground is supplied

to combination flasher unit terminal 2

through grounds M27 and M70.
Power is supplied

through hazard switch terminal 5

to front turn signal lamp LH terminal 1

to side turn signal lamp LH terminal 1

to combination meter terminal 52, and

to rear combination lamp LH terminal 2,

through hazard switch terminal 6

to front turn signal lamp RH terminal 1

to side turn signal lamp RH terminal 1

to combination meter terminal 18, and

to rear combination lamp RH terminal 2.
Ground is supplied

to front turn signal lamp LH and RH terminal 2

through grounds E24 and E50,

to side turn signal lamp LH and RH terminal 2

through grounds E24 and E50,

to rear combination lamp LH and RH terminal 4

through grounds B8 and B18,

to combination meter terminal 64

through grounds M27 and M70.
With power and ground supplied, the combination flasher unit controls the flashing of the hazard warning
lamps.

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-89
C
D
E
F
G
H
I
J
L
MA
B
LT

Wiring Diagram — TURN — EKS003BY
LHD MODELS
TKWA1526E

LT-90
TURN SIGNAL AND HAZARD WARNING LAMPS

TKWA0073E
