2005 NISSAN X-TRAIL warning

COLLISION DIAGNOSIS
SRS-49
C
D
E
F
G
I
J
K
L
MA
B
SRS

For Side CollisionEHS000DG
WHEN THE SIDE AIR BAG IS ACTIVATED IN THE SIDE COLLISION:
1. Replace the following component:
–All parts of front seatback (including front seatback frame) with front side air bag module (on the side on
which front side air bag is activated)
–Diagnosis sensor unit
–Side air bag (Satellite) sensor
2. Check the SRS components and the related parts using the table shown below.
–Replace any SRS components and the related parts showing visible signs of damage (dents, cracks,
deformation).
3. Conduct self-diagnosis using CONSULT-II or “AIR BAG” warning lamp. Refer to SRS-17, "
SRS Operation
Check" . Ensure entire SRS operation properly.
WHEN SRS IS NOT ACTIVATED IN THE SIDE COLLISION:
1. Check the SRS components and the related parts using the table shown below.
–Replace any SRS components and the related parts showing visible signs of damage (dents, cracks,
deformation).
2. Conduct self-diagnosis using CONSULT-II or “AIR BAG” warning lamp. Refer to SRS-17, "
SRS Operation
Check" . Ensure entire SRS operation properly.
Spiral cable 1. Visually check spiral cable and combination switch for damage.
2. Check connectors and protective tape for damage.
3. Check steering wheel for noise, binding or heavy operation.
4. If no damage is found, reinstall with bolts.
5. If damaged—Replace.
Harness and Connec-
tors1. Check connectors for poor connection, damage, and terminals for deformities.
2. Check harness for binding, chafing, cuts, or deformities.
3. If no damage is found, reinstall the harness and connectors.
4. Damaged—Replace damaged section of harness. Do not attempt to repair, splice or modify any SRS har-
ness.
Instrument panel 1. Visually check instrumental panel for damage.
2. If no damage is found, reinstall the instrument panel.
3. If damaged—Replace the instrument panel with bolts. Part SRS is activated SRS is NOT activated

BL-2 PRELIMINARY CHECK ....................................... 53
SYMPTOM CHART ............................................. 54
Power Supply and Ground Circuit Check ............... 55
Door Lock/Unlock Switch Check ............................ 56
Door Key Cylinder Switch Check ............................ 58
Front Door Lock Actuator (Driver Side) Check ....... 60
Front Door Lock Actuator (Passenger Side) Check ... 61
Rear Door Lock Actuator LH Check ....................... 62
Rear Door Lock Actuator RH Check ....................... 63
Back Door Lock Actuator Check ............................. 64
Door Switch Check ................................................. 65
Door Unlock Sensor Check .................................... 66
Key Switch Check ................................................... 67
Super Lock Actuator (Driver Side) Check ............... 68
Super Lock Actuator (Passenger Side) Check ....... 69
Super Lock Actuator Check / Rear LH ................... 70
Super Lock Actuator Check / Rear RH ................... 71
NATS Release Signal Check .................................. 72
Ignition Switch “ON” Circuit Check ......................... 73
MULTI-REMOTE CONTROL SYSTEM ..................... 74
Component Parts and Harness Connector Location ... 74
System Description ................................................. 75
FUNCTION .......................................................... 75
LOCK OPERATION ............................................. 75
UNLOCK OPERATION ........................................ 75
HAZARD REMINDER .......................................... 75
MULTI-REMOTE CONTROLLER ID CODE
ENTRY ................................................................ 75
Schematic ............................................................... 76
Wiring Diagram — MULTI — .................................. 77
Terminal and Reference Value for Multi-remote
Control Unit ............................................................. 80
Terminal and Reference Value for Time Control Unit ... 80
Symptom Chart ....................................................... 81
Remote Controller Battery Check ........................... 82
Power Supply and Ground Circuit Check for Time
Control Unit ............................................................. 82
Power Supply and Ground Circuit Check for Multi-
Remote Control Unit ............................................... 83
Time Control Unit Lock Signal Circuit Check .......... 84
Time Control Unit Unlock Signal Circuit Check ...... 85
Hazard Reminder Check ........................................ 86
ID Code Entry Procedure ....................................... 89
Remote Controller Battery Replacement ................ 90
FRONT DOOR LOCK ............................................... 91
Component Parts Location ..................................... 91
Component Parts Location (Super Lock) ................ 91
Inspection and Adjustment ..................................... 91
OUT SIDE HANDLE ROD ADJUSTMENT .......... 92
Removal and Installation ........................................ 92
REMOVAL ........................................................... 92
INSTALLATION .................................................... 93
Disassembly and Assembly .................................... 93
DISASSEMBLY ................................................... 93
ASSEMBLY ......................................................... 93
Disassembly and Assembly .................................... 93
DISASSEMBLY (SUPER LOCK) ......................... 93
ASSEMBLY ......................................................... 94
REAR DOOR LOCK .................................................. 95Component Parts Location ..................................... 95
Component Parts Location (Super Lock) ................ 95
Inspection and Adjustment ...................................... 95
OUT SIDE HANDLE ROD ADJUSTMENT .......... 96
Removal and Installation ......................................... 96
REMOVAL ............................................................ 96
INSTALLATION .................................................... 97
Disassembly and Assembly .................................... 98
DISASSEMBLY .................................................... 98
ASSEMBLY .......................................................... 98
Disassembly and Assembly .................................... 98
DISASSEMBLY (SUPER LOCK) ......................... 98
ASSEMBLY .......................................................... 98
BACK DOOR ............................................................. 99
Fitting Adjustment ................................................... 99
VERTICAL/LATERAL CLEARANCE ADJUST-
MENT ................................................................... 99
Back Door Assembly .............................................100
REMOVAL AND INSTALLATION .......................100
INSPECTION .....................................................100
Removal and Installation of Back Door Handle ....100
REMOVAL ..........................................................100
INSTALLATION ..................................................101
Removal and Installation of Back Door Lock and
Actuator .................................................................101
REMOVAL ..........................................................101
INSTALLATION ..................................................101
Removal and Installation of Back Door Weatherstrip .102
REMOVAL ..........................................................102
INSTALLATION ..................................................102
FUEL FILLER LID OPENER ...................................103
Component Parts Location ...................................103
THEFT WARNING SYSTEM ...................................104
Wiring Diagram — THEFT —/PRI-WIRE ..............104
LHD MODELS ....................................................104
RHD MODELS ...................................................106
NATS (NISSAN ANTI-THEFT SYSTEM) .................108
Component Parts and Harness Connector Location .108
System Description ...............................................109
System Composition .............................................110
ECM Re-communicating Function ........................110
Wiring Diagram — NATS — .................................. 111
LHD MODELS .................................................... 111
RHD MODELS ...................................................113
CONSULT-II ..........................................................115
CONSULT-II INSPECTION PROCEDURE ........115
CONSULT-II DIAGNOSTIC TEST MODE FUNC-
TION ..................................................................116
HOW TO READ SELF-DIAGNOSTIC RESULTS .116
NATS SELF-DIAGNOSTIC RESULTS ITEM
CHART ...............................................................117
Work Flow .............................................................118
Trouble Diagnoses ................................................119
SYMPTOM MATRIX CHART 1 ..........................119
SYMPTOM MATRIX CHART 2 ..........................121
DIAGNOSTIC SYSTEM DIAGRAM ...................121
Diagnostic Procedure 1 .........................................121
Diagnostic Procedure 2 .........................................122
Diagnostic Procedure 3 .........................................125

BL-4
PRECAUTIONS

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EIS008TY
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for WorkEIS008P8

After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check
their operation.

Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.
Wiring Diagnosis and Trouble DiagnosisEIS008P9
When you read wiring diagrams, refer to the following:

GI-14, "How to Read Wiring Diagrams"

PG-2, "POWER SUPPLY ROUTING"
When you perform trouble diagnosis, refer to the following:

GI-10, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES"

GI-23, "How to Perform Efficient Diagnosis for an Electrical Incident"
Check for any Service bulletins before servicing the vehicle.

MULTI-REMOTE CONTROL SYSTEM
BL-75
C
D
E
F
G
H
J
K
L
MA
B
BL

System DescriptionEIS001RE
FUNCTION
Multi-remote control system has the following function.

Door lock (and set super lock)

Door unlock (and release super lock)

Hazard reminder
LOCK OPERATION
To lock door by multi-remote controller, the ignition switch must be at OFF.
When the LOCK signal is input to multi-remote control unit (the antenna of the system is combined with multi-
remote control unit), ground is supplied

through multi-remote control unit terminal 5

to time control unit terminal 32.
Then time control unit operates to lock doors and set super lock (models with super lock).
UNLOCK OPERATION
When the UNLOCK signal is input to multi-remote control unit (the antenna of the system is combined with
multi-remote control unit), ground is supplied

through multi-remote control unit terminal 6

to time control unit terminal 33.
Time control unit operates to unlock driver's door and release super lock (models with super lock).
Then, if an unlock signal is sent from the remote controller again within 5 seconds, all other doors will be
unlocked.
HAZARD REMINDER
When the doors are locked or unlocked by multi-remote controller (signal from driver side unlock sensor), sup-
ply power to hazard warning lamp flashes as follows

Lock operation: Flash once

Unlock operation: Flash twice
MULTI-REMOTE CONTROLLER ID CODE ENTRY
A maximum of four remote controllers can be entered.
To enter ID code entry, the following signals must be input to the multi-remote control unit.

Ignition switch (ON)

Signal from remote controller
For detailed procedure, refer to BL-89, "
ID Code Entry Procedure" .

BL-86
MULTI-REMOTE CONTROL SYSTEM

Hazard Reminder CheckEIS008EX
1. CHECK HAZARD WARNING LAMP
Check if hazard warning lamp flashes with hazard switch.
Does hazard warning lamp operate?
Yes >> GO TO 2.
No >> Check hazard warning lamp circuit. Refer to LT- 8 9 , "
Wiring Diagram — TURN —" .
2. CHECK HAZARD REMINDER OPERATION
Check the following at when push the multi-remote control switch.
Check voltage between multi-remote control unit terminal 3 (G/Y), 8
(G/B) and ground.
OK or NG
OK >> GO TO 3.
NG >> Replace multi-remote control unit.3 (G/Y) – Ground : Battery voltage.
8 (G/B) – Ground : Battery voltage.
PIIB0635E

BL-104
THEFT WARNING SYSTEM

THEFT WARNING SYSTEMPFP:25362
Wiring Diagram — THEFT —/PRI-WIREEIS001RM

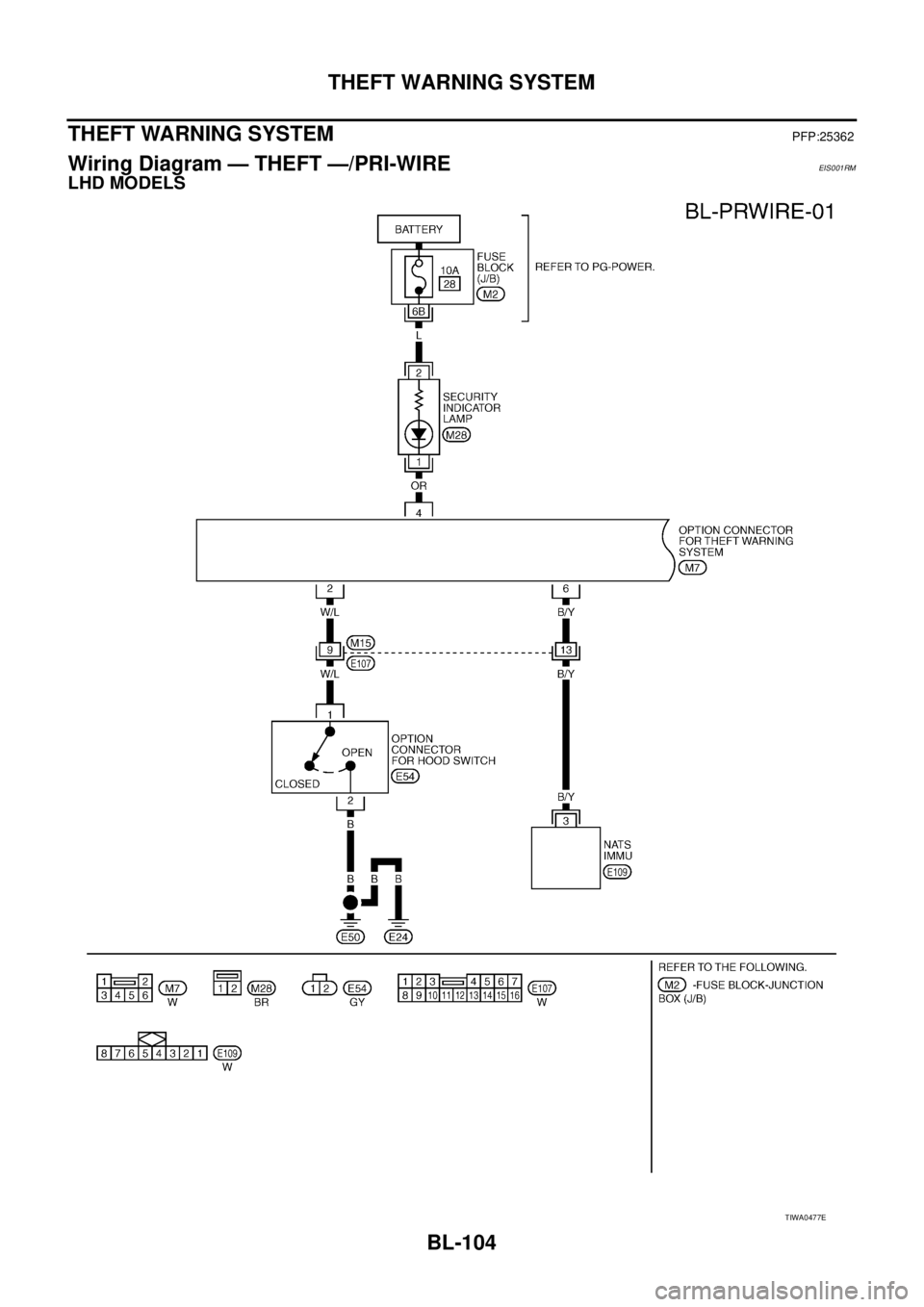

LHD MODELS
TIWA0477E

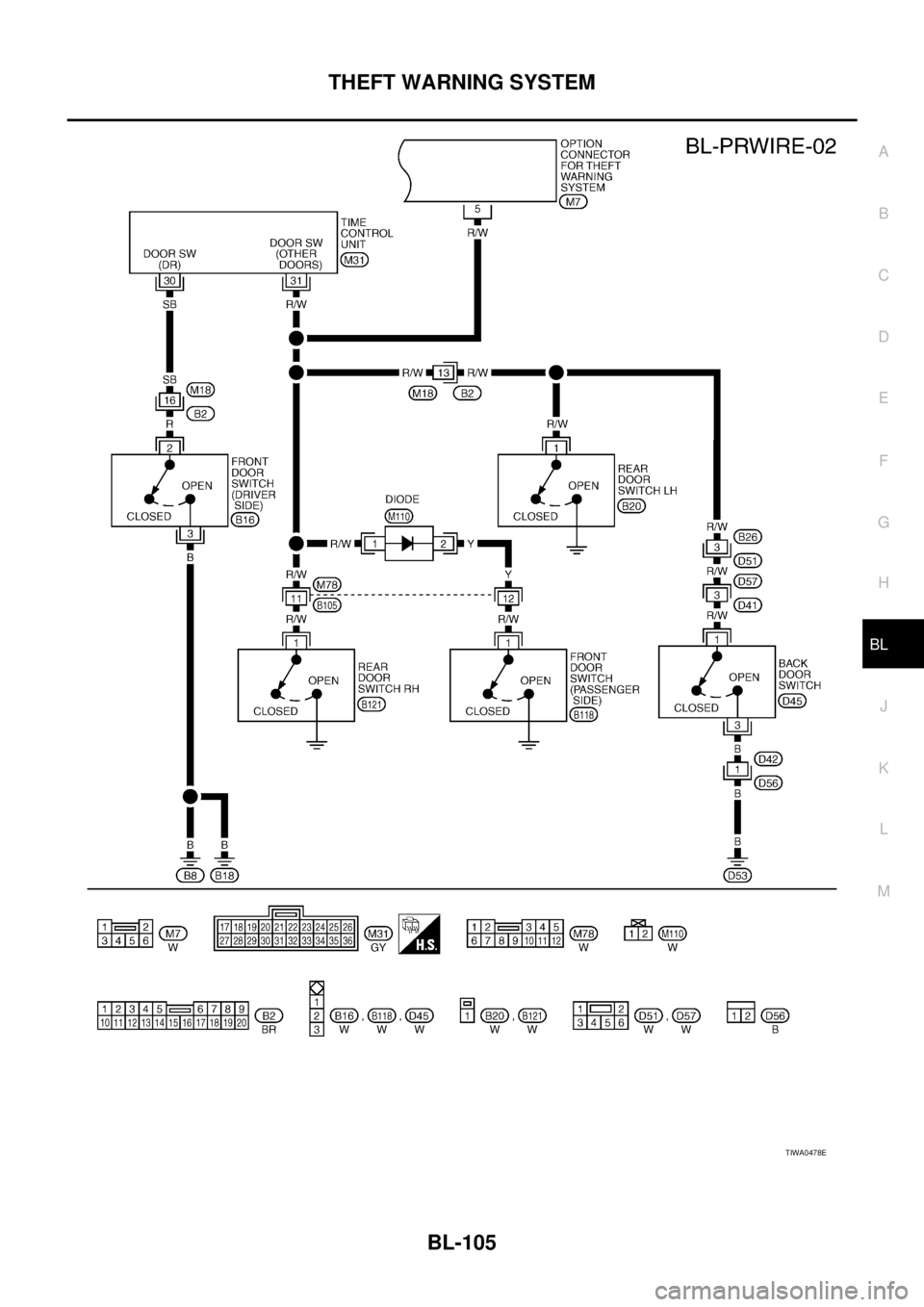

THEFT WARNING SYSTEM
BL-105
C
D
E
F
G
H
J
K
L
MA
B
BL

TIWA0478E

BL-106
THEFT WARNING SYSTEM

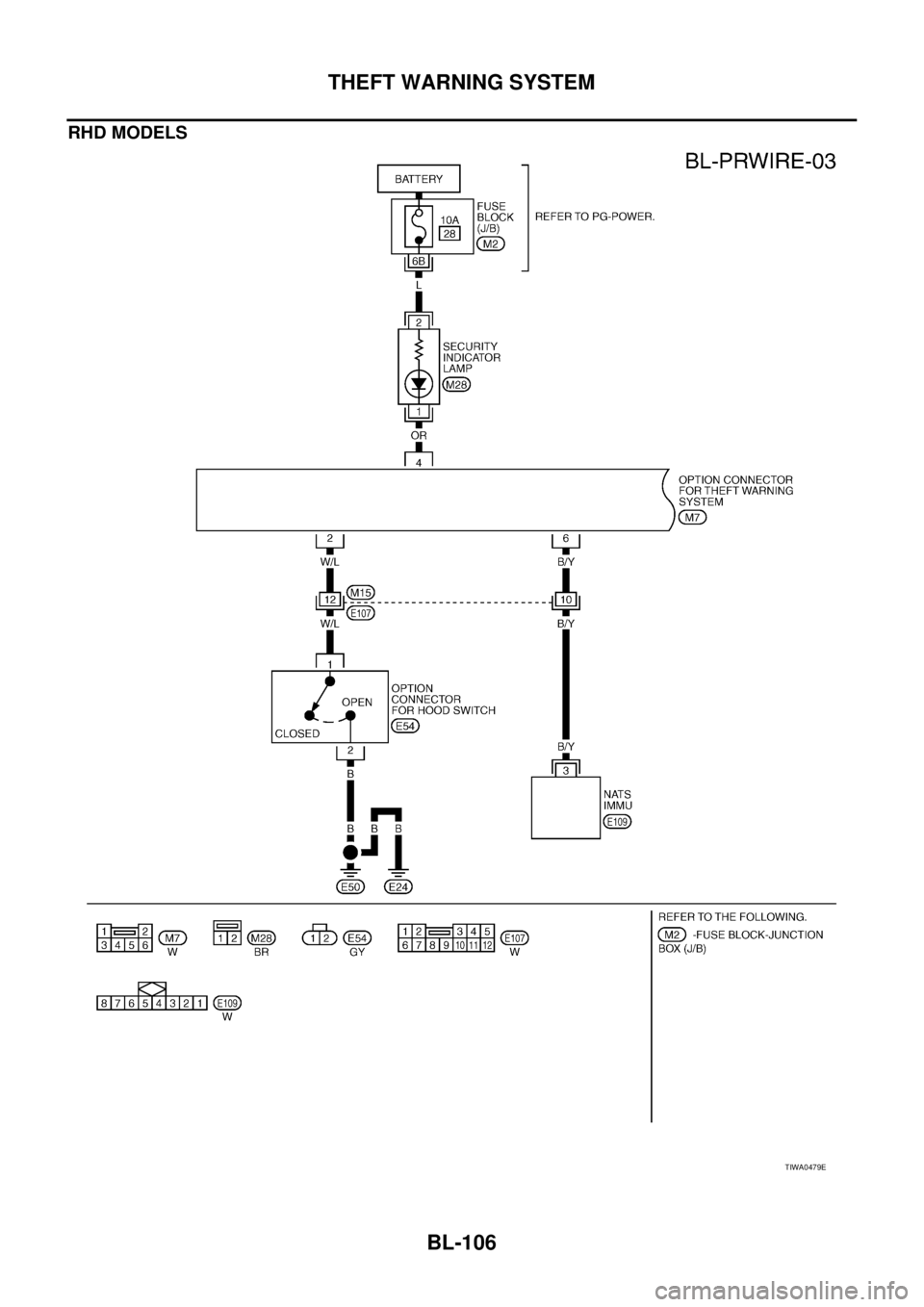

RHD MODELS
TIWA0479E
