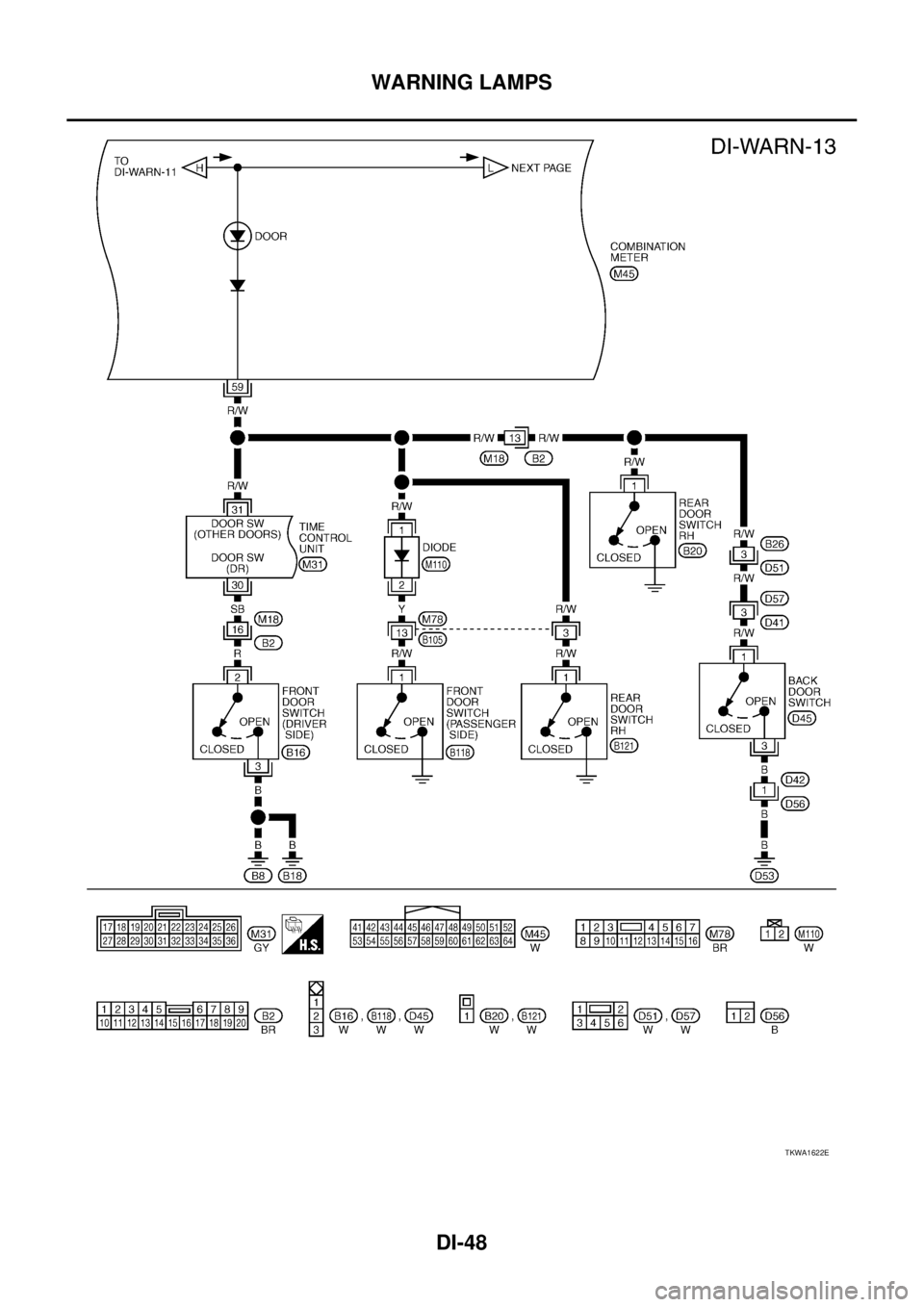

Page 4194 of 4555
DI-46
WARNING LAMPS
TKWB1513E

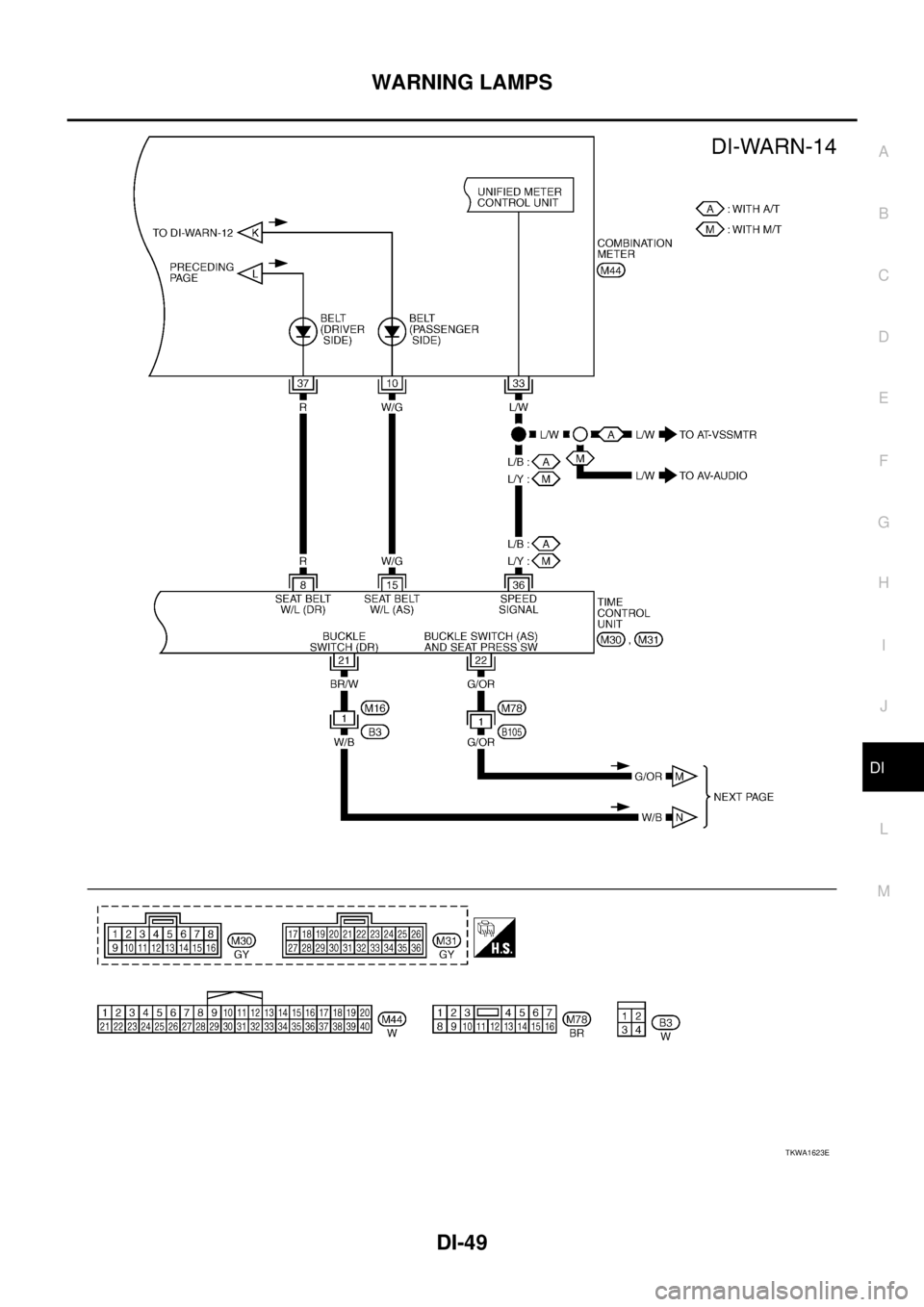

Page 4195 of 4555
WARNING LAMPS
DI-47
C
D
E
F
G
H
I
J
L
MA
B
DI
TKWB1776E

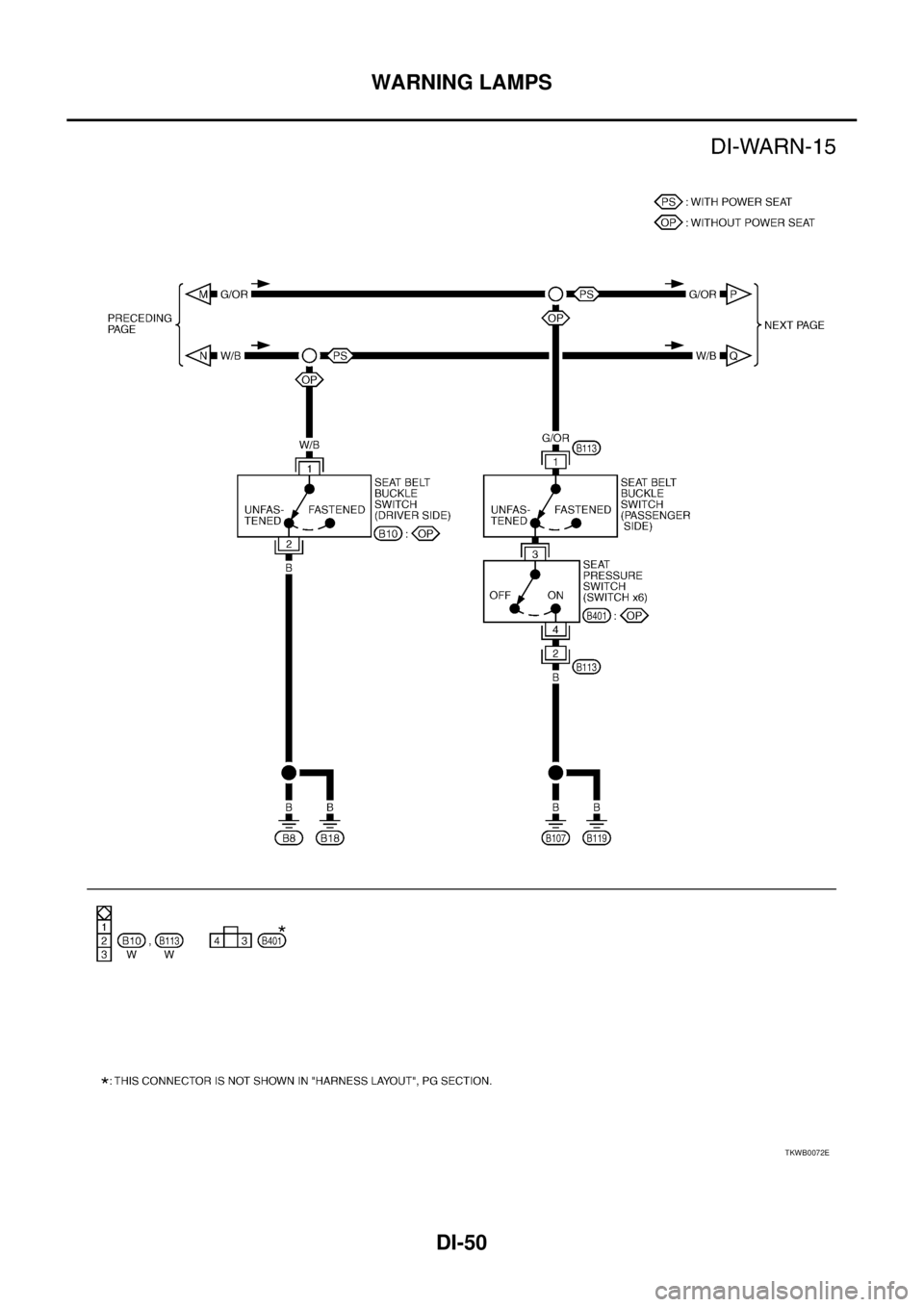

Page 4196 of 4555
DI-48
WARNING LAMPS

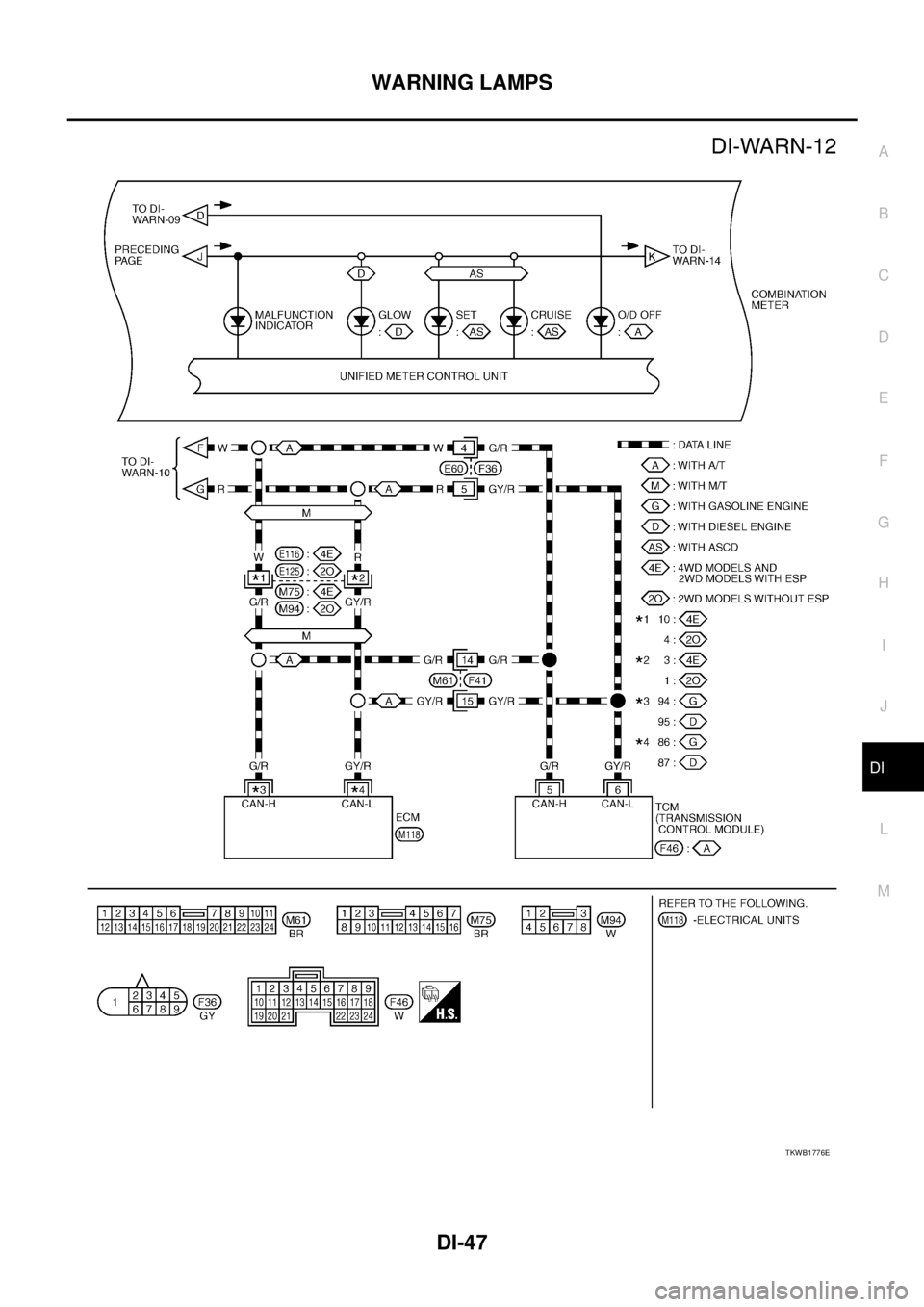

TKWA1622E

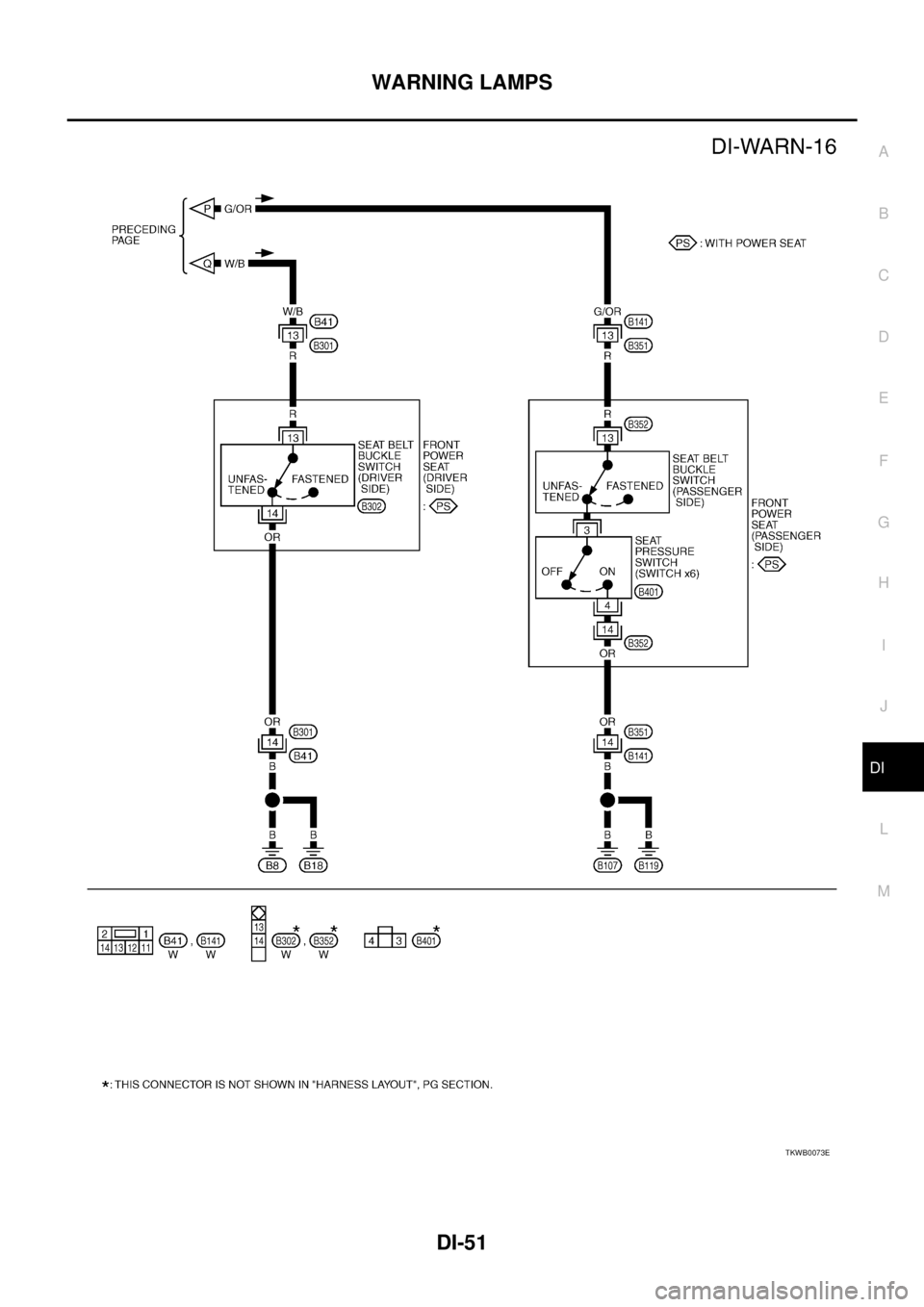

Page 4197 of 4555
WARNING LAMPS
DI-49
C
D
E
F
G
H
I
J
L
MA
B
DI
TKWA1623E
Page 4198 of 4555
DI-50
WARNING LAMPS
TKWB0072E
Page 4199 of 4555
WARNING LAMPS
DI-51
C
D
E
F
G
H
I
J
L
MA
B
DI
TKWB0073E
Page 4200 of 4555
DI-52
WARNING LAMPS
Electrical Components InspectionEKS002HK
OIL PRESSURE SWITCH CHECK
Check continuity between the terminals of oil pressure switch and
ground.
DIODE CHECK
Check continuity using tester.
Diode is functioning properly if test results are as shown in the
figure.
Check diodes at the combination meter harness connector
instead of on the combination meter assembly. Refer to DI-36,
"Wiring Diagram — WARN —/LHD Models" or DI-44, "Wiring
Diagram — WARN —/RHD Models" .
NOTE:
Specification may vary depending on the type of tester. Before
performing this inspection, be sure to refer to the instruction
manual for the tester to be used.
Condition
Oil pressure [kPa (bar, kg/cm2 , psi)]Continuity
Engine running More than 29 (0.30, 0.3, 4) No
Engine stopped Less than 29 (0.30, 0.3, 4) Yes
ELF0044D
SKIB0607E
Page 4204 of 4555
DI-56
WARNING CHIME
WARNING CHIMEPFP:24814
System DescriptionEKS002XF
POWER SUPPLY AND GROUND CIRCUIT
Power is supplied at all times
to combination switch terminal 11 and
to daytime light control unit terminal 1 (with daytime light system)
through 10A fuse (No. 31, located in fuse and fusible link box), and
to key switch terminal 1 (RHD models) and
to time control unit terminal 1
through 10A fuse [No. 28, located in the fuse block (J/B)].
With ignition switch in ON or START position, power is supplied
to time control unit terminal 17
through 10A fuse [No. 5, located in the fuse block (J/B)].
Ground is supplied
to time control unit terminal 16
through grounds M27 and M70.
LIGHT WARNING CHIME
With ignition switch OFF position, driver's door open, and lighting switch in 1ST or 2ND position, warning
chime will sound.
Power is supplied
from the lighting switch terminal 12 or daytime light control unit terminal 11 (with daytime light system)
to time control unit terminal 19.
Ground is supplied
to time control unit terminal 30
through front door switch (driver side) terminal 2.
Front door switch (driver side) terminal 3 is grounded through grounds B8 and B18.
SEAT BELT WARNING CHIME
When the vehicle speed exceeds 25 km/h (16 MPH) with driver or passenger seat belt unfastened (seat belt
switch ON), warning chime will sound. Refer to SB-6, "
SEAT BELT WARNING SYSTEM" .
KEY REMINDER WARNING CHIME [FOR RHD MODELS]
Key reminder chime will sound, at the same time, key reminder system will start operating.
When the following three conditions are simultaneously met.
Key is inserted in the ignition key cylinder.
Driver's door is opened.
The setting of driver's door lock knob is “LOCK”.
For information regarding key reminder system, refer to BL-43, "
Key reminder system" in BL section.
