RFD-28
REAR FINAL DRIVE ASSEMBLY

9. Install center oil seal as shown in the right figure.
10. Install the differential case assembly. Refer to RFD-28, "
Installa-
tion of Differential Assembly" .
CAUTION:
Do not install the rear cover.
11. Install the dummy cover set, and check backlash, drive gear
back runout, and tooth contact. Refer to RFD-19, "
TOOTH CON-
TA C T" .
12. Remove the dummy cover, then install the rear cover, and drive
in the oil seal. Refer to.RFD-28, "
Installation of Differential
Assembly" .
13. Check overall preload torque. Refer to RFD-17, "
TOTAL PRE-
LOAD" .
14. Connect electric controlled coupling assembly. Refer to RFD-30,
"Installation of Electric Controlled Coupling Assembly" .
15. Check companion flange runout. Refer to RFD-19, "
COMPAN-
ION FLANGE RUNOUT" .
Installation of Differential Assembly
1. Assemble new side gear thrust washers with the same thickness as the ones installed prior to disassem-
bly or reinstall the old ones on the side gears.
2. Assemble the side gears, side gear thrust washers, pinion mate gears, and pinion mate thrust washers to
the differential case, and temporarily assemble the pinion mate shaft.
3. Measure the side gear end play following the procedure below,
and select the appropriate side gear thrust washers.

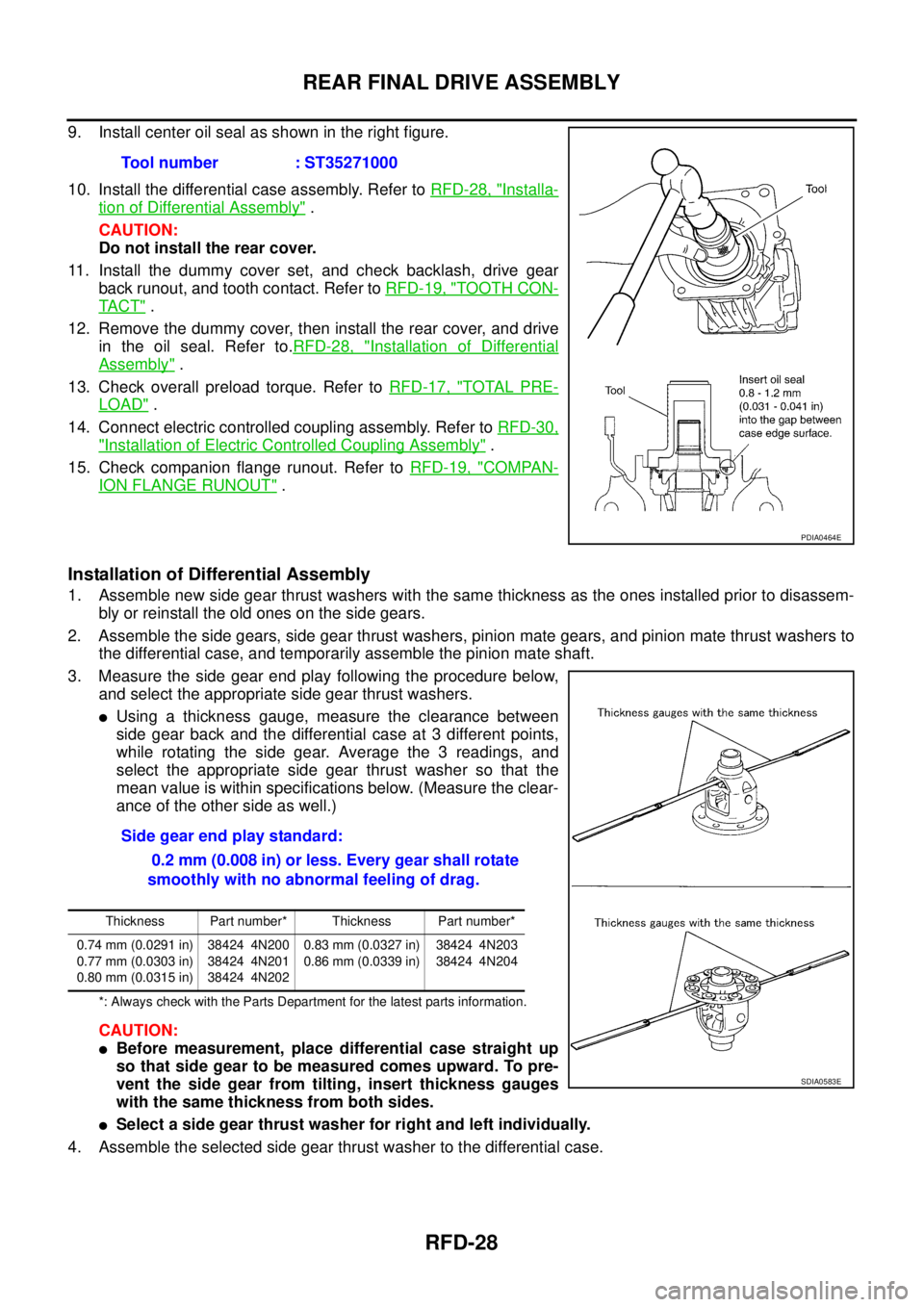

Using a thickness gauge, measure the clearance between
side gear back and the differential case at 3 different points,
while rotating the side gear. Average the 3 readings, and
select the appropriate side gear thrust washer so that the
mean value is within specifications below. (Measure the clear-
ance of the other side as well.)
*: Always check with the Parts Department for the latest parts information.
CAUTION:

Before measurement, place differential case straight up
so that side gear to be measured comes upward. To pre-
vent the side gear from tilting, insert thickness gauges
with the same thickness from both sides.

Select a side gear thrust washer for right and left individually.
4. Assemble the selected side gear thrust washer to the differential case.Tool number : ST35271000
PDIA0464E
Side gear end play standard:
0.2 mm (0.008 in) or less. Every gear shall rotate
smoothly with no abnormal feeling of drag.
Thickness Part number* Thickness Part number*
0.74 mm (0.0291 in)
0.77 mm (0.0303 in)
0.80 mm (0.0315 in)38424 4N200
38424 4N201
38424 4N2020.83 mm (0.0327 in)
0.86 mm (0.0339 in)38424 4N203
38424 4N204
SDIA0583E

REAR FINAL DRIVE ASSEMBLY
RFD-29
C
E
F
G
H
I
J
K
L
MA
B
RFD

5. Using the pin punch, drive a lock pin into the pinion mating shaft.
CAUTION:
Do not reuse the lock pin.

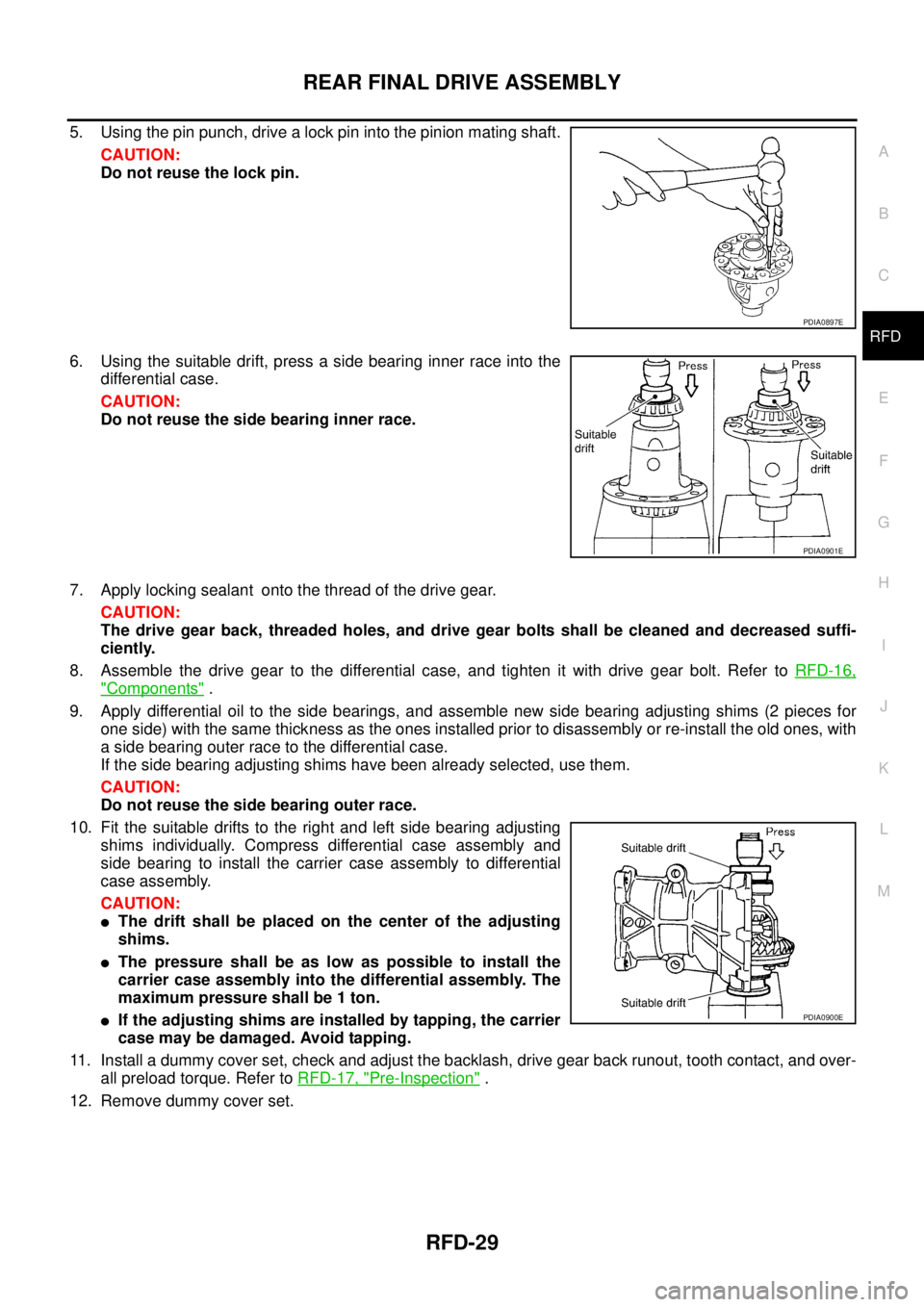

6. Using the suitable drift, press a side bearing inner race into the
differential case.
CAUTION:
Do not reuse the side bearing inner race.
7. Apply locking sealant onto the thread of the drive gear.
CAUTION:
The drive gear back, threaded holes, and drive gear bolts shall be cleaned and decreased suffi-
ciently.
8. Assemble the drive gear to the differential case, and tighten it with drive gear bolt. Refer to RFD-16,
"Components" .
9. Apply differential oil to the side bearings, and assemble new side bearing adjusting shims (2 pieces for
one side) with the same thickness as the ones installed prior to disassembly or re-install the old ones, with
a side bearing outer race to the differential case.
If the side bearing adjusting shims have been already selected, use them.
CAUTION:
Do not reuse the side bearing outer race.
10. Fit the suitable drifts to the right and left side bearing adjusting
shims individually. Compress differential case assembly and
side bearing to install the carrier case assembly to differential
case assembly.
CAUTION:

The drift shall be placed on the center of the adjusting
shims.

The pressure shall be as low as possible to install the
carrier case assembly into the differential assembly. The
maximum pressure shall be 1 ton.

If the adjusting shims are installed by tapping, the carrier
case may be damaged. Avoid tapping.
11. Install a dummy cover set, check and adjust the backlash, drive gear back runout, tooth contact, and over-
all preload torque. Refer to RFD-17, "
Pre-Inspection" .
12. Remove dummy cover set.
PDIA0897E
PDIA0901E
PDIA0900E

RFD-30
REAR FINAL DRIVE ASSEMBLY

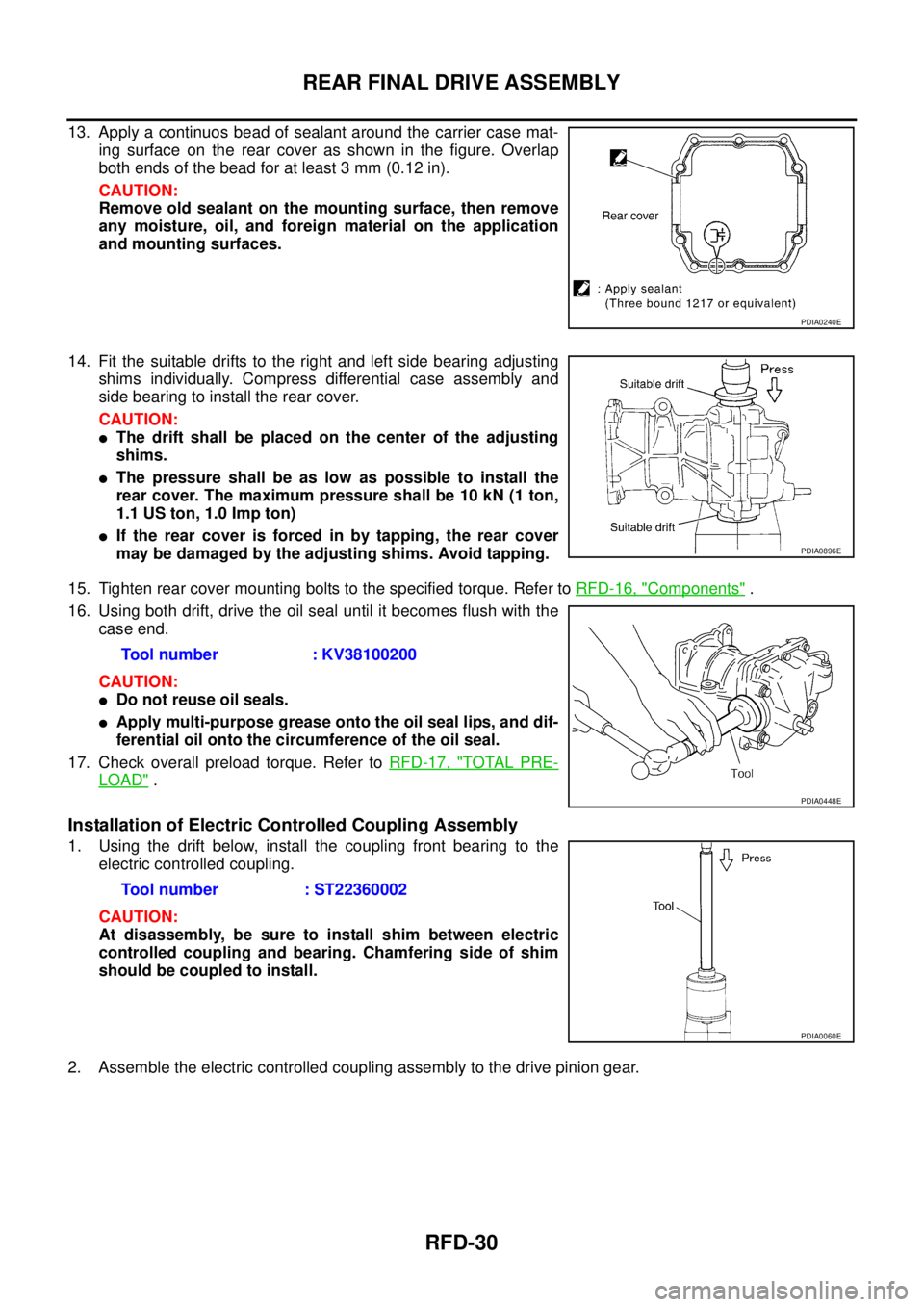

13. Apply a continuos bead of sealant around the carrier case mat-
ing surface on the rear cover as shown in the figure. Overlap
both ends of the bead for at least 3 mm (0.12 in).
CAUTION:
Remove old sealant on the mounting surface, then remove
any moisture, oil, and foreign material on the application
and mounting surfaces.
14. Fit the suitable drifts to the right and left side bearing adjusting
shims individually. Compress differential case assembly and
side bearing to install the rear cover.
CAUTION:

The drift shall be placed on the center of the adjusting
shims.

The pressure shall be as low as possible to install the
rear cover. The maximum pressure shall be 10 kN (1 ton,
1.1 US ton, 1.0 Imp ton)

If the rear cover is forced in by tapping, the rear cover
may be damaged by the adjusting shims. Avoid tapping.
15. Tighten rear cover mounting bolts to the specified torque. Refer to RFD-16, "
Components" .
16. Using both drift, drive the oil seal until it becomes flush with the
case end.
CAUTION:

Do not reuse oil seals.

Apply multi-purpose grease onto the oil seal lips, and dif-
ferential oil onto the circumference of the oil seal.
17. Check overall preload torque. Refer to RFD-17, "
TOTAL PRE-
LOAD" .
Installation of Electric Controlled Coupling Assembly
1. Using the drift below, install the coupling front bearing to the
electric controlled coupling.
CAUTION:
At disassembly, be sure to install shim between electric
controlled coupling and bearing. Chamfering side of shim
should be coupled to install.
2. Assemble the electric controlled coupling assembly to the drive pinion gear.
PDIA0240E
PDIA0896E
Tool number : KV38100200
PDIA0448E
Tool number : ST22360002
PDIA0060E

REAR FINAL DRIVE ASSEMBLY
RFD-31
C
E
F
G
H
I
J
K
L
MA
B
RFD

3. Using the drift below, drive an oil seal until it becomes flush with
the case end.
CAUTION:

Do not reuse oil seals.

Apply multi-purpose grease onto the oil seal lips, and dif-
ferential oil onto the circumference of the oil seal.
4. Apply a continuous bead sealant around the carrier case mating
surface on the coupling cover as shown in the figure. Overlap
both ends of the bead for at least 3 mm (0.12 in).
CAUTION:
Remove old sealant on the mounting surface, then remove
any moisture, oil, and foreign material from the application
and mounting surfaces.
5. Assemble the coupling cover to the carrier case assembly with
the arrow facing upward, temporarily tighten reamer bolts to the
positions shown in the figure.
6. Tighten the reamer bolts and coupling cover mounting bolts to
the specified torque.
7. Assemble the companion flange.
8. Using a flange wrench, tighten the companion flange nut to the
specified torque.
CAUTION:
Do not reuse the companion flange nut.
9. Check companion flange runout. Refer to RFD-19, "
COMPAN-
ION FLANGE RUNOUT" . Tool number A: KV38100200
B: ST27861000
PDIA0449E
PDIA0241E
SDIA0587E

RFD-32
SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationEDS001ZE
Drive Gear VibrationEDS001ZF
To ta l P r e l o a dEDS001ZJ
Side Gear Clearance AdjustmentEDS001ZG
Drive Pinion Gear Preload AdjustmentEDS001ZH
Side Bearing Preload AdjustmentEDS001ZI
THRUST WASHER FOR ADJUSTMENT OF SIDE GEAR BACK CLEARANCEEDS002V9
*: Always check with the Parts Department for the latest parts information.
DRIVE PINION GEAR PRELOAD ADJUSTING SHIMEDS002VA
*: Always check with the Parts Department for the latest parts information.Applied model QR20DE, QR25DE, YD22DDTi
Final drive modelR145
Drive gear pitch diameter 145
Gear ratio2.466
Number of teeth (Drive gear/Drive pinion) 37/15
Oil capacity (approx.)
0.55 (1 lmp pt.)
Number of pinion gears2
Drive pinion adjustment spacer type Collapsible
Vibration limit at drive gear back 0.05 mm (0.0020 in) or less
Total preload with oil seal installed 1.33 - 2.15 N·m (0.14 - 0.21 kg-m,12 - 19 in-lb)
Drive gear backlash 0.10 - 0.15 mm (0.0039 - 0.0059 in)
Side gear back clearance 0.2 mm (0.008 in) or less. Every gear shall rotate smoothly with no abnormal feeling of drag.
Adjustment of drive pinion gear Collapsible spacer
Drive pinion gear preload 0.69 - 1.17 N·m (0.07 - 0.11 kg-m,7 - 10 in-lb)
Adjustment of side bearing Adjusting shim
Side bearing preload 0.64 - 0.98 N·m (0.07 - 0.09 kg-m,6 - 8 in-lb)
Thickness Part number* Thickness Part number*
0.74 mm (0.0291 in)
0.77 mm (0.0303 in)
0.80 mm (0.0315 in)38424 4N200
38424 4N201
38424 4N2020.83 mm (0.0327 in)
0.86 mm (0.0339 in)38424 4N203
38424 4N204
Thickness Part number* Thickness Part number*
1.70 mm (0.0669 in)
1.73 mm (0.0681 in)
1.76 mm (0.0693 in)
1.79 mm (0.0705 in)
1.82 mm (0.0717 in)
1.85 mm (0.0728 in)
1.88 mm (0.0740 in)
1.91 mm (0.0752 in)
1.94 mm (0.0764 in)
1.97 mm (0.0776 in)38154 4N200
38154 4N201
38154 4N202
38154 4N203
38154 4N204
38154 4N205
38154 4N206
38154 4N207
38154 4N208
38154 4N2092.00 mm (0.0787 in)
2.03 mm (0.0799 in)
2.06 mm (0.0811 in)
2.09 mm (0.0823 in)
2.12 mm (0.0835 in)
2.15 mm (0.0846 in)
2.18 mm (0.0858 in)
2.21 mm (0.0870 in)
2.24 mm (0.0882 in)38154 4N210
38154 4N211
38154 4N212
38154 4N213
38154 4N214
38154 4N215
38154 4N216
38154 4N217
38154 4N218

FAX-2
PRECAUTIONS

PRECAUTIONSPFP:00001
CautionEDS0005P

When installing rubber parts, final tightening must be carried out under unladen condition* with tires on
ground.

Oil will shorten the life of rubber bushes. Be sure to wipe off any spilled oil.
*: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

After installing removed suspension parts, check wheel alignment and adjust if necessary.
Observe the following precautions when disassembling and servicing drive shaft.

Perform work in a location which is as dust-free as possible.

Before disassembling and servicing, clean the outside of parts.

Prevention of the entry of foreign objects must be taken into account during disassembly of the service
location.

Disassembled parts must be carefully reassembled in the correct order. If work is interrupted, a clean
cover must be placed over parts.

Paper shop cloths must be used. Fabric shop cloths must not be used because of the danger of lint adher-
ing to parts.

Disassembled parts (except for rubber parts) should be cleaned with kerosene which shall be removed by
blowing with air or wiping with paper shop cloths.

FAX-12
FRONT DRIVE SHAFT

×: Applicable
–: Not applicable

Remove installation bolts from right-side drive shaft support bearing bracket. Then remove bracket from
engine.

Remove installation bolts from right-side drive shaft and remove drive shaft from side shaft.
INSPECTION AFTER REMOVAL

Move joint in up/down, left/right, and axial directions. Check for
motion that is not smooth and for significant looseness.

Check for cracking and damage of boots, and for grease leak-
age.
INSTALLATION

Install support bearing bracket onto engine and tighten installation bolts to specified torque. Refer to FA X -
11 , "Removal and Installation" .

Install drive shaft to side shaft and tighten installation bolts to specified torque. Refer to FA X - 11 , "Removal
and Installation" .
1. In order to prevent damage to differential side oil seal, first fit a
protector onto oil seal before inserting drive shaft. Slide drive
shaft slide joint and tap with a hammer to install securely.
CAUTION:
Be sure to check that circular clip is securely fastened.
2. Insert drive shaft into steering knuckle. Install lock nut and then
temporarily tighten lock nut. Refer to FA X - 11 , "
Removal and
Installation" .
3. Install installation bolts for steering knuckle and strut.
4. Use lock plate to fix brake hose to strut.
5. Install tie rod to steering knuckle.
6. Install wheel sensor.
7. Tighten lock nuts to specified torque. Refer to FAX-11, "
Removal
and Installation" .
8. Install cotter pin.
CAUTION:
Discard the old cotter pin; replace with a new one.
Engine typeDrive shaft with circular clip
Right Left
QR20DE and QR25DE –×
YD22DDTi –×
RAA0030D
Model type Protector SST No.
RH KV38107800
LH KV38105500
SDIA0593E
SDIA0603E

RAX-2
PRECAUTIONS

PRECAUTIONSPFP:00001
CautionEDS00060

When installing rubber parts, final tightening must be carried out under unladen condition* with tires on
ground.
*: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

After installing removed suspension parts, check wheel alignment and adjust if necessary.
Observe the following precautions when disassembling and servicing drive shaft.

Perform work in a location which is as dust-free and dirt-free as possible.

Before disassembling and servicing, clean the outside of parts.

The disassembly and service location must be clean. Care must be taken to prevent parts from becoming
dirty and to prevent the entry of foreign objects.

Disassembled parts must be carefully reassembled in the correct order. If work is interrupted, a clean
cover must be placed over parts.

Paper shop cloths must be used. Fabric shop cloths must not be used because of the danger of lint adher-
ing to parts.

Disassembled parts (except for rubber parts) should be cleaned with kerosene which shall be removed by
blowing with air or wiping with paper shop cloths.
