2005 NISSAN X-TRAIL Evap system

EC-584
[QR (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

Symptom Matrix ChartEBS010X8
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 11232 22 3 2EC-906
Fuel pressure regulator system334444444 4EC-562
Injector circuit 11232 22 2EC-891
Evaporative emission system 334444444 4EC-962
Air Positive crankcase ventilation sys-
tem334444444 41EC-967
Incorrect idle speed adjustment 33 1111 1EC-578
Electric throttle control actuator 112332222 2 2EC-723
,
EC-726
,
EC-737
,
EC-745
IgnitionIncorrect ignition timing adjustment33111 11 1EC-578
Ignition circuit 11222 22 2EC-873
Main power supply and ground circuit 22333 33 23EC-625
Mass air flow sensor circuit 11222 22 2EC-644
Engine coolant temperature sensor circuit 11222322312EC-652
Throttle position sensor circuit 12 22222 2EC-658
,
EC-680
,
EC-771
,
EC-773
,
EC-830
Accelerator pedal position sensor circuit3212 2EC-
372,EC-
815 , EC-
822 , EC-
838
Heated oxygen sensor 1 circuit 1232 22 2EC-666
,
EC-673
,
EC-861
Knock sensor circuit 2 2 3EC-688
Crankshaft position sensor (POS) circuit 2 2EC-693
Camshaft position sensor (PHASE) circuit 2 2EC-701
Vehicle speed signal circuit 2 3 3 3EC-709
Power steering pressure sensor circuit 2 3333EC-711

TROUBLE DIAGNOSIS
EC-605
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
X: Applicable
*1: This item includes 1st trip DTCs.ItemDIAGNOSTIC TEST MODE
WORK
SUPPORTSELF-DIAGNOSTIC
RESULTS
DATA
MONI-
TORDATA
MONITOR
(SPEC)ACTIVE
TEST DTC*
1FREEZE
FRAME
DATA*
2
ENGINE CONTROL COMPONENT PARTS
INPUT
Crankshaft position sensor (POS)××××
Camshaft position sensor (PHASE)×××
Mass air flow sensor×××
Engine coolant temperature sensor×××××
Heated oxygen sensor 1×××
Heated oxygen sensor 2××
Vehicle speed signal××××
Accelerator pedal position sensor×××
Throttle position sensor×××
Intake air temperature sensor××
Knock sensor×
Refrigerant pressure sensor××
Closed throttle position switch (accelerator
pedal position sensor signal)××
Air conditioner switch××
Park/neutral position (PNP) switch×××
Stop lamp switch×××
Power steering pressure sensor×××
Battery voltage××
Electrical load signal××
ASCD steering switch*
3×××
ASCD brake switch*
3×××
ASCD clutch switch*
3×××
ENGINE CONTROL COMPONENT PARTS
OUTPUT
Fuel injectors×××
Power transistor (Ignition timing)×××
Throttle control motor relay×××
Throttle control motor×
EVAP canister purge volume control sole-
noid valve×××
Air conditioner relay××
Fuel pump relay××××
Cooling fan relay××××
Heated oxygen sensor 1 heater××
Heated oxygen sensor 2 heater××
Intake valve timing control solenoid valve××××
VIAS control solenoid valve*
3×××

EC-884
[QR (WITHOUT EURO-OBD)]
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVEPFP:14920
DescriptionEBS01142
SYSTEM DESCRIPTION
*1: ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM through CAN communication line.
This system controls flow rate of fuel vapor from the EVAP canister. The opening of the vapor by-pass pas-
sage in the EVAP canister purge volume control solenoid valve changes to control the flow rate. The EVAP
canister purge volume control solenoid valve repeats ON/OFF operation according to the signal sent from the
ECM. The opening of the valve varies for optimum engine control. The optimum value stored in the ECM is
determined by considering various engine conditions. When the engine is operating, the flow rate of fuel vapor
from the EVAP canister is regulated as the air flow changes.
COMPONENT DESCRIPTION
The EVAP canister purge volume control solenoid valve uses a ON/
OFF duty to control the flow rate of fuel vapor from the EVAP canis-
ter. The EVAP canister purge volume control solenoid valve is
moved by ON/OFF pulses from the ECM. The longer the ON pulse,
the greater the amount of fuel vapor that will flow through the valve.
CONSULT-II Reference Value in Data Monitor ModeEBS01143
Specification data are reference values.
Sensor Input Signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
1
EVAP canister
purge flow controlEVAP canister purge volume
control solenoid valve Mass air flow sensor Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Battery
Battery voltage*1
Throttle position sensor Throttle position
Accelerator pedal position sensor Closed throttle position
Heated oxygen sensor 1Density of oxygen in exhaust gas
(Mixture ratio feedback signal)
Wheel sensor*
2Vehicle speed
SEF337U
MONITOR ITEM CONDITION SPECIFICATION
PURG VOL C/V

Engine: After warming up

Shift lever: P or N (A/T), Neutral
(M/T)

Air conditioner switch: OFF

No loadIdle 0%
2,000 rpm 20 - 30%

EC-962
[QR (WITHOUT EURO-OBD)]
EVAPORATIVE EMISSION SYSTEM

EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionEBS01154
SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not operating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating and
idling.
PBIB0491E

EVAPORATIVE EMISSION SYSTEM
EC-963
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

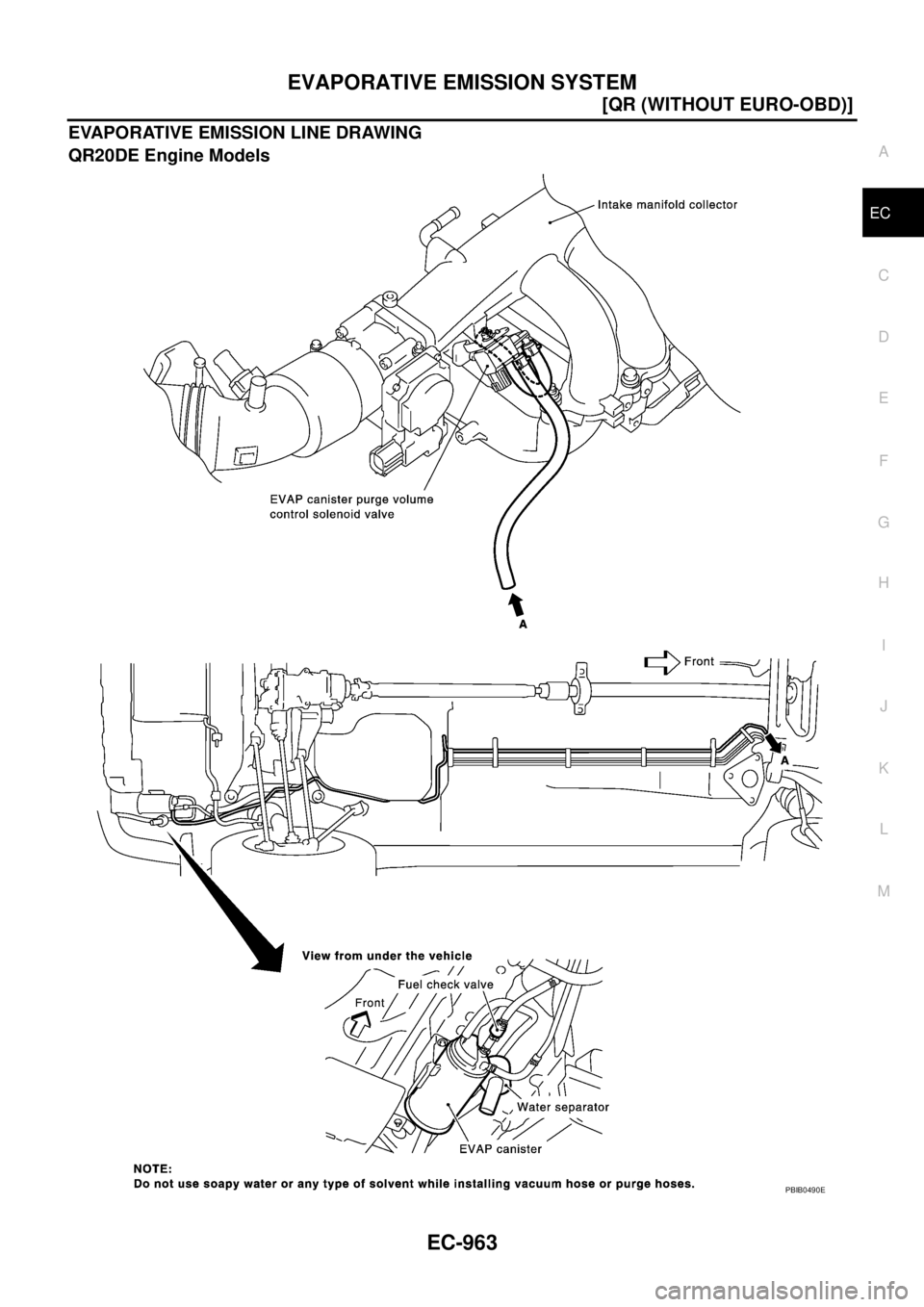

EVAPORATIVE EMISSION LINE DRAWING
QR20DE Engine Models
PBIB0490E

EC-964
[QR (WITHOUT EURO-OBD)]
EVAPORATIVE EMISSION SYSTEM

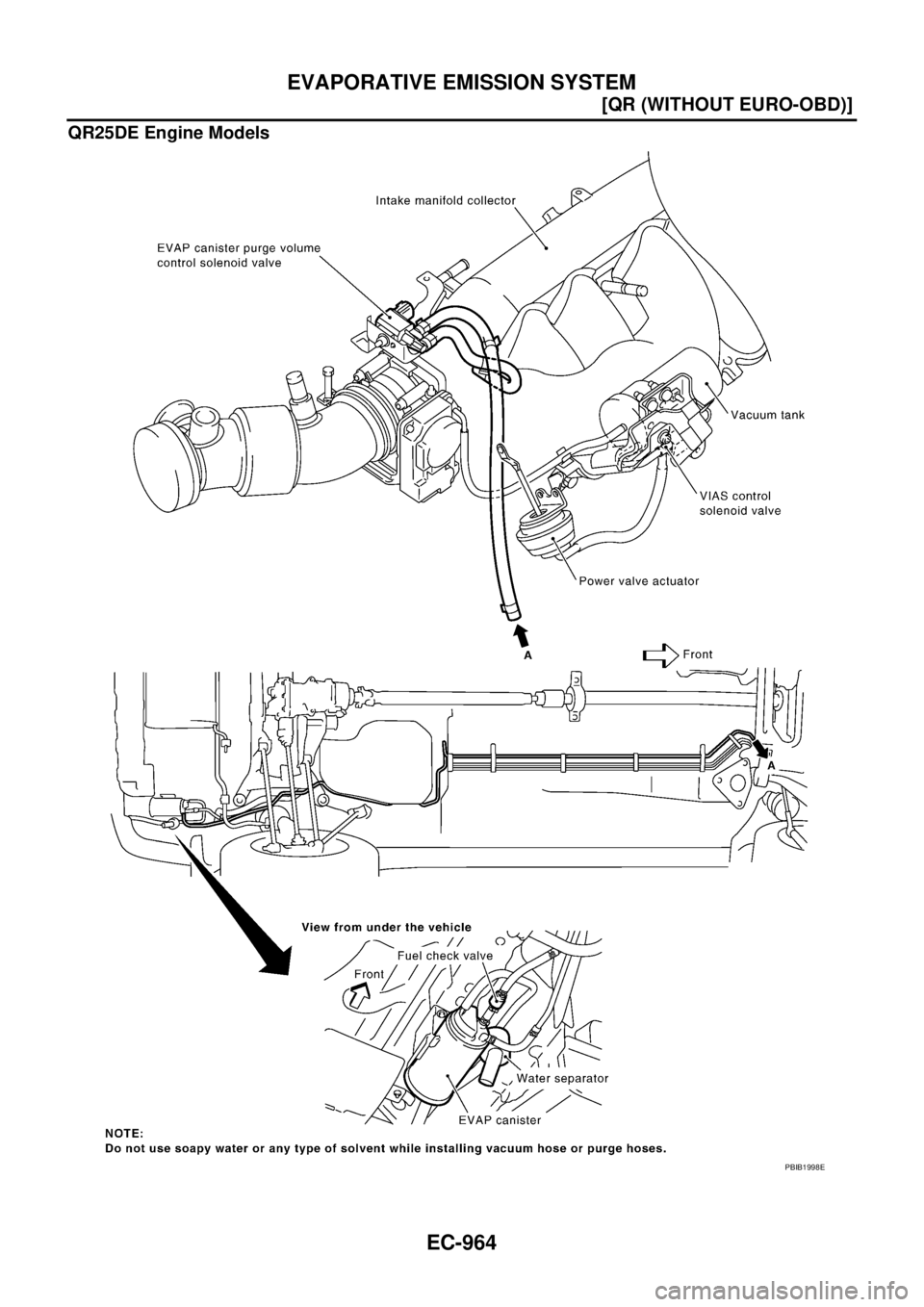

QR25DE Engine Models
PBIB1998E

EVAPORATIVE EMISSION SYSTEM
EC-965
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Component InspectionEBS01155
EVAP CANISTER
Check EVAP canister as follows:
1. Block port B . Orally blow air through port A .
Check that air flows freely through port C .
2. Block port A . Orally blow air through port B .
Check that air flows freely through port C .
FUEL CHECK VALVE
1. Blow air through connector on fuel tank side.
A considerable resistance should be felt and a portion of air flow
should be directed toward the EVAP canister side.
2. Blow air through connector on EVAP canister side.
Air flow should be smoothly directed toward fuel tank side.
3. If fuel check valve is suspected of not properly functioning in
steps 1 and 2 above, replace it.
FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FILLER CAP)
1. Wipe clean valve housing.
2. Check valve opening pressure and vacuum.
3. If out of specification, replace fuel filler cap as an assembly.
PBIB0663E
SEF552Y
SEF989X
Pres-
sure:15.3 - 20.0 kPa (0.153 - 0.200 bar,
0.156 - 0.204 kg/cm
2 , 2.22 - 2.90 psi)
Va c u u m :−6.0 to −3.4 kPa (−0.060 to −0.034 bar,
−0.061 to −0.035 kg/cm
2 , −0.87 to −0.49 psi)
SEF943S

EC-966
[QR (WITHOUT EURO-OBD)]
EVAPORATIVE EMISSION SYSTEM

WATER SEPARATOR
1. Check visually for insect nests in the water separator air inlet.
2. Check visually for cracks or flaws in the appearance.
3. Check visually for cracks or flaws in the hose.
4. Check that A and C are not clogged by blowing air into B with
A , and then C plugged.
5. In case of NG in items 2 - 4, replace the parts.
NOTE:

Do not disassemble water separator.
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to EC-890, "Component Inspection" .
PBIB1032E
