2005 NISSAN X-TRAIL Evap system

TROUBLE DIAGNOSIS
EC-111
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
ACTIVE TEST MODE
Test Item
*1:Leaving cooling fan OFF with CONSULT-II while engine is running may cause the engine to overheat.
DTC & SRT CONFIRMATION MODE
SRT STATUS Mode
For details, refer to EC-56, "SYSTEM READINESS TEST (SRT) CODE" .
SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.
TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
FUEL INJECTION

Engine: Return to the original
trouble condition

Change the amount of fuel injec-
tion using CONSULT-II.If trouble symptom disappears,
see CHECK ITEM.

Harness and connectors

Fuel injector

Heated oxygen sensor 1
IGNITION TIMING

Engine: Return to the original
trouble condition

Timing light: Set

Retard the ignition timing using
CONSULT-II.If trouble symptom disappears,
see CHECK ITEM.

Perform Idle Air Volume Learning.
POWER BALANCE

Engine: After warming up, idle
the engine.

Air conditioner switch: OFF

Shift lever: N (A/T), Neutral (M/T)

Cut off each injector signal one at
a time using CONSULT-II.Engine runs rough or dies.

Harness and connectors

Compression

Fuel injector

Power transistor

Spark plug

Ignition coil
COOLING FAN*
1

Ignition switch: ON

Turn the cooling fan LOW, HI,
OFF with CONSULT-II.Cooling fan moves and stops.

Harness and connectors

Cooling fan relay

Cooling fan motor
ENG COOLANT
TEMP

Engine: Return to the original
trouble condition

Change the engine coolant tem-
perature using CONSULT-II.If trouble symptom disappears,
see CHECK ITEM.

Harness and connectors

Engine coolant temperature sen-
sor

Fuel injector
FUEL PUMP RELAY

Ignition switch: ON (Engine
stopped)

Turn the fuel pump relay ON and
OFF using CONSULT-II and lis-
ten to operating sound.Fuel pump relay makes the oper-
ating sound.
Harness and connectors

Fuel pump relay
VIAS SOL VALVE*
2

Ignition switch: ON

Turn solenoid valve ON and OFF
with CONSULT-II and listen for
operating sound.Solenoid valve makes an operat-
ing sound.
Harness and connectors

Solenoid valve
PURG VOL CONT/V

Engine: After warming up, run
engine at 1,500 rpm.

Change the EVAP canister purge
volume control solenoid valve
opening percent using CON-
SULT-II.Engine speed changes according
to the opening percent.
Harness and connectors

Solenoid valve
V/T ASSIGN ANGLE

Engine: Return to the original
trouble condition

Change intake valve timing using
CONSULT-II.If trouble symptom disappears,
see CHECK ITEM.

Harness and connectors

Intake valve timing control sole-
noid valve

DTC P0444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-269
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P0444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
PFP:14920
DescriptionEBS010QC
SYSTEM DESCRIPTION
*1: ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM through CAN communication line.
This system controls flow rate of fuel vapor from the EVAP canister. The opening of the vapor by-pass pas-
sage in the EVAP canister purge volume control solenoid valve changes to control the flow rate. The EVAP
canister purge volume control solenoid valve repeats ON/OFF operation according to the signal sent from the
ECM. The opening of the valve varies for optimum engine control. The optimum value stored in the ECM is
determined by considering various engine conditions. When the engine is operating, the flow rate of fuel vapor
from the EVAP canister is regulated as the air flow changes.
COMPONENT DESCRIPTION
The EVAP canister purge volume control solenoid valve uses a ON/
OFF duty to control the flow rate of fuel vapor from the EVAP canis-
ter. The EVAP canister purge volume control solenoid valve is
moved by ON/OFF pulses from the ECM. The longer the ON pulse,
the greater the amount of fuel vapor that will flow through the valve.
CONSULT-II Reference Value in Data Monitor ModeEBS010QD
Specification data are reference values.
On Board Diagnosis LogicEBS010QE
Sensor Input Signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
1
EVAP canister
purge flow controlEVAP canister purge volume
control solenoid valve Mass air flow sensor Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Battery
Battery voltage*1
Throttle position sensor Throttle position
Accelerator pedal position sensor Closed throttle position
Heated oxygen sensor 1Density of oxygen in exhaust gas
(Mixture ratio feedback signal)
Wheel sensor*
2Vehicle speed
SEF337U
MONITOR ITEM CONDITION SPECIFICATION
PURG VOL C/V

Engine: After warming up

Shift lever: P or N (A/T), Neutral
(M/T)

Air conditioner switch: OFF

No loadIdle 0%
2,000 rpm 20 - 30%
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0444
0444EVAP canister purge volume
control solenoid valve circuit
openAn excessively low voltage signal is sent
to ECM through the valve

Harness or connectors
(The solenoid valve circuit is open or
shorted.)

EVAP canister purge volume control
solenoid valve

EC-522
[QR (WITH EURO-OBD)]
EVAPORATIVE EMISSION SYSTEM

EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionEBS010VX
SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not operating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating and
idling.

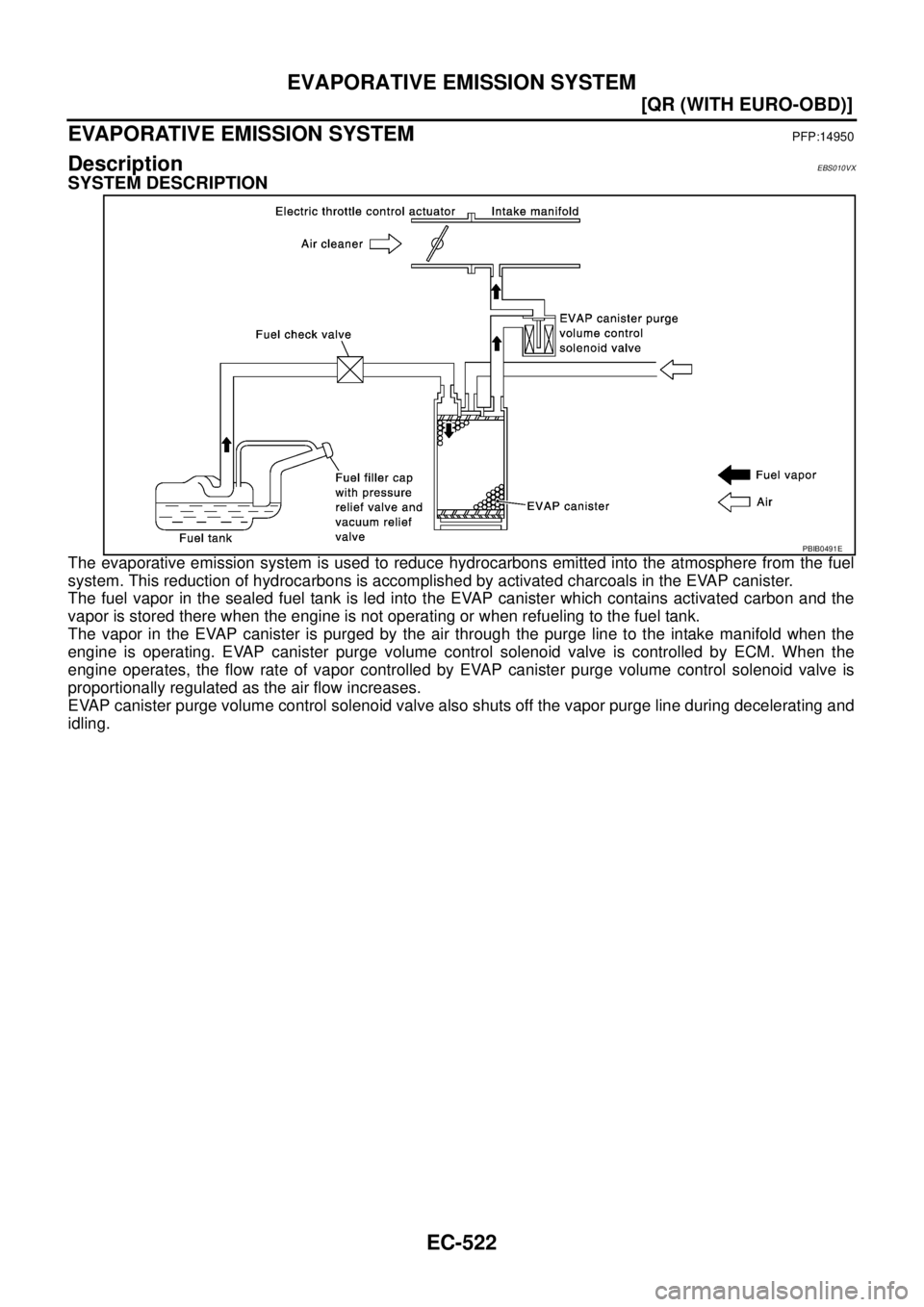

PBIB0491E

EVAPORATIVE EMISSION SYSTEM
EC-523
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

EVAPORATIVE EMISSION LINE DRAWING

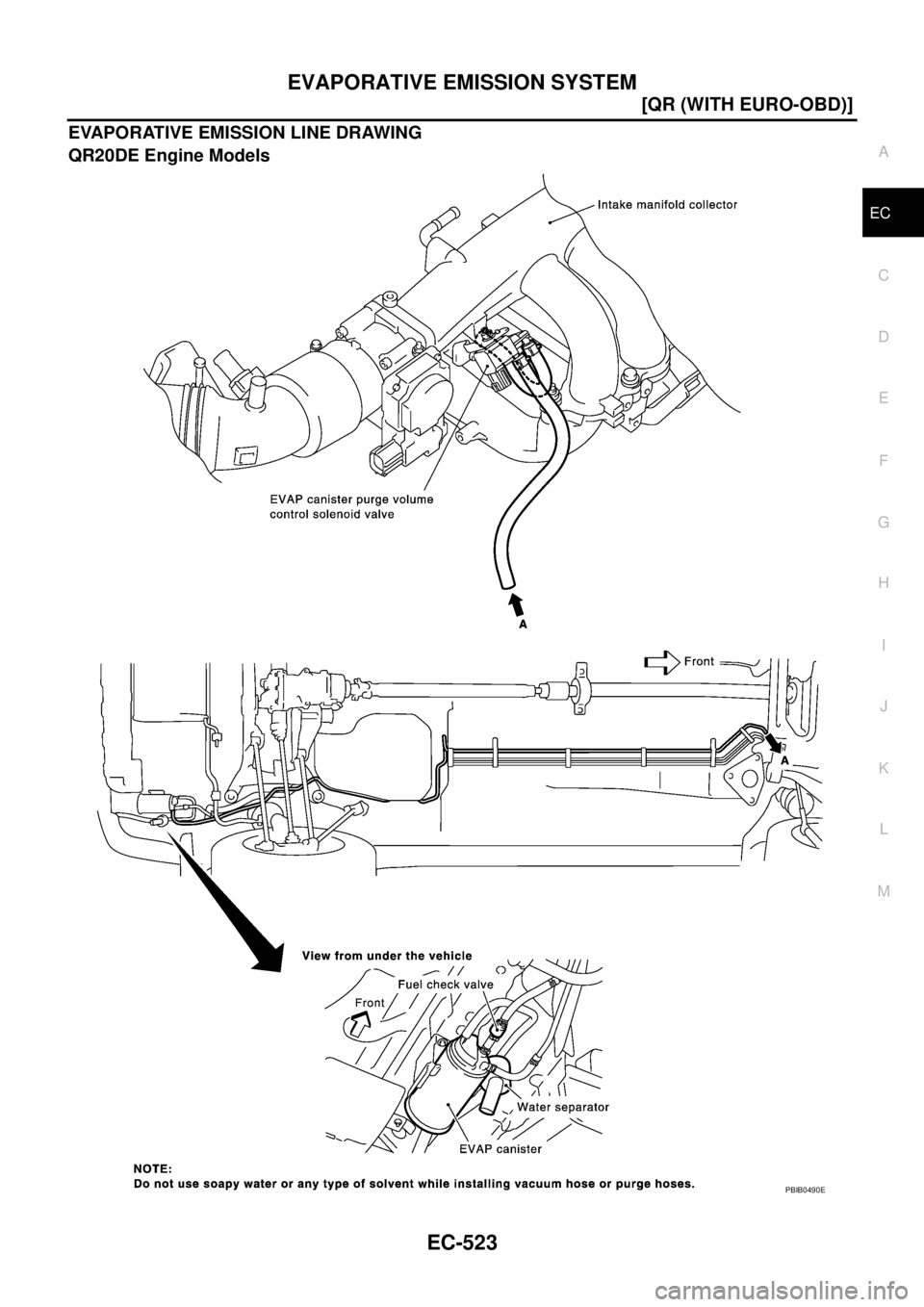

QR20DE Engine Models
PBIB0490E

EC-524
[QR (WITH EURO-OBD)]
EVAPORATIVE EMISSION SYSTEM

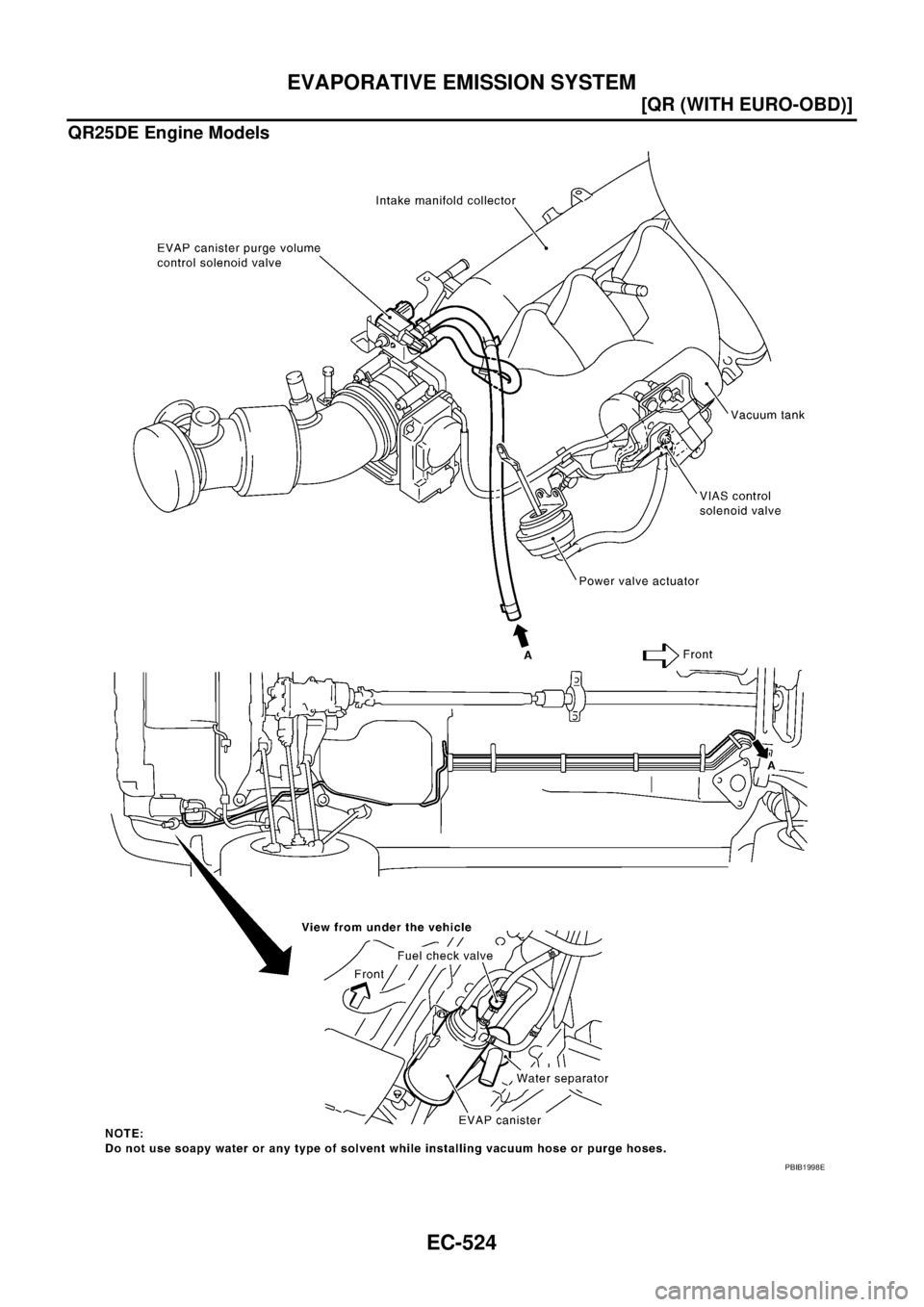

QR25DE Engine Models
PBIB1998E

EVAPORATIVE EMISSION SYSTEM
EC-525
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Component InspectionEBS010VY
EVAP CANISTER
Check EVAP canister as follows:
1. Block port B . Orally blow air through port A .
Check that air flows freely through port C .
2. Block port A . Orally blow air through port B .
Check that air flows freely through port C .
FUEL CHECK VALVE
1. Blow air through connector on fuel tank side.
A considerable resistance should be felt and a portion of air flow
should be directed toward the EVAP canister side.
2. Blow air through connector on EVAP canister side.
Air flow should be smoothly directed toward fuel tank side.
3. If fuel check valve is suspected of not properly functioning in
steps 1 and 2 above, replace it.
FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FILLER CAP)
1. Wipe clean valve housing.
2. Check valve opening pressure and vacuum.
3. If out of specification, replace fuel filler cap as an assembly.
PBIB0663E
SEF552Y
SEF989X
Pressure: 15.3 - 20.0 kPa (0.153 - 0.200 bar,
0.156 - 0.204 kg/cm
2 , 2.22 - 2.90 psi)
Va c u u m :−6.0 to −3.4 kPa (−0.060 to −0.034 bar,
−0.061 to −0.035 kg/cm
2 , −0.87 to −0.49 psi)
SEF943S

EC-526
[QR (WITH EURO-OBD)]
EVAPORATIVE EMISSION SYSTEM

WATER SEPARATOR
1. Check visually for insect nests in the water separator air inlet.
2. Check visually for cracks or flaws in the appearance.
3. Check visually for cracks or flaws in the hose.
4. Check that A and C are not clogged by blowing air into B with
A , and then C plugged.
5. In case of NG in items 2 - 4, replace the parts.
NOTE:

Do not disassemble water separator.
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to EC-275, "Component Inspection" .
PBIB1032E

ENGINE CONTROL SYSTEM
EC-547
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

System ChartEBS010WO
*1: This sensor is not used to control the engine system under normal conditions.
*2: This input signal is sent to the ECM through CAN communication line.
*3: This output signal is sent from the ECM through CAN communication line.
*4: With ESP models.
*5: Without ESP models.
*6: For QR25DE engine modelsInput (Sensor) ECM Function Output (Actuator)

Camshaft position sensor (PHASE)

Crankshaft position sensor (POS)

Mass air flow sensor

Engine coolant temperature sensor

Heated oxygen sensor 1

Throttle position sensor

Accelerator pedal position sensor

Park/neutral position (PNP) switch

Intake air temperature sensor

Power steering pressure sensor

Ignition switch

Battery voltage

Knock sensor

Refrigerant pressure sensor

Stop lamp switch

Heated oxygen sensor 2*1

TCM (Transmission control module)*2

ESP/TCS/ABS control unit*2 *4

ABS actuator and electric unit
(control unit)*2 *5

Air conditioner switch

Wheel sensor*2

Electrical load signal

ASCD steering switch*6

ASCD brake switch*6

ASCD clutch switch*6
Fuel injection & mixture ratio control Fuel injector
Electronic ignition system Power transistor
Fuel pump control Fuel pump relay
On board diagnostic system
MI (On the instrument panel)*
3
Heated oxygen sensor 1 heater control Heated oxygen sensor 1 heater
Heated oxygen sensor 2 heater control Heated oxygen sensor 2 heater
EVAP canister purge flow controlEVAP canister purge volume control
solenoid valve
Air conditioning cut control Air conditioner relay
Power valve control*
6VIAS control solenoid valve
ASCD vehicle speed control*
6Electric throttle control actuator
Cooling fan control Cooling fan relay
