2005 NISSAN X-TRAIL check

LAN-128
[CAN]
CAN SYSTEM (TYPE 6)

6. CHECK HARNESS FOR SHORT CIRCUIT
LHD models
1. Disconnect ESP/TCS/ABS control unit connector.
2. Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W) and 63 (R).
RHD models
1. Disconnect ESP/TCS/ABS control unit connector and harness connector E116.
2. Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W) and 63 (R).
OK or NG
OK >> GO TO 7.
NG >> Repair harness between ESP/TCS/ABS control unit and
harness connector E116.
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ESP/TCS/ABS control unit harness con-
nector E122 terminals 61 (W), 63 (R) and ground.
OK or NG
OK >> GO TO 8.
NG >> Repair harness between ESP/TCS/ABS control unit and
harness connector E116. 61 (W) - 63 (R) : Continuity should not exist.
PKIA9632E
61 (W) - 63 (R) : Continuity should not exist.
PKIA9632E
61 (W) - Ground : Continuity should not exist.
63 (R) - Ground : Continuity should not exist.
PKIA9633E

CAN SYSTEM (TYPE 6)
LAN-129
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

8. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–Steering angle sensor connector
–4WD control unit connector
–Combination meter connector
2. Check continuity between combination meter harness connector
M44 terminals 22 (W) and 23 (R).
OK or NG
OK >> GO TO 9.
NG >> Check the following harness. If any harness is dam-
aged, repair the harness.

Harness between combination meter and 4WD con-
trol unit

Harness between combination meter and steering
angle sensor

Harness between combination meter and harness connector M75
9. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between combination meter harness connector
M44 terminals 22 (W), 23 (R) and ground.
OK or NG
OK >> GO TO 10.
NG >> Check the following harness. If any harness is dam-
aged, repair the harness.

Harness between combination meter and 4WD con-
trol unit

Harness between combination meter and steering angle sensor

Harness between combination meter and harness connector M75
10. CHECK ECM AND COMBINATION METER INTERNAL CIRCUIT
Check components inspection. Refer to LAN-129, "
CHECK ECM AND COMBINATION METER INTERNAL
CIRCUIT" .
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-107, "Work Flow" .
NG >> Replace ECM and/or combination meter.
Component InspectionEKS00LVY
CHECK ECM AND COMBINATION METER INTERNAL CIRCUIT

Remove ECM and combination meter from vehicle.

Check resistance between ECM terminals 94 and 86.

Check resistance between combination meter terminals 22 and
23.22 (W) - 23 (R) : Continuity should not exist.
SKIA9780E
22 (W) - Ground : Continuity should not exist.
23 (R) - Ground : Continuity should not exist.
SKIA9980E
Unit TerminalResistance (Ω)
(Approx.)
ECM 94 - 86
108 - 132
Combination meter 22 - 23
PKIA0830E

CAN SYSTEM (TYPE 7)
LAN-133
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

Work FlowEKS00NL2
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE” and “ABS” displayed on CONSULT-II.
2. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE” and “ABS” displayed on CONSULT-II.
3. Attach the printed sheet of “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT MNTR” onto the check
sheet. Refer to LAN-134, "
CHECK SHEET" .
4. Based on the results of “CAN DIAG SUPPORT MNTR”, put a check marks onto the items with “NG” or
“UNKWN” in the check sheet table. Refer to LAN-134, "
CHECK SHEET" .
NOTE:

If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
5. According to the check sheet results (example), start inspection. Refer to LAN-135, "
CHECK SHEET
RESULTS (EXAMPLE)" .
PKIA8260E
PKIA8343E

LAN-134
[CAN]
CAN SYSTEM (TYPE 7)

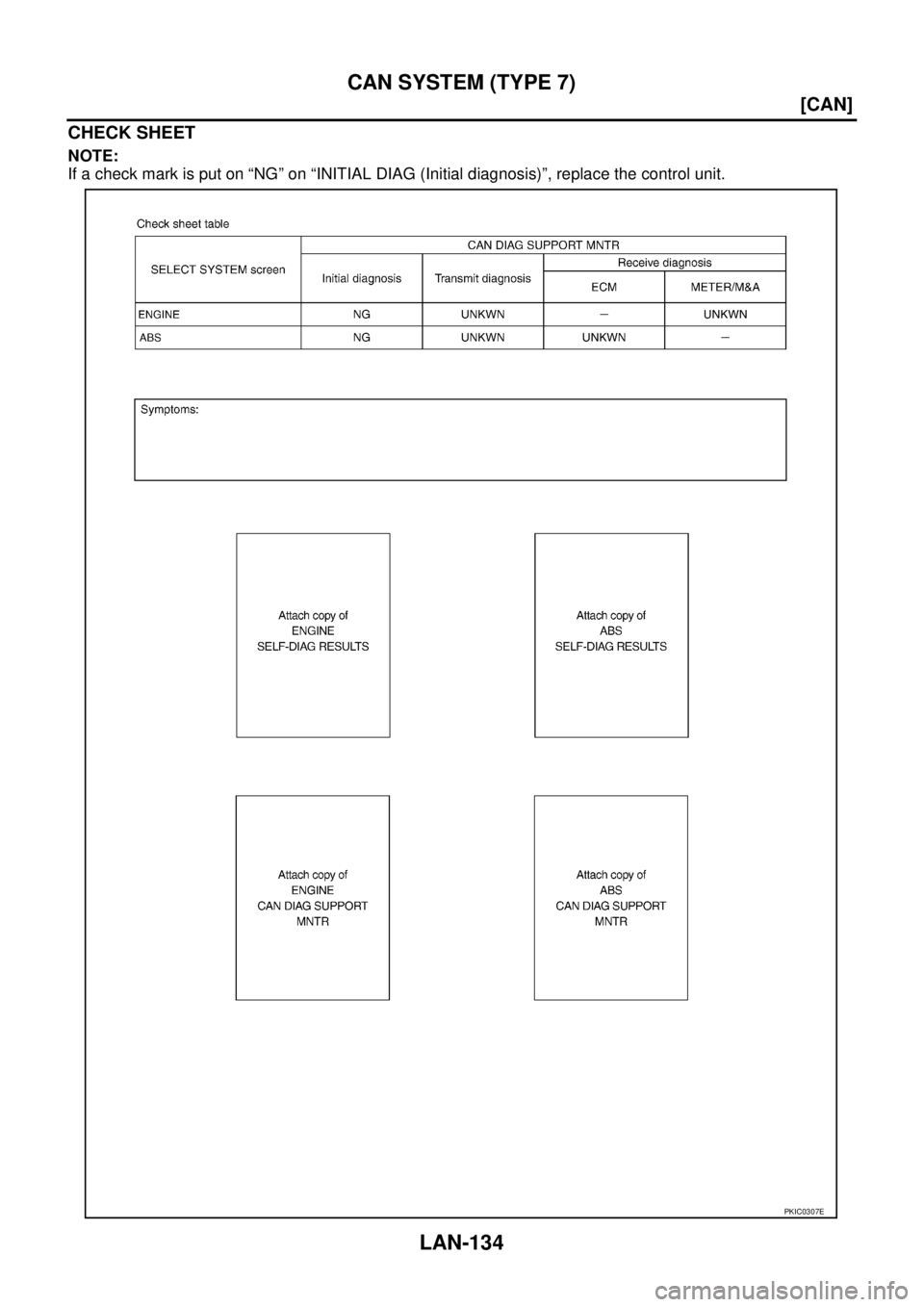

CHECK SHEET
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC0307E

CAN SYSTEM (TYPE 7)
LAN-135
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

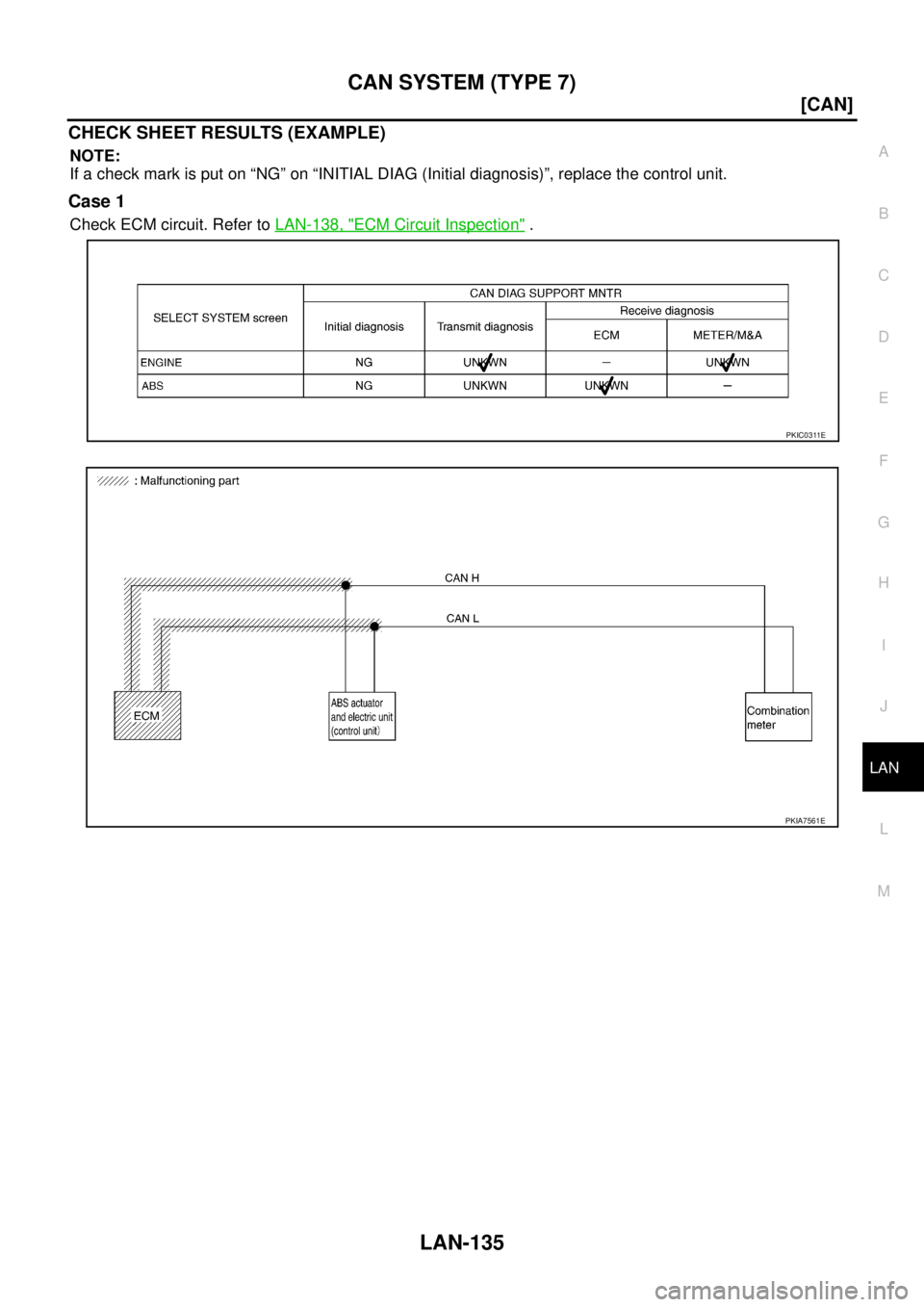

Case 1
Check ECM circuit. Refer to LAN-138, "ECM Circuit Inspection" .
PKIC0311E
PKIA7561E

LAN-136
[CAN]
CAN SYSTEM (TYPE 7)

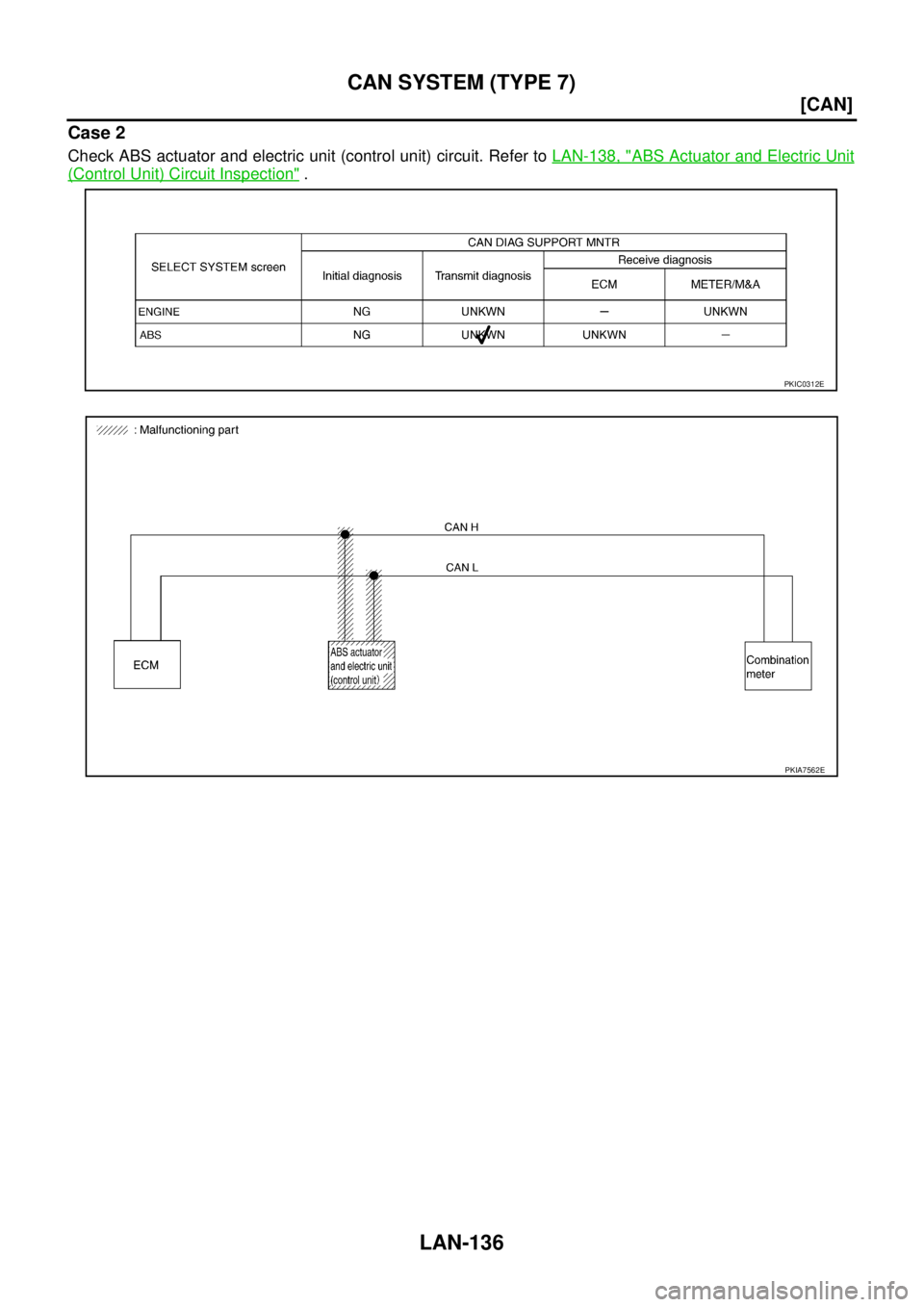

Case 2
Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-138, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection" .
PKIC0312E
PKIA7562E

CAN SYSTEM (TYPE 7)
LAN-137
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

Case 3
Check combination meter circuit. Refer to LAN-139, "Combination Meter Circuit Inspection" .
Case 4
Check CAN communication circuit. Refer to LAN-140, "CAN Communication Circuit Inspection" .
PKIC0314E
PKIA7563E
PKIC0315E

LAN-138
[CAN]
CAN SYSTEM (TYPE 7)

ECM Circuit InspectionEKS00NL3
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side
and harness side).
–LHD models
 ECM connector
 Harness connector M75
 Harness connector E116
–RHD models
 ECM connector
 Harness connector M94
 Harness connector E125
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ECM connector.
2. Check resistance between ECM harness connector M118 termi-
nals 94 (G/R) and 86 (GY/R).
OK or NG
OK >> Replace ECM.
NG >> Repair harness between ECM and ABS actuator and
electric unit (control unit).
ABS Actuator and Electric Unit (Control Unit) Circuit InspectionEKS00NL4
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of ABS actuator and electric unit (control unit) for damage, bend and loose
connection (control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.94 (G/R) - 86 (GY/R) : Approx. 108 - 132 Ω
PKIA9592E
