2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect combination meter connector.
2. Check resistance between combination meter harness connec NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 5)
LAN-101
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect combination meter connector.
2. Check resistance between combination meter harness connec](/manual-img/5/57403/w960_57403-4344.png)
CAN SYSTEM (TYPE 5)
LAN-101
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect combination meter connector.
2. Check resistance between combination meter harness connec-
tor M44 terminals 22 (W) and 23 (R).
OK or NG
OK >> Replace combination meter.
NG >> Repair harness between combination meter and 4WD
control unit.
CAN Communication Circuit InspectionEKS00LVJ
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side,
control unit side, sensor side, meter side, connector side and harness side).
–ECM
–ESP/TCS/ABS control unit
–Steering angle sensor
–4WD control unit
–Combination meter
–Between ECM and combination meter
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ECM connector and harness connector M75.
2. Check continuity between ECM harness connector M118 termi-
nals 94 (G/R) and 86 (GY/R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness between ECM and harness connector
M75. 22 (W) - 23 (R) : Approx. 108 - 132 Ω
SKIA9780E
94 (G/R) - 86 (GY/R) : Continuity should not exist.
PKIA9592E
Page 4346 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual LAN-102
[CAN]
CAN SYSTEM (TYPE 5)
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ECM harness connector M118 terminals
94 (G/R), 86 (GY/R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repai NISSAN X-TRAIL 2005 Service Repair Manual LAN-102
[CAN]
CAN SYSTEM (TYPE 5)
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ECM harness connector M118 terminals
94 (G/R), 86 (GY/R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repai](/manual-img/5/57403/w960_57403-4345.png)
LAN-102
[CAN]
CAN SYSTEM (TYPE 5)
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ECM harness connector M118 terminals
94 (G/R), 86 (GY/R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness between ECM and harness connector
M75.
4. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ESP/TCS/ABS control unit connector.
2. Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W) and 63 (R).
OK or NG
OK >> GO TO 5.
NG >> Repair harness between ESP/TCS/ABS control unit and
harness connector E116.
5. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ESP/TCS/ABS control unit harness con-
nector E122 terminals 61 (W), 63 (R) and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness between ESP/TCS/ABS control unit and
harness connector E116. 94 (G/R) - Ground : Continuity should not exist.
86 (GY/R) - Ground : Continuity should not exist.
PKIA9593E
61 (W) - 63 (R) : Continuity should not exist.
PKIA9632E
61 (W) - Ground : Continuity should not exist.
63 (R) - Ground : Continuity should not exist.
PKIA9633E
Page 4347 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 5)
LAN-103
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–Steering angle sensor connector
–4WD control unit connector
NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 5)
LAN-103
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–Steering angle sensor connector
–4WD control unit connector](/manual-img/5/57403/w960_57403-4346.png)
CAN SYSTEM (TYPE 5)
LAN-103
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–Steering angle sensor connector
–4WD control unit connector
–Combination meter connector
2. Check continuity between combination meter harness connector
M44 terminals 22 (W) and 23 (R).
OK or NG
OK >> GO TO 7.
NG >> Check the following harness. If any harness is dam-
aged, repair the harness.
Harness between combination meter and 4WD con-
trol unit
Harness between combination meter and steering
angle sensor
Harness between combination meter and harness connector M75
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between combination meter harness connector
M44 terminals 22 (W), 23 (R) and ground.
OK or NG
OK >> GO TO 8.
NG >> Check the following harness. If any harness is dam-
aged, repair the harness.
Harness between combination meter and 4WD con-
trol unit
Harness between combination meter and steering angle sensor
Harness between combination meter and harness connector M75
8. CHECK ECM AND COMBINATION METER INTERNAL CIRCUIT
Check components inspection. Refer to LAN-103, "
CHECK ECM AND COMBINATION METER INTERNAL
CIRCUIT" .
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-89, "Work Flow" .
NG >> Replace ECM and/or combination meter.
Component InspectionEKS00LVK
CHECK ECM AND COMBINATION METER INTERNAL CIRCUIT
Remove ECM and combination meter from vehicle.
Check resistance between ECM terminals 94 and 86.
Check resistance between combination meter terminals 22 and
23.22 (W) - 23 (R) : Continuity should not exist.
SKIA9780E
22 (W) - Ground : Continuity should not exist.
23 (R) - Ground : Continuity should not exist.
SKIA9980E
Unit TerminalResistance (Ω)
(Approx.)
ECM 94 - 86
108 - 132
Combination meter 22 - 23
PKIA0830E
Page 4351 of 4555
![NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 6)
LAN-107
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00LVO
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ABS” and “ALL MODE AWD/4WD” dis- NISSAN X-TRAIL 2005 Service Repair Manual CAN SYSTEM (TYPE 6)
LAN-107
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00LVO
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ABS” and “ALL MODE AWD/4WD” dis-](/manual-img/5/57403/w960_57403-4350.png)
CAN SYSTEM (TYPE 6)
LAN-107
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00LVO
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ABS” and “ALL MODE AWD/4WD” dis-
played on CONSULT-II.
2. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “ABS” and “ALL MODE AWD/
4WD” displayed on CONSULT-II.
3. Attach the printed sheet of “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT MNTR” onto the check
sheet. Refer to LAN-108, "
CHECK SHEET" .
4. Based on the results of “CAN DIAG SUPPORT MNTR”, put a check marks onto the items with “NG” or
“UNKWN” in the check sheet table. Refer to LAN-108, "
CHECK SHEET" .
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
5. According to the check sheet results (example), start inspection. Refer to LAN-109, "
CHECK SHEET
RESULTS (EXAMPLE)" .
PKIA8260E
PKIA8343E
Page 4352 of 4555
LAN-108
[CAN]
CAN SYSTEM (TYPE 6)

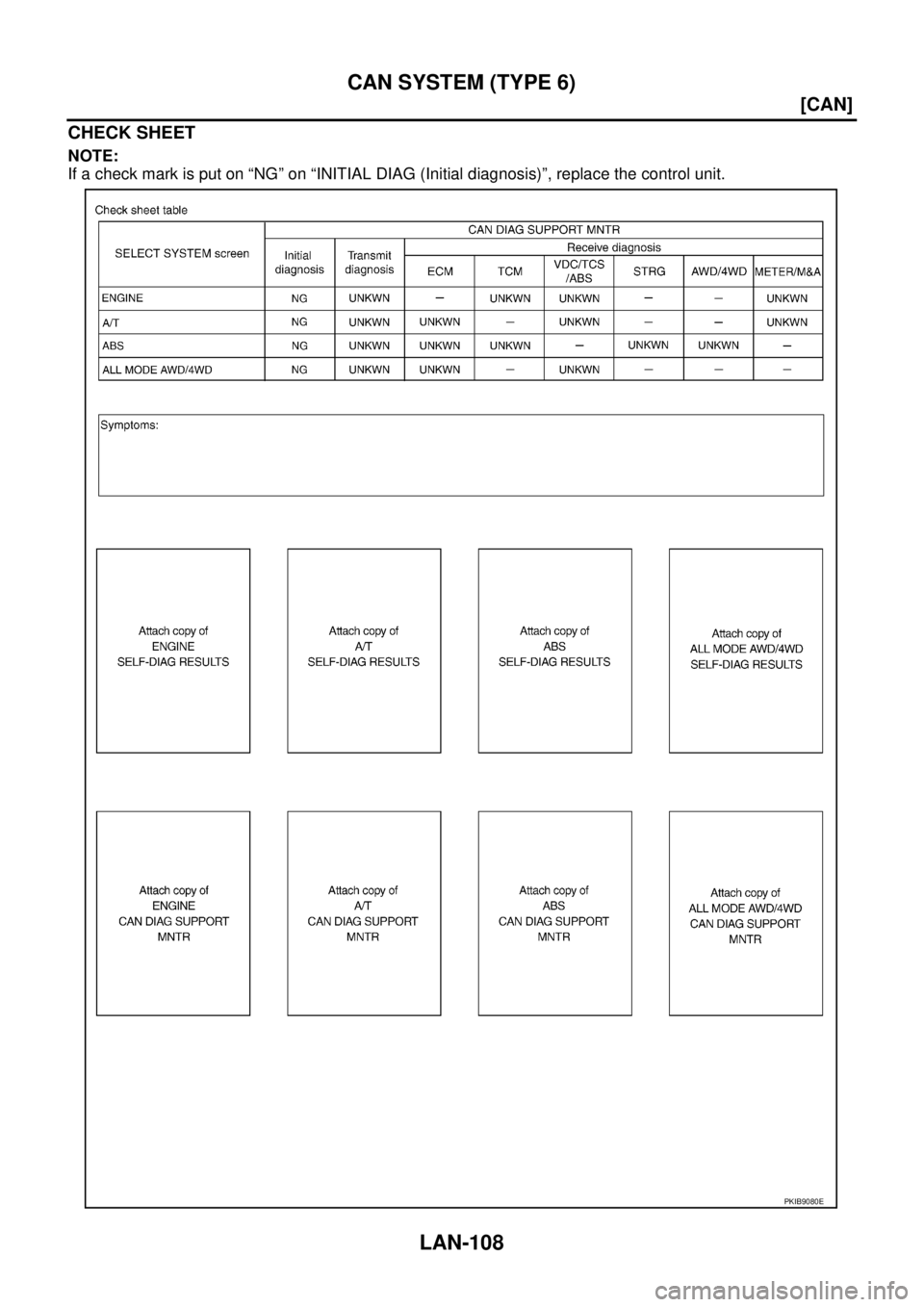

CHECK SHEET
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIB9080E
Page 4353 of 4555
CAN SYSTEM (TYPE 6)
LAN-109
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between TCM and ESP/TCS/ABS control unit. Refer to LAN-117, "Inspection Between TCM
and ESP/TCS/ABS Control Unit Circuit" .
PKIB9081E
PKIA9642E
Page 4354 of 4555
LAN-110
[CAN]
CAN SYSTEM (TYPE 6)
Case 2
Check harness between ESP/TCS/ABS control unit and 4WD control unit. Refer to LAN-119, "Inspection
Between ESP/TCS/ABS Control Unit and 4WD Control Unit Circuit" .
PKIB9082E
PKIA9643E
Page 4355 of 4555
CAN SYSTEM (TYPE 6)
LAN-111
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

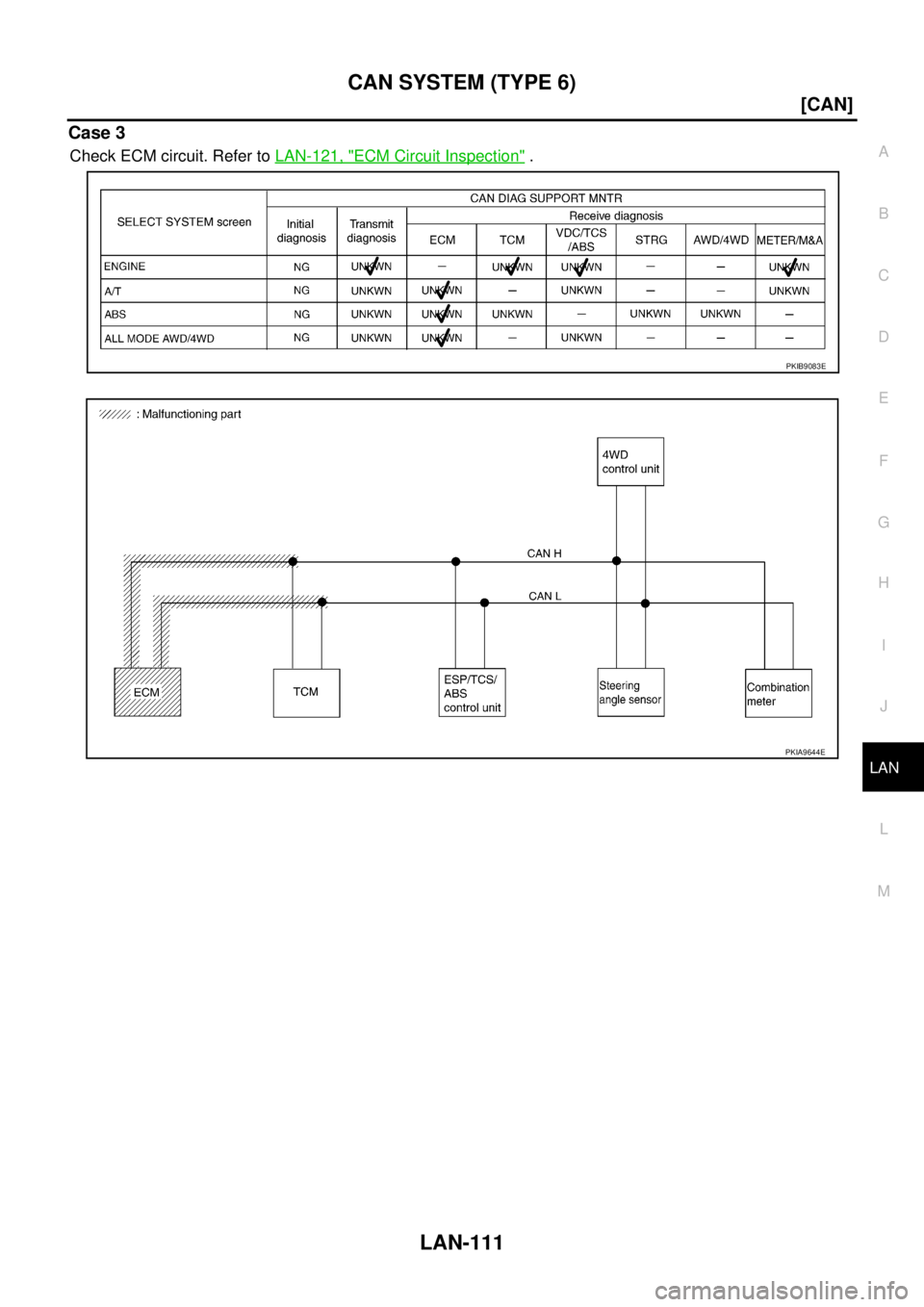

Case 3
Check ECM circuit. Refer to LAN-121, "ECM Circuit Inspection" .
PKIB9083E
PKIA9644E
