2005 NISSAN X-TRAIL check

CAN SYSTEM (TYPE 3)
LAN-63
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ECM harness connector M118 terminals
94 (G/R), 86 (GY/R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness between ECM and harness connector
M61. 94 (G/R) - Ground : Continuity should not exist.
86 (GY/R) - Ground : Continuity should not exist.
PKIA9593E

LAN-64
[CAN]
CAN SYSTEM (TYPE 3)

4. CHECK HARNESS FOR SHORT CIRCUIT
LHD models
1. Disconnect TCM connector.
2. Check continuity between TCM harness connector F46 termi-
nals 5 (G/R) and 6 (GY/R).
3. Disconnect harness connector M75.
4. Check continuity between harness connector M61 terminals 21
(L/R) and 8 (B/W).
RHD models
1. Disconnect TCM connector and harness connector F36.
2. Check continuity between TCM harness connector F46 termi-
nals 5 (G/R) and 6 (GY/R).
OK or NG
OK >> GO TO 5.
NG >>

LHD models
Check the following harness. If any harness is dam-
aged, repair the harness.
–Harness between TCM and harness connector F41
–Harness between harness connector M61 and har-
ness connector M75

RHD models
–Repair harness between TCM and harness connector F36. 5 (G/R) - 6 (GY/R) : Continuity should not exist.
SKIB0094E
21 (L/R) - 8 (B/W) : Continuity should not exist.
SKIB0096E
5 (G/R) - 6 (GY/R) : Continuity should not exist.
SKIB0094E

CAN SYSTEM (TYPE 3)
LAN-65
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

5. CHECK HARNESS FOR SHORT CIRCUIT
LHD models
1. Check continuity between TCM harness connector F46 termi-
nals 5 (G/R), 6 (GY/R) and ground.
2. Check continuity between harness connector M61 terminals 21
(L/R), 8 (B/W) and ground.
RHD models

Check continuity between TCM harness connector F46 termi-
nals 5 (G/R), 6 (GY/R) and ground.
OK or NG
OK >> GO TO 6.
NG >>

LHD models
Check the following harness. If any harness is dam-
aged, repair the harness.
–Harness between TCM and harness connector F41
–Harness between harness connector M61 and Harness connector M75

RHD models
–Repair harness between TCM and harness connector F36. 5 (G/R) - Ground : Continuity should not exist.
6 (GY/R) - Ground : Continuity should not exist.
SKIB0099E
21 (L/R) - Ground : Continuity should not exist.
8 (B/W) - Ground : Continuity should not exist.
SKIB0100E
5 (G/R) - Ground : Continuity should not exist.
6 (GY/R) - Ground : Continuity should not exist.
SKIB0099E

LAN-66
[CAN]
CAN SYSTEM (TYPE 3)

6. CHECK HARNESS FOR SHORT CIRCUIT
LHD models
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check continuity between ABS actuator and electric unit (control
unit) harness connector E69 terminals 20 (W) and 23 (R).
RHD models
1. Disconnect ABS actuator and electric unit (control unit) connector and harness connector E116.
2. Check continuity between ABS actuator and electric unit (control
unit) harness connector E69 terminals 20 (W) and 23 (R).
OK or NG
OK >> GO TO 7.
NG >> Repair harness between ABS actuator and electric unit
(control unit) and harness connector E116.
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector E69 terminals 20 (W), 23 (R) and ground.
OK or NG
OK >> GO TO 8.
NG >> Repair harness between ABS actuator and electric unit
(control unit) and harness connector E116. 20 (W) - 23 (R) : Continuity should not exist.
SKIA9769E
20 (W) - 23 (R) : Continuity should not exist.
SKIA9769E
20 (W) - Ground : Continuity should not exist.
23 (R) - Ground : Continuity should not exist.
SKIA9778E

CAN SYSTEM (TYPE 3)
LAN-67
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

8. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect 4WD control unit connector and combination meter connector.
2. Check continuity between combination meter harness connector
M44 terminals 22 (W) and 23 (R).
OK or NG
OK >> GO TO 9.
NG >> Check the following harness. If any harness is dam-
aged, repair the harness.

Harness between combination meter and 4WD con-
trol unit

Harness between combination meter and harness
connector M75
9. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between combination meter harness connector
M44 terminals 22 (W), 23 (R) and ground.
OK or NG
OK >> GO TO 10.
NG >> Check the following harness. If any harness is dam-
aged, repair the harness.

Harness between combination meter and 4WD con-
trol unit

Harness between combination meter and harness connector M75
10. CHECK ECM AND COMBINATION METER INTERNAL CIRCUIT
Check components inspection. Refer to LAN-67, "
CHECK ECM AND COMBINATION METER INTERNAL
CIRCUIT" .
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-46, "Work Flow" .
NG >> Replace ECM and/or combination meter.
Component InspectionEKS00LUW
CHECK ECM AND COMBINATION METER INTERNAL CIRCUIT

Remove ECM and combination meter from vehicle.

Check resistance between ECM terminals 94 and 86.

Check resistance between combination meter terminals 22 and
23.22 (W) - 23 (R) : Continuity should not exist.
SKIA9780E
22 (W) - Ground : Continuity should not exist.
23 (R) - Ground : Continuity should not exist.
SKIA9980E
Unit TerminalResistance (Ω)
(Approx.)
ECM 94 - 86
108 - 132
Combination meter 22 - 23
PKIA0830E

CAN SYSTEM (TYPE 4)
LAN-71
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

Work FlowEKS00LV0
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” displayed
on CONSULT-II.
2. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” dis-
played on CONSULT-II.
3. Attach the printed sheet of “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT MNTR” onto the check
sheet. Refer to LAN-72, "
CHECK SHEET" .
4. Based on the results of “CAN DIAG SUPPORT MNTR”, put a check marks onto the items with “NG” or
“UNKWN” in the check sheet table. Refer to LAN-72, "
CHECK SHEET" .
NOTE:

If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
5. According to the check sheet results (example), start inspection. Refer to LAN-73, "
CHECK SHEET
RESULTS (EXAMPLE)" .
PKIA8260E
PKIA8343E

LAN-72
[CAN]
CAN SYSTEM (TYPE 4)

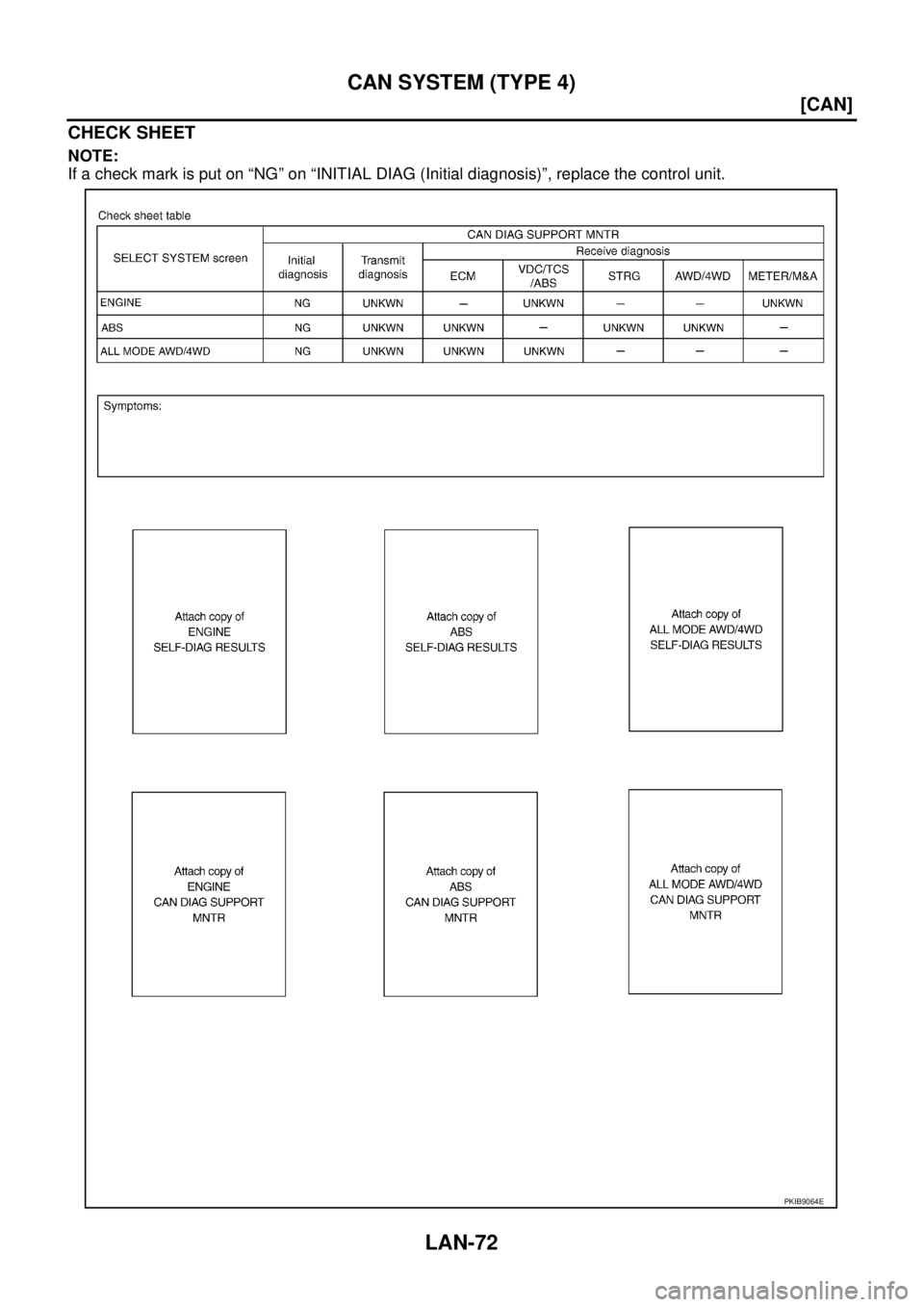

CHECK SHEET
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIB9064E

CAN SYSTEM (TYPE 4)
LAN-73
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between ESP/TCS/ABS control unit and 4WD control unit. Refer to LAN-79, "Inspection
Between ESP/TCS/ABS Control Unit and 4WD Control Unit Circuit" .
PKIB9065E
PKIA9636E
