2005 NISSAN X-TRAIL check

CAN SYSTEM (TYPE 3)
LAN-47
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

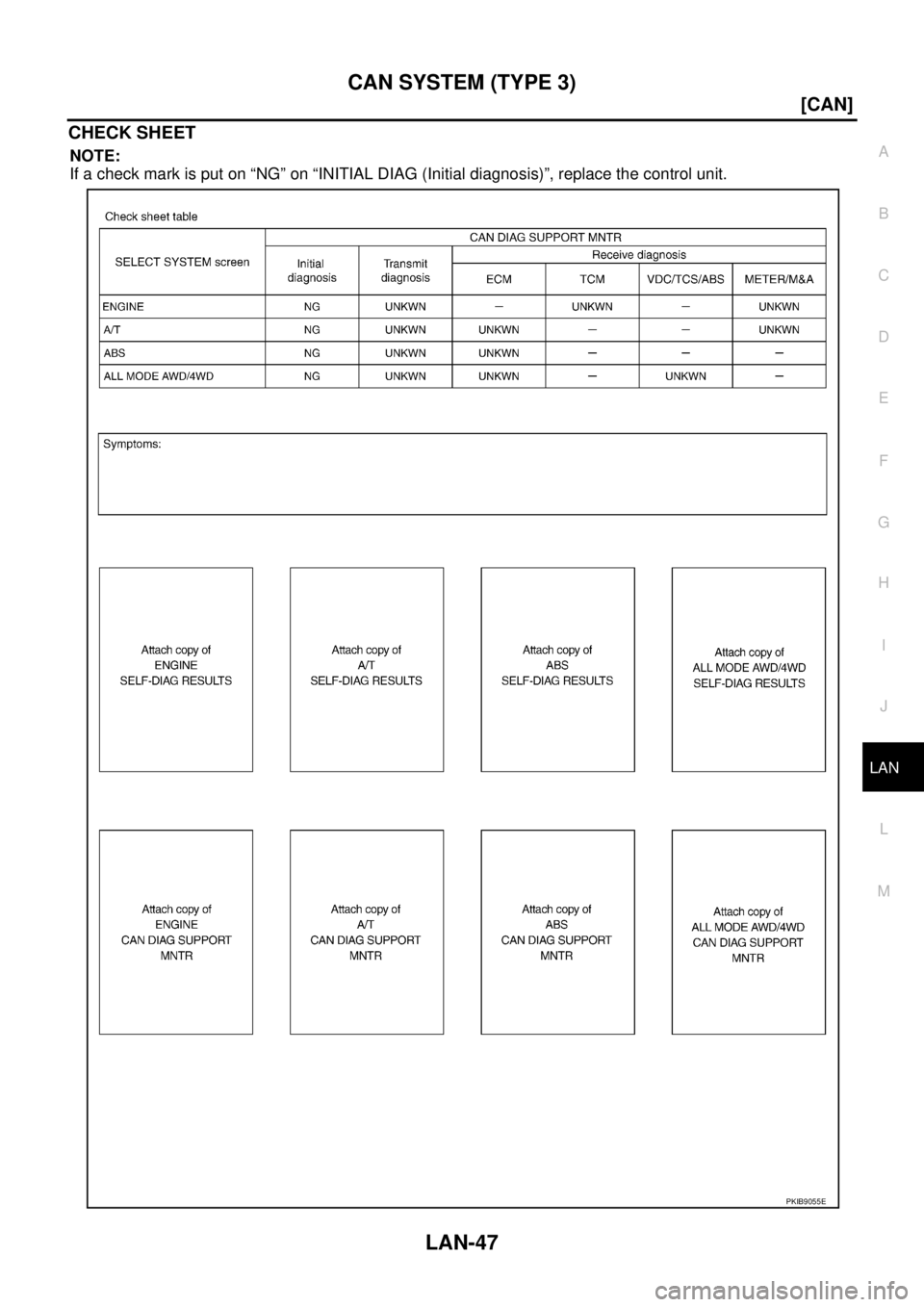

CHECK SHEET
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIB9055E

LAN-48
[CAN]
CAN SYSTEM (TYPE 3)

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

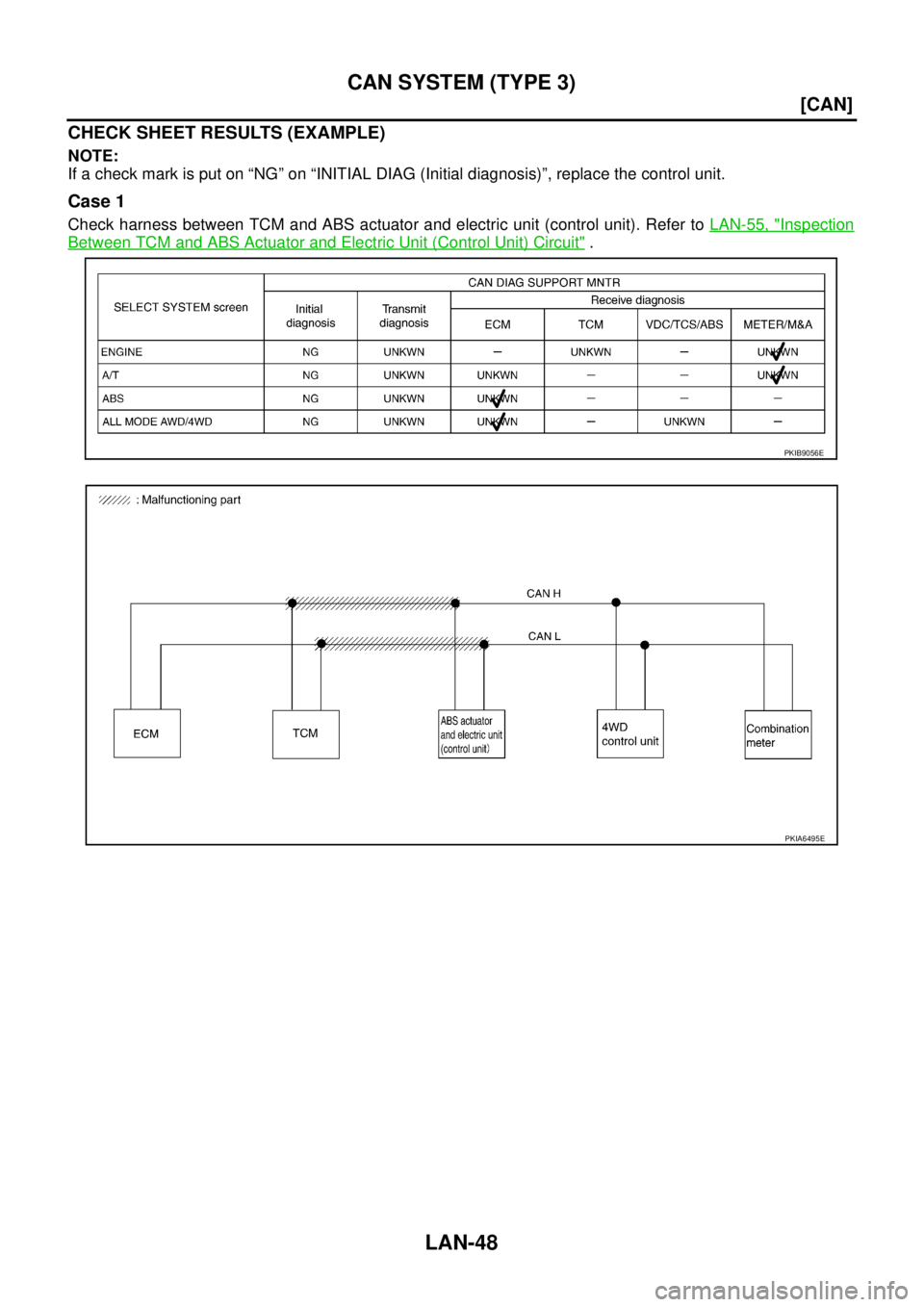

Case 1
Check harness between TCM and ABS actuator and electric unit (control unit). Refer to LAN-55, "Inspection
Between TCM and ABS Actuator and Electric Unit (Control Unit) Circuit" .
PKIB9056E
PKIA6495E

CAN SYSTEM (TYPE 3)
LAN-49
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

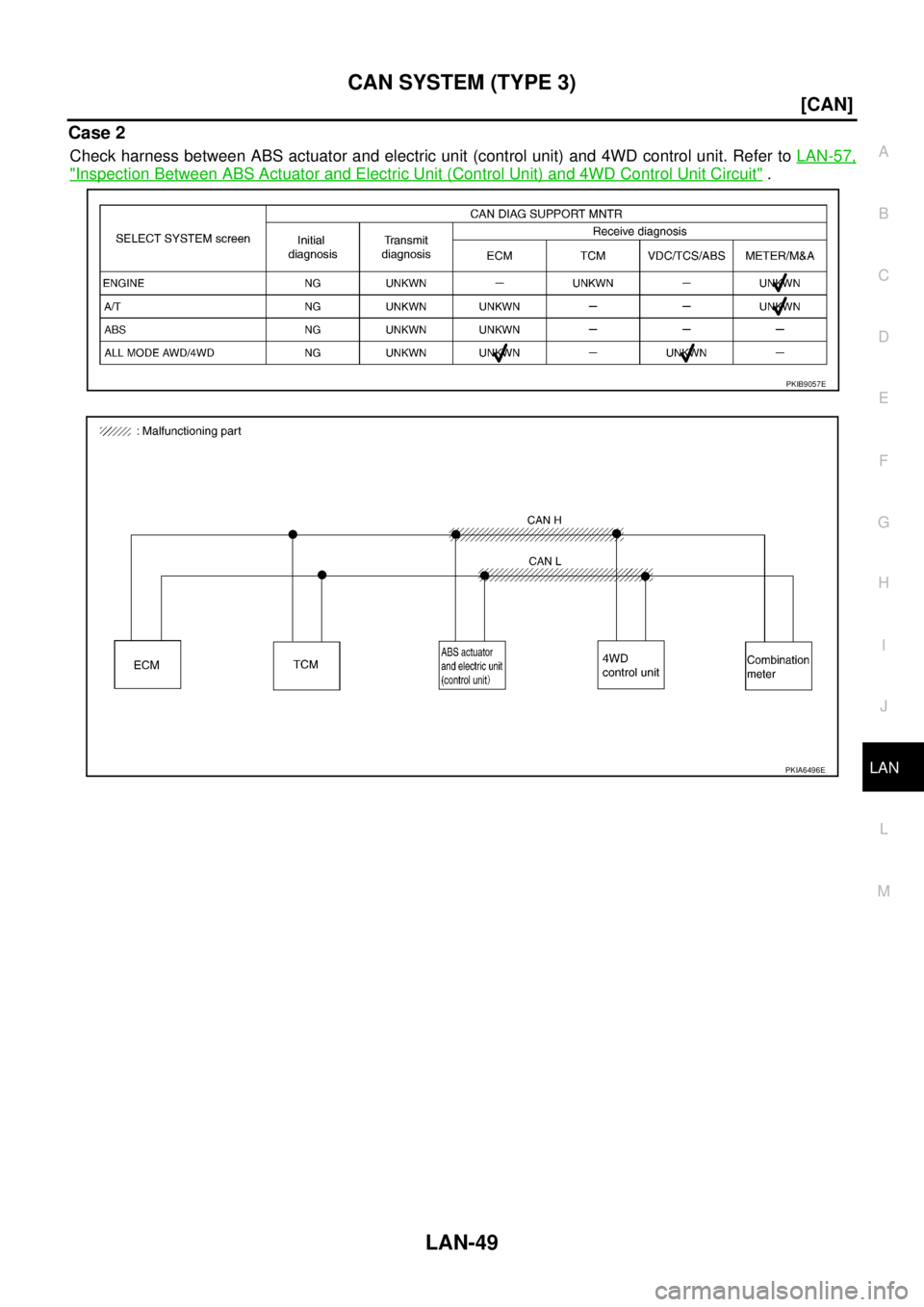

Case 2
Check harness between ABS actuator and electric unit (control unit) and 4WD control unit. Refer to LAN-57,
"Inspection Between ABS Actuator and Electric Unit (Control Unit) and 4WD Control Unit Circuit" .
PKIB9057E
PKIA6496E

LAN-50
[CAN]
CAN SYSTEM (TYPE 3)

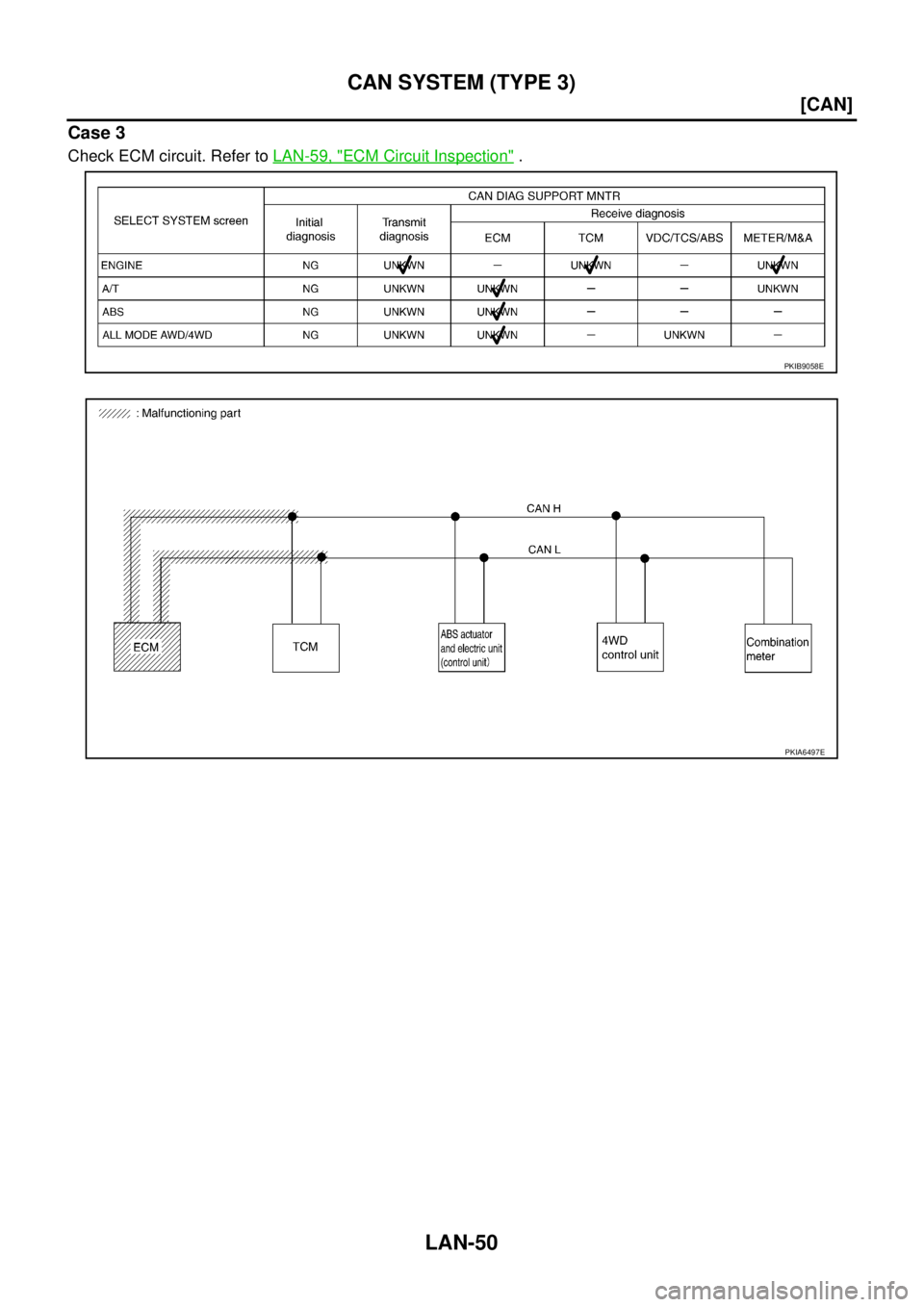

Case 3
Check ECM circuit. Refer to LAN-59, "ECM Circuit Inspection" .
PKIB9058E
PKIA6497E

CAN SYSTEM (TYPE 3)
LAN-51
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

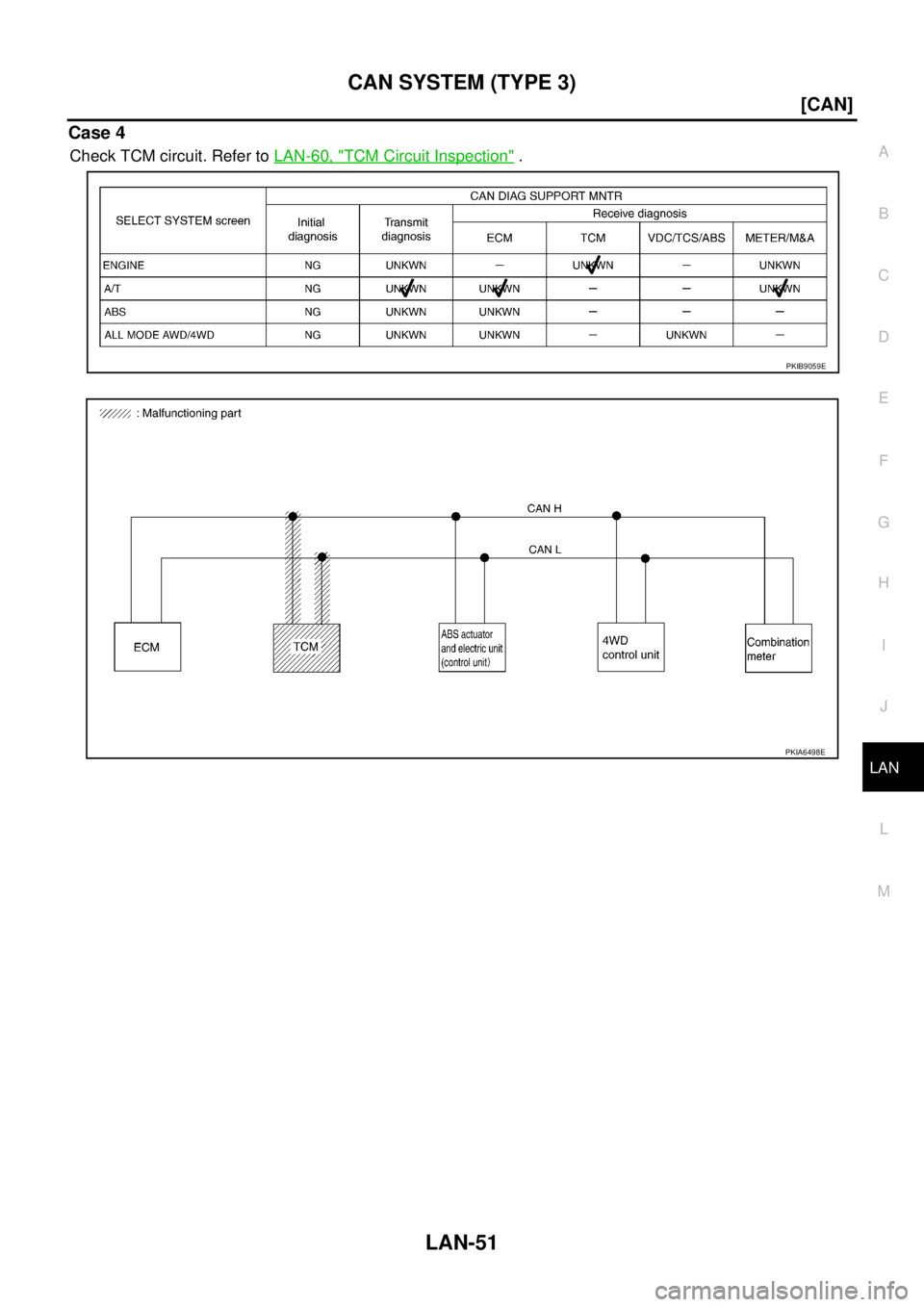

Case 4
Check TCM circuit. Refer to LAN-60, "TCM Circuit Inspection" .
PKIB9059E
PKIA6498E

LAN-52
[CAN]
CAN SYSTEM (TYPE 3)

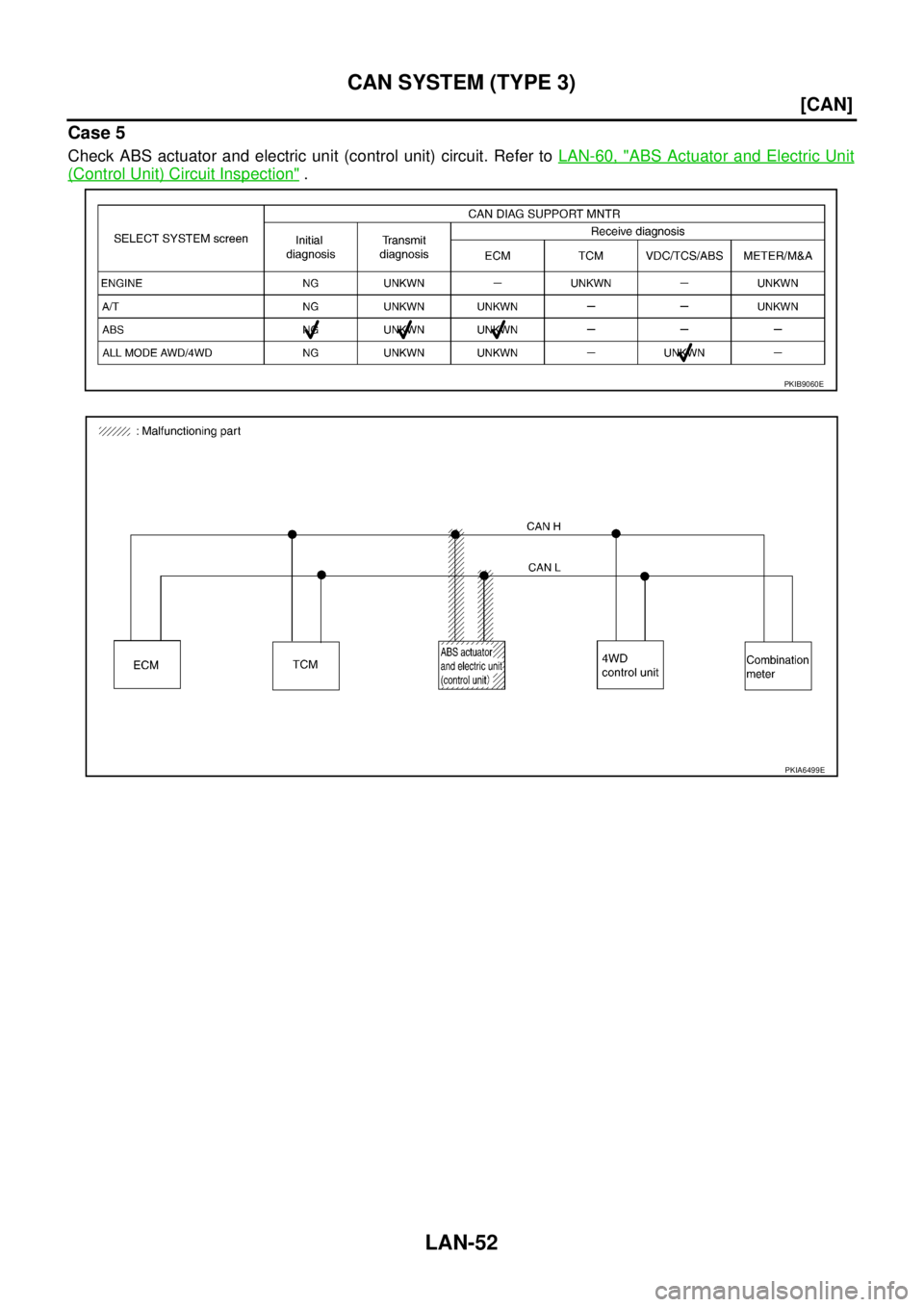

Case 5
Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-60, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection" .
PKIB9060E
PKIA6499E

CAN SYSTEM (TYPE 3)
LAN-53
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

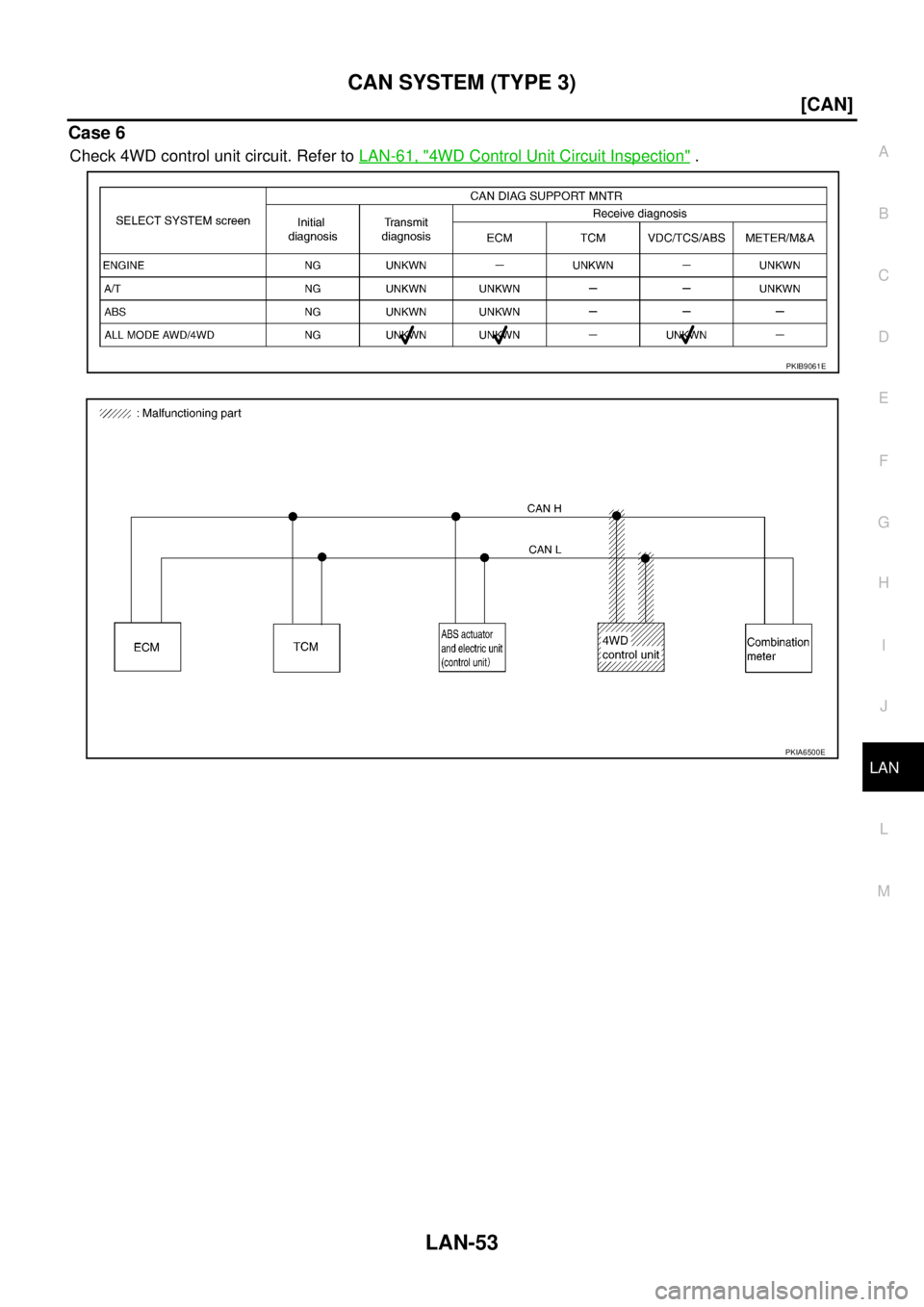

Case 6
Check 4WD control unit circuit. Refer to LAN-61, "4WD Control Unit Circuit Inspection" .
PKIB9061E
PKIA6500E

LAN-54
[CAN]
CAN SYSTEM (TYPE 3)

Case 7
Check combination meter circuit. Refer to LAN-61, "Combination Meter Circuit Inspection" .
Case 8
Check CAN communication circuit. Refer to LAN-62, "CAN Communication Circuit Inspection" .
PKIB9062E
PKIA6501E
PKIB9063E
