2005 NISSAN X-TRAIL check

WW-18
REAR WIPER AND WASHER SYSTEM

Rear Washer Nozzle AdjustmentEKS00333

Adjust rear washer nozzle with suitable tool as shown in the figure at left.
Unit: mm (in)
*: The diameter of this circle is less than 40 mm (1.57in).
Removal and Installation of Rear Washer Nozzle EKS00334
REMOVAL
1. Remove washer hose from rear washer nozzle.
2. Remove rear washer nozzle mounting screw and remove rear
washer nozzle.
INSTALLATION
1. After connecting washer hose, press nozzle from cowl top cover surface.
2. Assemble nozzle and socket.
3. Adjust nozzle injection position.
Inspection for Rear Washer Nozzle EKS00335
CHECK VALVE
Blow air in the injection direction, and check that air flows only one
way. Make sure that the reverse direction (inhale) is not possible. Adjustable range : ±10° (In any direction)
PKIA0487E
*H 90 (3.54)
* L 150 (5.91)
SKIA0091E
PKIA5552E
SKIA0042E

HEADLAMP WASHER
WW-25
C
D
E
F
G
H
I
J
L
MA
B
WW

Removal and Installation of Headlamp Washer NozzleEKS0036J
REMOVAL
1. Remove front bumper. Refer to EI-14, "FRONT BUMPER"
2. Remove hose clip and metal clip.
3. Remove headlamp washer nozzle from front bumper.
INSTALLATION
Installation is in the reverse order of removal.
Inspection for Headlamp Washer NozzleEKS0036K
CHECK VALVE
Blow air in the injection direction, and check that air flows only one
way. Make sure that the reverse direction is not possible.
Removal and Installation of Washer TankEKS0036L
Refer to WW-13, "Removal and Installation of Washer Tank" .
Removal and Installation of Washer MotorEKS0036M
1. Remove front bumper. Refer to EI-14, "FRONT BUMPER"
2. Remove washer motor connector and hose.
3. Pull out washer motor in the direction of the arrow in the figure,
and remove the washer motor from the washer tank.
CAUTION:
When installing washer motor, there should be no packing
twist, etc.
PKIA0490E
PKIA0491E
PKIC0596E

LAN-1
LAN SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION LAN
A
B
LAN

LAN SYSTEM
CAN
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions For Trouble Diagnosis .......................... 3
CAN SYSTEM ....................................................... 3
Precautions For Harness Repair .............................. 3
CAN SYSTEM ....................................................... 3
CAN COMMUNICATION ............................................ 4
System Description .................................................. 4
CAN Communication Unit ........................................ 4
TYPE 1/TYPE 2 .................................................... 4
TYPE 3 .................................................................. 5
TYPE 4/TYPE 5 .................................................... 6
TYPE 6 .................................................................. 7
TYPE 7/TYPE 8 .................................................... 9
TYPE 9 ................................................................ 10
CAN SYSTEM (TYPE 1) ............................................11
System Description ................................................. 11
Component Parts and Harness Connector Location .... 11
Wiring Diagram — CAN — ..................................... 12
Work Flow .............................................................. 14

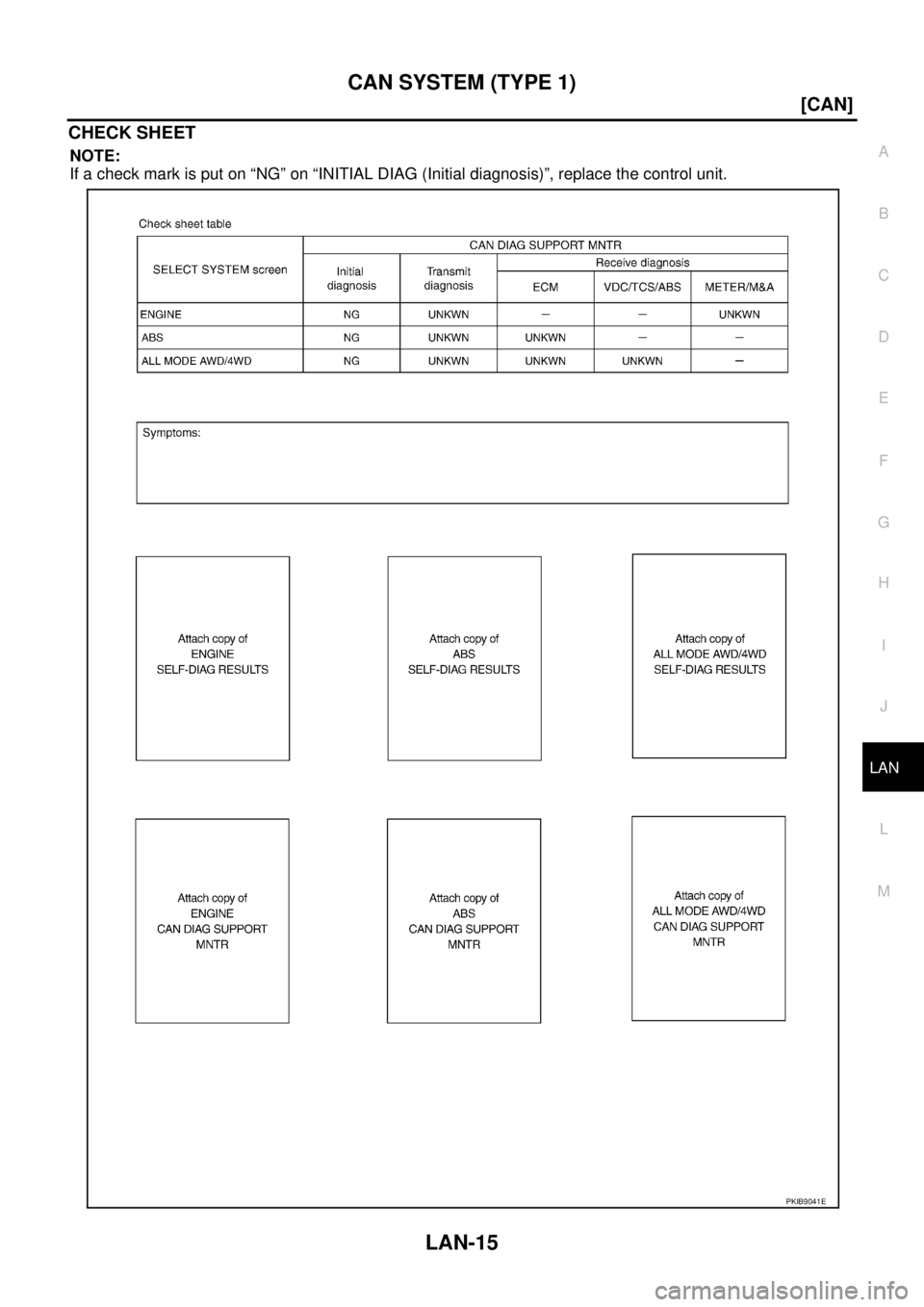

CHECK SHEET ................................................... 15

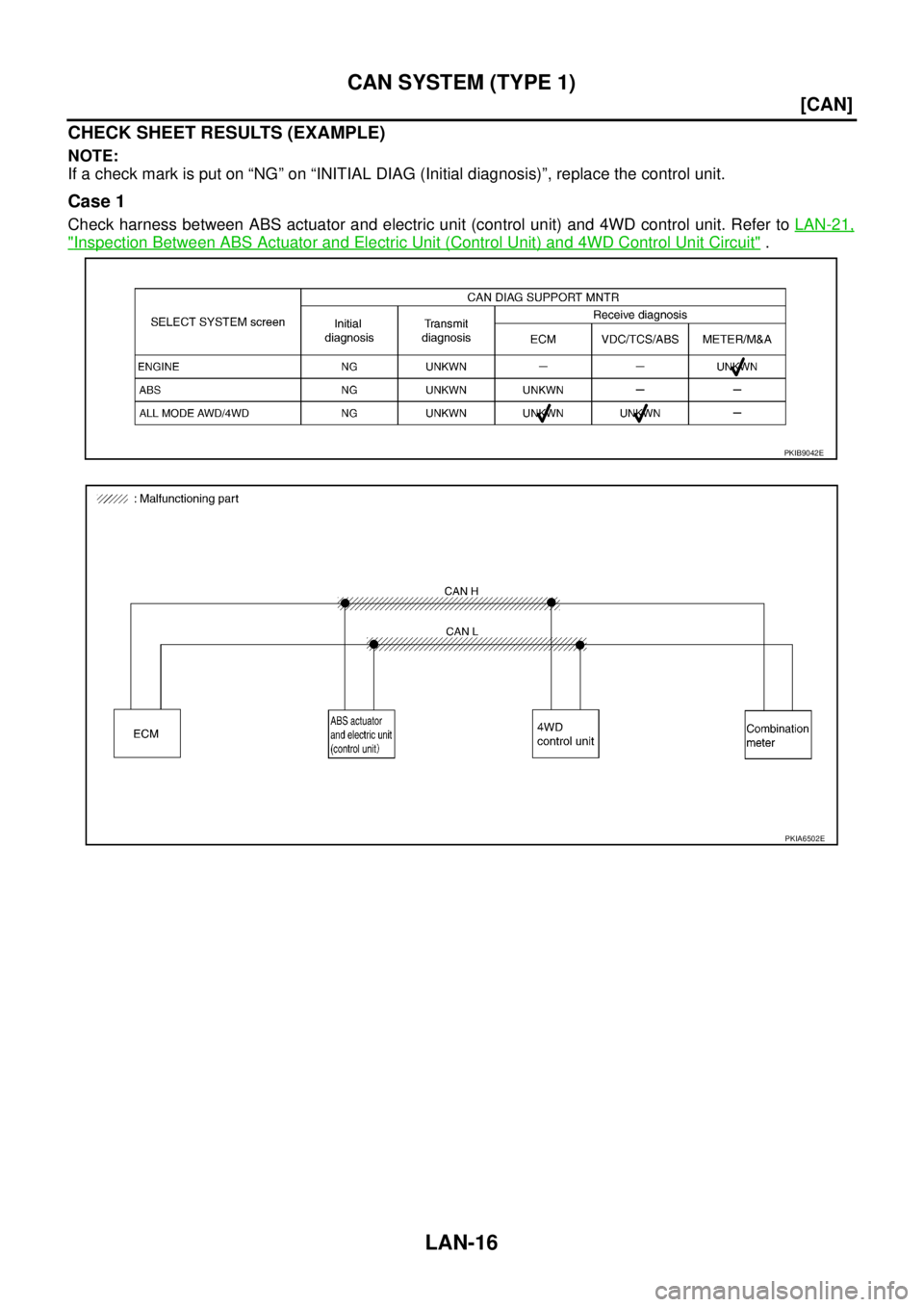

CHECK SHEET RESULTS (EXAMPLE) ............. 16
Inspection Between ABS Actuator and Electric Unit
(Control Unit) and 4WD Control Unit Circuit ........... 21
ECM Circuit Inspection ........................................... 22
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ............................................................... 23
4WD Control Unit Circuit Inspection ....................... 23
Combination Meter Circuit Inspection .................... 24
CAN Communication Circuit Inspection ................. 24
Component Inspection ........................................... 26
CHECK ECM AND COMBINATION METER
INTERNAL CIRCUIT ........................................... 26
CAN SYSTEM (TYPE 2) ........................................... 27
System Description ................................................ 27
Component Parts and Harness Connector Location ... 27
Wiring Diagram — CAN — ..................................... 28Work Flow ............................................................... 30
CHECK SHEET ................................................... 31
CHECK SHEET RESULTS (EXAMPLE) ............. 32
Inspection Between ABS Actuator and Electric Unit
(Control Unit) and 4WD Control Unit Circuit ........... 37
ECM Circuit Inspection ........................................... 38
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ............................................................... 39
4WD Control Unit Circuit Inspection ....................... 39
Combination Meter Circuit Inspection ..................... 40
CAN Communication Circuit Inspection ................. 40
Component Inspection ............................................ 42
CHECK ECM AND COMBINATION METER
INTERNAL CIRCUIT ........................................... 42
CAN SYSTEM (TYPE 3) ........................................... 43
System Description ................................................. 43
Component Parts and Harness Connector Location ... 43
Wiring Diagram — CAN — ..................................... 44
Work Flow ............................................................... 46
CHECK SHEET ................................................... 47
CHECK SHEET RESULTS (EXAMPLE) ............. 48
Inspection Between TCM and ABS Actuator and
Electric Unit (Control Unit) Circuit ........................... 55
Inspection Between ABS Actuator and Electric Unit
(Control Unit) and 4WD Control Unit Circuit ........... 57
ECM Circuit Inspection ........................................... 59
TCM Circuit Inspection ........................................... 60
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ............................................................... 60
4WD Control Unit Circuit Inspection ....................... 61
Combination Meter Circuit Inspection ..................... 61
CAN Communication Circuit Inspection ................. 62
Component Inspection ............................................ 67
CHECK ECM AND COMBINATION METER
INTERNAL CIRCUIT ........................................... 67
CAN SYSTEM (TYPE 4) ........................................... 68
System Description ................................................. 68
Component Parts and Harness Connector Location ... 68
Wiring Diagram — CAN — ..................................... 69
Work Flow ............................................................... 71

LAN-2 CHECK SHEET ................................................... 72
CHECK SHEET RESULTS (EXAMPLE) ............. 73
Inspection Between ESP/TCS/ABS Control Unit
and 4WD Control Unit Circuit ................................. 79
ECM Circuit Inspection ........................................... 80
ESP/TCS/ABS Control Unit Circuit Inspection ........ 81
Steering Angle Sensor Circuit Inspection ............... 81
4WD Control Unit Circuit Inspection ....................... 82
Combination Meter Circuit Inspection ..................... 82
CAN Communication Circuit Inspection .................. 83
Component Inspection ............................................ 85
CHECK ECM AND COMBINATION METER
INTERNAL CIRCUIT ........................................... 85
CAN SYSTEM (TYPE 5) ........................................... 86
System Description ................................................. 86
Component Parts and Harness Connector Location ... 86
Wiring Diagram — CAN — ..................................... 87
Work Flow ............................................................... 89
CHECK SHEET ................................................... 90
CHECK SHEET RESULTS (EXAMPLE) ............. 91
Inspection Between ESP/TCS/ABS Control Unit
and 4WD Control Unit Circuit ................................. 97
ECM Circuit Inspection ........................................... 98
ESP/TCS/ABS Control Unit Circuit Inspection ........ 99
Steering Angle Sensor Circuit Inspection ............... 99
4WD Control Unit Circuit Inspection .....................100
Combination Meter Circuit Inspection ...................100
CAN Communication Circuit Inspection ................101
Component Inspection ..........................................103
CHECK ECM AND COMBINATION METER
INTERNAL CIRCUIT .........................................103
CAN SYSTEM (TYPE 6) .........................................104
System Description ...............................................104
Component Parts and Harness Connector Location .104
Wiring Diagram — CAN — ...................................105
Work Flow .............................................................107
CHECK SHEET .................................................108
CHECK SHEET RESULTS (EXAMPLE) ...........109
Inspection Between TCM and ESP/TCS/ABS Con-
trol Unit Circuit ......................................................117
Inspection Between ESP/TCS/ABS Control Unit
and 4WD Control Unit Circuit ...............................119
ECM Circuit Inspection .........................................121
TCM Circuit Inspection .........................................122
ESP/TCS/ABS Control Unit Circuit Inspection ......122
Steering Angle Sensor Circuit Inspection .............123
4WD Control Unit Circuit Inspection .....................123
Combination Meter Circuit Inspection ...................124
CAN Communication Circuit Inspection ................125
Component Inspection ..........................................129
CHECK ECM AND COMBINATION METER INTERNAL CIRCUIT ..........................................129
CAN SYSTEM (TYPE 7) ..........................................130
System Description ...............................................130
Component Parts and Harness Connector Location .130
Wiring Diagram — CAN — ...................................131
Work Flow .............................................................133
CHECK SHEET .................................................134
CHECK SHEET RESULTS (EXAMPLE) ............135
ECM Circuit Inspection .........................................138
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ..............................................................138
Combination Meter Circuit Inspection ...................139
CAN Communication Circuit Inspection ................140
Component Inspection ..........................................142
CHECK ECM AND COMBINATION METER
INTERNAL CIRCUIT ..........................................142
CAN SYSTEM (TYPE 8) ..........................................143
System Description ...............................................143
Component Parts and Harness Connector Location .143
Wiring Diagram — CAN — ...................................144
Work Flow .............................................................146
CHECK SHEET .................................................147
CHECK SHEET RESULTS (EXAMPLE) ............148
ECM Circuit Inspection .........................................151
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ..............................................................151
Combination Meter Circuit Inspection ...................152
CAN Communication Circuit Inspection ................153
Component Inspection ..........................................155
CHECK ECM AND COMBINATION METER
INTERNAL CIRCUIT ..........................................155
CAN SYSTEM (TYPE 9) ..........................................156
System Description ...............................................156
Component Parts and Harness Connector Location .156
Wiring Diagram — CAN — ...................................157
Work Flow .............................................................159
CHECK SHEET .................................................160
CHECK SHEET RESULTS (EXAMPLE) ............161
Inspection Between ESP/TCS/ABS Control Unit
and steering angle sensor Circuit .........................166
ECM Circuit Inspection .........................................167
ESP/TCS/ABS Control Unit Circuit Inspection ......168
Steering Angle Sensor Circuit Inspection ..............168
Combination Meter Circuit Inspection ...................169
CAN Communication Circuit Inspection ................169
Component Inspection ..........................................171
CHECK ECM AND COMBINATION METER
INTERNAL CIRCUIT ..........................................171

PRECAUTIONS
LAN-3
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

[CAN]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS001U0
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions For Trouble DiagnosisEKS001U1
CAN SYSTEM

Do not apply voltage of 7.0 V or higher to the measurement terminals.

Use the tester with its open terminal voltage being 7.0 V or less.

Be sure to turn ignition switch off and disconnect the battery cable from the negative terminal before
checking the circuit.
Precautions For Harness RepairEKS001U2
CAN SYSTEM

Solder the repaired parts, and wrap with tape. [Frays of twisted
line must be within 110 mm (4.33 in).]

Do not perform bypass wire connections for the repair parts.
(The spliced wire will become separated and the characteristics
of twisted line will be lost.)
PKIA0306E
PKIA0307E

LAN-14
[CAN]
CAN SYSTEM (TYPE 1)

Work FlowEKS00LU0
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” displayed
on CONSULT-II.
2. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” dis-
played on CONSULT-II.
3. Attach the printed sheet of “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT MNTR” onto the check
sheet. Refer to LAN-15, "
CHECK SHEET" .
4. Based on the results of “CAN DIAG SUPPORT MNTR”, put a check marks onto the items with “NG” or
“UNKWN” in the check sheet table. Refer to LAN-15, "
CHECK SHEET" .
NOTE:

If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
5. According to the check sheet results (example), start inspection. Refer to LAN-16, "
CHECK SHEET
RESULTS (EXAMPLE)" .
PKIA8260E
PKIA8343E

CAN SYSTEM (TYPE 1)
LAN-15
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

CHECK SHEET
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIB9041E

LAN-16
[CAN]
CAN SYSTEM (TYPE 1)

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between ABS actuator and electric unit (control unit) and 4WD control unit. Refer to LAN-21,
"Inspection Between ABS Actuator and Electric Unit (Control Unit) and 4WD Control Unit Circuit" .
PKIB9042E
PKIA6502E
