ON BOARD DIAGNOSTIC (OBD) SYSTEM

ON BOARD DIAGNOSTIC (OBD) SYSTEMPFP:00028
IntroductionEBS011UJ
The ECM has an on board diagnostic system, which detects malfunctions related to engine sensors or actua-
tors. The ECM also records various emission-related diagnostic information including:
The above information can be checked using procedures listed in the table below.
×: Applicable —: Not applicable
*: When DTC and 1st/2nd trip DTC simultaneously appear on the display, they cannot be clearly distinguished from each other.
The malfunction indicator (MI) on the instrument panel lights up when the same malfunction is detected in
three consecutive trips (Three trip detection logic).
Three Trip Detection Logic and One Trip Detection LogicEBS011UK
On board diagnosis (OBD) system of this vehicle has “Three Trip Detection Logic” and “One Trip Detection
Logic”. For which logic each self-diagnosis corresponds with, refer to EC-973, "
INDEX FOR DTC" .
“Trip” of “Three Trip Detection Logic” means a driving mode in which the self-diagnosis is performed while
driving.
THREE TRIP DETECTION LOGIC
When a malfunction is detected for the first time, 1st trip DTC is stored in the ECM memory. MI does not illumi-
nate at this stage. <1st trip>
When the same malfunction is detected again during the next driving, 2nd trip DTC is stored in the ECM mem-
ory and 1st trip DTC is cleared from the ECM memory. MI does not illuminate at this stage. <2nd trip>
When the same malfunction is detected again at the third driving, DTC and Freeze Frame Data are stored in
the ECM memory and 2nd trip DTC is cleared from the ECM memory. MI illuminates at the same time when
DTC is stored. <3rd trip>
In other words, DTC and Freeze Frame Data are stored and MI illuminates when the same malfunction occurs
in 3 consecutive trips.
This is called “Three Trip Detection Logic”.
ONE TRIP DETECTION LOGIC
When a malfunction is detected for the first time, DTC and Freeze Frame Data are stored in the ECM memory
and MI lights up. This is called “One Trip Detection Logic”. Some self-diagnoses will not illuminate MI when
DTC is stored. (Refer to EC-996, "
Emission-related Diagnostic Information" .) 1st/2nd trip DTC is not stored for
one trip detection logic.
Emission-related Diagnostic InformationEBS011UL
EMISSION-RELATED DIAGNOSTIC INFORMATION ITEMS
X: Applicable —: Not applicable Emission-related diagnostic information ISO Standard
Diagnostic Trouble Code (DTC) Service $03 of ISO 15031-5
Freeze Frame data Service $02 of ISO 15031-5
1st/2nd Trip Diagnostic Trouble Code (1st/2nd Trip DTC) Service $07 of ISO 15031-5
Calibration ID Service $09 of ISO 15031-5
DTC 1st trip DTC 2nd trip DTC Freeze Frame data
CONSULT-II××××
GST××××
ECM××*×*—
Items
(CONSULT-II screen item) DTC*
11st/2nd trip
DTCMI lighting
upReference page
CONSULT-II
GST*
2ECM*3
CAN COMM CIRCUIT U1000 1000 — —EC-1056
NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.P0000 0000—— —
CMP/CKP RELATION P0016 0016××EC-1059

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-999
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

tion, DTC is stored in the ECM memory and MI lights up when the same malfunction is detected during the fol-
lowing consecutive trip (3rd trip).
The procedure for erasing DTC, 1st trip DTC, and 2nd trip DTC from the ECM memory is described in EC-999,
"HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION" .
For malfunctions in which 1st/2nd trip DTC are displayed, Refer to EC-996, "
Emission-related Diagnostic Infor-
mation" .
1st/2nd trip DTC is specified in Service $07 of ISO15031-5. 1st/2nd trip DTC detection occurs without lighting
up MI and therefore does not warn the driver of a malfunction.
When 1st/2nd trip DTC is detected, check, print out or write down, and erase 1st/2nd trip DTC as specified
with step II of Work Flow, refer to EC-1008, "
WORK FLOW" . Then perform DTC Confirmation Procedure or
Overall Function Check to try to duplicate the malfunction. If the malfunction is duplicated, it is necessary to
investigate the cause again.
How to Read DTC and 1st/2nd Trip DTC
DTC and 1st/2nd trip DTC can be read by the following procedures.
With CONSULT-II
With GST
CONSULT-II or GST (Generic Scan Tool): Examples: P0117, P0335, P1260, etc.
These numbers are prescribed by ISO 15031-6.
(CONSULT-II also displays the malfunctioning parts and systems.)
A sample of CONSULT-II display for DTC and 1st/2nd trip DTC is
shown in the figure. DTC and 1st/2nd trip DTC are displayed in the
“SELF-DIAG RESULTS” mode of CONSULT-II.
“TIME” data shows how many times the vehicle was driven after the
last detection of DTC or 1st/2nd trip DTC. When DTC or 1st/2nd trip
DTC has been detected currently, “TIME” becomes “0”.

CONSULT-II displays for DTC and 1st/2nd trip DTC become the
same.

The output of a DTC indicates a malfunction. However, GST
does not indicate whether the malfunction is still occurring or
has occurred in the past and has returned to normal. CONSULT-
II can identify the malfunction status. Therefore the use of CON-
SULT-II (If available) is recommended.
FREEZE FRAME DATA
ECM records driving conditions such as calculated load value, engine coolant temperature, engine speed,
vehicle speed, and intake manifold pressure at the moment a malfunction is detected.
The data stored together with DTC is called Freeze Frame Data, and is displayed on CONSULT-II or GST.
When 1st/2nd trip DTC is detected, Freeze Frame Data is not recorded.
Only a set of Freeze Frame Data can be stored in the ECM memory. When ECM records Freeze Frame Data,
and another Freeze Frame Data is generated after that, the first (original) Freeze Frame Data is not updated in
ECM and it remains.
When the DTC is erased from ECM memory, Freeze Frame Data is erased with DTC. The procedure for eras-
ing DTC is described in EC-999, "
How to Erase DTC" .
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION
How to Erase DTC
With CONSULT-II
The emission related diagnostic information in the ECM can be erased by selecting “ERASE” in the “SELF-
DIAG RESULTS” mode with CONSULT-II.
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 5
seconds and then turn it ON (engine stopped) again.
2. Touch “ENGINE”.
3. Touch “SELF-DIAG RESULTS”.
PBIB2022E

EC-1000
[YD (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

4. Touch “ERASE”. (The DTC in the ECM will be erased.)
With GST
The emission related diagnostic information in the ECM can be erased by selecting Service $04 with GST.
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 5
seconds and then turn it ON (engine stopped) again.
2. Select Service $04 with GST (Generic Scan Tool).

If the battery is disconnected, the emission-related diagnostic information will be lost within 24
hours.

The following data are cleared when the ECM memory is erased.
–Diagnostic trouble codes
–1st trip diagnostic trouble codes
–2nd trip diagnostic trouble codes
–Freeze frame data
Actual work procedures are explained using a DTC as an example. Be careful so that not only the DTC, but all
of the data listed above, are cleared from the ECM memory during work procedures.
No Tools
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once.
2. Wait at least 10 seconds and then turn it ON (engine stopped) again.
3. Change the diagnostic test mode from Mode II to Mode I by depressing the accelerator pedal. Refer to
EC-1002, "
HOW TO SWITCH DIAGNOSTIC TEST MODE" .

If the battery is disconnected, the emission-related diagnostic information will be lost within 24
hours.

The following data are cleared when the ECM memory is erased.
–Diagnostic trouble codes
–Freeze frame data
–Fuel pump learning value
–Others
Actual work procedures are explained using a DTC as an example. Be careful so that not only the DTC, but all
of the data listed above, are cleared from the ECM memory during work procedures.
PBIB2452E

EC-1002
[YD (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

HOW TO SWITCH DIAGNOSTIC TEST MODE
NOTE:

It is better to count the time accurately with a clock.

It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit
has a malfunction.

Always ECM returns to Diagnostic Test Mode I after ignition switch is turned OFF.
How to Set Diagnostic Test Mode II (Self-diagnostic Results)
1. Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.
2. Repeat the following procedure quickly five times within 5 seconds.
a. Fully depress the accelerator pedal.
b. Fully release the accelerator pedal.
3. Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 10 seconds until the MI starts
blinking.
4. Fully release the accelerator pedal.
ECM has entered to Diagnostic Test Mode II (Self-diagnostic results).
PBIB0092E

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-1003
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

How to Erase Diagnostic Test Mode II (Self-diagnostic Results)
1. Set ECM in Diagnostic Test Mode II (Self-diagnostic results). Refer to EC-1002, "How to Set Diagnostic
Test Mode II (Self-diagnostic Results)" .
2. Fully depress the accelerator pedal and keep it for more than 10 seconds.
The emission-related diagnostic information has been erased from the backup memory in the ECM.
3. Fully release the accelerator pedal, and confirm the DTC 0000 is displayed.
DIAGNOSTIC TEST MODE I — BULB CHECK
In this mode, the MI on the instrument panel should stay ON. If it remains OFF, check the bulb. Refer to EC-
1348, "MI & DATA LINK CONNECTORS" .
DIAGNOSTIC TEST MODE I — MALFUNCTION WARNING
These DTC numbers are clarified in Diagnostic Test Mode II (SELF-DIAGNOSTIC RESULTS)
DIAGNOSTIC TEST MODE II — SELF-DIAGNOSTIC RESULTS
In this mode, the DTC is indicated by the number of blinks of the MI as shown below. A DTC will be used as an
example for how to read a code.
A particular trouble code can be identified by the number of four-digit numeral flashes. The “zero” is indicated
by the number of ten flashes. The length of time the 1,000th-digit numeral flashes on and off is 1.2 seconds
consisting of an ON (0.6-second) - OFF (0.6-second) cycle.
The 100th-digit numeral and lower digit numerals consist of a 0.3-second ON and 0.3-second OFF cycle.
A change from one digit numeral to another occurs at an interval of 1.0-second OFF. In other words, the later
numeral appears on the display 1.3 seconds after the former numeral has disappeared.
A change from one trouble code to another occurs at an interval of 1.8-second OFF.
In this way, all the detected malfunctions are classified by their DTC numbers. The DTC 0000 refers to no mal-
function. (See EC-973, "
INDEX FOR DTC" )
How to Erase Diagnostic Test Mode II (Self-diagnostic Results)
The DTC can be erased from the back up memory in the ECM by depressing accelerator pedal. Refer to EC-
1003, "How to Erase Diagnostic Test Mode II (Self-diagnostic Results)" .

If the battery is disconnected, the DTC will be lost from the backup memory within 24 hours.

Be careful not to erase the stored memory before starting trouble diagnoses.
MI Condition
ON When the malfunction is detected.
OFF No malfunction.
PBIA3905E

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-1005
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

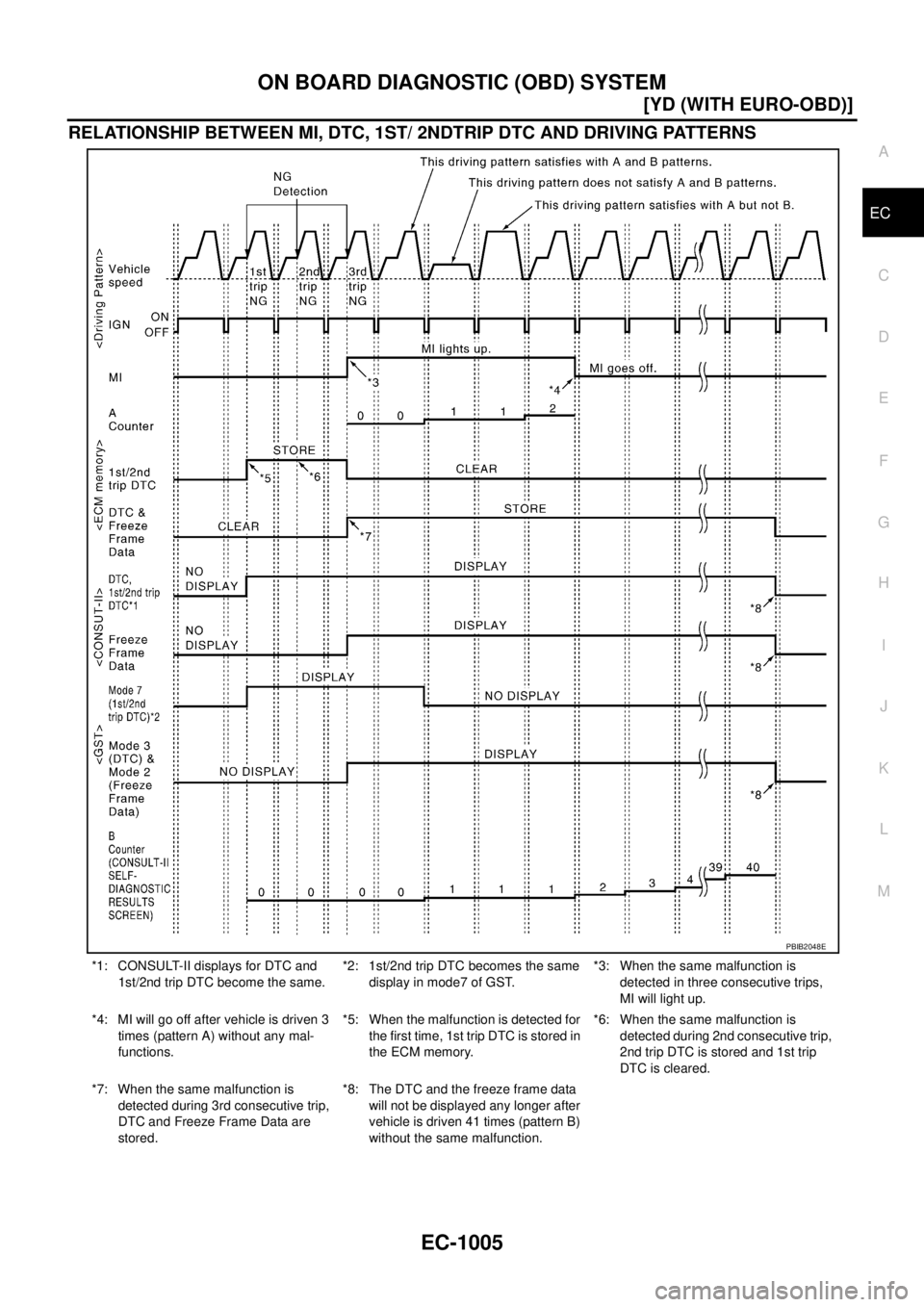

RELATIONSHIP BETWEEN MI, DTC, 1ST/ 2NDTRIP DTC AND DRIVING PATTERNS
*1: CONSULT-II displays for DTC and
1st/2nd trip DTC become the same.*2: 1st/2nd trip DTC becomes the same
display in mode7 of GST.*3: When the same malfunction is
detected in three consecutive trips,
MI will light up.
*4: MI will go off after vehicle is driven 3
times (pattern A) without any mal-
functions.*5: When the malfunction is detected for
the first time, 1st trip DTC is stored in
the ECM memory.*6: When the same malfunction is
detected during 2nd consecutive trip,
2nd trip DTC is stored and 1st trip
DTC is cleared.
*7: When the same malfunction is
detected during 3rd consecutive trip,
DTC and Freeze Frame Data are
stored.*8: The DTC and the freeze frame data
will not be displayed any longer after
vehicle is driven 41 times (pattern B)
without the same malfunction.
PBIB2048E

TROUBLE DIAGNOSIS
EC-1009
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Description for Work Flow
DIAGNOSTIC WORK SHEET
There are many operating conditions that lead to the malfunction of
engine components. A good grasp of such conditions can make trou-
bleshooting faster and more accurate.
In general, each customer feels differently about an incident. It is
important to fully understand the symptoms or conditions for a cus-
tomer complaint.
Utilize a diagnostic worksheet like the one shown below in order to
organize all the information for troubleshooting.
STEP DESCRIPTION
STEP IGet detailed information about the conditions and the environment when the incident/symptom occurred using the
EC-1009, "
DIAGNOSTIC WORK SHEET" .
STEP IIBefore confirming the concern, check and write down (print out using CONSULT-II or GST) the (1st/2nd trip) DTC and
the freeze frame data (When 1st/2nd trip DTC is detected, Freeze Frame Data is not recorded.), then erase the DTC
and the data. (Refer to EC-999
.) The (1st/2nd trip) DTC and the freeze frame data can be used when duplicating the
incident at STEP III & IV.
If the incident cannot be verified, perform EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
Study the relationship between the cause, specified by (1st/2nd trip) DTC, and the symptom described by the cus-
tomer. (The Symptom Matrix Chart will be useful. See EC-1016
.)
Also check related service bulletins for information.
STEP IIITry to confirm the symptom and under what conditions the incident occurs.
The DIAGNOSTIC WORK SHEET and the freeze frame data are useful to verify the incident. Connect CONSULT-II
to the vehicle in “DATA MONITOR (AUTO TRIG)” mode and check real time diagnosis results.
If the incident cannot be verified, perform EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
If the malfunction code is detected, skip STEP IV and perform STEP V.
STEP IVTry to detect the (1st/2nd trip) DTC by driving in (or performing) the DTC Confirmation Procedure. Check and read
the (1st/2nd trip) DTC and freeze frame data by using CONSULT-II or GST.
During the (1st/2nd trip) DTC verification, be sure to connect CONSULT-II to the vehicle in “DATA MONITOR (AUTO
TRIG)” mode and check real time diagnosis results.
If the incident cannot be verified, perform EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
In case the DTC Confirmation Procedure is not available, perform the Overall Function Check instead. The (1st/2nd
trip) DTC cannot be displayed by this check, however, this simplified check is an effective alternative.
The NG result of the Overall Function Check is the same as the (1st/2nd trip) DTC detection.
STEP VTake the appropriate action based on the results of STEP I through IV.
If the malfunction code is indicated, proceed to TROUBLE DIAGNOSIS FOR DTC PXXXX.
If the normal code is indicated, proceed to the BASIC INSPECTION. (Refer to EC-1012
.)Then perform inspections
according to the Symptom Matrix Chart. (Refer to EC-1016
.)
STEP VIIdentify where to begin diagnosis based on the relationship study between symptom and possible causes. Inspect the
system for mechanical binding, loose connectors or wiring damage using (tracing) Harness Layouts.
Gently shake the related connectors, components or wiring harness with CONSULT-II set in “DATA MONITOR
(AUTO TRIG)” mode.
Check the voltage of the related ECM terminals or monitor the output data from the related sensors with CONSULT-II.
Refer to EC-1027
, EC-1042 .
The Diagnostic Procedure in EC section contains a description based on open circuit inspection. A short circuit
inspection is also required for the circuit check in the Diagnostic Procedure. For details, refer to Circuit Inspection in
GI-23, "
How to Perform Efficient Diagnosis for an Electrical Incident" .
Repair or replace the malfunction parts.
If malfunctioning part cannot be detected, perform EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCI-
DENT" .
STEP VIIOnce you have repaired the circuit or replaced a component, you need to run the engine in the same conditions and
circumstances which resulted in the customer's initial complaint.
Perform the DTC Confirmation Procedure and confirm the normal code [DTC No. P0000] is detected. If the incident is
still detected in the final check, perform STEP VI by using a method different from the previous one.
Before returning the vehicle to the customer, be sure to erase the unnecessary (already fixed) (1st/2nd trip) DTC in
ECM. (Refer to EC-999, "
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION" .)
SEF907L

EC-1034
[YD (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
*1: LHD models
*2: RHD models
CONSULT-II Function (ENGINE)EBS0117G
FUNCTION
*: The following emission-related diagnostic information is cleared when the ECM memory is erased.

Diagnostic trouble codes

1st/2nd trip diagnostic trouble codes105 G ECM relay (self-shutoff)[Ignition switch ON]
[Ignition switch OFF]

For a few seconds after turning ignition
switch OFFApproximately 1.2V
[Ignition switch OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
107
108W/R
W/RIgnition switch [Ignition switch ON]BATTERY VOLTAGE
(11 - 14V)
11 0 G / O RPark/Neutral position
switch[Ignition switch ON]

Gear position is Neutral Approximately 0V
[Ignition switch ON]

Except the above gear positionBATTERY VOLTAGE
(11 - 14V)
111 P / BPower steering pressure
switch[Engine is running]

Steering wheel is being turnedApproximately 0V
[Engine is running]

Steering wheel is not being turnedBATTERY VOLTAGE
(11 - 14V)
113 G ECM relay (self-shutoff)[Ignition switch ON]
[Ignition switch OFF]

For a few seconds after turning ignition
switch OFFApproximately 1.2V
[Ignition switch OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
114 B ECM ground[Engine is running]

Warm-up condition

Idle speedApproximately 0V
11 9
120Y
RPower supply for ECM[Ignition switch ON]BATTERY VOLTAGE
(11 - 14V)
121 W/LPower supply for ECM
(Back-up)[Ignition switch OFF]BATTERY VOLTAGE
(11 - 14V) TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
Diagnostic test mode Function
Self-diagnostic resultsSelf-diagnostic results such as 1st/2nd trip DTC, DTC and freeze frame data can be read and erased
quickly.*
Data monitor Input/Output data in the ECM can be read.
CAN diagnostic support
monitorThe results of transmit/receive diagnosis of CAN communication can be read.
Active testDiagnostic Test Mode in which CONSULT-II drives some actuators apart from the ECMs and also
shifts some parameters in a specified range.
Function test This mode is used to inform customers when their vehicle condition requires periodic maintenance.
ECM part number ECM part number can be read.
