2005 NISSAN X-TRAIL check

BL-2 PRELIMINARY CHECK ....................................... 53
SYMPTOM CHART ............................................. 54
Power Supply and Ground Circuit Check ............... 55
Door Lock/Unlock Switch Check ............................ 56
Door Key Cylinder Switch Check ............................ 58
Front Door Lock Actuator (Driver Side) Check ....... 60
Front Door Lock Actuator (Passenger Side) Check ... 61
Rear Door Lock Actuator LH Check ....................... 62
Rear Door Lock Actuator RH Check ....................... 63
Back Door Lock Actuator Check ............................. 64
Door Switch Check ................................................. 65
Door Unlock Sensor Check .................................... 66
Key Switch Check ................................................... 67
Super Lock Actuator (Driver Side) Check ............... 68
Super Lock Actuator (Passenger Side) Check ....... 69
Super Lock Actuator Check / Rear LH ................... 70
Super Lock Actuator Check / Rear RH ................... 71
NATS Release Signal Check .................................. 72
Ignition Switch “ON” Circuit Check ......................... 73
MULTI-REMOTE CONTROL SYSTEM ..................... 74
Component Parts and Harness Connector Location ... 74
System Description ................................................. 75
FUNCTION .......................................................... 75
LOCK OPERATION ............................................. 75
UNLOCK OPERATION ........................................ 75
HAZARD REMINDER .......................................... 75
MULTI-REMOTE CONTROLLER ID CODE
ENTRY ................................................................ 75
Schematic ............................................................... 76
Wiring Diagram — MULTI — .................................. 77
Terminal and Reference Value for Multi-remote
Control Unit ............................................................. 80
Terminal and Reference Value for Time Control Unit ... 80
Symptom Chart ....................................................... 81
Remote Controller Battery Check ........................... 82
Power Supply and Ground Circuit Check for Time
Control Unit ............................................................. 82
Power Supply and Ground Circuit Check for Multi-
Remote Control Unit ............................................... 83
Time Control Unit Lock Signal Circuit Check .......... 84
Time Control Unit Unlock Signal Circuit Check ...... 85
Hazard Reminder Check ........................................ 86
ID Code Entry Procedure ....................................... 89
Remote Controller Battery Replacement ................ 90
FRONT DOOR LOCK ............................................... 91
Component Parts Location ..................................... 91
Component Parts Location (Super Lock) ................ 91
Inspection and Adjustment ..................................... 91
OUT SIDE HANDLE ROD ADJUSTMENT .......... 92
Removal and Installation ........................................ 92
REMOVAL ........................................................... 92
INSTALLATION .................................................... 93
Disassembly and Assembly .................................... 93
DISASSEMBLY ................................................... 93
ASSEMBLY ......................................................... 93
Disassembly and Assembly .................................... 93
DISASSEMBLY (SUPER LOCK) ......................... 93
ASSEMBLY ......................................................... 94
REAR DOOR LOCK .................................................. 95Component Parts Location ..................................... 95
Component Parts Location (Super Lock) ................ 95
Inspection and Adjustment ...................................... 95
OUT SIDE HANDLE ROD ADJUSTMENT .......... 96
Removal and Installation ......................................... 96
REMOVAL ............................................................ 96
INSTALLATION .................................................... 97
Disassembly and Assembly .................................... 98
DISASSEMBLY .................................................... 98
ASSEMBLY .......................................................... 98
Disassembly and Assembly .................................... 98
DISASSEMBLY (SUPER LOCK) ......................... 98
ASSEMBLY .......................................................... 98
BACK DOOR ............................................................. 99
Fitting Adjustment ................................................... 99
VERTICAL/LATERAL CLEARANCE ADJUST-
MENT ................................................................... 99
Back Door Assembly .............................................100
REMOVAL AND INSTALLATION .......................100
INSPECTION .....................................................100
Removal and Installation of Back Door Handle ....100
REMOVAL ..........................................................100
INSTALLATION ..................................................101
Removal and Installation of Back Door Lock and
Actuator .................................................................101
REMOVAL ..........................................................101
INSTALLATION ..................................................101
Removal and Installation of Back Door Weatherstrip .102
REMOVAL ..........................................................102
INSTALLATION ..................................................102
FUEL FILLER LID OPENER ...................................103
Component Parts Location ...................................103
THEFT WARNING SYSTEM ...................................104
Wiring Diagram — THEFT —/PRI-WIRE ..............104
LHD MODELS ....................................................104
RHD MODELS ...................................................106
NATS (NISSAN ANTI-THEFT SYSTEM) .................108
Component Parts and Harness Connector Location .108
System Description ...............................................109
System Composition .............................................110
ECM Re-communicating Function ........................110
Wiring Diagram — NATS — .................................. 111
LHD MODELS .................................................... 111
RHD MODELS ...................................................113
CONSULT-II ..........................................................115
CONSULT-II INSPECTION PROCEDURE ........115
CONSULT-II DIAGNOSTIC TEST MODE FUNC-
TION ..................................................................116
HOW TO READ SELF-DIAGNOSTIC RESULTS .116
NATS SELF-DIAGNOSTIC RESULTS ITEM
CHART ...............................................................117
Work Flow .............................................................118
Trouble Diagnoses ................................................119
SYMPTOM MATRIX CHART 1 ..........................119
SYMPTOM MATRIX CHART 2 ..........................121
DIAGNOSTIC SYSTEM DIAGRAM ...................121
Diagnostic Procedure 1 .........................................121
Diagnostic Procedure 2 .........................................122
Diagnostic Procedure 3 .........................................125

BL-4
PRECAUTIONS

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EIS008TY
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for WorkEIS008P8

After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check
their operation.

Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.
Wiring Diagnosis and Trouble DiagnosisEIS008P9
When you read wiring diagrams, refer to the following:

GI-14, "How to Read Wiring Diagrams"

PG-2, "POWER SUPPLY ROUTING"
When you perform trouble diagnosis, refer to the following:

GI-10, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES"

GI-23, "How to Perform Efficient Diagnosis for an Electrical Incident"
Check for any Service bulletins before servicing the vehicle.

SQUEAK AND RATTLE TROUBLE DIAGNOSES
BL-7
C
D
E
F
G
H
J
K
L
MA
B
BL

DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.

Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.

If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool
(Engine Ear or mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:

removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.

tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only
temporarily.

feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.

placing a piece of paper between components that you suspect are causing the noise.

looking for loose components and contact marks.
Refer to BL-8, "
Generic Squeak and Rattle Troubleshooting" .
REPAIR THE CAUSE

If the cause is a loose component, tighten the component securely.

If the cause is insufficient clearance between components:
–separate components by repositioning or loosening and retightening the component, if possible.
–insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-
thane tape are available through your authorized Nissan Parts Department.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
Always check with the Parts Department for the latest parts information.
Each item can be ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100 × 135 mm (3.94 × 5.31 in)/76884-71L01: 60×85 mm (2.36 × 3.35 in)/76884-71L02: 15 ×
25 mm (0.59 × 0.98 in)
INSULATOR (Foam blocks)
Insulates components from contact.Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.77 in) thick, 50 × 50 mm (1.97 × 1.97 in)/73982-50Y00: 10 mm (0.39 in) think,
50 × 50 mm (1.97 × 1.97 in)
INSULATOR (Light foam block)
80845-71L00: 30 mm (1.18 in) thick, 30 × 50 mm (1.18 × 1.97 in)

BL-8
SQUEAK AND RATTLE TROUBLE DIAGNOSES

FELT CLOTHTAPE
Used to insulate where movement does not occur. Ideal for instrument panel applications.
68370-4B000: 15 × 25 mm (0.59 × 0.98 in) pad/68239-13E00: 5 mm (0.20 in) wide tape roll
The following materials, not available through NISSAN Parts Department, can also be used to repair
squeaks and rattles.
UHMW(TEFLON) TAPE
Insulates where slight movement is present. Ideal for instrument panel applications.
SILICONE GREASE
Used in of UHMW tape that will be visible or not fit.
Note: Will only last a few months.
SILICONE SPRAY
Use when grease cannot be applied.
DUCT TAPE
Use to eliminate movement.
CONFIRM THE REPAIR
Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.
Generic Squeak and Rattle TroubleshootingEIS008PS
Refer to Table of Contents for specific component removal and installation information.
INSTRUMENT PANEL
Most incidents are caused by contact and movement between:
1. Cluster lid A and instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar garnish
4. Instrument panel to windshield
5. Instrument panel mounting pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicon spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION:
Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will
not be able to recheck the repair.
CENTER CONSOLE
Components to pay attention to include:
1. Shifter assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation procedures also apply to the center console.
DOORS
Pay attention to the:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks to
repair the noise.

HOOD
BL-13
C
D
E
F
G
H
J
K
L
MA
B
BL

2. Temporarily tighten the hood lock, and position it by engaging it with the hood striker. Check the lock and
striker for looseness, and tighten the hood lock mounting bolts to the specified torque.
CAUTION:
Adjust right/left clearance between hood and each part to the following specification.
Hood and front grille (A–A) : Less than 1.0 mm (0.04 in)
Hood and fender (B–B) : Less than 1.0 mm (0.04 in)

DOOR
BL-19
C
D
E
F
G
H
J
K
L
MA
B
BL

Removal and Installation of Front DoorEIS00A68
CAUTION:

When removing and installing the front door assembly, support the door with a jack and cloth to
protect the door and body.

When removing and installing front door assembly, be sure to carry out the fitting adjustment.

Operate with two workers, because of its heavy weight.

Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.

Check front door open/close operation after installation.
REMOVAL

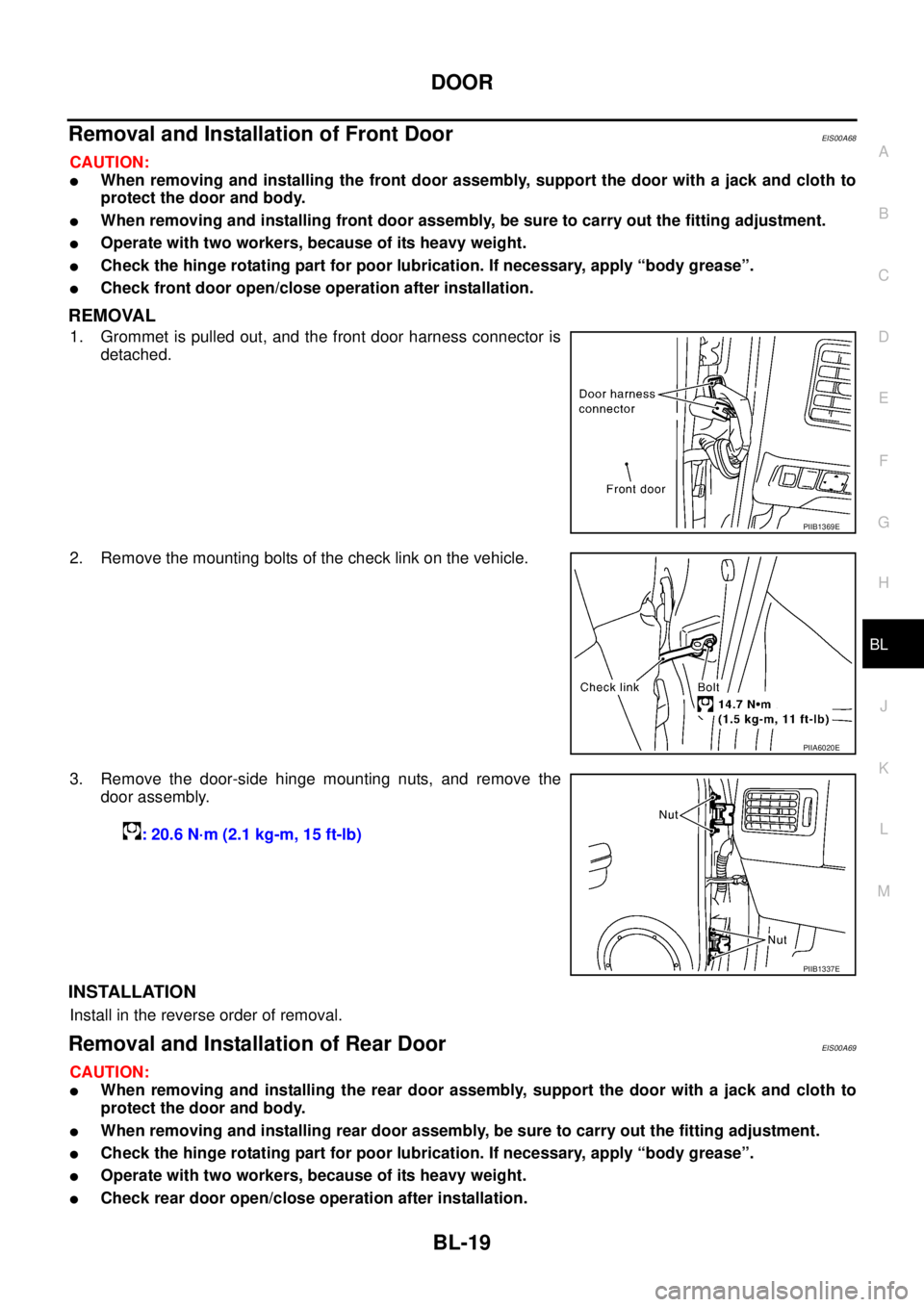

1. Grommet is pulled out, and the front door harness connector is
detached.
2. Remove the mounting bolts of the check link on the vehicle.
3. Remove the door-side hinge mounting nuts, and remove the
door assembly.
INSTALLATION
Install in the reverse order of removal.
Removal and Installation of Rear DoorEIS00A69
CAUTION:

When removing and installing the rear door assembly, support the door with a jack and cloth to
protect the door and body.

When removing and installing rear door assembly, be sure to carry out the fitting adjustment.

Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.

Operate with two workers, because of its heavy weight.

Check rear door open/close operation after installation.

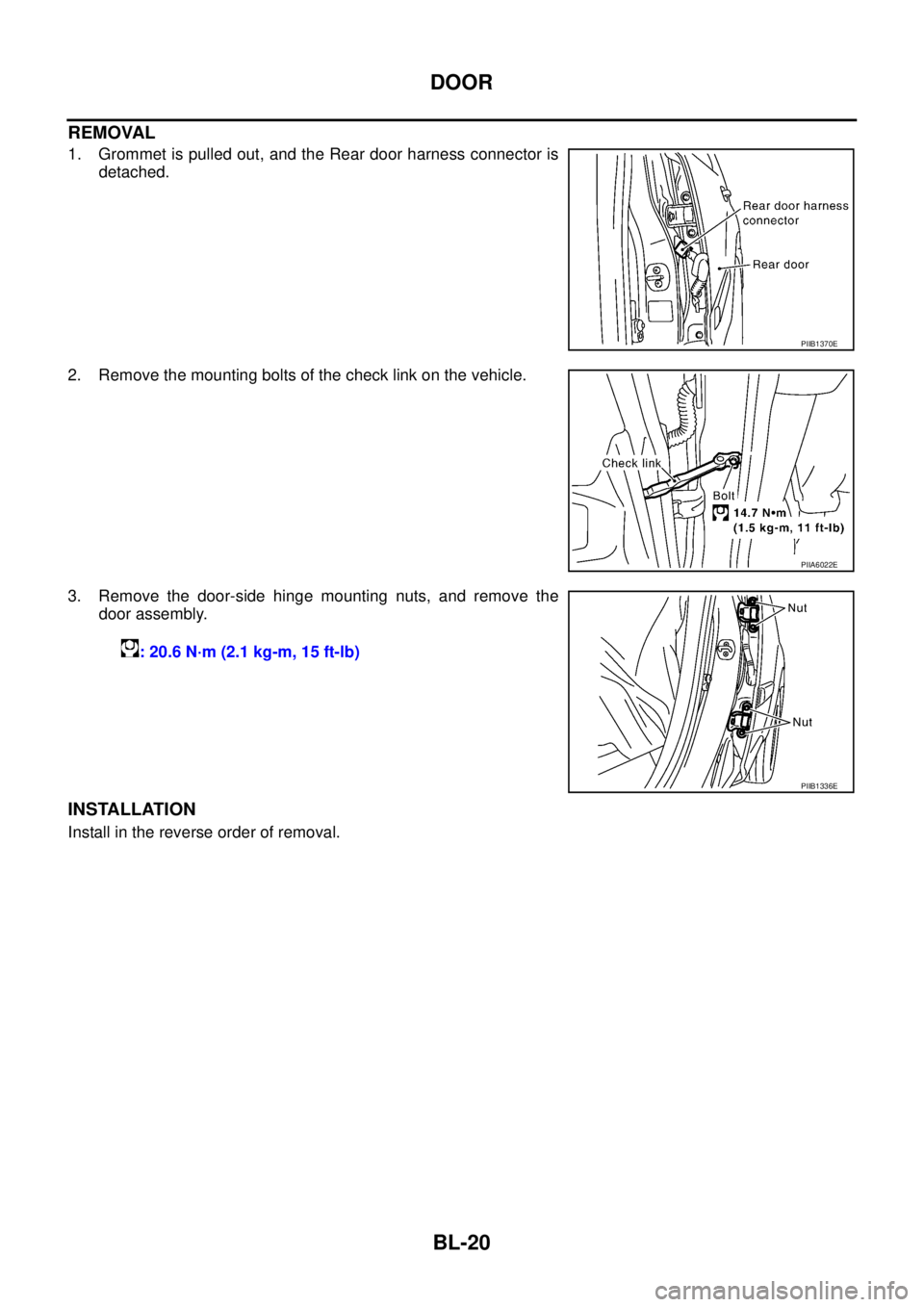

PIIB1369E
PIIA6020E
: 20.6 N·m (2.1 kg-m, 15 ft-lb)
PIIB1337E

BL-20
DOOR

REMOVAL
1. Grommet is pulled out, and the Rear door harness connector is
detached.
2. Remove the mounting bolts of the check link on the vehicle.
3. Remove the door-side hinge mounting nuts, and remove the
door assembly.
INSTALLATION
Install in the reverse order of removal.
PIIB1370E
PIIA6022E
: 20.6 N·m (2.1 kg-m, 15 ft-lb)
PIIB1336E

DOOR
BL-21
C
D
E
F
G
H
J
K
L
MA
B
BL

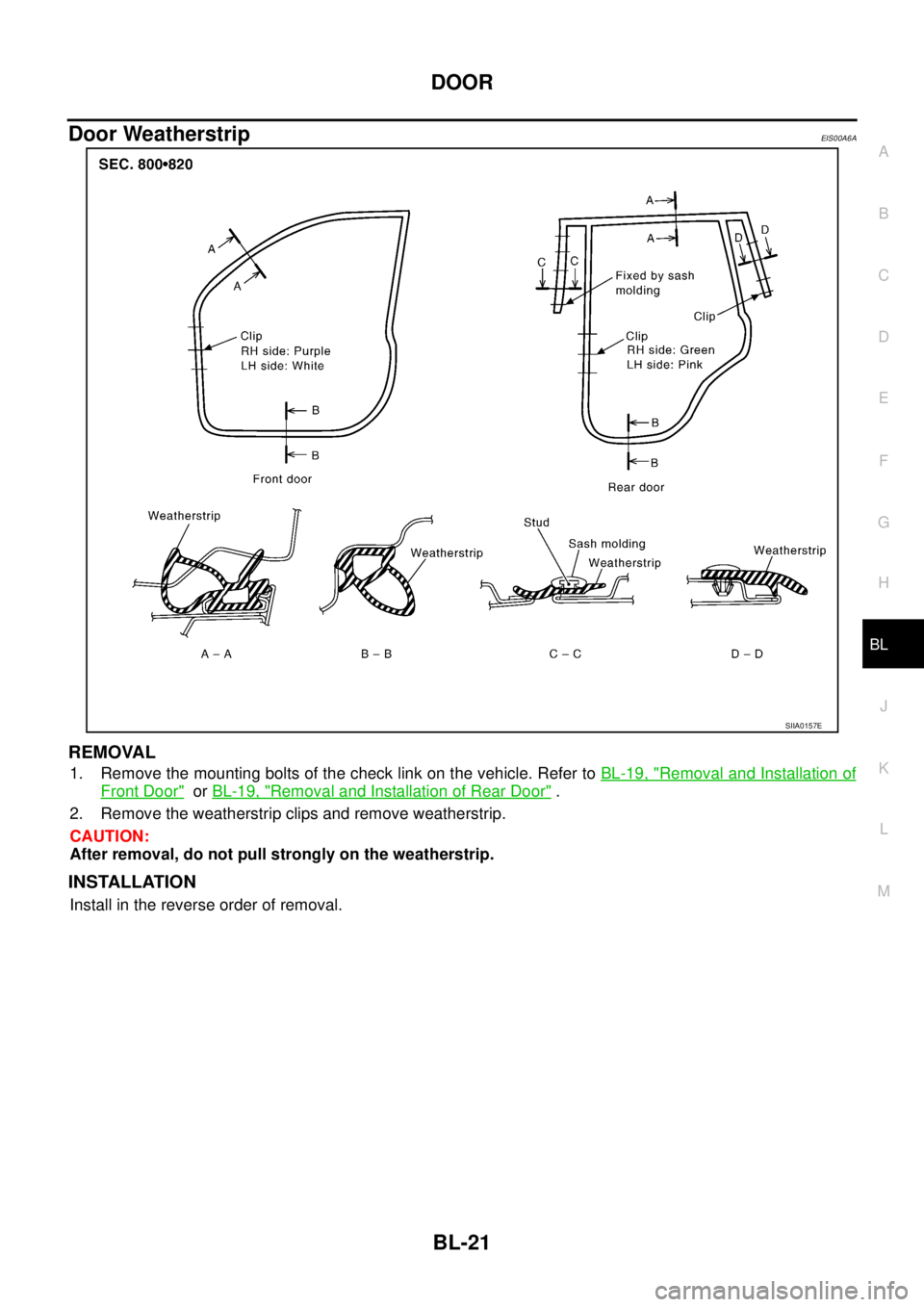

Door WeatherstripEIS00A6A
REMOVAL
1. Remove the mounting bolts of the check link on the vehicle. Refer to BL-19, "Removal and Installation of
Front Door" or BL-19, "Removal and Installation of Rear Door" .
2. Remove the weatherstrip clips and remove weatherstrip.
CAUTION:
After removal, do not pull strongly on the weatherstrip.
INSTALLATION
Install in the reverse order of removal.
SIIA0157E
