ELECTRICAL LOAD SIGNAL

6. CHECK HEATER FAN SIGNAL CIRCUIT OVERALL FUNCTION
With CONSULT-II
Check “HEATER FAN SW” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.
OK or NG
OK >>INSPECTION END.
NG >> GO TO 14.
7. CHECK HEATER FAN SIGNAL CIRCUIT OVERALL FUNCTION
Without CONSULT-II
Check voltage between ECM terminal 96 and ground under the fol-
lowing conditions.
OK or NG
OK >>INSPECTION END.
NG >> GO TO 14.
8. CHECK HEADLAMP FUNCTION
1. Start engine.
2. Turn the lighting switch ON at 2nd position and placed in LOW position.
3. Check that headlamps are illuminated.
OK or NG
OK >> GO TO 9.
NG >> Refer to LT- 5 , "
HEADLAMP - XENON TYPE -" or LT- 4 1 , "HEADLAMP (WITH DAYTIME) -
XENON TYPE -" .
9. CHECK HEADLAMP INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect daytime light relay LH or HID relay LH.
4. Check harness continuity between ECM terminal 84 and daytime light relay LH terminal 3 or HID relay LH
terminal 3.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 16.
NG >> GO TO 10.
Condition LOAD SIGNAL
Heater fan control switch: ON ON
Heater fan control switch: OFF OFF
PBIB1995E
Condition Voltage
Heater fan control switch: ON 0V
Heater fan control switch: OFF BATTERY VOLTAGE
PBIB1219E

ELECTRICAL LOAD SIGNAL
EC-499
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

10. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E106, M14

Harness for open and short between ECM and daytime light relay LH or HID relay LH
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK REAR WINDOW DEFOGGER FUNCTION
1. Start engine.
2. Turn ON the rear window defogger switch.
3. Check the rear windshield.
Is the rear windshield heated up?
Ye s o r N o
Ye s > > G O T O 1 2 .
No >> Refer to GW-17, "
REAR WINDOW DEFOGGER" .
12. CHECK REAR WINDOW DEFOGGER INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect rear window defogger relay.
4. Check harness continuity between rear window defogger relay 3 (models without door mirror defogger), 5
(models with door mirror defogger) and ECM terminal 93.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 16.
NG >> GO TO 13.
13. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors B1, M17

Harness for open and short between rear window defogger relay and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
14. CHECK HEATER FAN CONTROL FUNCTION
1. Start engine.
2. Turn ON the fan control switch.
3. Check the blower fan motor.
Does the blower fan motor activate?
Ye s o r N o
Ye s > > G O T O 1 5 .
No >> Refer to AT C - 3 4 , "
TROUBLE DIAGNOSIS" or MTC-3, "TROUBLE DIAGNOSIS" . Continuity should exist.

EC-500
[QR (WITH EURO-OBD)]
ELECTRICAL LOAD SIGNAL

15. CHECK HEATER FAN SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect A/C AUTO AMP. harness connector.
4. Check harness continuity between A/C AUTO AMP. terminal 19 and ECM terminal 96.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 16.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
16. CHECK INTERMITTENT INCIDENT
Perform EC-124, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
RHD MODELS
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Yes >> GO TO 2.
No >> GO TO 3.
2. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCITION-I
With CONSULT-II
1. Turn ignition switch ON.
2. Check “LOAD SIGNAL” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.
OK or NG
OK >> GO TO 4.
NG >> GO TO 8.Continuity should exist.
Condition LOAD SIGNAL
Lighting switch: ON at 2nd position (placed in
LOW position for models with Xenon headlamp)ON
Lighting switch: OFF OFF
PBIB0103E

ELECTRICAL LOAD SIGNAL
EC-503
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

9. CHECK HEADLAMP INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect lighting switch harness connectors.
4. Check harness continuity between lighting switch terminal 9, 10 and ECM terminal 84 under the following
conditions.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 18.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E105, M13

Diode E123

Diode E124

Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK HEADLAMP INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect HID relay LH.
4. Check harness continuity between ECM terminal 84 and HID relay LH terminal 3.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 18.
NG >> GO TO 12.
Condition Continuity
1 Should exist
2 Should not exist
PBIB1994E

EC-504
[QR (WITH EURO-OBD)]
ELECTRICAL LOAD SIGNAL

12. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E105, M13

Harness for open and short between ECM and HID relay LH
>> Repair open circuit or short to ground or short to power in harness or connectors.
13. CHECK REAR WINDOW DEFOGGER FUNCTION
1. Start engine.
2. Turn ON the rear window defogger switch.
3. Check the rear windshield.
Is the rear windshield heated up?
Ye s o r N o
Yes >> GO TO 14.
No >> Refer to GW-17, "
REAR WINDOW DEFOGGER" .
14. CHECK REAR WINDOW DEFOGGER INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect rear window defogger relay.
4. Check harness continuity between rear window defogger relay 3 (models without door mirror defogger), 5
(models with door mirror defogger) and ECM terminal 93.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 18.
NG >> GO TO 15.
15. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors B1, M17

Harness for open and short between rear window defogger relay and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
16. CHECK HEATER FAN CONTROL FUNCTION
1. Start engine.
2. Turn ON the fan control switch.
3. Check the blower fan motor.
Does the blower fan motor activate?
Ye s o r N o
Yes >> GO TO 17.
No >> Refer to AT C - 3 4 , "
TROUBLE DIAGNOSIS" or MTC-3, "TROUBLE DIAGNOSIS" . Continuity should exist.

ELECTRICAL LOAD SIGNAL
EC-505
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

17. CHECK HEATER FAN SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect A/C AUTO AMP. harness connector.
4. Check harness continuity between A/C AUTO AMP. terminal 19 and ECM terminal 96.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 18.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
18. CHECK INTERMITTENT INCIDENT
Perform EC-124, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.

ASCD BRAKE SWITCH
EC-507
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

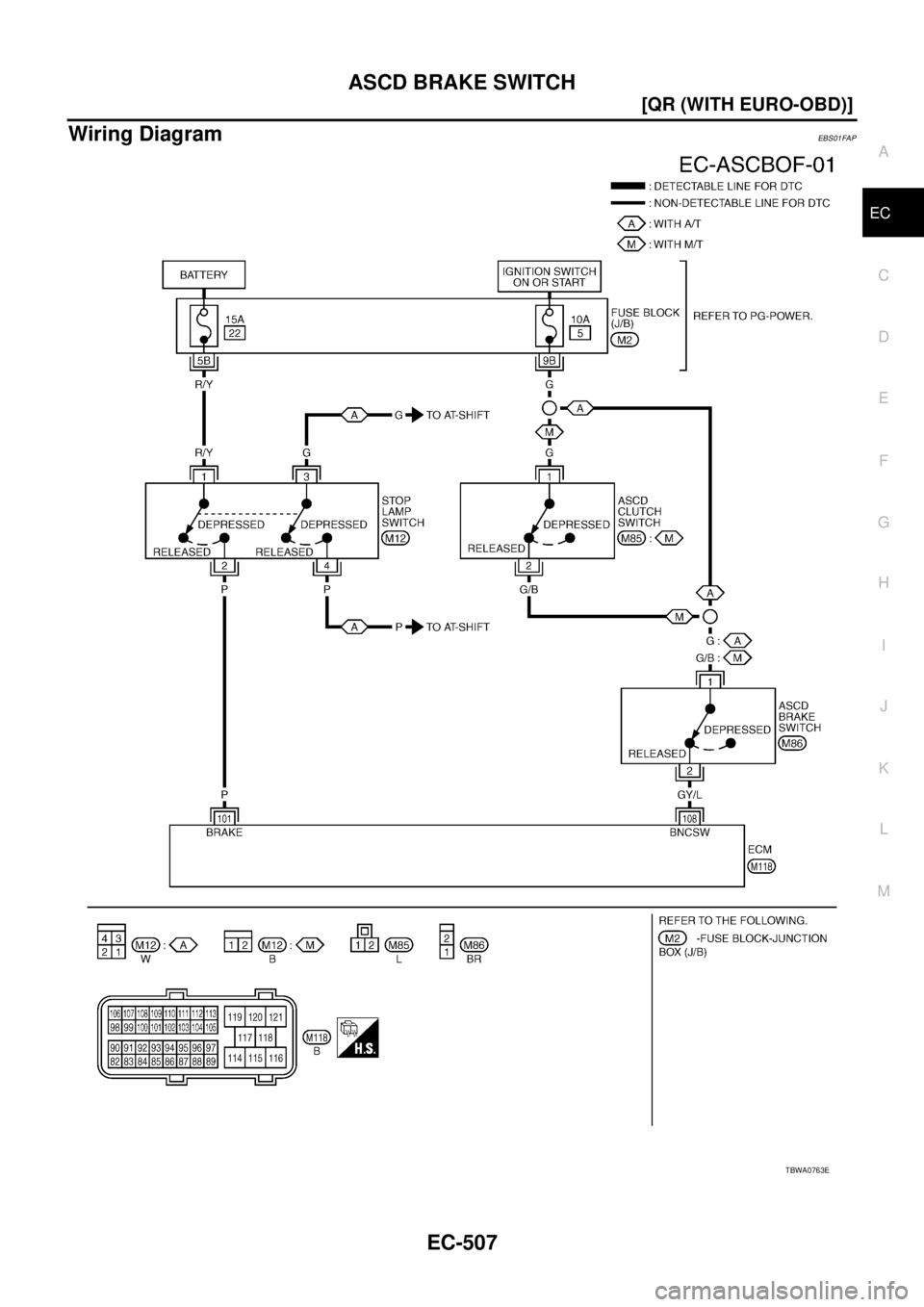

Wiring DiagramEBS01FAP
TBWA0763E

EC-510
[QR (WITH EURO-OBD)]
ASCD BRAKE SWITCH

4. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector M2

10A fuse

Harness for open or short between ASCD brake switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK ASCD CLUTCH SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ASCD clutch switch harness connector.
3. Turn ignition switch ON.
4. Check voltage between ASCD clutch switch terminal 1 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector M2

10A fuse

Harness for open or short between ASCD clutch switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ASCD clutch switch terminal 2 and ASCD brake switch terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK ASCD CLUTCH SWITCH
Refer to EC-513, "
Component Inspection"
OK or NG
OK >> GO TO 15.
NG >> Replace ASCD clutch switch.Voltage: Battery voltage
PBIB0799E
Continuity should exist.
