2005 NISSAN X-TRAIL diagram

EC-400
[QR (WITH EURO-OBD)]
DTC P1706 PNP SWITCH

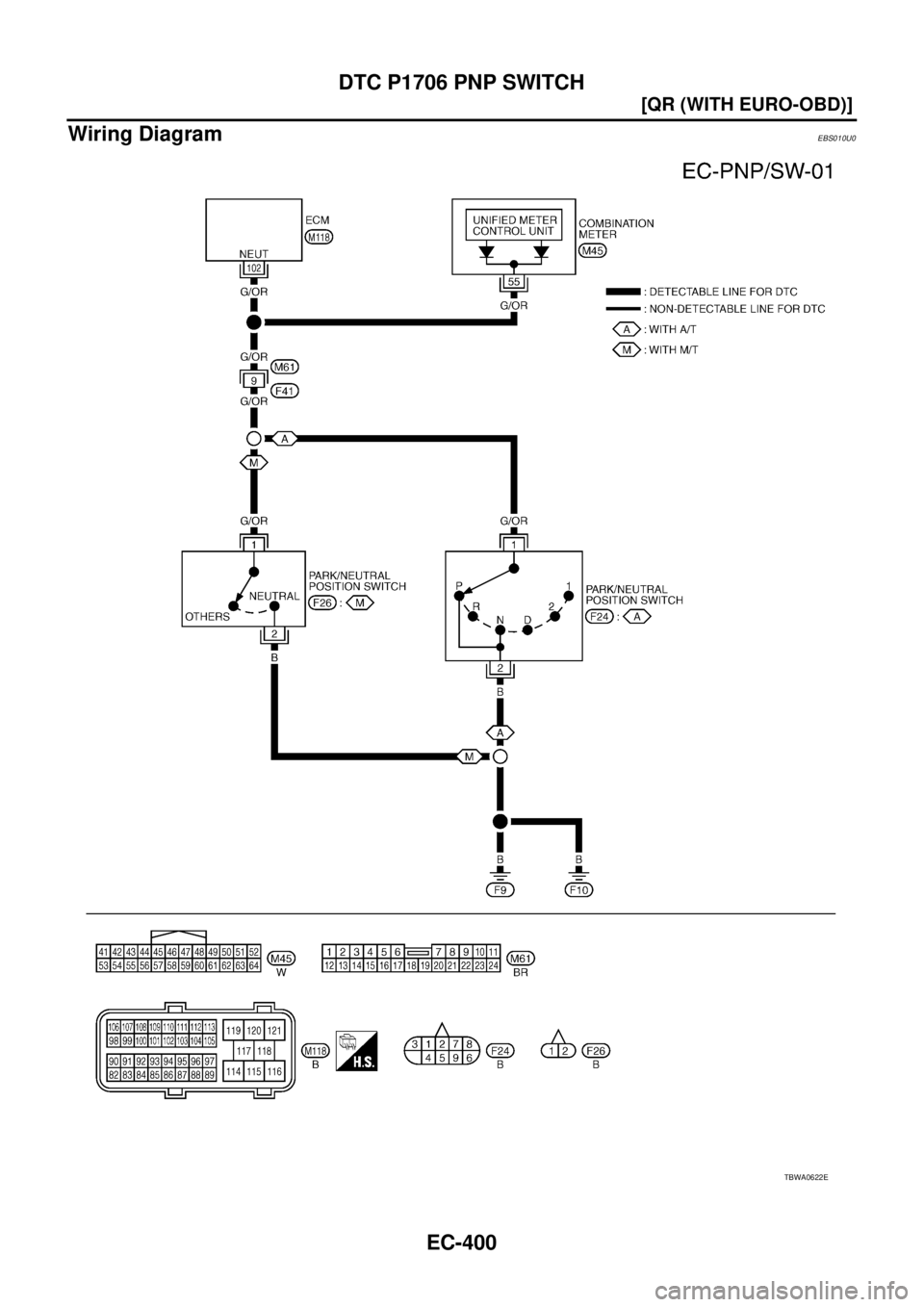

Wiring DiagramEBS010U0
TBWA0622E

DTC P1706 PNP SWITCH
EC-401
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS010U1
1. CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect PNP switch harness connector.
3. Check harness continuity between PNP switch terminal 2 and ground.
Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to power in harness or connectors.
2. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Disconnect combination meter harness connector.
3. Check harness continuity between PNP switch terminal 1 and ECM terminal 102, combination meter ter-
minal 55. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors M61, F41

Harness for open or short between PNP switch and ECM

Harness for open or short between PNP switch and combination meter
>> Repair open circuit or short to ground or short to power in harness or connectors.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
102 G/OR PNP switch[Ignition switch: ON]

Shift lever: P or N (A/T), Neutral (M/T)Approximately 0V
[Ignition switch: ON]

Except above positionA/T models
BATTERY VOLTAGE
(11 - 14V)
M/T models
Approximately 5V
Continuity should exist.
Continuity should exist.

EC-406
[QR (WITH EURO-OBD)]
DTC P1805 BRAKE SWITCH

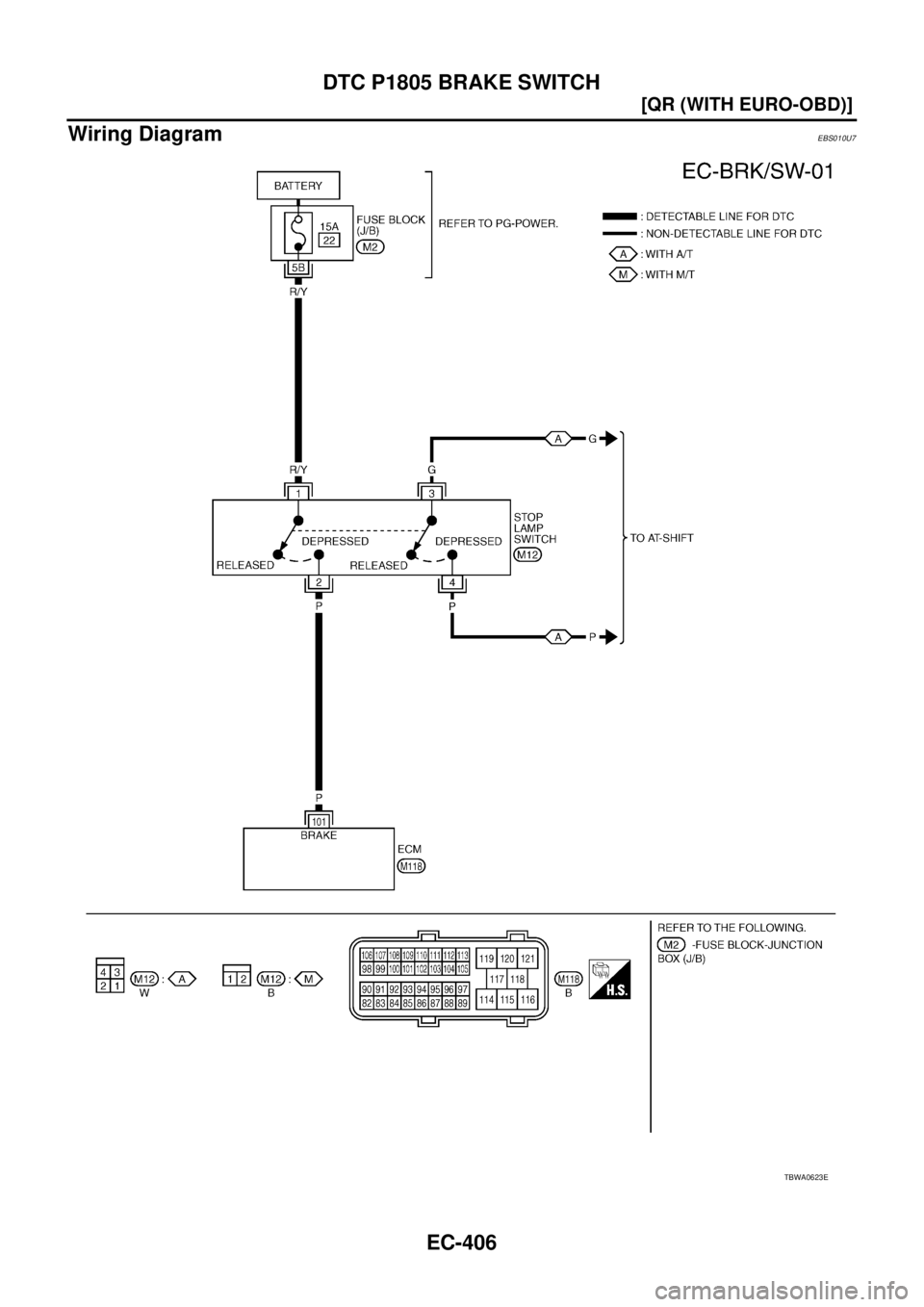

Wiring DiagramEBS010U7
TBWA0623E

EC-408
[QR (WITH EURO-OBD)]
DTC P1805 BRAKE SWITCH

3. DETECT MALFUNCTIONING PART
Check the following.

15A fuse

Fuse block (J/B) connector M2

Harness for open and short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between stop lamp switch terminal 2 and ECM terminal 101.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK STOP LAMP SWITCH
Refer to EC-408, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace stop lamp switch.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-124, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS01FF8
STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.
If NG, adjust stop lamp switch installation, refer to BR-6, "
BRAKE PEDAL" , and perform step 3 again. Continuity should exist.
Condition Continuity
Brake pedal: Fully released. Should not exist.
Brake pedal: Slightly depressed. Should exist.
PBIB2285E

DTC P2122, P2123 APP SENSOR
EC-411
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

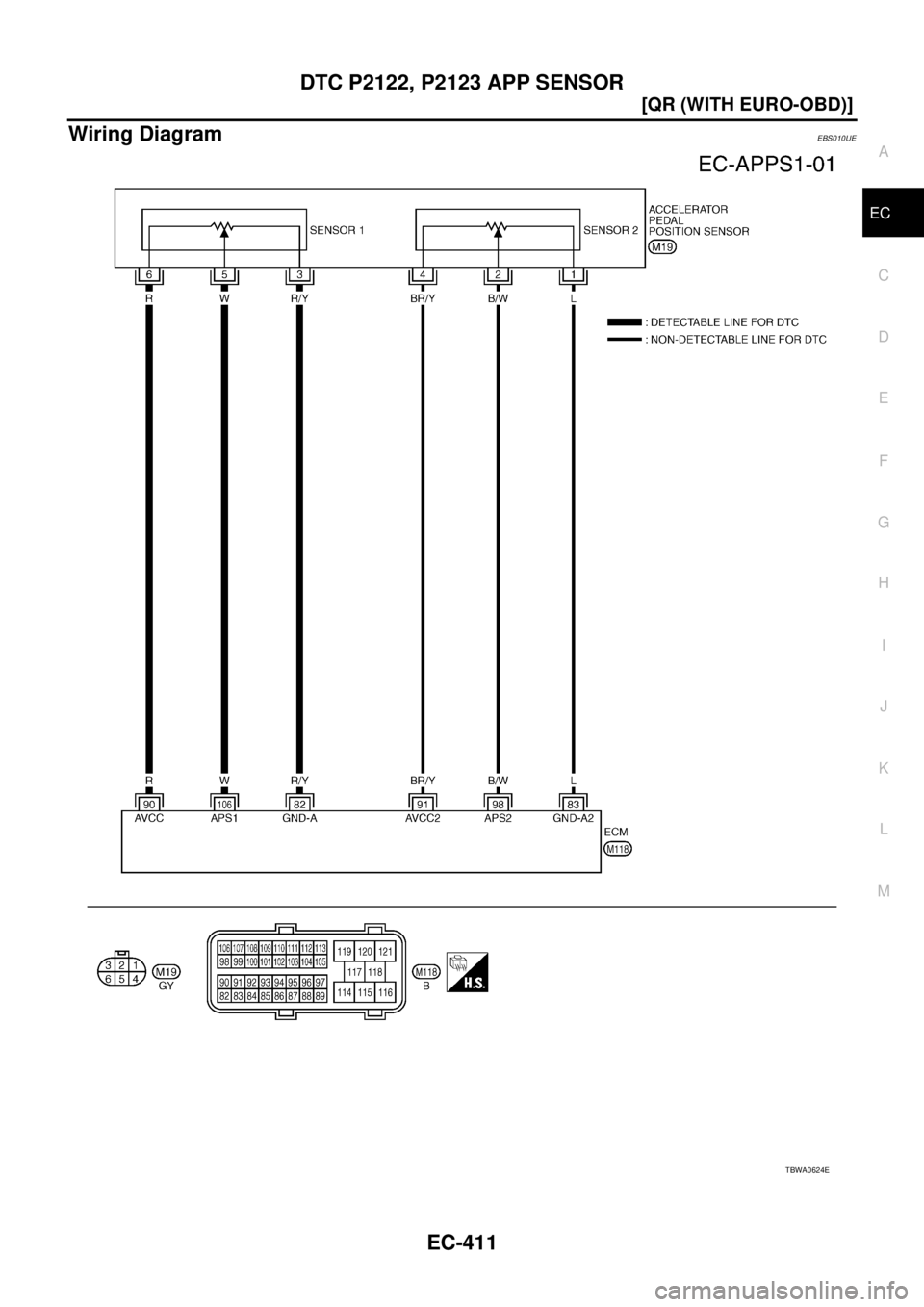

Wiring DiagramEBS010UE
TBWA0624E

EC-414
[QR (WITH EURO-OBD)]
DTC P2122, P2123 APP SENSOR

2. CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 6 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK APP SENSOR 1 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 3 and ECM terminal 82.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK APP SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between APP sensor terminal 5 and ECM terminal 106.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK APP SENSOR
Refer to EC-415, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
PBIB0498E
Voltage: Approximately 5V
PBIB0914E
Continuity should exist.
Continuity should exist.

EC-418
[QR (WITH EURO-OBD)]
DTC P2127, P2128 APP SENSOR

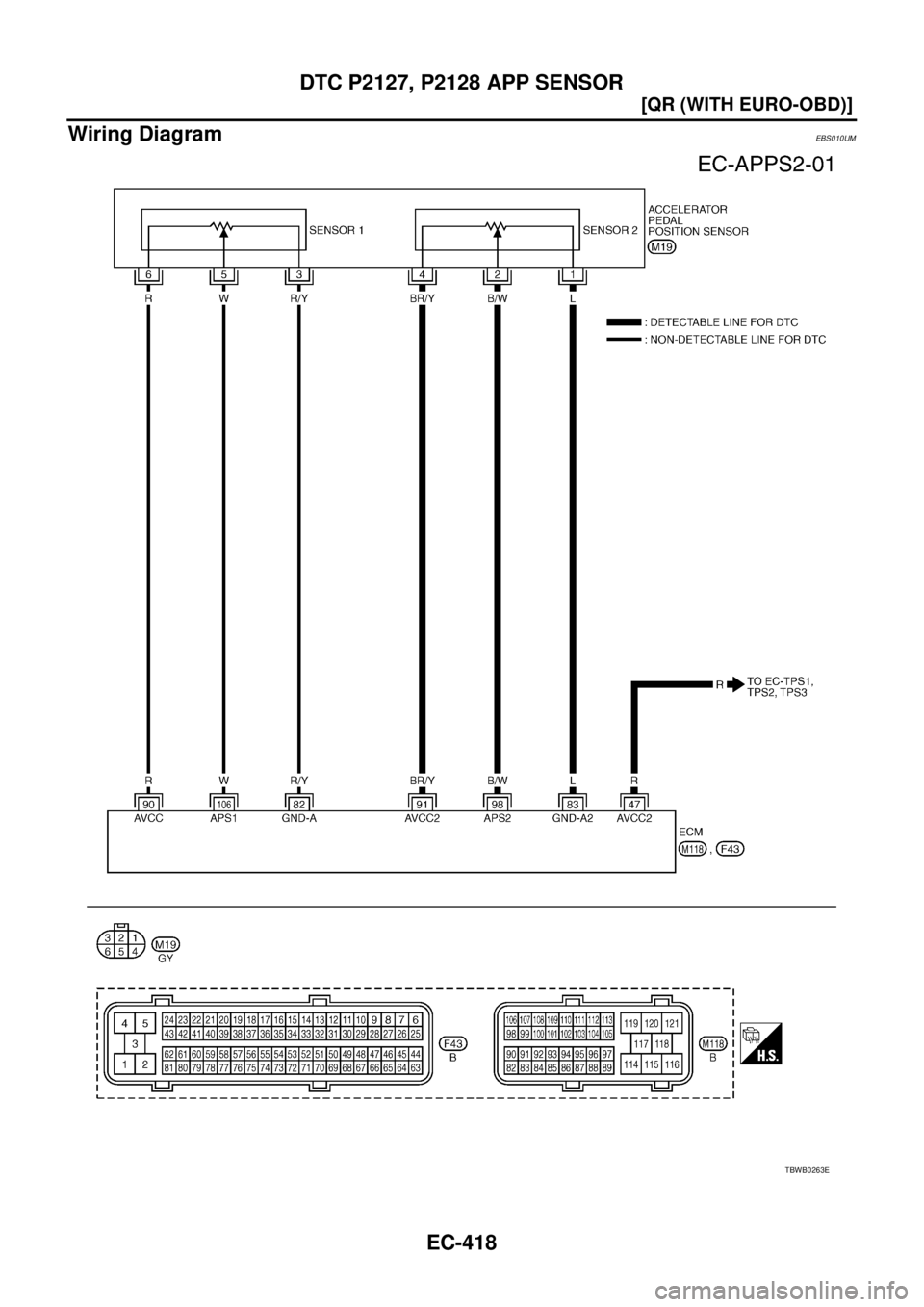

Wiring DiagramEBS010UM
TBWB0263E

DTC P2127, P2128 APP SENSOR
EC-421
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 4 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 3.
3. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 4 and ECM terminal 91.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace open circuit.
4. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 5.
NG >> Repair short to ground or short to power in harness or connectors.
5. CHECK THROTTLE POSITION SENSOR
Refer to EC-431, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> GO TO 6.
PBIB0498E
Voltage: Approximately 5V
PBIB0915E
Continuity should exist.
ECM terminal Sensor terminal Reference Wiring Diagram
91 APP sensor terminal 4EC-418
47 Electric throttle control actuator terminal 1EC-426
