2005 NISSAN X-TRAIL Fuel injector and fuel tube

FUEL INJECTOR AND FUEL TUBE
EM-37
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

2. Install fuel injector to fuel tube with the following procedure:
a. Insert clip into clip mounting groove on fuel injector.

Insert clip so that lug “A” of fuel injector matches notch “A” of
clip.
CAUTION:

Do not reuse clip. Replace it with a new one.

Be careful to keep clip from interfering with O-ring. If
interference occurs, replace O-ring.
b. Insert fuel injector into fuel tube with clip attached.

Insert it while matching it to the axial center.

Insert fuel injector so that lug “B” of fuel tube matches notch
“B” of clip.

Make sure that fuel tube flange is securely fixed in flange fix-
ing groove on clip.
c. Make sure that installation is complete by making sure that fuel
injector does not rotate or come off.
3. From the engine rear side, set fuel tube and fuel injector assembly at its position for installation on intake
manifold.
CAUTION:
For installation, be careful not to interfere with fuel injector nozzle.
4. Set fuel tube protector onto fuel tube.
5. Tighten mounting bolts with the following procedure.

Tighten bolts evenly in two steps in numerical order as shown
in the figure.
6. Connect sub-harness for fuel injector.
7. Note the following, and connect quick connectors at engine side and vehicle side to install fuel feed hose.
NOTE:
There is quick connector for the engine side and for the vehicle side, and they have different shapes. But
connection is same procedure. The following procedure shows the engine side.
a. Check the connection for foreign material and damage.
b. Align center to insert quick connector straightly into fuel tube.

Insert fuel tube into quick connector until the top spool on fuel
tube is inserted completely and the second level spool is posi-
tioned slightly below quick connector bottom end.
CAUTION:

Hold “A” position in the figure when inserting fuel tube
into quick connector.

Carefully align center to avoid inclined insertion to pre-
vent damage to O-ring inside quick connector.
SBIA0439E
1st step
: 10.1 N·m (1.0 kg-m, 7 ft-lb)
2nd step
: 23.6 N·m (2.4 kg-m, 17 ft-lb)
PBIC2180E
KBIA0272E

EM-38
[QR]
FUEL INJECTOR AND FUEL TUBE


Insert until you hear a “click” sound and actually feel the engagement.

To avoid misidentification of engagement with a similar sound, be sure to perform the next
step.
c. Before clamping fuel feed hose with hose clamps, pull quick connector hard by hand holding “A” position.
Make sure it is completely engaged (connected) so that it does not come out from fuel tube.
d. Install quick connector cap to quick connector connection. (On
both the engine side and the vehicle side)

Install so that the arrow mark on the side faces up.
CAUTION:

Make sure that quick connector and fuel tube are
securely fit into quick connector cap installation groove.

If quick connector cap cannot be installed smoothly,
quick connector may have not been installed correctly.
Check connection again.
NOTE:
There is quick connector cap for the engine side and for the
vehicle side, and they have different shapes. The figure shows engine side as an example.
8. Install fuel feed hose to hose clamp.
9. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Check on Fuel Leaks
1. Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then make sure
there are no fuel leaks at connections.
NOTE:
Use mirrors for checking on invisible points.
2. Start engine. With engine speed increased, make sure again there are no fuel leaks at connections.
CAUTION:
Do not touch engine immediately after stopped as engine becomes extremely hot.
PBIC2348E

FUEL INJECTOR AND FUEL TUBE
EM-39
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Removal and Installation (QR25DE)EBS011SY
CAUTION:
Do not remove or disassemble parts unless instructed as shown in the figure.
REMOVAL
1. Release fuel pressure. Refer to EC-49, "FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-562,
"FUEL PRESSURE CHECK" (WITHOUT EURO-OBD).
2. Remove air cleaner case upper, mass air flow sensor and air duct assembly. Refer to EM-16, "
AIR
CLEANER AND AIR DUCT" .
3. Disconnect quick connectors at engine side and vehicle side as
follows, and remove fuel feed hose.
CAUTION:
Disconnect quick connector by using quick connector
release (special service tool), not by picking out retainer
tabs.
NOTE:
There is quick connector for the engine side and for the vehicle
side, and they have different shapes. But disconnection is same
procedure. The following procedure shows the engine side.
a. Remove quick connector cap (engine side).
1. Fuel feed hose 2. Quick connector cap (engine side) 3. Quick connector cap (vehicle side)
4. Centralized under-floor piping 5. Sub-harness 6. Fuel tube
7. O-ring (black) 8. Clip 9. Fuel injector
10. O-ring (green) 11. Insulator
PBIC2179E
PBIC2175E
KBIA0701E

EM-40
[QR]
FUEL INJECTOR AND FUEL TUBE

b. With the sleeve side of quick connector release facing quick connector, install quick connector release
onto fuel tube.
c. Insert quick connector release into quick connector until sleeve
contacts and goes no further. Hold quick connector release on
that position.
CAUTION:
Inserting quick connector release hard will not disconnect
quick connector. Hold quick connector release where it
contacts and goes no further.
d. Draw and pull out quick connector straight from fuel tube.
CAUTION:

Pull quick connector holding “A” position in the figure.

Do not pull with lateral force applied. O-ring inside quick
connector may be damaged.

Prepare container and cloth beforehand as fuel will leak out.

Avoid fire and sparks.

Keep parts away from heat source. Especially, be careful when welding is performed around
them.

Do not expose parts to battery electrolyte or other acids.

Do not bend or twist connection between quick connector and fuel feed hose during installa-
tion/removal.

To keep clean the connecting portion and to avoid dam-
age and foreign materials, cover them completely with
plastic bags or something similar.
4. Remove intake manifold collector. Refer to EM-21, "
Removal and Installation (QR25DE)" .
5. Disconnect sub-harness for fuel injector.
6. Loosen mounting bolts in reverse order as shown in the figure.
7. Remove fuel tube and fuel injector assembly and insulators.
CAUTION:

When removing, be careful to avoid any interference with
fuel injector.

Use a shop cloth to absorb any fuel leaks from fuel tube.
KBIA0702E
PBIC2205E
KBIA0239E

FUEL INJECTOR AND FUEL TUBE
EM-41
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

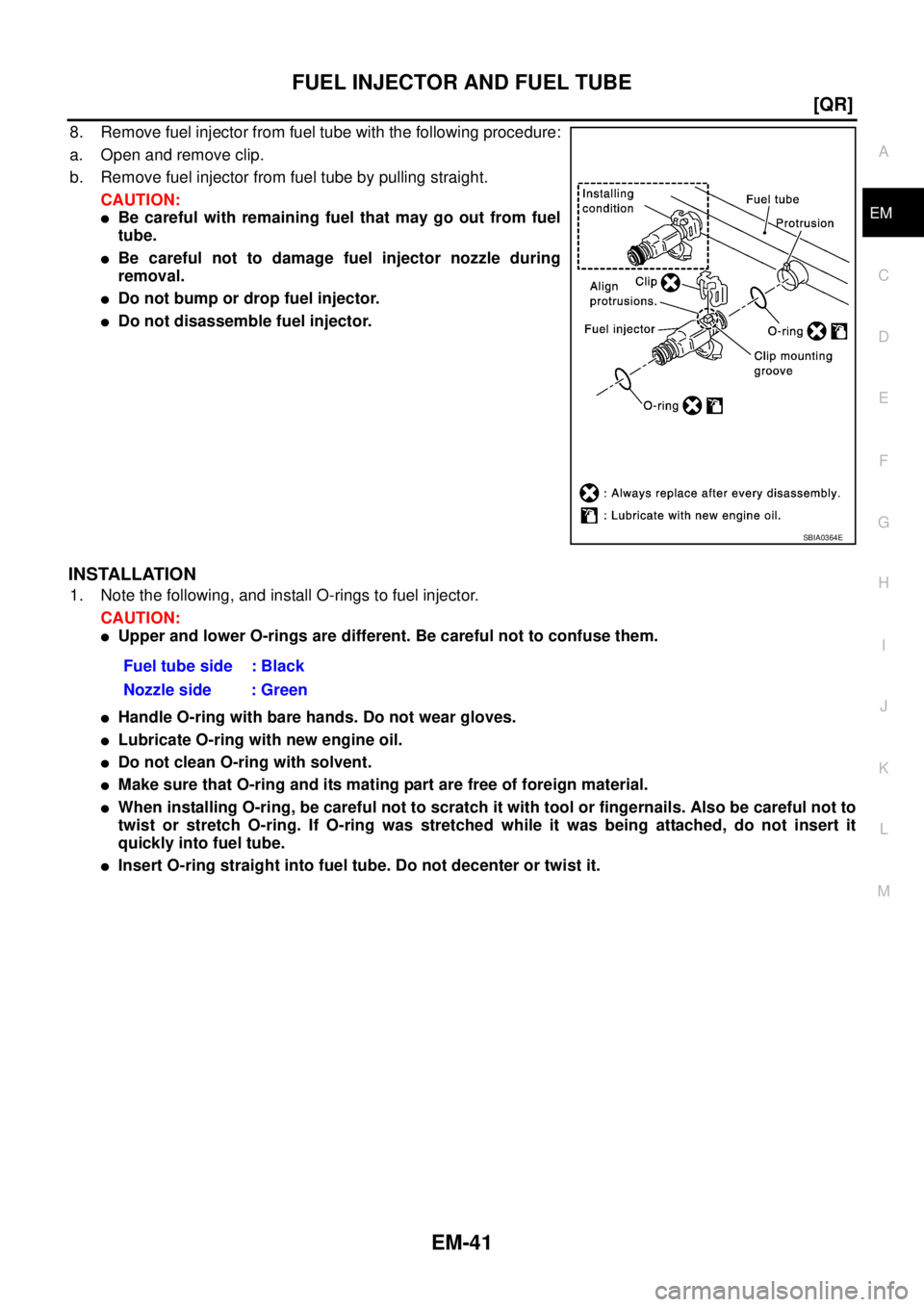

8. Remove fuel injector from fuel tube with the following procedure:
a. Open and remove clip.
b. Remove fuel injector from fuel tube by pulling straight.
CAUTION:

Be careful with remaining fuel that may go out from fuel
tube.

Be careful not to damage fuel injector nozzle during
removal.

Do not bump or drop fuel injector.

Do not disassemble fuel injector.
INSTALLATION
1. Note the following, and install O-rings to fuel injector.
CAUTION:

Upper and lower O-rings are different. Be careful not to confuse them.

Handle O-ring with bare hands. Do not wear gloves.

Lubricate O-ring with new engine oil.

Do not clean O-ring with solvent.

Make sure that O-ring and its mating part are free of foreign material.

When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not to
twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.

Insert O-ring straight into fuel tube. Do not decenter or twist it.
SBIA0364E
Fuel tube side : Black
Nozzle side : Green

EM-42
[QR]
FUEL INJECTOR AND FUEL TUBE

2. Install fuel injector to fuel tube with the following procedure:
a. Insert clip into clip mounting groove on fuel injector.

Insert clip so that lug “A” of fuel injector matches notch “A” of
clip.
CAUTION:

Do not reuse clip. Replace it with a new one.

Be careful to keep clip from interfering with O-ring. If
interference occurs, replace O-ring.
b. Insert fuel injector into fuel tube with clip attached.

Insert it while matching it to the axial center.

Insert fuel injector so that lug “B” of fuel tube matches notch
“B” of clip.

Make sure that fuel tube flange is securely fixed in flange fix-
ing groove on clip.
c. Make sure that installation is complete by making sure that fuel
injector does not rotate or come off.
3. Install fuel tube and fuel injector assembly with the following procedure:
a. Insert the tip of each fuel injector into intake manifold.
b. Tighten mounting bolts evenly in two steps in numerical order as
shown in the figure.
4. Connect sub-harness for fuel injector.
5. Install intake manifold collector. Refer to EM-21, "
Removal and Installation (QR25DE)" .
6. Note the following, and connect quick connectors at engine side and vehicle side to install fuel feed hose.
NOTE:
There is quick connector for the engine side and for the vehicle side, and they have different shapes. But
connection is same procedure. The following procedure shows the engine side.
a. Check the connection for foreign material and damage.
b. Align center to insert quick connector straightly into fuel tube.
NOTE:
The figure shows engine side as an example.

Insert fuel tube into quick connector until the top spool on fuel
tube is inserted completely and the second level spool is posi-
tioned slightly below quick connector bottom end.
CAUTION:

Hold “A” position in the figure when inserting fuel tube
into quick connector.

Carefully align center to avoid inclined insertion to pre-
vent damage to O-ring inside quick connector.

Insert until you hear a “click” sound and actually feel the engagement.
SBIA0439E
1st step
: 10.1 N·m (1.0 kg-m, 7 ft-lb)
2nd step
: 23.6 N·m (2.4 kg-m, 17 ft-lb)
KBIA0239E
KBIA0272E

FUEL INJECTOR AND FUEL TUBE
EM-43
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM


To avoid misidentification of engagement with a similar sound, be sure to perform the next
step.
c. Before clamping fuel feed hose with hose clamps, pull quick connector hard by hand holding “A” position.
Make sure it is completely engaged (connected) so that it does not come out from fuel feed tube.
d. Install quick connector cap to quick connector connection. (On
both the engine side and the vehicle side)

Install so that the arrow mark on the side faces up.
CAUTION:

Make sure that quick connector and fuel tube are
securely fit into quick connector cap installation groove.

If quick connector cap cannot be installed smoothly,
quick connector may have not been installed correctly.
Check connection again.
NOTE:
There is quick connector cap for the engine side and for the
vehicle side, and they have different shapes. The figure shows engine side as an example.
7. Install fuel feed hose to hose clamp.
8. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Check on Fuel Leaks
1. Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then make sure
there are no fuel leaks at connections.
NOTE:
Use mirrors for checking on invisible points.
2. Start engine. With engine speed increased, make sure again there are no fuel leaks at connections.
CAUTION:
Do not touch engine immediately after stopped as engine becomes extremely hot.
PBIC2348E

EM-86
[QR]
ENGINE ASSEMBLY

2. Release fuel pressure. Refer to EC-49, "FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-562,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
3. Drain engine coolant from radiator. Refer to CO-9, "
DRAINING ENGINE COOLANT" .
4. Remove the following parts.

LH and RH undercovers

Front road wheels and tyres

Battery; Refer to SC-4, "BATTERY" .

Drive belt; Refer to EM-13, "DRIVE BELTS" .

Air duct and air cleaner case assembly; Refer to EM-16, "AIR CLEANER AND AIR DUCT" .

Alternator; Refer to SC-13, "CHARGING SYSTEM" .

Radiator and radiator cooling fan assembly; Refer to CO-12, "RADIATOR" .
5. Disconnect engine room harness from the engine side and set it aside for easier work.
6. Disconnect all vacuum hoses and air hoses connected to vehicle side at engine side.
Engine Room LH
1. Disconnect fuel feed hose, and plug it to prevent fuel from draining. Refer to EM-34, "FUEL INJECTOR
AND FUEL TUBE"
2. Disconnect heater hose, and install plug it to prevent engine coolant from draining.
3. Disconnect control cable from transaxle (A/T models). Refer to AT- 4 0 4 , "
ON-VEHICLE SERVICE" .
4. Disconnect clutch operating cylinder from transaxle, and move it aside (M/T models). Refer to CL-12,
"OPERATING CYLINDER" .
5. Disconnect shift and select cable from transaxle (M/T models). Refer to MT-16, "
CONTROL LINKAGE" .
Engine Room RH
1. Remove engine coolant reservoir tank. Refer to CO-12, "RADIATOR" .
2. Remove A/C compressor with piping connected from engine. Temporarily secure it on vehicle side with a
rope to avoid putting load on it. Refer to ATC-144, "
Removal and Installation of Compressor" .
Vehicle Underbody
1. Remove exhaust front tube. Refer to EX-2, "EXHAUST SYSTEM" .
2. Remove propeller shaft. Refer to PR-3, "
REAR PROPELLER SHAFT" .
3. Remove steering lower joint from steering gear. Refer to PS-11, "
STEERING COLUMN" .
4. Disconnect power steering fluid piping at a point between vehicle and engine. Refer to PS-37, "
HYDRAU-
LIC LINE" .
5. Remove rear plate cover from oil pan (upper). Then remove bolts fixing drive plate to torque converter
(A/T models). Refer to EM-27, "
OIL PAN AND OIL STRAINER" and AT- 4 1 3 , "REMOVAL AND INSTALLA-
TION" .
6. Remove transaxle joint bolts which pierce at oil pan (upper) lower rear side. Refer to MT-19, "
TRAN-
SAXLE ASSEMBLY" (M/T models) or AT- 4 1 3 , "REMOVAL AND INSTALLATION" (A/T models).
7. Remove front wheel sensor (LH and RH) for ABS from steering knuckle. Refer to BRC-46, "
WHEEL SEN-
SORS" (ABS) or BRC-116, "WHEEL SENSORS" (ESP/TCS/ABS).
8. Remove brake caliper assembly with piping connected from steering knuckle. Temporarily secure it on
vehicle side with a rope to avoid load on it. Refer to BR-27, "
FRONT DISC BRAKE" .
9. Remove lower ends of left and right strut from steering knuckle. Refer to FSU-5, "
FRONT SUSPENSION
ASSEMBLY" .
Removal
1. Install engine slingers into front left of cylinder head and rear right of cylinder head.
