2005 NISSAN X-TRAIL Fuel injector and fuel tube

DTC P1272 FUEL PUMP
EC-1269
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Removal and InstallationEBS011DT
FUEL RAIL
Refer to EM-167, "INJECTION TUBE AND FUEL INJECTOR" .
FUEL PUMP
Refer to EM-171, "FUEL PUMP" .

EC-1302
[YD (WITH EURO-OBD)]
DTC P2147, P2148 FUEL INJECTOR CIRCUIT

2. Check continuity between terminals as shown in the figure.
3. If NG, replace fuel injector.
Removal and InstallationEBS011FB
FUEL INJECTOR
Refer to EM-167, "INJECTION TUBE AND FUEL INJECTOR" . Continuity should exist.
PBIB0406E

EC-1326
[YD (WITH EURO-OBD)]
PSP SWITCH

PSP SWITCHPFP:49761
Component DescriptionEBS011G9
The power steering pressure switch is attached to the power steer-
ing high-pressure tube and detects a power steering load.
When a power steering load is detected, it signals the ECM. The
ECM adjusts the fuel injector pulse width to increase the idle speed
and adjust for the increased load.
CONSULT-II Reference Value in Data Monitor ModeEBS011GA
Specification data are reference values.
PBIB1904E
MONITOR ITEM CONDITION SPECIFICATION
PW/ST SIGNAL

Engine: After warming up, idle the
engineSteering wheel is not being turned.
(Forward direction)OFF
Steering wheel is being turned. ON

DTC P0088 FUEL SYSTEM
EC-1431
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

3. CHECK FUEL PUMP
Refer to EC-1574, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. REPLACE FUEL PUMP
1. Replace fuel pump.
2. Perform Fuel Pump Learning Value Clearing. Refer to EC-1370, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END
5. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Removal and InstallationEBS011Y7
FUEL INJECTOR
Refer to EM-167, "INJECTION TUBE AND FUEL INJECTOR" .
FUEL PUMP
Refer to EM-171, "FUEL PUMP" .

DTC P0093 FUEL SYSTEM
EC-1435
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. PERFORM FUEL PUMP LEARNING VALUE CLEARING
NOTE:
If the DTC is detected because of air mixed with fuel (i.e.: caused by lack of fuel), it may become normal by
performing following procedure.
With CONSULT-II
1. Turn ignition switch ON.
2. Perform Fuel Pump Learning value clearing. Refer to EC-1370, "
Fuel Pump Learning Value Clearing" .
3. Start engine and let it idle for at least 60 seconds.
4. Select “SELF-DIAG RESULT” mode with CONSULT-II.
5. Touch “ERASE”.
6. Perform EC-1434, "
DTC Confirmation Procedure" , again.
7. Is DTC detected again?
Without CONSULT-II
1. Turn ignition switch ON.
2. Perform Fuel Pump Learning Value Clearing. Refer to EC-1370, "
Fuel Pump Learning Value Clearing" .
3. Start engine and let it idle for at least 60 seconds.
4. Erase the Diagnostic Test Mode II (Self-diagnostic results) memory. Refer to EC-1375
.
5. Perform EC-1434, "
DTC Confirmation Procedure" , again.
6. Is DTC detected again?
Ye s o r N o
Ye s > > G O T O 3 .
No >>INSPECTION END
3. CHECK FUEL LINE FOR LEAK
1. Start engine.
2. Visually check the following for fuel leak.
–Fuel tube from fuel pump to fuel rail
–Fuel rail
–Fuel tube from fuel rail to fuel injector
3. Also check for improper connection or pinches.
OK or NG
OK >> GO TO 4.
NG >> Repair malfunctioning part.
4. CHECK FUEL RAIL PRESSURE RELIEF VALVE
Refer to EC-1436, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace fuel rail.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 6.
NG >> Repair or replace.

DTC P0093 FUEL SYSTEM
EC-1437
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Removal and InstallationEBS011YF
FUEL RAIL
Refer to EM-167, "INJECTION TUBE AND FUEL INJECTOR" .
FUEL PUMP
Refer to EM-171, "FUEL PUMP" .

DTC P0192, P0193 FRP SENSOR
EC-1471
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

6. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END

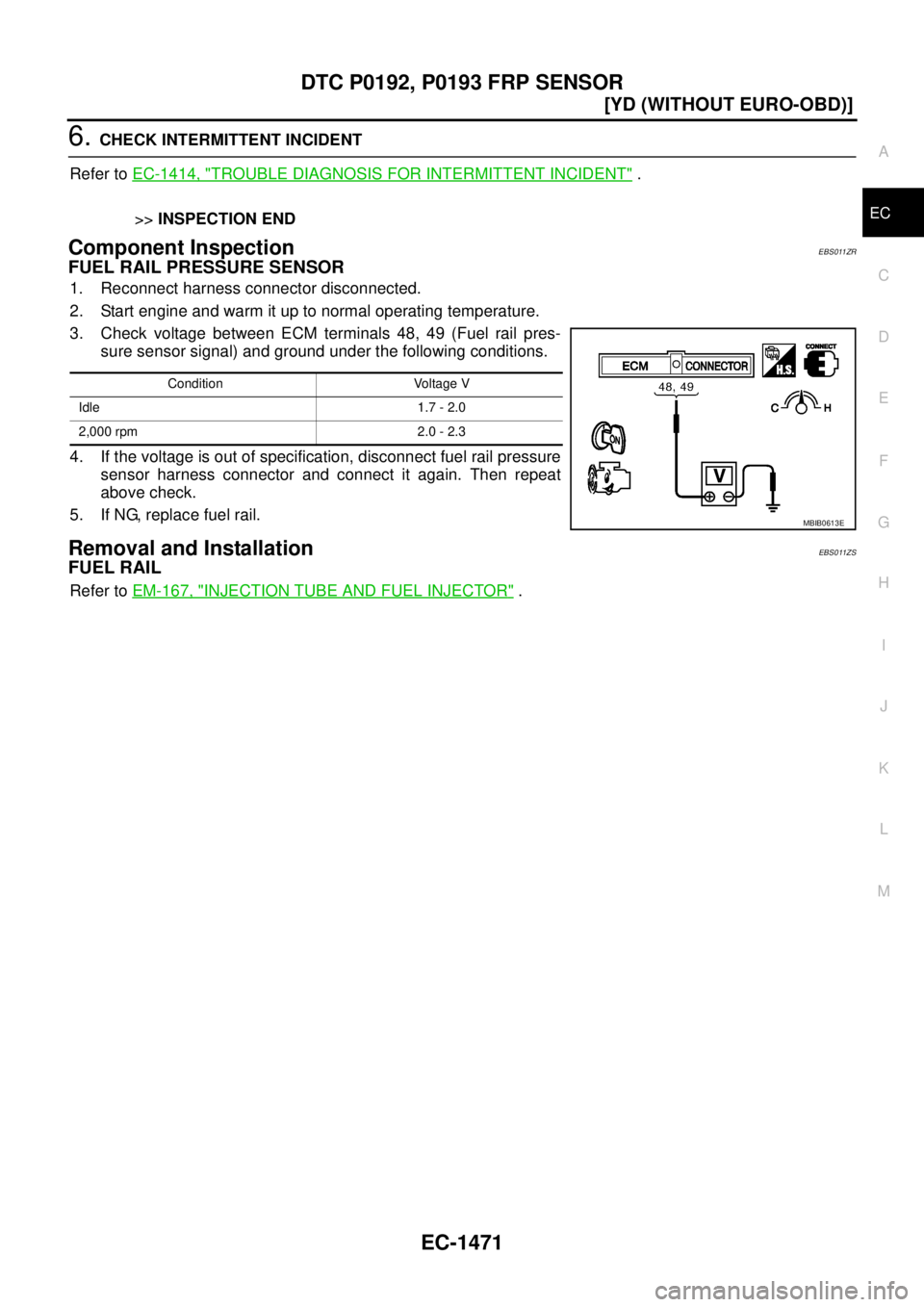

Component InspectionEBS011ZR
FUEL RAIL PRESSURE SENSOR
1. Reconnect harness connector disconnected.
2. Start engine and warm it up to normal operating temperature.
3. Check voltage between ECM terminals 48, 49 (Fuel rail pres-
sure sensor signal) and ground under the following conditions.
4. If the voltage is out of specification, disconnect fuel rail pressure
sensor harness connector and connect it again. Then repeat
above check.
5. If NG, replace fuel rail.
Removal and InstallationEBS011ZS
FUEL RAIL
Refer to EM-167, "INJECTION TUBE AND FUEL INJECTOR" .
Condition Voltage V
Idle 1.7 - 2.0
2,000 rpm 2.0 - 2.3
MBIB0613E

DTC P0201 - P0204 FUEL INJECTOR
EC-1479
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

4. CHECK FUEL INJECTOR-II
With CONSULT-II
1. Remove two fuel injectors of malfunctioning cylinder and another cylinder.
2. Install fuel injectors to different cylinder.
3. Reconnect ECM harness connector and fuel injector harness connector.
4. Turn ignition switch ON.
5. Select “SELF DIAG RESULTS” mode with CONSULT-II.
6. Touch “ERASE”.
7. Perform DTC Confirmation Procedure, EC-1475, "
DTC Confirmation Procedure" .
8. Is another DTC displayed?
Without CONSULT-II
1. Remove two fuel injectors of malfunctioning cylinder and another cylinder.
2. Install fuel injectors to different cylinder.
3. Reconnect ECM harness connector and fuel injector harness connector.
4. Turn ignition switch ON.
5. Erase the Diagnostic Test Mode II (Self-diagnostic results) memory. Refer to EC-1375
.
6. Perform DTC Confirmation Procedure, EC-1475, "
DTC Confirmation Procedure" .
7. Is another DTC displayed?
Ye s o r N o
OK >> Replace fuel injector or malfunctioning cylinder.
NG >> GO TO 5.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS01203
FUEL INJECTOR
1. Disconnect fuel injector.
2. Check continuity between terminals as shown in the figure.
3. If NG, replace fuel injector.
Removal and InstallationEBS01204
FUEL INJECTOR
Refer to EM-167, "INJECTION TUBE AND FUEL INJECTOR" .
Continuity should exist.
PBIB0406E
