2005 MITSUBISHI LANCER EVOLUTION IX sensor

LAYOUT DIAGRAMS - ENGINE / TRANSMISSION1-8
B-106 (2-grey) Knock sensor
B-108 (2-black) Coolant temperature sensor
B-109 (34-black) ABS-ECU
B-114 (1-black) Water temperature gauge unit
B-115 (3-black) Exhaust cam position sensorB-119 (3-grey) Ignition coil 2
B-122 (3-black) Crank angle sensor
B-123 (3-grey) Ignition coil 1
B-124 (2-black) Fuel pressure solenoid valve
Engine / Transmission (continued)
Connector Symbol
Control harness
Battery harness

LAYOUT DIAGRAMS - ENGINE / TRANSMISSION1-9
B-126 (6-black) Idle speed control servo
B-127 (4) Electric pump relay
B-128 (4) Fuel pump relay 3
B-129 (6-black) Register (for injector)
B-130 (2-black) Fuel pump register
B-131 (3-black) Vehicle speed sensorB-132 (2-black) Back-up lamp switch
B-133 (2-black) Secondary air control solenoid valve
B-134 (2-black) Oil feeder control valve
B-135 (3-black) Manifold absolute pressure sensor
Ground cable
Transmission harness

LAYOUT DIAGRAMS - INSTRUMENT PANEL1-10
C-01 (4) Register (vehicle with heater, manual
A/C)
C-02 (2-black) Front passenger airbag module (squib)
C-03 (7) Internal / External air switching damper
motor
C-04 (7) Instrument panel harness / A/C harness
junction (vehicle with heater, manual A/C)
(13) Instrument panel harness / A/C harness
junction (vehicle with fully automatic A/C)
C-05 (2) Air thermo sensor (vehicle with fully
automatic A/C)
C-06 (13) J/C (5)
C-07 (22-grey) J/C (5)
C-08 (6) Motor & potentiometer for air mix door
(vehicle with fully automatic A/C)
C-09 (2) Heater water temperature sensor (vehicle
with fully automatic A/C)C-10 (6) Motor and potentiometer for blower
switching damper (vehicle with fully
automatic A/C)
C-13 (4) Clock
C-14 (4) Hazard switch
C-15 (6) Blower switch (vehicle with heater ,
manual A/C)
C-16 (12-black) Heater control unit (vehicle with heater) or
A/C ECU (vehicle with manual A/C)
C-17 (20-black) A/C ECU (vehicle with fully automatic
A/C)
C-18 (16-black) A/C ECU (vehicle with fully automatic
A/C)
C-20 (22-blue) Instrument panel harness / Control
harness junction
C-21 (10-grey) Instruction panel harness / Control
harness junction
INSTRUMENT PANEL
Connector Symbol
A/C harness
Control harness
Floor harness (LH) Front door harness (LH)Front harness (LH)Tweeter sub-harnessInstrument panel harness Front passenger side

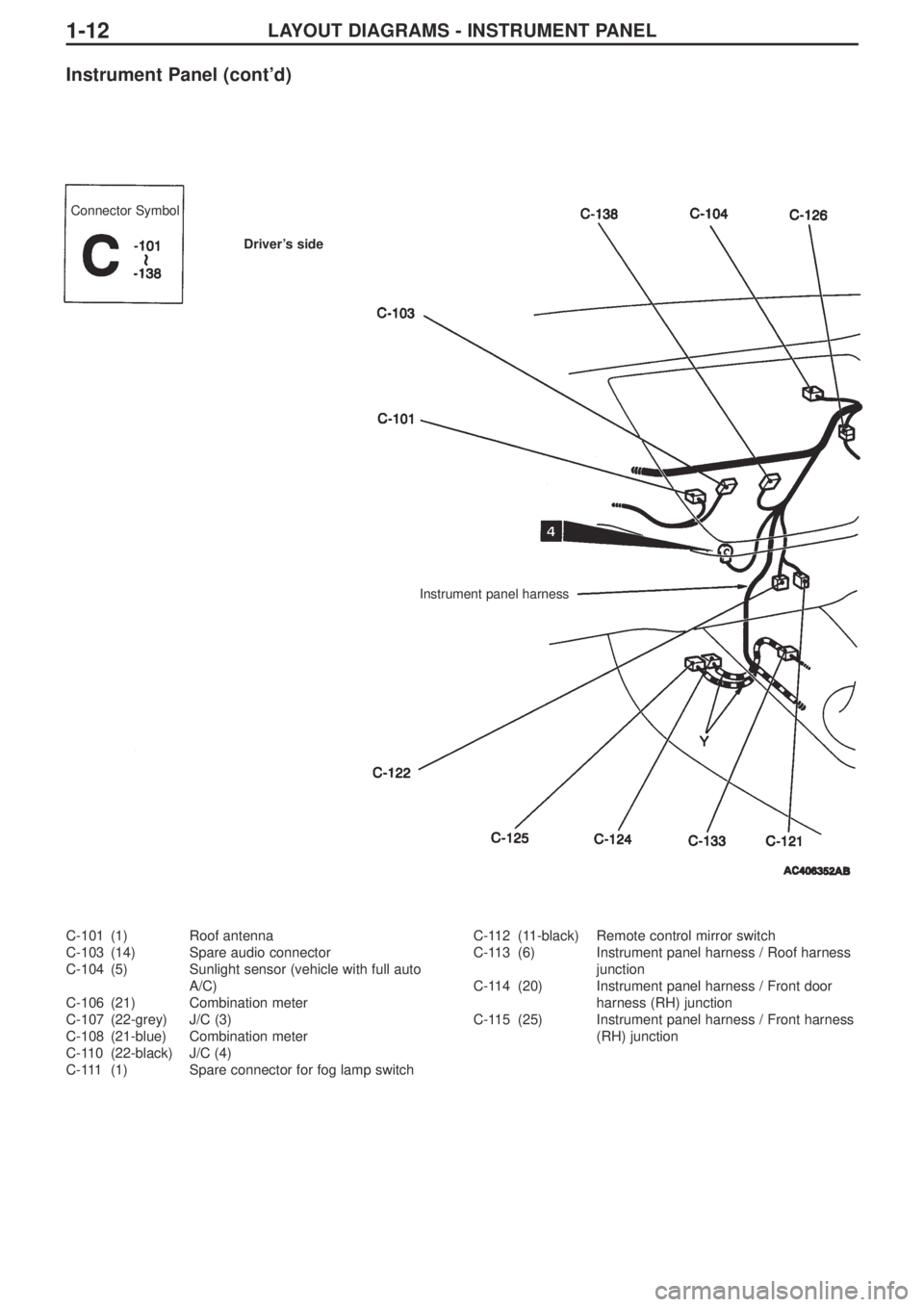

LAYOUT DIAGRAMS - INSTRUMENT PANEL1-12
C-101 (1) Roof antenna
C-103 (14) Spare audio connector
C-104 (5) Sunlight sensor (vehicle with full auto
A/C)
C-106 (21) Combination meter
C-107 (22-grey) J/C (3)
C-108 (21-blue) Combination meter
C-110 (22-black) J/C (4)
C-111 (1) Spare connector for fog lamp switchC-112 (11-black) Remote control mirror switch
C-113 (6) Instrument panel harness / Roof harness
junction
C-114 (20) Instrument panel harness / Front door
harness (RH) junction
C-115 (25) Instrument panel harness / Front harness
(RH) junction
Instrument Panel (cont’d)
Connector Symbol
Driver’s side
Instrument panel harness

LAYOUT DIAGRAMS - INSTRUMENT PANEL1-13
C-116 (13) Instrument panel harness / Floor harness
(RH) junction
C-118 (4) Stop lamp switch
C-119 (22-blue) J/C (2)
C-120 (2-black) Cabin temperature sensor (vehicle with
full auto A/C)
C-121 (12) Diagnosis connector
C-122 (16-black) Diagnosis connector
C-124 (22-yellow) SRS-ECU
C-125 (20-yellow) SRS-ECU
C-126 (2) Instrument panel harness/ Clutch switch
sub-harness junction
C-127 (2) Clutch switchC-128 (2) Tweeter (RH)
C-129 96) Fog lamp switch
C-130 (6-grey) Headlamp levelling switch
C-131 (9-grey) Instrument panel harness / Floor harness
(RH) junction
C-132 (2) Dummy connector
C-133 (11) Instrument panel harness / Control
harness junction
C-134 (6) ACD mode switch
C-138 (4) Generic spare connector
Roof
harness
Front harness (RH) Front door harness (RH)
Floor harness (RH)

LAYOUT DIAGRAMS - INSTRUMENT PANEL1-15
C-214 (5) Blower relay
C-215 (15) Floor harness (RH) / J/B junction
C-216 (3) Roof harness / J/B junction
C-217 (4) Dummy connector
C-218 (4) Dummy connector
C-219 (4) Fuel pump relay 2
C-220 (4) Intercooler water spray relay
C-221 (4) Fuel pump relay 1C-222 (5) Power window relay
C-223 (2) Instrument panel harness / J/B junction
C-224 (20) ETACS-ECU
C-225 (24-grey) ETACS-ECU
C-226 (24) ETACS-ECU
C-228 (5) Steer sensor
(Front side)
Instrument panel harness
Dedicated fuse
Floor harness (RH)
Roof harness(Rear side)

LAYOUT DIAGRAMS - FLOOR / ROOF1-16
D-01 (3) Door switch (front : RH)
D-02 (2-black) Seatbelt pre-tensioner (RH)
D-03 (8) Floor harness (RH) / Rear door harness
(RH) junction
D-04 (2) Front cabin lamp
D-05 (2-black) Rear ABS sensor (RH)
D-06 (2-grey) Rear cabin lamp (Vehicle not fitted with
sunroof)
D-07 (3) Door switch (rear : RH)
D-09 (3) Door switch (rear : LH)D-10 (5-grey) Fuel pump and fuel gauge unit (main)
D-11 (2-black) Rear ABS sensor (LH)
D-12 (8) Floor harness (RH) / Fuel harness
junction
D-13 (8) Floor harness (LH) / Rear door harness
(LH) junction
D-14 (2-black) Seatbelt pre-tensioner (LH)
D-15 (3) Door switch (front : LH)
FLOOR / ROOF
Connector Symbol
Roof harness
Floor
harness (RH)
Instrument panel harness
Console harness

LAYOUT DIAGRAMS - FLOOR / ROOF1-17
D-17 (4) Console harness / Instrument panel
harness junction
D-20 (1) Cigarette lighter
D-21 (1-black) Cigarette lighter
D-22 (2-black) Cigarette lighter illumination lamp
D-23 (2-black) Ashtray illumination lamp
D-24 (2) Driver’s seatbelt switch
D-25 (1-black) Parking brake switchD-26 (6-black) Sunroof switch
D-27 (10) Sunroof motor ASSY
D-28 (2) Fuel gauge unit (sub)
D-29 (3-black) Front/rear G sensor
D-30 (1) Floor harness (RH) / Fuel harness
junction
D-31 (3-black) Lateral G sensor
D-32 (6) Intercooler water spray switch
Vehicle with sunroof
Roof harness Fuel harness
Floor harness (LH)
