2005 MITSUBISHI LANCER EVOLUTION IX Workshop Manual

LANCER

• Chassis

• Engine

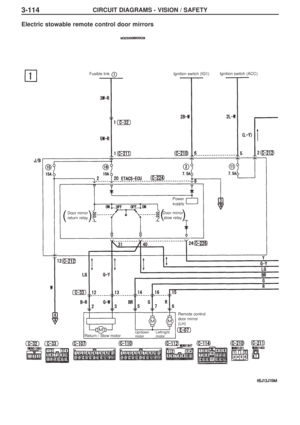

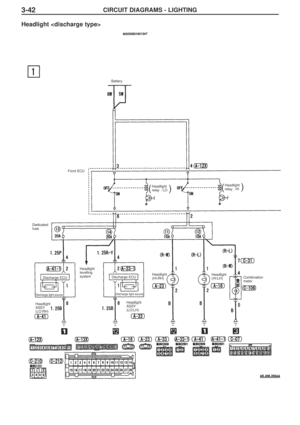

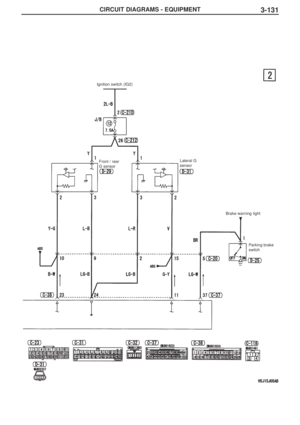

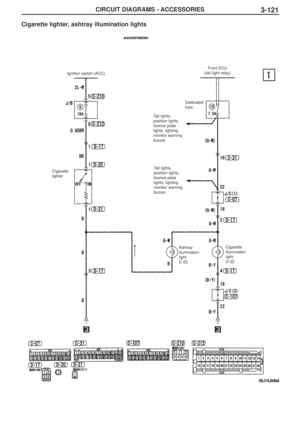

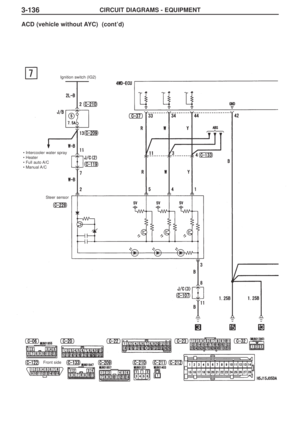

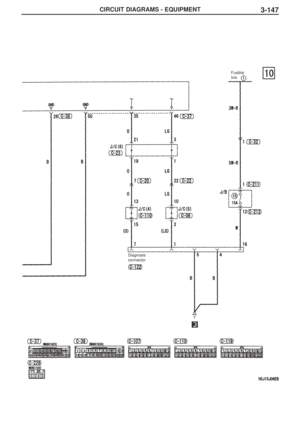

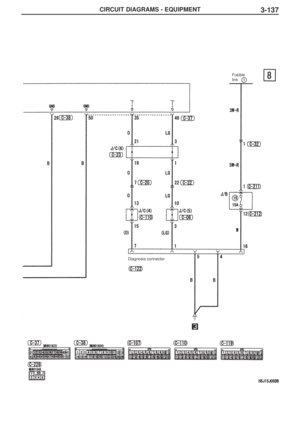

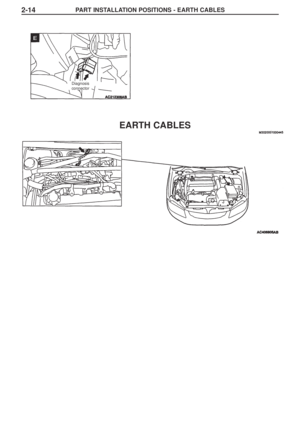

• Wiring Diagrams

SERVICE MANUAL
Supplement

LANCER
EVOLUTION IX
FOREWORD
This manual contains details of the main changes to the
2005 model Lancer Evolution IX. Only differences to the
current Lancer Evolution VIII MR are included, so please use
this manual in conjunction with the related manuals as listed
on the following page.
Please read this manual carefully so that servicing can be
done correctly and quickly, and vehicle performance
maintained.
This manual is based on the current (March 2005) model.
Please bear in mind that vehicle specifications may change
and that future models may not be the same.
Please note that all the units shown in this manual follow the
internationally recognized SI unit system, and that the used
previously are not shown alongside the SI units.
(Nevertheless, please take care because units in reference
documents may be shown in the units which were previously
used). March 2005
MITSUBISHI MOTOR CORPORATION

CONTENTS
General ........................................................
Engine .........................................................
Fuel ..............................................................

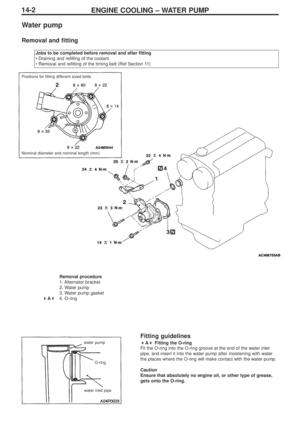

Engine Cooling ...........................................
Intake and Exhaust ....................................

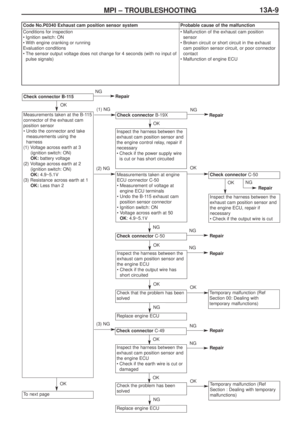

Engine Electrical ........................................
Rear axle .....................................................
Wheels and tyres ........................................
Front suspension ...............................................Body
Body.......................................................................

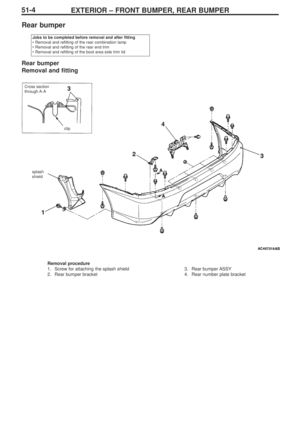

Exterior ........................................................
Interior and SRS Airbag .............................N

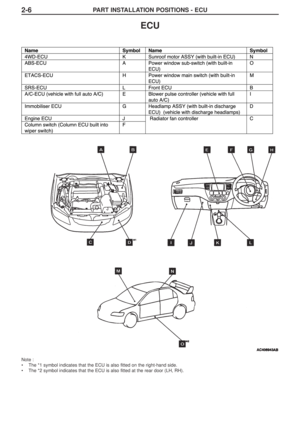

Chassis Electrical.........................................
This manual is printed on recycled paper
00
11
13
14
15
16
27
31
33
42
51
52
54
Any opinions, requests or questions concerning this manual,
should be written on the ‘Servicing Comments Form’ at the
end of the manual, and sent to us by fax.

Related materials

Title No. IssuedateTitle No. Issue
date
New model manuals Body edition service manual
• Lancer Sedia 1036K30 2000/5 • Lancer Sedia 1036K50 2000/5
• Lancer Sedia 1036K31 2000/7 • Lancer Sedia (supplement) 1036K51 2000/7
• Lancer Evolution VII 1036K32 2001/1 • Lancer Evolution VII 1036K52 2001/5
• Lancer Sedia 1036K33 2001/5 (supplement)
• Lancer Sedia 1036K34 2001/5 • Lancer Sedia (supplement) 1036K53 2001/10
• Lancer Evolution VII 1036K35 2002/1 • Lancer Evolution VII _MR 1036K54 2004/2
• Lancer Sedia 1036K36 2002/5 (supplement)
• Lancer Evolution VII 1036K37 2003/1
• Lancer 1036K38 2003/2
• Lancer 1036K39 2003/12 Electrical wiring service manual
• Lancer Evolution VII _MR 1036K40 2004/2 • Lancer Evolution IX 1036K82 2005/3
• Lancer* 1036K41 2004/3
• Lancer 1036K42 2005/1
• Lancer Evolution IX 1036K43 2005/3
Service manuals Engine service manual
• Lancer Sedia 1036K00 2000/5 • 4G6 engine 1039G46 2001/1
• Lancer Sedia
(supplement) 1036K01 2000/7 • 4G6 engine (supplement) 1039G63 2003/1
• Lancer Evolution VII 1036K02 2001/1 • 4G6 engine (supplement) 1039G71 2003/3
(supplement)
• Lancer Sedia
(supplement) 1036K03 2001/5
• Lancer Sedia
(supplement) 1036K04 2001/10
• Lancer Evolution VII 1036K05 2002/1 Transmission service manuals
(supplement) • W5M51 manual transmission 1039M17 2001/1
• Lancer Sedia
(supplement) 1036K06 2002/5 • W5M51 manual transmission 1039M22 2003/1
• Lancer Evolution VII 1036K07 2003/1 (supplement)
(supplement) • WGMAA manual transmission 1039M23 2003/1
• Lancer Sedia
(supplement) 1036K08 2003/2
• Lancer Sedia
(supplement) 1036K09 2003/12
• Lancer Evolution VII MR 1036K10 2004/2
• Lancer* 1036K41 2004/3
• Lancer 1036K11 2005/1
*Indicates where the new model manual was published with the service man\
ual in a single volume.
W
ARNING REGARDING THE SERVICING OF VEHICLES FITTED WITH SRS AIR BAGS AND SEATBELTS WITH PRE-
TENSIONERS
W arning
1. Improper servicing or maintenance of any SRS air bag or pre-tensioner fi\
tted seatbelt component, or related parts, could cause serious injury through the SRS air bag or pre-tensioner fitt\
ed seatbelt being activated unintentionally
or accidentally.
2. The SRS-ECU, the driver’s side air bag module, the passenger side air bag module, the pre-tensio\
ner fitted seatbelts and the clock spring, should be removed if there is a chance o\
f them being affected by heat during
painting work.
• 93ºC and above: the SRS-ECU, the driver’s air bag module, the passenger’s air bag module and the clock spring should be removed.
• 90ºC and above: the pre-tensioner fitted seatbelts should be rem\
oved.
3. Servicing and maintenance of any SRS air bag or pre-tensioner fitted sea\
tbelt components, or related parts, must be performed by an authorized Mitsubishi dealer.
4. Servicing and maintenance of any SRS air bag or pre-tensioner fitted sea\
tbelt components, or related parts, must only be undertaken after this service manual (specifically Section 52B-\
SRS air bags) has been carefully studied.

GENERAL –TROUBLESHOOTING FOR INSPECTIONS, MODEL LINE-UP,
RELEVANT VEHICLE NUMBERS00-1
SECTION 00
GENERAL
CONTENTS
Inspection guidelines and
troubleshooting..........................................1
Model line-up ..............................................1Relevant vehicle numbers ........................1
Inspection guidelines and troubleshooting
With the introduction of new settings for the MB992006 (Extra Fine Probe) special tool, the guidelines for inspecting the
connector have been changed. Other servicing guidelines remain unchanged.
Making an inspection with the connector
attached (so the electrical circuit is complete)

The test bar should be inserted from the harness side. If the control
unit or the connector is too small, and the test bar cannot be
inserted, do not attempt to force it in. Instead, use the MB992006
(Extra Fine Probe) special tool.
Model line-up





Note
● Indicates a new model,
indicates a special model, X indicates a discontinued model.
Relevant vehicle numbers
GH-CT9A: CT9A-0400001 ~

ENGINE – GENERAL, SERVICING STANDARDS, SEALANTS
11 - 1
SECTION 11
ENGINE
CONTENTS
General
The following servicing guidelines have been prepared for vehicles which use the 4G63-MIVEC-T/C engine. Other servicing
guidelines remain unchanged.
Servicing standards
General .......................................................1
Servicing standards .................................1
Sealants .....................................................1
Special tools ..............................................2
Engine tuning .............................................4
1. Checking of revolutions when idling ................4
2. Checking compression pressure.......................4
Camshaft, valve stem seals .....................4

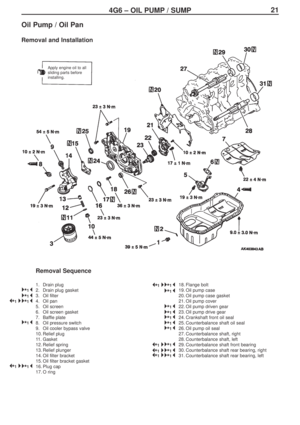

Cylinder head gaskets.............................14

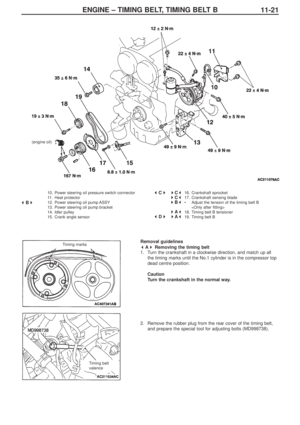

Timing belt, timing belt B ........................20
Engine ASSY ............................................28





Sealants

Note
The code inside the brackets ( ) is the actual product number.

ENGINE – SPECIAL TOOLS11 - 2
Special tools
ToolNumber NameFunction
MB991502MUT-II Sub
ASSYChecking and adjusting the tension in
timing belt B
Note
If a MUT-III main harness A is
connected to a vehicle not fitted with
CAN, there is a chance that a pulse
signal will be entered in the simulated
vehicle speed line, when the MUT-III is
activated. Therefore, use a MUT-III main
harness B with vehicles not fitted with
CAN.
MB991955
A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826MUT-III Sub ASSY
A: Vehicle
Communication
Interface (VCI)
B: USB cable
C: MUT-III Main
harness A
(For vehicles
fitted with CAN)
D: MUT-III Main
harness B
(For vehicles
not fitted with
CAN)
E: Adaptor
F: Trigger harness
MB991668
A: MB991969
B: MB991670Belt tension meter
set
A: Tension meter
cartridge
B: Mic ASSY• Checking the tension in the drive belt.
(Use in conjunction with VCI)
• Checking the tension in the balancer
timing belt.
Adjusting (Use in conjunction with VCI)
MD998772Valve spring
compressorCompression of the valve spring.
DO NOT USE
