2005 INFINITI FX35 diagram

INTEGRATED HOMELINK TRANSMITTER BL-235
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2005 July 2005 FX
INTEGRATED HOMELINK TRANSMITTERPFP:96401

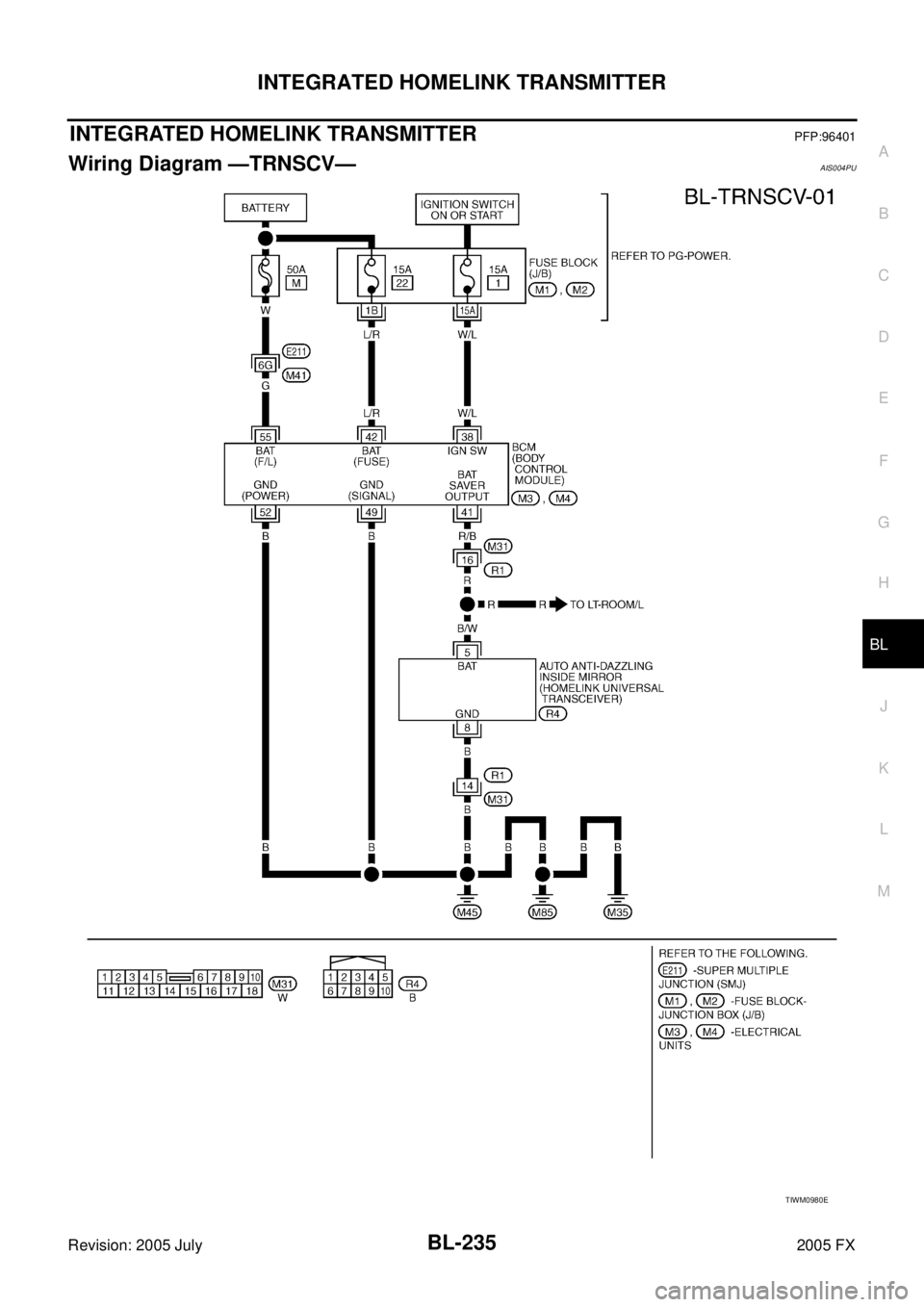

Wiring Diagram —TRNSCV—AIS004PU
TIWM0980E

BRC-1
BRAKE CONTROL SYSTEM
F BRAKES
CONTENTS
C
D E
G H
I
J
K L
M
SECTION BRC
A
B
BRC
Revision: 2005 July 2005 FX
BRAKE CONTROL SYSTEM
VDC/TCS/ABS
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions for Brake System ............................. ..... 3
Precautions for Brake Control ............................. ..... 3
PREPARATION ...................................................... ..... 5
Special Service Tools .......................................... ..... 5
Commercial Service Tools ................................... ..... 5
ON-VEHICLE SERVICE ........................................ ..... 6
Adjustment of Steering Angle Sensor Neutral Posi-
tion ...................................................................... ..... 6
Calibration of Decel G Sensor (AWD Model) ...... ..... 6
SYSTEM DESCRIPTION ....................................... ..... 8
System Diagram .................................................. ..... 8
VDC Function ...................................................... ..... 8
TCS Function ...................................................... ..... 8
ABS Function ...................................................... ..... 8
EBD Function ...................................................... ..... 9
Fail-Safe Function ............................................... ..... 9
VDC / TCS SYSTEM ........................................ ..... 9
ABS, EBD SYSTEM ......................................... ..... 9
Hydraulic Circuit Diagram ................................... ... 10
CAN COMMUNICATION ....................................... ....11
System Description ............................................. .... 11
TROUBLE DIAGNOSIS ......................................... ... 12
How to Proceed with Diagnosis .......................... ... 12
BASIC CONCEPT ............................................ ... 12
DIAGNOSIS FLOWCHART ............................. ... 13
ASKING COMPLAINTS ................................... ... 14
EXAMPLE OF DIAGNOSIS SHEET ................ ... 14
Component Installation Location ......................... ... 15
Schematic ........................................................... ... 16
Wiring Diagram — VDC — .................................. ... 17
Control Unit Input/Output Signal Standard .......... ... 23
REFERENCE VALUE FROM CONSULT-II ...... ... 23
CONSULT-II Functions ........................................ ... 25
CONSULT-II MAIN FUNCTION ........................ ... 25
CONSULT-II BASIC OPERATION PROCEDURE ... 26
SELF-DIAGNOSIS ........................................... ... 27
DATA MONITOR .............................................. ... 30
ACTIVE TEST .................................................. ... 33
For Fast and Accurate Diagnosis ........................ ... 35
PRECAUTIONS FOR DIAGNOSIS .................. ... 35
Basic Inspection .................................................. ... 36
BASIC INSPECTION 1: BRAKE FLUID
AMOUNT, LEAKS, AND BRAKE PADS INSPEC-
TION ................................................................. ... 36
BASIC INSPECTION 2: POWER SYSTEM TER-
MINAL LOOSENESS AND BATTERY INSPEC-
TION ................................................................. ... 36
BASIC INSPECTION 3: ABS WARNING LAMP,
VDC OFF INDICATOR LAMP, SLIP INDICATOR
LAMP AND BRAKE WARNING LAMP INSPEC-
TION ................................................................. ... 37
Inspection 1: Wheel Sensor Circuit ..................... ... 37
Inspection 2: Engine System ............................... ... 39
Inspection 3: VDC/TCS/ABS Control Unit Circuit ... 40
Inspection 4: Pressure Sensor Circuit ................. ... 40
Inspection 5: Steering Angle Sensor Circuit ........ ... 42
Inspection 6: Yaw Rate/Side G Sensor (2WD
Model), Yaw Rate/Side/Decel G sensor (AWD Mod-
els) Circuit ............................................................ ... 44
Inspection 7: Solenoid and VDC Change-Over
Valve Circuit ......................................................... ... 46
Inspection 8: Actuator Motor Circuit .................... ... 47
Inspection 9: ABS Actuator and Electric Unit (Con-
trol Unit) Power Supply and Ground Circuit ......... ... 48
Inspection 10: Stop Lamp Switch Circuit ............. ... 50
Inspection 11: Brake Fluid Level Switch Circuit ... ... 51
Inspection 12: When “ST ANG SEN SIGNAL”
Appears on Self-diagnosis Results Display ......... ... 52
Inspection 13: When “DECEL G SEN SET” Appears
on Self-diagnostic Results Display (AWD Model) ... 52
Inspection 14: CAN Communication Circuit ........ ... 53
Component Inspection ......................................... ... 53
VDC OFF SWITCH .......................................... ... 53
Symptom 1: Excessive ABS Function Operation

BRC-8
[VDC/TCS/ABS]
SYSTEM DESCRIPTION
Revision: 2005 July 2005 FX
SYSTEM DESCRIPTIONPFP:00000
System DiagramAFS001SB
VDC FunctionAFS001SC

In addition to the TCS/ABS function, the driver steering amount and brake operation amount are detected
from steering angle sensor and pressure sensor, and the vehicle's driving status (amount of under steer-
ing / over steering) is determined from information from G sensor, wheel sensor, etc., and this information
is used to improve vehicle stability by controlling the braking and engine power to all four wheels.

SLIP indicator lamp flashes to inform the driver of VDC operation.

During VDC operation, body and brake pedal lightly vibrate and mechanical noises may be heard. This is
normal.

ABS warning lamp, VDC OFF indicator lamp, and SLIP indicator lamp might turn on when vehicle is sub-
ject to strong shaking or large vibration, such as when vehicle is on a turn table, a ship or a steep slope
such as bank while engine is running. In this case, restart engine on a normal road, and if ABS warning
lamp, VDC OFF indicator lamp, and SLIP indicator lamp turn off, there is no malfunction.
TCS FunctionAFS001SD

The wheel spin of the drive wheels is detected by ABS actuator and electric unit (control unit) from the
wheel speed signals from four wheels, so if wheel spin occurs, drive wheel right and left brake fluid pres-
sure control and engine fuel cut are performed while throttle value is restricted to reduce the engine
torque and decrease the amount of wheel spin. In addition, the degree throttle is opened is controlled to
achieve the optimum engine torque.

Depending on road circumstances, the driver may have a sluggish feel. This is normal, because the opti-
mum traction has the highest priority under TCS operation.

TCS may be activated any time vehicle suddenly accelerates, suddenly down/upshifts, or is driven on a
road with a varying surface friction coefficient.

During TCS operation, it informs a driver of system operation by flashing SLIP indicator lamp.
ABS FunctionAFS001SE

The anti-lock brake system is a function that detects wheel revolution while braking, and it improves han-
dling stability during sudden braking by electrically preventing 4 wheel lock. Maneuverability is also
improved for avoiding obstacles.

If the electrical system malfunctions, then the fail-safe function starts, the ABS becomes inoperative, and
ABS warning lamp turns on.

Electrical system diagnosis by CONSULT-II is available.

During ABS operation, brake pedal lightly vibrates and a mechanical noise may be heard. This is normal.
SFIA1160E

BRC-10
[VDC/TCS/ABS]
SYSTEM DESCRIPTION
Revision: 2005 July 2005 FX
Hydraulic Circuit DiagramAFS001SH
SFIA1163E

TROUBLE DIAGNOSIS BRC-17
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2005 July 2005 FX
Wiring Diagram — VDC —AFS001SO
TFWM0068E

DI-1
DRIVER INFORMATION SYSTEM
K ELECTRICAL
CONTENTS
C
D E
F
G H
I
J
L
M
SECTION DI
A
B
DI
Revision: 2005 July 2005 FX
DRIVER INFORMATION SYSTEM
PRECAUTION ............................................................ 4
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 4
COMBINATION METERS ...................................... ..... 5
System Description ............................................. ..... 5
UNIFIED METER CONTROL UNIT ................. ..... 5
UNIFIED METER AND A/C AMP. .................... ..... 5
HOW TO CHANGE THE DISPLAY FOR ODO/
TRIP METER ................................................... ..... 6
POWER SUPPLY AND GROUND CIRCUIT ... ..... 6
SPEEDOMETER .............................................. ..... 7
TACHOMETER ................................................ ..... 7
WATER TEMPERATURE GAUGE ................... ..... 7
FUEL GAUGE .................................................. ..... 7
Component Parts and Harness Connector Location ..... 7
Arrangement of Combination Meter .................... ..... 8
Circuit Diagram ................................................... ..... 9
Wiring Diagram — METER — ............................. ... 10
Terminals and Reference Value for Combination
Meter ................................................................... ... 12
Terminals and Reference Value for Unified Meter
and A/C Amp. ...................................................... ... 13
Self-Diagnosis Mode of Combination Meter ........ ... 14
SELF-DIAGNOSIS FUNCTION ....................... ... 14
OPERATION PROCEDURE ............................ ... 14
CONSULT-II Function (METER A/C AMP) .......... ... 14
Trouble Diagnosis ............................................... ... 15
HOW TO PERFORM TROUBLE DIAGNOSIS ... 15
PRELIMINARY CHECK ................................... ... 15
Symptom Chart 1 ................................................ ... 17
Symptom Chart 2 ................................................ ... 17
Power Supply and Ground Circuit Inspection ..... ... 18
Vehicle Speed Signal Inspection ......................... ... 20
Engine Speed Signal Inspection ......................... ... 21
Engine Coolant Temperature Signal Inspection .. ... 21
Fuel Level Sensor Signal Inspection ................... ... 22
Odo/Trip Meter and Illumination Control Switch
Inspection ............................................................ ... 24
Fuel Gauge Pointer Fluctuates, Indicator Wrong Value or Varies ....................................................
... 24
Fuel Gauge Does Not Move to FULL Position .... ... 24
Electrical Components Inspection ....................... ... 25
CHECK FUEL LEVEL SENSOR UNIT ............. ... 25
Removal and Installation of Combination Meter .. ... 25
Disassembly and Assembly of Combination Meter ... 26
DISASSEMBLY ................................................ ... 26
ASSEMBLY ...................................................... ... 27
Removal and Installation of Odo/Trip Meter and Illu-
mination Control Switch ....................................... ... 27
REMOVAL ........................................................ ... 27
INSTALLATION ................................................ ... 27
UNIFIED METER AND A/C AMP ........................... ... 28
System Description .............................................. ... 28
INPUT/OUTPUT SIGNALS .............................. ... 28
FAIL-SAFE ....................................................... ... 29
CAN Communication System Description ........... ... 29
CAN Communication Unit .................................... ... 29
Schematic ............................................................ ... 30
CONSULT-II Function (METER A/C AMP) .......... ... 31
CONSULT-II BASIC OPERATION .................... ... 31
SELF-DIAGNOSTIC RESULTS ........................ ... 32
DATA MONITOR .............................................. ... 32
DTC [U1000] CAN Communication Circuit .......... ... 34
DTC [B2202] Meter Communication Circuit ........ ... 34
DTC [B2205] Vehicle Speed Circuit ..................... ... 37
Removal and Installation of Unified Meter and A/C
Amp. .................................................................... ... 37
REMOVAL ........................................................ ... 37
INSTALLATION ................................................ ... 37
COMPASS .............................................................. ... 38
System Description .............................................. ... 38
DIRECTION DISPLAY ...................................... ... 38
Wiring Diagram – COMPAS – ............................. ... 40
Removal and Installation of Compass ................. ... 41
WARNING LAMPS ................................................. ... 42
Schematic ............................................................ ... 42
Wiring Diagram — WARN — ............................... ... 43
Oil Pressure Warning Lamp Stays Off (Ignition
Switch ON) .......................................................... ... 51

DI-2Revision: 2005 July 2005 FX
Oil Pressure Warning Lamp Does Not Turn Off (Oil
Pressure Is Normal) ............................................. ... 52
Component Inspection ......................................... ... 53
OIL PRESSURE SWITCH ................................ ... 53
A/T INDICATOR ..................................................... ... 54
Wiring Diagram — AT/IND — .............................. ... 54
A/T Indicator Is Malfunction ................................. ... 56
WARNING CHIME .................................................. ... 58
System Description .............................................. ... 58
FUNCTION ....................................................... ... 58
IGNITION KEY WARNING CHIME (WITHOUT
INTELLIGENT KEY) ......................................... ... 58
IGNITION KEY WARNING CHIME (WITH INTEL-
LIGENT KEY) ................................................... ... 59
LIGHT WARNING CHIME ................................ ... 59
SEAT BELT WARNING CHIME ........................ ... 59
CAN Communication System Description ........... ... 60
CAN Communication Unit .................................... ... 60
Component Parts and Harness Connector Location ... 61
Schematic ............................................................ ... 62
Wiring Diagram — CHIME — .............................. ... 63
Terminals and Reference Value for BCM ............. ... 66
Terminals and Reference Value for Unified Meter
and A/C Amp. ...................................................... ... 67
Terminals and Reference Value for Combination
Meter ................................................................... ... 67
Trouble Diagnosis ................................................ ... 68
HOW TO PERFORM TROUBLE DIAGNOSIS . ... 68
PRELIMINARY CHECK .................................... ... 68
CONSULT-II Function (BCM) ............................... ... 69
DIAGNOSTIC ITEMS DESCRIPTION .............. ... 69
CONSULT-II BASIC OPERATION PROCEDURE
... 69
DATA MONITOR ............................................... ... 70
ACTIVE TEST .................................................. ... 70
SELF-DIAGNOSTIC RESULTS ........................ ... 71
All Warnings Are Not Operated ........................... ... 71
Key Warning Chime and Light Warning Chime Does
Not Operate (Seat Belt Warning Chime Does Oper-
ate) ...................................................................... ... 72
Key Warning Chime Does Not Operate (Without
Intelligent Key) ..................................................... ... 73
Key Warning Chime Does Not Operate (With Intel-
ligent Key, When Mechanical Key Is Used) ......... ... 75
Key Warning Chime Does Not Operate (With Intel-
ligent Key, When Intelligent Key Is Carried With The
Driver) .................................................................. ... 77
Light Warning Chime Does Not Operate ............. ... 79
Seat Belt Warning Chime Does Not Operate ...... ... 80
LANE DEPARTURE WARNING SYSTEM ............. ... 82
Precautions for Lane Departure Warning (LDW)
system ................................................................. ... 82
System Description .............................................. ... 82
LDW SYSTEM OPERATION ............................ ... 82
POWER SUPPLY AND GROUND CIRCUIT .... ... 84
CAN Communication ........................................... ... 84
SYSTEM DESCRIPTION ................................. ... 84
CAN COMMUNICATION UNIT ......................... ... 85
Action Test ........................................................... ... 85 LDW SYSTEM RUNNING TEST ......................
... 85
Camera Aiming Adjustment ................................. ... 86
OUTLINE .......................................................... ... 86
PREPARATION ................................................. ... 86
TARGET SETTING ........................................... ... 86
VEHICLE HEIGHT CHECK .............................. ... 89
AIMING ADJUSTMENT .................................... ... 89
Component Parts and Harness Connector Location ... 93
Schematic ............................................................ ... 94
Wiring Diagram — LDW — .................................. ... 95
Terminals and Reference Value for LDW Camera
Unit ....................................................................... ... 98
CONSULT-II Function (LDW) ............................... ... 98
DESCRIPTION ................................................. ... 98
CONSULT-II BASIC OPERATION .................... ... 98
WORK SUPPORT ............................................ ... 99
SELF-DIAG RESULTS ...................................... ... 99
DATA MONITOR ............................................... .100
ACTIVE TEST ................................................... .101
Trouble Diagnosis ................................................ .102
HOW TO PERFORM TROUBLE DIAGNOSIS . .102
SYMPTOM CHART ........................................... .102
Preliminary Inspection .......................................... .103
Power Supply and Ground Circuit Inspection ...... .104
DTC [C1B00] CAMERA UNIT MALF ................... .104
DTC [C1B01] CAM AIMING INCMP .................... .104
DTC [C1B02] VHCL SPD DATA MALF ................ .105
DTC [C1B03] ABNRML TEMP DETECT ............. .105
DTC [U1000] CAN COMM CIRCUIT ................... .105
DTC [U1010] CONTROL UNIT (CAN) ................. .105
LDW Chime Circuit Inspection ............................. .106
LDW Switch Circuit Inspection ............................. .107
LDW Indicator Lamp Circuit Inspection ................ .109
Turn Signal Input Inspection ................................ .110
Removal and Installation for LDW Camera Unit .. . 111
REMOVAL ......................................................... . 111
INSTALLATION ................................................. . 111
Removal and Installation for LDW Chime ............ . 111
REMOVAL ......................................................... . 111
INSTALLATION ................................................. . 111
Removal and Installation for LDW Switch ............ . 111
CLOCK ................................................................... .112
Wiring Diagram — CLOCK — .............................. .112
Removal and Installation of Clock ........................ .113
REMOVAL ......................................................... .113
INSTALLATION ................................................. .113
REAR VIEW MONITOR .......................................... .114
System Description .............................................. .114
POWER SUPPLY AND GROUND .................... .114
AV COMMUNICATION LINE ............................ .114
REAR VIEW CAMERA OPERATION ............... .114
Component Parts and Harness Connector Location .115
Schematic ............................................................ .116
Wiring Diagram — R/VIEW — ............................. .117
Terminals and Reference Value for Rear View Cam-
era Control Unit .................................................... .120
CONSULT-II Function (REARVIEW CAMERA) ... .121
CONSULT-II BASIC OPERATION .................... .121
WORK SUPPORT ............................................ .122

COMBINATION METERS DI-9
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
Circuit DiagramAKS005MK
TKWM2054E
