ENGINE CONTROL SYSTEM
Revision: 2005 July 2005 FX
ENGINE CONTROL SYSTEMPFP:23710

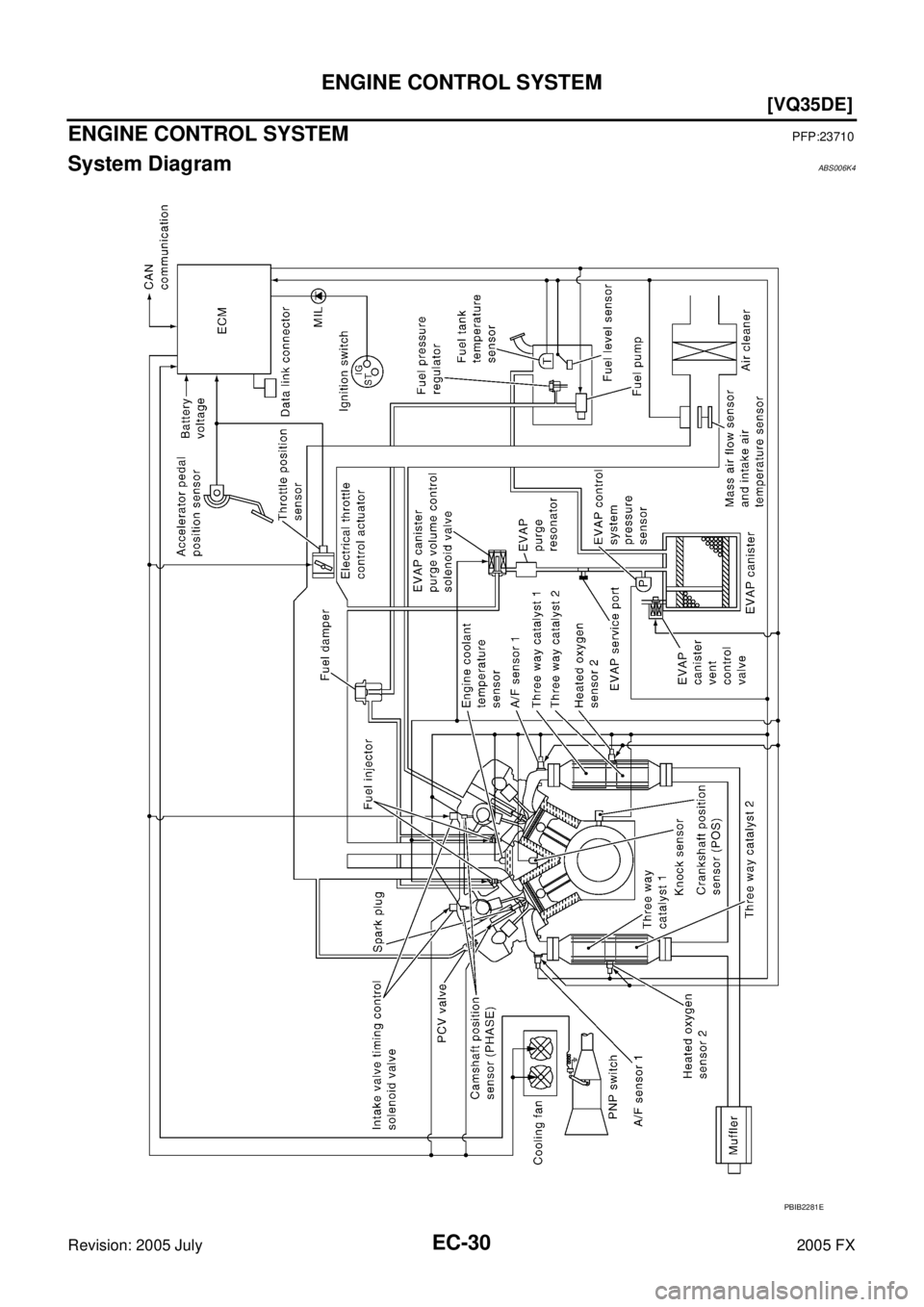

System DiagramABS006K4
PBIB2281E

BASIC SERVICE PROCEDURE EC-93
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
21. CHECK AIR FUEL RATIO (A/F) SENSOR 1 HARNESS
1. Turn ignition switch OFF and disconnect battery ground cable.
2. Disconnect ECM harness connector.
3. Disconnect A/F sensor 1 harness connector.
4. Check harness continuity between the following terminals. Refer to EC-490, "
Wiring Diagram" .
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 22.
NG >> 1. Repair open circuit or short to ground or short to power in harness or connectors between ECM
and A/F sensor 1.
2. GO TO 4.
22. PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Reconnect ECM harness connector.
2. Perform EC-96, "
Accelerator Pedal Released Position Learning" .
>> GO TO 23.
23. PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Perform EC-96, "
Throttle Valve Closed Position Learning" .
>> GO TO 24.
24. PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-97, "
Idle Air Volume Learning" .
Is Idle Air Volume Learning carried out successfully?
Ye s o r N o
Yes (With CONSULT-II)>>GO TO 25.
Yes (Without CONSULT-II)>>GO TO 26.
No >> 1. Follow the instruction of Idle Air Volume Learning.
2. GO TO 4.
A/F sensor 1 terminal ECM terminal
Bank 1 116
275
535
656
Bank 2 176
277
557
658
Continuity should exist.

EC-120
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
Vacuum Hose DrawingABS006K5
Refer to EC-30, "System Diagram" for Vacuum Control System.
PBIB2000E

TROUBLE DIAGNOSIS EC-121
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Circuit DiagramABS006KU
TBWH0101E

EC-164
[VQ35DE]
POWER SUPPLY AND GROUND CIRCUIT
Revision: 2005 July 2005 FX
POWER SUPPLY AND GROUND CIRCUITPFP:24110

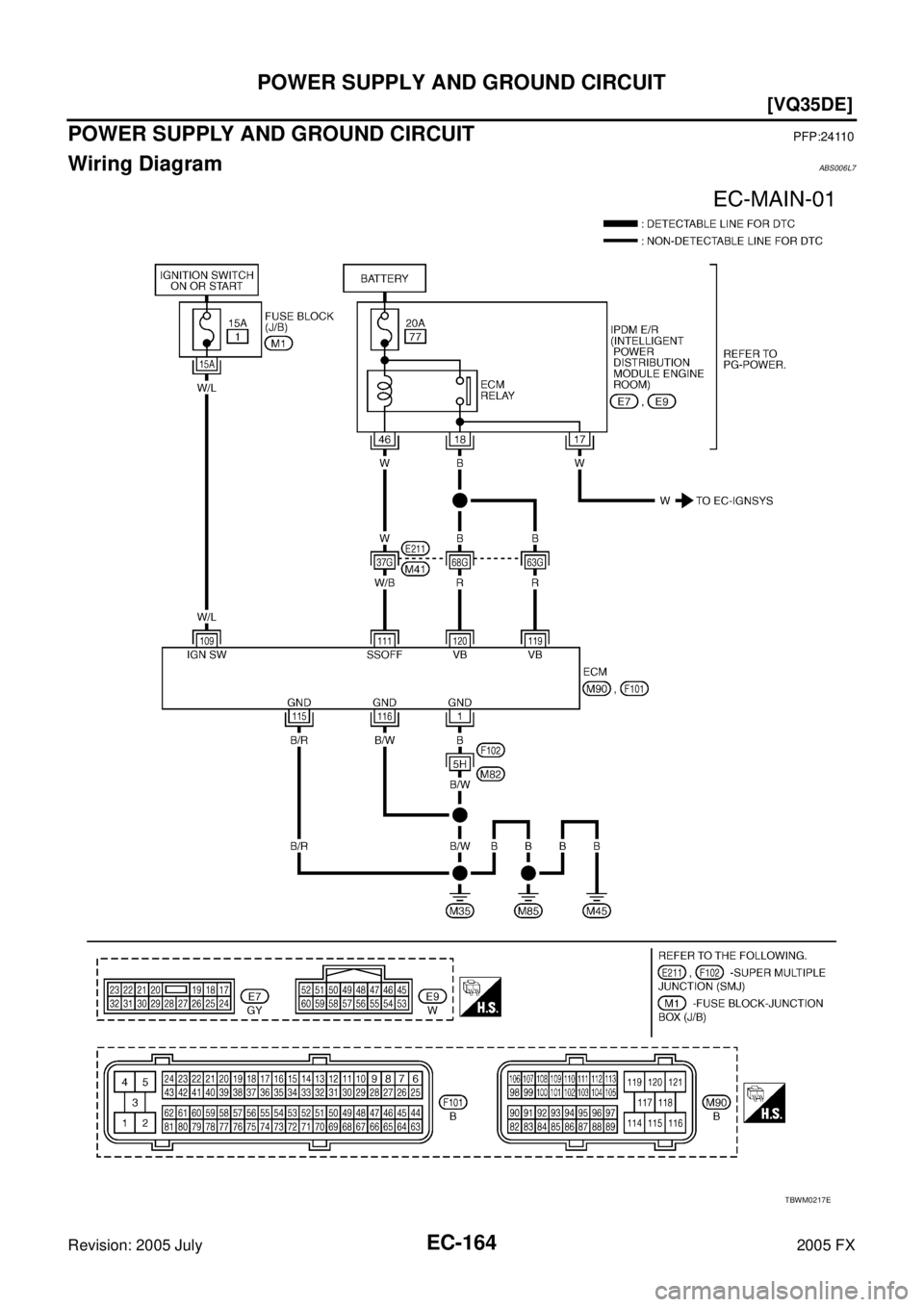

Wiring DiagramABS006L7
TBWM0217E

EC-166
[VQ35DE]
POWER SUPPLY AND GROUND CIRCUIT
Revision: 2005 July 2005 FX
4. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body. Refer to EC-170, "
Ground Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace ground connections.
5. CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-I
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals 1, 115, 116 and ground. Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F102, M82

Harness for open or short between ECM and ground
>> Repair open circuit or short to power in harness or connectors.
7. CHECK ECM POWER SUPPLY CIRCUIT-II
1. Reconnect ECM harness connector.
2. Turn ignition switch ON.
3. Check voltage between IPDM E/R connector E7 terminal 17 and ground with CONSULT-II or tester.
OK or NG
OK >> Go to EC-648, "IGNITION SIGNAL" .
NG >> GO TO 8.
PBIB2625E
Continuity should exist.
Voltage: Battery voltage
PBIB1610E

POWER SUPPLY AND GROUND CIRCUIT EC-167
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
8. CHECK ECM POWER SUPPLY CIRCUIT-III
1. Stop engine and wait at least 10 seconds.
2. Turn ignition switch ON and then OFF.
3. Check voltage between ECM terminals 119, 120 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 18.
NG (Battery voltage does not exist.)>>GO TO 9.
NG (Battery voltage exists for more than a few seconds.)>>GO TO 12.
9. CHECK ECM POWER SUPPLY CIRCUIT-IV
1. Turn ignition switch OFF, and wait at least 10 seconds.
2. Check voltage between ECM terminal 111 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 12.
10. CHECK ECM POWER SUPPLY CIRCUIT-V
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E7.
3. Check harness continuity between ECM terminals 119, 120 and IPDM E/R terminal 18. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 15.
NG >> GO TO 11.
11 . DETECT MALFUNCTIONING PART
Check the following.

Harness or connectors E211, M41

Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
Voltage: After turning ignition switch OFF, battery
voltage will exist for a few seconds, then
drop approximately 0V.
PBIB1630E
Voltage: Battery voltage
PBIB1191E
Continuity should exist.

EC-168
[VQ35DE]
POWER SUPPLY AND GROUND CIRCUIT
Revision: 2005 July 2005 FX
12. CHECK ECM POWER SUPPLY CIRCUIT-VI
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E9.
3. Check harness continuity between ECM terminal 111 and IPDM E/R terminal 46. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. DETECT MALFUNCTIONING PART
Check the following.

Harness or connectors E211, M41

Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
14. CHECK 20A FUSE
1. Disconnect 20 A fuse from IPDM E/R.
2. Check 20A fuse.
OK or NG
OK >> GO TO 18.
NG >> Replace 20A fuse.
15. CHECK GROUND CONNECTIONS
Loosen and retighten ground three screws on the body. Refer to EC-170, "
Ground Inspection" .
OK or NG
OK >> GO TO 16.
NG >> Repair or replace ground connections.
16. CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-II
1. Check harness continuity between ECM terminals 1, 115, 116 and ground. Refer to Wiring Diagram.
2. Also check harness for short to power.
OK or NG
OK >> GO TO 17.
NG >> Repair open circuit or short to power in harness or connectors. Continuity should exist.
PBIB2625E
Continuity should exist.
