2005 INFINITI FX35 diagram

DI-10
COMBINATION METERS
Revision: 2005 July 2005 FX
Wiring Diagram — METER —AKS005ML
TKWM2505E

DI-40
COMPASS
Revision: 2005 July 2005 FX
Wiring Diagram – COMPAS –AKS007AP
TKWM2055E

WARNING LAMPS DI-43
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
Wiring Diagram — WARN —AKS005NE
TKWM2433E

DI-54
A/T INDICATOR
Revision: 2005 July 2005 FX
A/T INDICATORPFP:24814
Wiring Diagram — AT/IND —AKS005NI
TKWM1282E

WARNING CHIME DI-63
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX

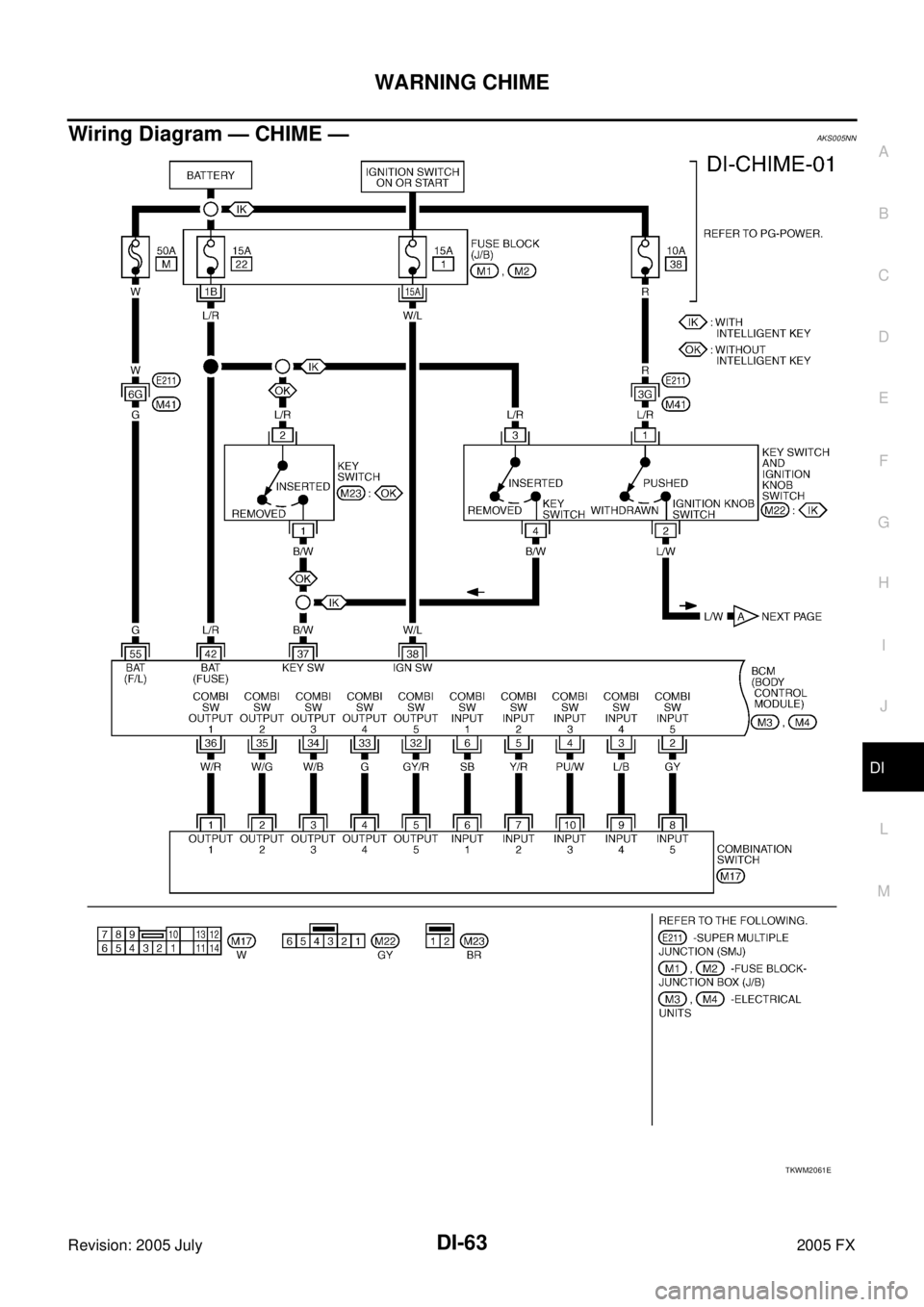

Wiring Diagram — CHIME —AKS005NN
TKWM2061E

WARNING CHIME DI-75
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
5. CHECK KEY SWITCH CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector M3 terminal 37 (B/W) and key switch harness connector M23 terminal 1 (B/
W).
3. Check continuity between BCM harness connector M3 terminal 37 (B/W) and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness or connector.
6. CHECK KEY SWITCH POWER SUPPLY CIRCUIT
Check voltage between key switch harness connector M23 terminal
2 (L/R) and ground.
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> Check harness between key switch and fuse.
Key Warning Chime Does Not Operate (With Intelligent Key, When Mechanical
Key Is Used)
AKS0079U
1. CHECK FUSE
Check if the key switch and ignition knob switch 10A fuse (No. 38, located in the fuse and fusible link box) is
blown. Refer to DI-63, "
Wiring Diagram — CHIME —" .
Is the fuse blown?
YES >> Replace fuse. Be sure to repair the cause of malfunction before installing new fuse.
NO >> GO TO 2.
2. CHECK WARNING CHIME OPERATION
Check the chime under conditions in exception of key warning chime (when mechanical key is used) opera-
tion.
Does warning chime sound?
YES >> GO TO 3.
NO >> Go to DI-71, "
All Warnings Are Not Operated" or DI-72, "Key Warning Chime and Light Warning
Chime Does Not Operate (Seat Belt Warning Chime Does Operate)" .
37 (B/W) – 1 (B/W) : Continuity should exist.
37 (B/W) – Ground : Continuity should not exist.
PKIB3833E
2 (L/R) – Ground : Battery voltage
SKIA5051E

DI-84
LANE DEPARTURE WARNING SYSTEM
Revision: 2005 July 2005 FX
System Diagram
Components Description
NOTE:
*: This indicates in a few seconds for the system check during ignition switch ON.
POWER SUPPLY AND GROUND CIRCUIT
With the ignition switch in the ON or START position, power is supplied

through 10A fuse [No. 12, located in the fuse block (J/B)]

to LDW camera unit terminal 1.
Ground is supplied

to LDW camera unit terminals 6 and 12

through grounds M45, M85 and M35.
CAN CommunicationAKS00C6X
SYSTEM DESCRIPTION
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with two
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
SKIB1784E
Component Description
LDW camera unit Detects the lane marker by the built-in camera, gives judgement for the warning according to the
result of detection and signals from each unit, and transmits the operation signal to LDW chime and
LDW indicator lamp.
LDW switch

Selects ON/OFF of the system.

Indicates ON/OFF of the signal with LDW system ON indicator.
LDW chime Gives a warning chime according to the direction from LDW camera unit.
LDW indicator lamp Installed in combination meter, and indicates the system condition.

Blinks when LDW system is functioning to alert the driver.

Stays on when LDW system is malfunctioning.*
BCM Transmits turn indicator signal to LDW camera unit with CAN communication signal.
ABS actuator and electric unit
(control unit) Transmits vehicle speed signal to LDW camera unit with CAN communication signal.
TCM Transmits vehicle speed signal to LDW camera unit with CAN communication signal. (For detecting
incorrect speed.)

LANE DEPARTURE WARNING SYSTEM DI-95
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
Wiring Diagram — LDW —AKS00C7M
TKWM2064E
