2005 HONDA CIVIC COUPE Owners Manual

However, if the brake pedal does not
f eel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will f eel the brake
pedal go down much f arther bef ore
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
If you must drive the vehicle a short
distance in this condition, drive
slowly and caref ully.
Slow down by shif ting to a lower
gear, and pull to the side of the road
when it is saf e. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (see
on page ).
The brake system
indicator normally
comes on when
you turn the ignition switch to ON
(II), and as a reminder to check the
parking brake. It will stay on if you
do not f ully release the parking
brake.
If the f luid level is low, take your
vehicle to a dealer, and have the
brake system inspected f or leaks or
worn brake pads.
If the brake system indicator comes
on while driving, the brake f luid level
is probably low. Press lightly on the
brake pedal to see if it f eels normal.
If it does, check the brake f luid level
thenexttimeyoustopataservice
station (see page ). If the ABS indicator comes on with
the brake system indicator, have
your vehicle inspected by your
dealer immediately.
168 209On models equipped with ABS
Emergency
Towing
Brake System Indicator
202
Canada
U.S.
——y

y
(%yy

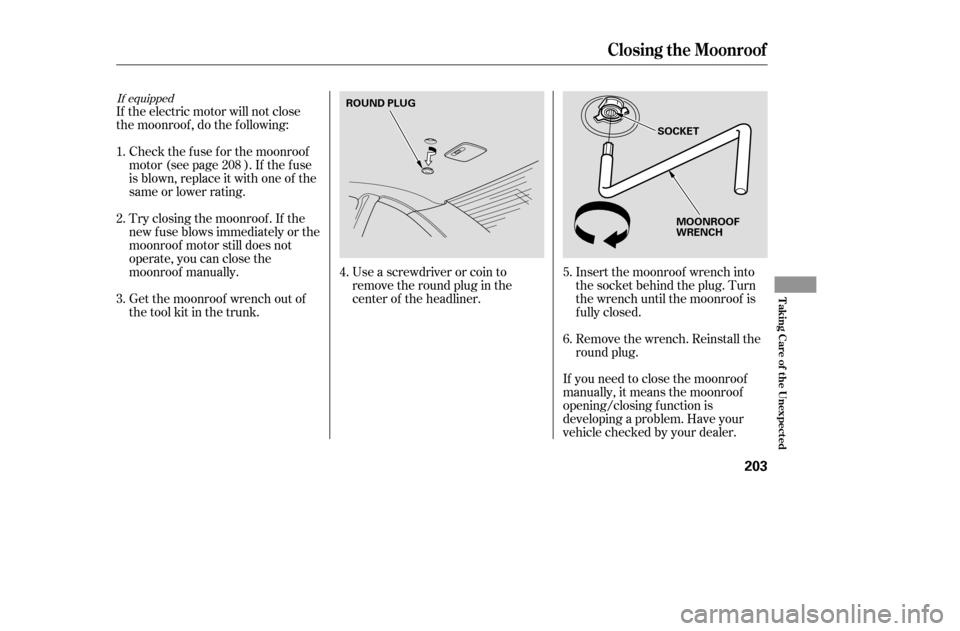

Use a screwdriver or coin to
remove the round plug in the
center of the headliner.Remove the wrench. Reinstall the
round plug.
If the electric motor will not close
the moonroof , do the f ollowing:
Check the f use f or the moonroof
motor (see page ). If the f use
is blown, replace it with one of the
same or lower rating.
Try closing the moonroof . If the
new f use blows immediately or the
moonroof motor still does not
operate, you can close the
moonroof manually.
Get the moonroof wrench out of
the tool kit in the trunk. Insert the moonroof wrench into
the socket behind the plug. Turn
the wrench until the moonroof is
f ully closed.
If you need to close the moonroof
manually, it means the moonroof
opening/closing f unction is
developing a problem. Have your
vehicle checked by your dealer.
5. 6.
4.
1.2. 3. 208
If equipped
Closing t he Moonroof
T aking Care of t he Unexpect ed
203
ROUND PLUG
SOCKET
MOONROOF
WRENCH
——y

y
(%yy

Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Remove the cover f rom the f use
box.
The vehicle’s f uses are contained in
two f use boxes.
The under-hood f use box is in the
engine compartment on the
passenger’s side next to the battery.
To open it, push the tabs as shown.If something electrical in your
vehicle stops working, check f or a
blown f use f irst. Determine f rom the
chart on pages and , or the
diagram on the f use box lid, which
f use or f uses control that device.
Check those f uses f irst, but check all
the f uses bef ore deciding that a
blown f use is the cause. Replace any
blown f uses, and check if the device
works.
The interior f use box is underneath
the steering column. To open it, turn
the knobs as shown. 1. 2.207 208
Fuses
Checking and Replacing Fuses
204
UNDER-HOOD
TAB
INTERIOR
——y

y
(%yy

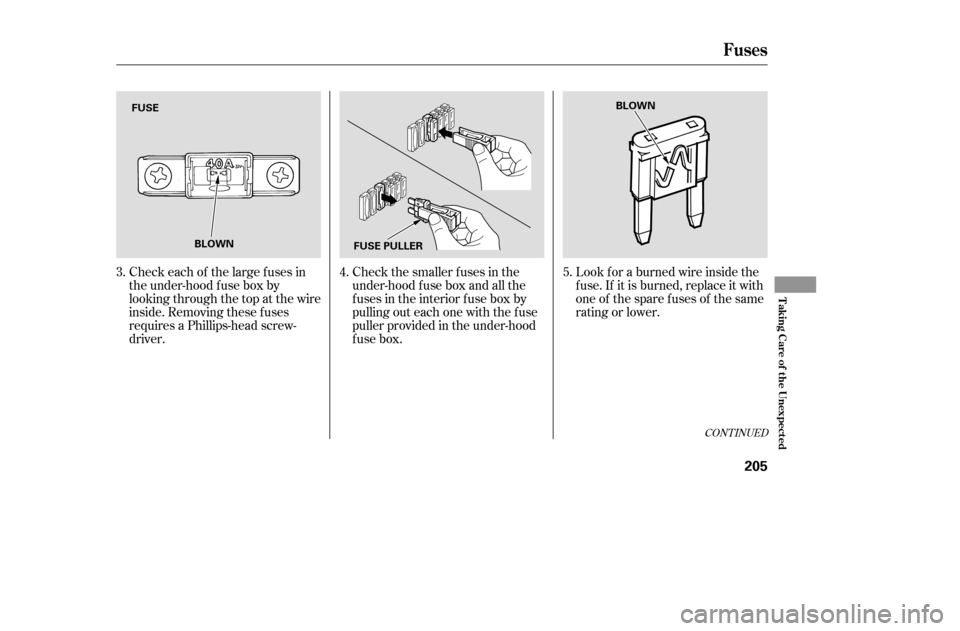

Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse box by
pulling out each one with the f use
puller provided in the under-hood
fuse box.Look f or a burned wire inside the
f use. If it is burned, replace it with
one of the spare f uses of the same
rating or lower.
Check each of the large f uses in
the under-hood f use box by
looking through the top at the wire
inside. Removing these f uses
requires a Phillips-head screw-
driver. 5.
4.
3.
CONT INUED
Fuses
T aking Care of t he Unexpect ed
205
BLOWN
FUSE PULLER
FUSE
BLOWN
——y
y
(%yy

If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your vehicle.
Leave the blown fuse in that
circuit and have your vehicle
checked by a qualif ied mechanic.
If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.
If the radio f use is removed, the
audio system will disable itself . The
nexttimeyouturnontheradioyou
will see ‘‘ ’’ (except f or
models with in-dash CD changer)/
‘‘CODE’’ (on models with in-dash CD
changer) in the f requency display.
Use the preset buttons to enter the
f ive-digit code (see page ).
When the audio system is disabled,
the clock setting in the audio system
will be canceled. You will need to
reset the clock according to the
instructions in the Features section
on this owner’s manual.
6.
114
Standard f or Value Package, HX, LX, EXand Special Edition models in the U.S.,and DX Special Edition, REVERB, LX
andSimodelsinCanada
On all models
Fuses
206
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
——y
y
(%yy

µ
µ
µ
CONT INUED
No. Amps. Circuits Protected
1 23456789
1011121314151617181920 20 A
15 A
7.5 A
20 A
10 A
15 A
15 A
20 A
10 A
40 A
40 A
40 A
40 A
40 A
20 A
20 A
20 A
80 A
40 A Condenser Fan
Small Light
Interior Light
Cooling Fan
Hazard, Turn Signals
FI ECU (ECM/PCM)
Horn, Brake Light
ABS F/S
Back Up
ABS Motor
Rear Defroster
Heater Motor
Power Window
Option
Lef t Headlight
Door Lock
Right Headlight
Not Used
Battery
Ignition 1
Spare Fuses
21 257.5 A 30 A
Fuse Locations
T aking Care of t he Unexpect ed
207
UNDER-HOOD FUSE BOX
——y
y
(%y
y

µµ µ µ µ
Î Î
Î
No. Amps. Circuits ProtectedNo. Amps. Circuits Protected
: On Canadian models
12345 15 A
20 A
10 A
10 A
Ignition Coil
LAF Heater
Daytime Running Lights
Alternator
Not Used 6789
1011 1213141516171819202122232425 7.5 A
20 A
7.5 A 10 A
7.5 A
7.5 A
7.5 A 10 A
10 A
10 A
15 A
15 A
7.5 A 20 A
20 A
20 A Power Window Relay
Moonroof
Accessory, Radio
SIDE SRS
Meter
ABS
Daytime Running Lights
SRS
Power Mirrors
(Security)
Not Used
Fuel Pump
Accessory Power Socket
Turn Signal Lights
Front Wipers
Not Used
Front Right Power Window
Front Left Power Window
Not Used
Not Used
Fuse Locations
208

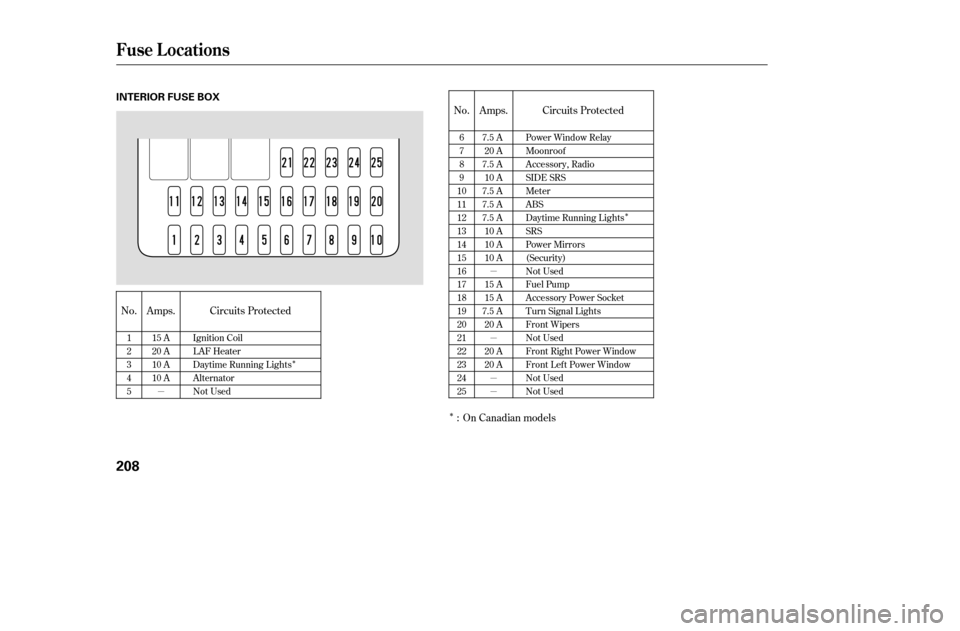

INTERIOR FUSE BOX
——y
y
(%y

y

µµ
CONT INUED
If , due to damage, your vehicle must
be towed with the f ront wheels on
the ground, do the f ollowing:
If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous. There are two ways to
tow your vehicle.
The operator
loads your vehicle on the back of a
truck.
The tow
truck uses two pivoting arms that go
under the tires (f ront or rear) and lif t
them of f the ground. The other two
tires remain on the ground. Release the parking brake.
Shif t the transmission to Neutral.
Release the parking brake.
Start the engine.
ShifttoD,thentoN.
Turn of f the engine.
With the f ront wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
If your vehicle is equipped with a
f ront spoiler, remove it bef ore
towing so it is not damaged.
Manual Transmission and Continuously
Variable Transmission (CVT):
Automatic Transmission:
Emergency T owing
Flat -bed Equipment
Wheel-lif t Equipment
This is the best way to trans-
port your vehicle.
T his is
an acceptable way to tow your
vehicle.
T aking Care of t he Unexpect ed
209
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine (automatic transmission), your
vehicle must be transported with the
f ront wheels of f the ground.
