2005 HONDA CIVIC COUPE Owners Manual

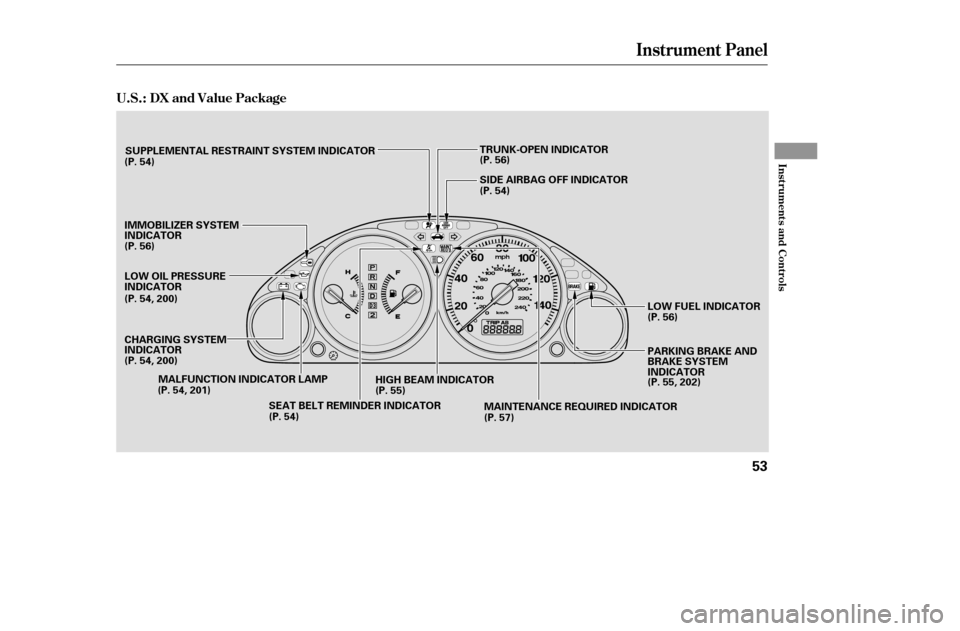

Instrument Panel
U.S.: DX and Value Package
Inst rument s and Cont rols
53
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
IMMOBILIZER SYSTEM
INDICATOR
LOW OIL PRESSURE
INDICATOR
MAINTENANCE REQUIRED INDICATOR
TRUNK-OPEN INDICATOR
PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR
HIGH BEAM INDICATOR LOW FUEL INDICATOR
CHARGING SYSTEM
INDICATOR MALFUNCTION INDICATOR LAMP SIDE AIRBAG OFF INDICATOR
(P. 54)
(P. 56)
(P. 54, 200)
(P. 54, 200)
(P. 54)
SEAT BELT REMINDER INDICATOR (P. 55)
(P. 57) (P. 55, 202)
(P. 56)
(P. 54)
(P. 56)
(P. 54, 201)
——y
y
(%yy

The instrument panel has many
indicators to give you important
inf ormation about your vehicle.If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page .
This indicator comes on when you
turn the ignition switch to ON (II). It
reminds you and your passengers to
f asten your seat belts. A beeper also
sounds if you have not f astened your
seat belt.
If you turn the ignition switch to ON
(II) bef ore f astening your seat belt,
the beeper sounds and the indicator
f lashes. If you do not f asten your
seat belt bef ore the beeper stops, the
indicator stops f lashing but remainson.
If you continue driving without
f astening your seat belt, the beeper
sounds and the indicator f lashes
again at regular intervals. This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates a potential problem with
your f ront airbags or automatic seat
belt tensioners. On models equipped
with side airbags, this indicator will
also alert you to a potential problem
with your side airbags or passenger’s
side airbag automatic cutoff system.
For more inf ormation, see page .
This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For more inf ormation, see page .
The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more inf ormation, see page .
See page .
200
200
201
25
26
If equipped
Supplemental Restraint
System Indicator Charging System
Indicator
L ow Oil Pressure
Indicator
Side Airbag Of f Indicator
Seat Belt Reminder
Indicator
Malf unction Indicator
Lamp
Instrument Panel Indicators
54
——y
y
(%yy

CONT INUED
This indicator has two f unctions:Itcomesonwhenyouturnthe
ignition switch ON (II). It is a
reminder to check the parking
brake. Driving with the parking
brake not f ully released can
damage the brakes and tires.
If it remains lit af ter you have f ully
released the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page . This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II), and when
the ignition switch is turned to
START (III). If it comes on at any
other time, there is a problem with
theABS.If thishappens,haveyour
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock f unction. For more
inf ormation, see page .
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ).
This indicator comes on when you
turn the ignition switch to ON (II)
with the headlight switch off and the
parking brake set. It should go of f if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights.
1. 2.
202 14762
62
If equipped
Canadian models only
Anti-lock Brake System
(A BS) Indicator
Parking Brake and Brake System
Indicator High Beam Indicator
‘‘Daytime Running
Lights’’ Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
55
U.S. Canada
——y
y
(%yy

This indicator comes on if the trunk
lid is not closed tightly.
This indicator comes on as a
reminder that you must ref uel soon.
This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control.
This indicator also blinks several
times when you turn the ignition
switch f rom ON (II) to ACCESSORY
(I) or LOCK (0). This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
(see page ).
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicator does not
blink or blinks rapidly, it usually
means one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the hazard warning
button, both turn signal indicators
blink. All turn signals on the outside
of the vehicle should f lash.
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to ON (II). It will then go of f
if you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink,
and the engine will not start (see
page ).
172
117
67 164
Canadian models only
If equipped
Trunk-open Indicator
Low Fuel Indicator
Washer Level Indicator
Cruise Control Indicator
Immobilizer System
Indicator
Turn Signal and Hazard Warning
Indicators
Instrument Panel Indicators
56
——y

y
(%yy

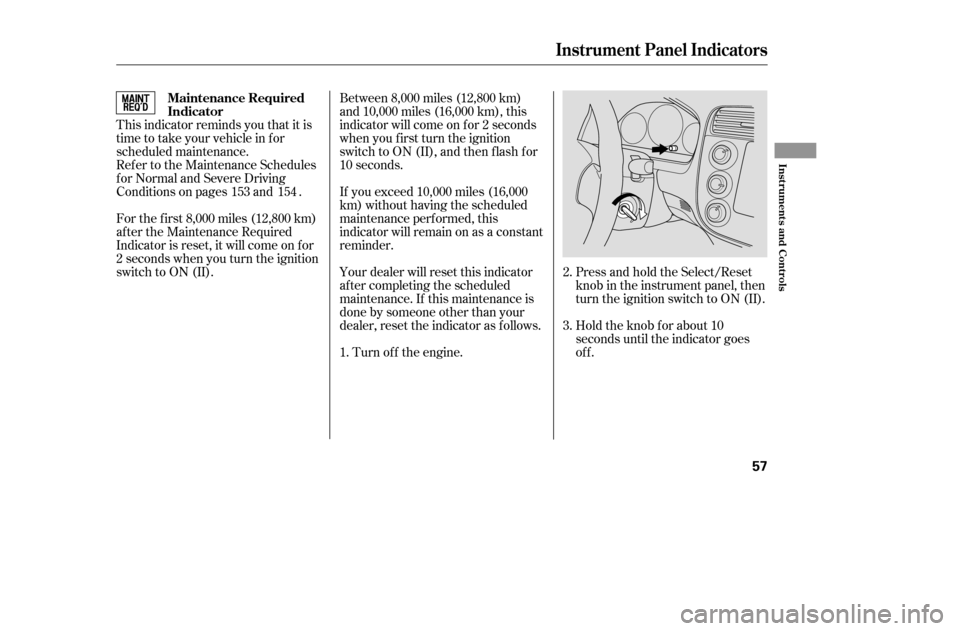

Press and hold the Select/Reset
knob in the instrument panel, then
turn the ignition switch to ON (II).
Hold the knob f or about 10
seconds until the indicator goes
of f .
If you exceed 10,000 miles (16,000
km) without having the scheduled
maintenance perf ormed, this
indicator will remain on as a constant
reminder.
Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
done by someone other than your
dealer, reset the indicator as f ollows.
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance.
Ref er to the Maintenance Schedules
f or Normal and Severe Driving
Conditions on pages and .
For the f irst 8,000 miles (12,800 km)
af ter the Maintenance Required
Indicator is reset, it will come on f or
2 seconds when you turn the ignition
switch to ON (II).
Turn of f the engine.
Between 8,000 miles (12,800 km)
and 10,000 miles (16,000 km), this
indicator will come on f or 2 seconds
when you first turn the ignition
switch to ON (II), and then flash for
10 seconds. 1.
2. 3.
153 154
Maintenance Required
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
57
——y


y
(%yy

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.The odometer and the trip meters
use the same display. Switch
between these displays by pressing
the Select/Reset knob repeatedly.
When you turn the ignition switch to
ON (II), the meter you last selected
is displayed.
The trip meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.There are two trip meters: Trip A
and Trip B. Each trip meter works
independently, so you can keep track
of two dif f erent distances.
To reset a trip meter, display it and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0’’.
Both trip meters will reset if the
vehicle’s battery goes dead or is
disconnected.
This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
Gauges
Odometer/T rip Meter
Fuel Gauge

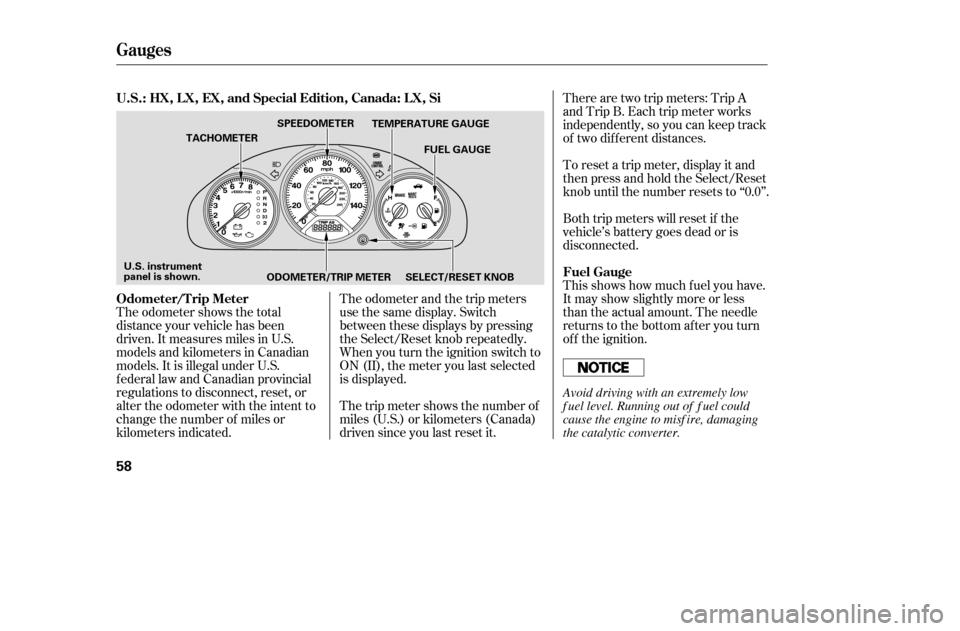

U.S.: HX, L X, EX, and Special Edition, Canada: L X, Si
58
TEMPERATURE GAUGE
FUEL GAUGE
ODOMETER/TRIP METER
TACHOMETER
SPEEDOMETER
SELECT/RESET KNOB
U.S. instrument
panel is shown.
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
——y

y
(%y
y

This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, such as
very hot weather or a long period of
uphill driving, the pointer may rise to
the upper zone. If it reaches the red
(Hot) mark, pull saf ely to the side of
the road. See page f or
instructions and precautions on
checking the engine’s cooling
system.197
Gauges
Temperature Gauge
U.S. DX, Value Package
Canada: DX, DX Special Edition, REVERB
Inst rument s and Cont rols
59
SPEEDOMETER
SELECT/RESET KNOB
TACHOMETER
TEMPERATURE
GAUGE
ODOMETER/TRIP METER FUEL GAUGE
FUEL GAUGE
SPEEDOMETER
TEMPERATURE
GAUGE
ODOMETER/TRIP METER SELECT/RESET KNOB
——y

y
(%yy

Î
Î
To use the horn, press the center pad of the steering wheel.

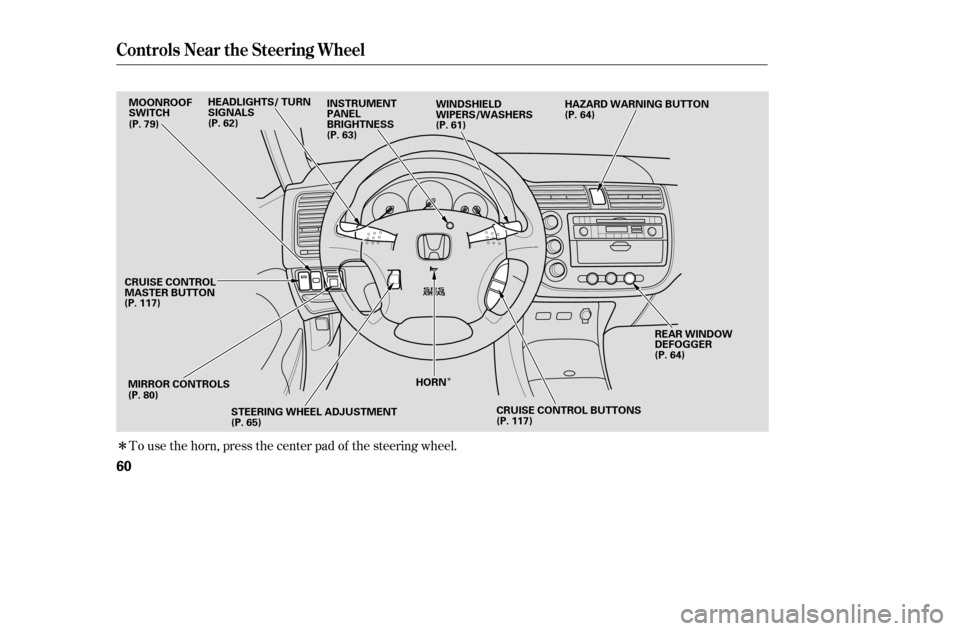

Controls Near the Steering Wheel
60
MIRROR CONTROLSREAR WINDOW
DEFOGGER
WINDSHIELD
WIPERS/WASHERS
MOONROOF
SWITCH
(P. 117) (P. 80) STEERING WHEEL ADJUSTMENT
(P. 65) (P. 64)
(P. 64)
(P. 61)
(P. 79)
HORNHAZARD WARNING BUTTON
INSTRUMENT
PANEL
BRIGHTNESS
(P. 63)
HEADLIGHTS/ TURN
SIGNALS
(P. 62)
CRUISE CONTROL BUTTONS
(P. 117)
CRUISE CONTROL
MASTER BUTTON
