If you decide to tow your vehicle
with all f our wheels on the ground,
make sure you use a properly-
designed and attached tow bar.
Prepare the vehicle for towing as
described previously, and leave the
ignition switch in the ACCESSORY
(I) position so the steering wheel
does not lock. Make sure the radio
and any items plugged into the
accessory power socket are turned
of f so they do not run down the
battery.
Emergency T owing
210
Trying to lif t or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight.The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns f reely bef ore you begin
towing.
——y
y
(%y
y

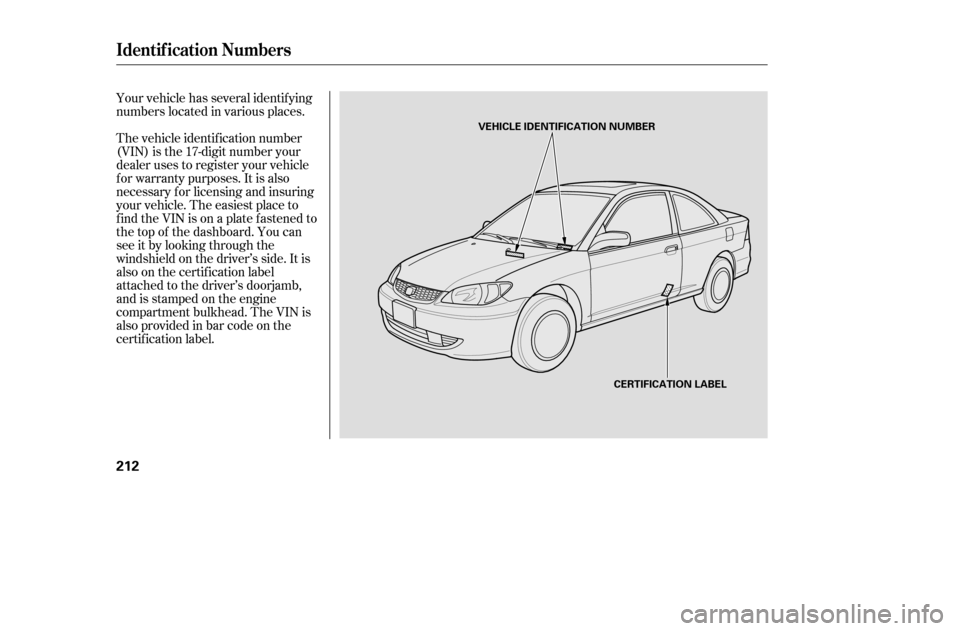

Your vehicle has several identif ying
numbers located in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
Identif ication Numbers
212
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL
——y

y
(%y
y

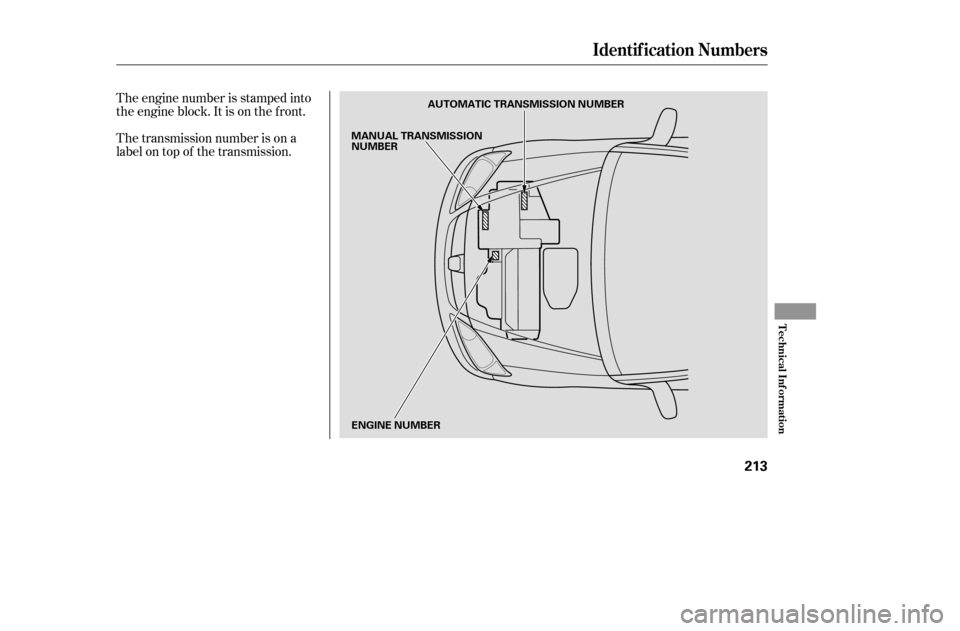

The engine number is stamped into
the engine block. It is on the f ront.
The transmission number is on a
label on top of the transmission.
Identif ication Numbers
T echnical Inf ormation
213
AUTOMATIC TRANSMISSION NUMBER
ENGINE NUMBER
MANUAL TRANSMISSION
NUMBER
——y
y
(%y
y

ÎÎÎ Î Î Î
Î ÎÎÎ
Î Î
Î
ÎÎ
Î Î Î Î
´ ´
Specif ications
214
Dimensions
Weights
EngineCapacities
Capacities 174.7 in (4,438 mm)
66.7 in (1,695 mm)
55.1 in (1,399 mm)
103.1 in (2,620 mm)
57.9 in (1,470 mm)
57.9 in (1,470 mm)
2.95 x 3.72 in (75.0 x 94.4 mm) 102 cu-in (1,668 cm
)
9.5 9.9
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb.
Water cooled 4-stroke
SOHC , SOHC VTEC
4-cylinder gasoline engine
NGK:
DENSO:
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Spark plug Gap
PZFR6F-11 PKJ20CR-M11
0.04 in (1.1 mm) Engine
coolant
Engine oil Automatic
transmission
fluid
13.2 US gal (50
)
Fuel tank 1.03 US gal (3.9
)
1.00 US gal (3.8)
1.00 US gal (3.8)
1.32 US gal (5.0
)
1.29 US gal (4.9)
1.29 US gal (4.9)
3.4 US qt (3.2
)
3.7 US qt (3.5)
3.2 US qt (3.0)
3.5 US qt (3.3)
4.4 US qt (4.2)
1.6 US qt (1.5)
1.7 US qt (1.6)
2.9 US qt (2.7)
3.4 US qt (3.2)
6.3 US qt (6.0)
6.0 US qt (5.7)
2.6 US qt (2.5)
4.8 US qt (4.5)
Including the coolant in the reserve tank and that remaining in
the engine.
Reserve tank capacity: 0.108 US gal (0.41
)
Excluding the oil remaining in the engine.
Front Rear
Approx. 7:
1: 2:
U.S: DX, Value Package, LX, LX Special Edition
Canada: DX, LX, REVERB
U.S.: HX, EX, EX Special Edition
Canada: Si Change
ManualAutomaticCVT
Total ManualAutomaticCVT
Change
Including
filter
Without filter
Total
ChangeTotal
Change Total
U.S. Vehicles
HX
3: 4: 5: 6:
U.S.: DX, Value Package, LX, LX Special Edition
Canada: DX, LX, REVERB
U.S.: HX, EX, EX Special Edition Canada: Si
12
12 3 4
5 656
7 7
Manual trans-
mission fluid
Canada Vehicles
Windshield
washer reservoir0
0.1 mm
——y
y
(%y
y

µµµ
µµ
Î ÎÎÎ Î
µ µµ µ µµµµµµµµµ µ µ
Î Î
Î
Î Î ÎÎÎ
ÎÎ
Specif ications
T echnical Inf ormation
215
Air Conditioning Fuses
Alignment
Tires
Lights Battery HFC-134a (R-134a)
17.6 19.4 oz (500 550 g)
12 V
12 V 60 W
2°14’45’
0°
0.00 in (0.0 mm)
P185/65R15 86H P185/70R14 87S
0.08 in ( 2.0 mm)
12 V
51 W
60 psi (420 kPa , 4.2 kgf/cm
)
30 psi (210 kPa , 2.1 kgf/cm)
T125/70D15 95M
T115/70D14 88M
P195/60R15 87H
Refrigerant type
Charge quantity
Lubricant oil type
Interior
Under-hood
Toe-in
CamberCaster Size
Pressure
24/2.2 CP
See page 208 or the fuse label
attached to the inside of the fuse
box door under the steering
column.
See page 207 or the fuse box
cover.
Headlights (HI)
Headlights (LO)
Front turn signal/Side marker/
Parking light
Rear turn signal lights
Stop/Taillights
Back-up lights
High-mount stop light
License plate lights
Ceiling light
Front ceiling light
Spotlights
Trunk light SP-10
12 V 5 W 8W
12 V
12 V 5 W 5W
12 V 10 W
12 V 3CP
12 V 21 W
12 V 18 W
12 V 21/5 W
12 V 21 W
12 V
Capacity 12 V
12 V
38 AH/5 HR
36 AH/5 HR Front Rear
FrontRear
Front
3:4:5:6: 7:
(HB3)
Front/Rear
Spare
Front/Rear
Spare
(HB4)
U.S.: DX, Value Package, HX Canada: DX
Canada: LX
U.S.: LX, EX, Special Edition Canada: Si, REVERB
1 : U.S.: EX, EX Special Edition
Canada : Si
2 : LX, LX Special Edition
U.S.: DX, Value Package, HX, LX and LX Special Edition
Canada : DX, LX, REVERB
U.S.: LX with ABS, EX, Special Edition
Canada: LX with ABS, Si
112 345
67
——y
y
(%y
y

µ
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
Quality grades can be f ound where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example: The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices, and dif f erences in
road characteristics and climate.The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades. Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A Treadwear Traction AA, A, B, C
DOT T ire Quality Grading (U.S. Vehicles)
216
——y
y
(%y
y

µ
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance which all passenger car
tires must meet under the Federal
Motor Vehicle Saf ety Standard No.
109. Grades B and A represent
higher levels of perf ormance on the
laboratory test wheel than the
minimum required by law. Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not over-
loaded. Excessive speed, underinf la-
tion, or excessive loading, either
separately or in combination, can
cause heat buildup and possible tire
f ailure.
Temperature A,B,C
DOT T ire Quality Grading (U.S. Vehicles)
T echnical Inf ormation
217
——y
y
(%yy

µ
µ
µ µ
µ
µ µ µ µ
µ µ µ
µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial). Rim diameter in inches.
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Load index (a numerical code
associated with the maximum
load the tire can carry).
Tire type code.
Date of manuf acture.
Max Press The maximum air
pressurethetirecanhold.
Max Load The maximum load the
tire can carry at maximum air
pressure.
Tire Identif ication Number (TIN) is
a group of numbers and letters that
look like the f ollowing example TIN.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Manuf acturer’s
identification mark.
B97R FW6X 2202
DOT
R
P 195 60 1587 HTire Size
Maximum T ire Pressure
Maximum T ire L oad
T ire Ident if icat ion Number
Tire Labeling
218
P195/60R15 87H
DOT B97R FW6X 2202
