2005 HONDA CIVIC COUPE Owners Manual

Error MessageSolution
CauseExcept f or models with in-dash CD
changer
If you see an error message in the
display while playing a disc, f ind the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to your dealer.Press the magazine eject button and pull it out.
If the message does not disappear or the
magazine cannot be pulled out, see your dealer.
Insert disc.
Press the magazine eject button and pull it out,
check f or an error message, and insert the
magazine again. If the message does not
disappear or the magazine cannot be pulled out,
see your dealer.
Will disappear when the temperature returns to
normal.
Insert disc magazine.
FOCUS Error
No disc in the disc magazine
Mechanical Error
High temperature
No disc magazine in the
disc changer
CD Changer Error Messages
110
——y

y
(%y

y

Playing a T ape (Opt ional)
Features
111
FF BUTTON
REW BUTTON
CD/TAPE BUTTON
AM/FM BUTTON
SKIP BARCD/TAPE BUTTON
SKIP BAR REW BUTTON FF BUTTON
PLAY/PROG BUTTON REPEAT INDICATOR
DOLBY INDICATOR
AM/FM BUTTON PLAY/PROG BUTTON
DX model REPEAT BUTTON
POWER/VOLUME KNOB NOISE REDUCTION BUTTONDOLBY INDICATOR
REPEAT BUTTON
NOISE REDUCTION BUTTON
POWER/VOLUME KNOB
U.S.: Value Package, HX, LX, EX models
Canada:DX Special Edition, LX, Si- G models
——y
y
(%y

y

µ
µ
Û
Î
Î
To switch to the radio or CD player
while a tape is playing, press the
AM/FM or CD/TAPE button. To
change back to the tape player, press
the CD/TAPE button.
To rewind the tape,
push the REW button. You will see
REW in the display. To f ast f orward
the tape, push the FF button. You
will see FF displayed. Press the FF,
REW, or PLAY/PROG button to
take the system out of rewind or fast
forward.
Press button to find
the beginning of the current song or
passage. Press button to f ind
the beginning of the next song or
passage. When the system reaches
the beginning of a song or passage, it
begins to play it.
The ignition switch must be in
ACCESSORY (I) or ON (II). Make
sure the open side of the tape is
facing right, then insert the tape
most of the way into the slot. The
system will pull the tape in the rest
of the way, and begin to play it.
The tape direction indicator will
come on to show you which side of
the tape is playing. The indicates
the side you inserted upward is now
playing. If you want to play the other
side, press the PLAY/PROG button.
When the player reaches the end of
the tape, it will automatically reverse
direction and play the other side. Dolby noise reduction turns on
when you insert a tape. The
indicator will come on in the
display. If the tape was not recorded
in Dolby, turn it of f by pressing the
NR button. Dolby remains of f until
you press the NR button again.
To remove the tape, press the eject
button on the tape player. If you
want to turn the player off, press the
Power/Volume knob or turn of f the
ignition. The tape will remain in the
drive. When you turn the system
back on, the tape will begin playing
where it lef t of f .
Tape player is optional except f or
models with in-dash CD changer.
Dolby noise reduction is manuf actured under
license from Dolby Laboratories Licensing
Corporation. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
To Play a Tape
To Stop Playing a TapeT ape Search Functions
FF/REW
SK IP
Playing a T ape (Opt ional)
112
——y
y
(%y

y

µPress the RPT button
to continuously play a song or
passage. You will see RPT displayed.
The track will repeat until you press
the RPT button again.
The SKIP and REPEAT
f unctions use silent periods on the
tape to find the end of a song or
passage. These f eatures may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection. Thetapeplayerpicksupdirtand
oxides f rom the tape. This
contamination builds up over time
and causes the sound quality to
degrade. To prevent this, you should
clean the player af ter every 30 hours
of use.
If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your dealer has a
cleaning kit available.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam the drive.
If the tape is loose, tighten it by
turning the hub with a pencil or your
f inger. If the label is peeling of f ,
remove it or it could cause the
cassette to jam in the player. Never
try to insert a warped or damagedcassette in the player.
Store tapes in their cases to protect
them f rom dust and moisture. Never
place tapes where they will be
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature bef ore
inserting it into the player.
Never try to insert f oreign object
into the tape player.
REPEAT Caring f or the Tape and Player
Playing a T ape (Opt ional)
Features
113
NOTE:
——y
y
(%y

y

Your vehicle’s audio system will
disable itself if it is disconnected
f rom electrical power f or any reason.
To make it work again, the user
must enter a specif ic f ive-digit code
in the Preset buttons. Because there
are hundreds of number
combinations possible f rom the f ive-
digits, making the system work
without knowing the exact code is
nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system’s code and
serial numbers. It is best to store this
card in a saf e place at home. In
addition, you should write the audio
system’s serial number in this
Owner’s Manual.
If you lose the card, you must obtain
the code number f rom a dealer. Todo this, you will need the system’s
serial number.
If your vehicle’s battery is
disconnected or goes dead, or the
radio f use is removed, the audio
system will disable itself . If this
happens, you will see ‘‘ ’’
(except for models with
in-dash CD changer)/‘‘CODE’’
(on models with in-dash CD
changer) in the f requency display
the next time you turn on the system.
Use the preset buttons to enter the
f ive-digit code. The code is on the
radio code card included in your
Owner’s Manual kit. When it is
entered correctly, the radio will start
playing.
If you make a mistake entering the
code, do not start over; complete the
f ive-digit sequence, then enter the
correct code. You have ten tries to
enter the correct code. If you are
unsuccessful in ten attempts, youmust then leave the system on for 1
hour bef ore trying again.
You will have to store your favorite
stations in the preset buttons after
the system begins working. Your
original settings were lost when the
power was disconnected.
Standard f or Value Package, HX, LX, EX
and Special Edition models in the U.S.,and DX Special Edition, REVERB, LXandSimodelsinCanada
Radio T hef t Prot ect ion
114
——y
y
(%y

y

CONT INUED

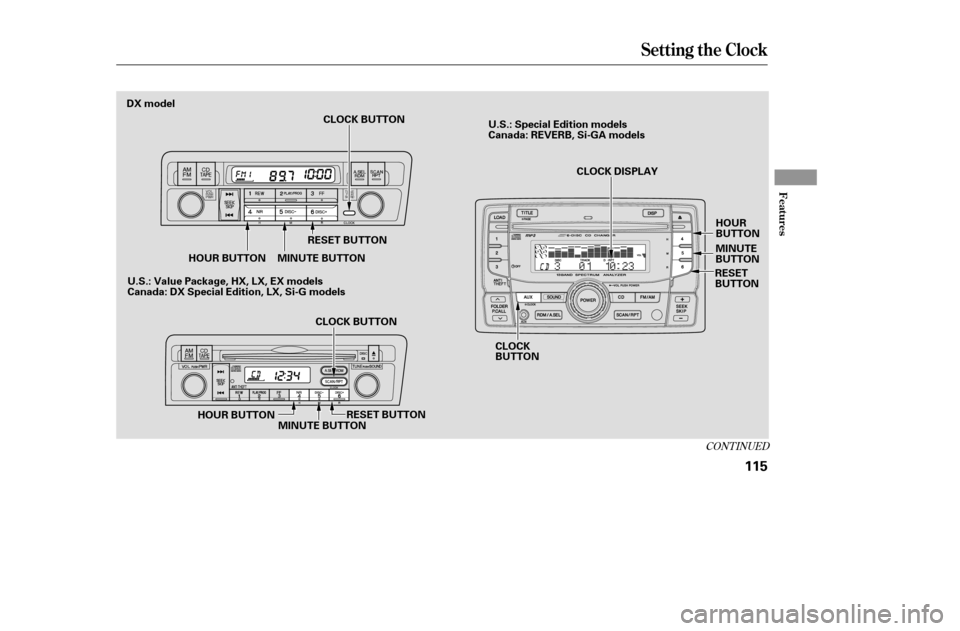

Setting the Clock
Features
115
DX modelCLOCK BUTTON
RESET BUTTON
MINUTE BUTTON
HOUR BUTTON
CLOCK BUTTON
HOUR BUTTON MINUTE BUTTONRESET BUTTON CLOCK
BUTTONCLOCK DISPLAY
HOUR
BUTTON
MINUTE
BUTTON
RESET
BUTTON
U.S.: Special Edition models
Canada: REVERB, Si-GA models
U.S.: Value Package, HX, LX, EX models
Canada: DX Special Edition, LX, Si-G models
——y

y
(%y

y

If your vehicle’s battery is
disconnected or goes dead, you will
need to set the clock.
To set the time, press the CLOCK
(SCAN/RPT, AUX) button until you
hear a beep, then release the button.
The displayed time begins to blink.
Change the hours by pressing the H
(preset 4) button until the numbers
advance to the desired time. Change
the minutes by pressing the M
(preset 5) button until the numbers
advance to the desired time.
Press the CLOCK (SCAN/RPT,
AUX) button again to enter the set
time. On models with in-dash CD
changer, press the CLOCK button
until you hear a beep.You can quickly set the time to the
nearest hour. If the displayed time is
bef ore the half hour, pressing the
CLOCK (SCAN/RPT, AUX) button
until you hear a beep, then pressing
the R (preset 6) button sets the clock
back to the previous hour. If the
displayed time is af ter the half hour,
the clock sets forward to the
beginning of the next hour.
For example: 1:06 will reset to 1:00
1:52 will reset to 2:00
You can set the time only when the
clock is displayed.
To set the hours, press and hold the
CLOCK button, then press the H
(preset 4) button until the numbers
advance to the desired time. To set
theminutes,pressandholdthe
CLOCK button, then press the M
(preset 5) button until the numbers advance to the desired time.
To quickly set the time to the
nearest hour, press and hold the
CLOCK button, then press the R
(preset 6) button.
To turn of f the clock display, press
the CLOCK (AUX) button until you
hear a beep, then press the Preset 3
(Clock Of f ) button. The displayed
time will be turned off.
Toshowthetimeagain,pressthe
CLOCK (AUX) button again until
you hear a beep.
On models with in-dash CD player/
changer
On models without in-dash CD player/changer On models with in-dash CD changer
Setting the Clock
Cancelling Clock Display
116
——y


y
(%y

y

If equipped
Cruise control allows you to maintain
asetspeedabove25mph(40km/h)
without keeping your f oot on the
accelerator pedal. It should be used
f or cruising on straight, open
highways. It is not recommended f or
city driving, winding roads, slippery
roads, heavy rain, or bad weather.Accelerate to the desired cruising
speedabove25mph(40km/h).Press and release the SET/decel
buttononthesteeringwheel.The
indicator on the instrument panel
comes on to show the system is
now activated.
Push in the CRUISE button. The
indicator will come on.
1. 2. 3.
CONT INUED
Cruise Control
Using Cruise Control
Features
117
CANCEL BUTTON
RESUME/ accel
BUTTON
SET/decel
BUTTON
CRUISE BUTTON
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.
