2005 CHEVROLET VENTURE Owners Manual

Replacing the Bucket Seats
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Don’t put the seats in so they face rearward because
they won’t latch that way. If you want more storage room
behind the seat, adjust the seat by sliding it forward.
The bucket seats have seat position labels, located on
the back of the seat, showing where the seat must
go. Follow that diagram. The seat must be placed in the
proper location for the legs to attach correctly.
1-19

Make sure the seats are in the full rear position before
beginning this procedure.
1. With the seat folded, squeeze the angled bar
toward the straight crossbar while placing the
front hooks of the bucket seat onto the
front two oor pins.
2. Make sure the bucket
seat is angled so that
the front hooks
clear the oor pins.
If the front legs are not attached correctly, the rear
legs will not attach to the rear set of oor pins.
If the front latches are not attaching correctly, check
that the seat is in the full rear position.3. Firmly push the rear hooks onto the rear oor pins
by pushing down the rear of the seat.
4. Try to raise the seat to check that it is locked down.
5. Lift the seatback recliner lever or pull the nylon
strap on the back of the seat and raise the
seatback until it locks upright.
6. Push and pull on the seatback to make sure that it
is locked in place.
1-20

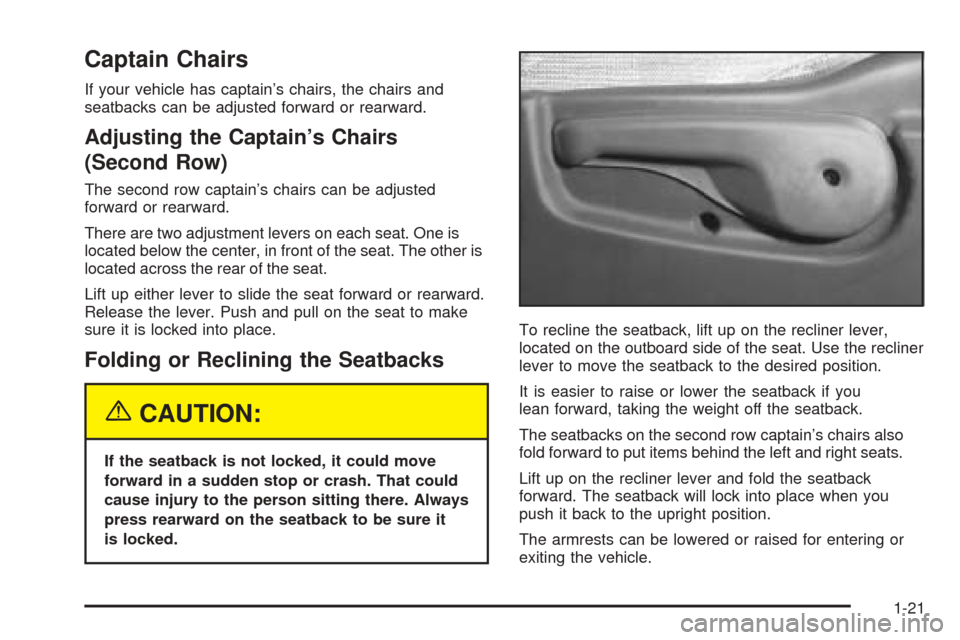

Captain Chairs
If your vehicle has captain’s chairs, the chairs and
seatbacks can be adjusted forward or rearward.
Adjusting the Captain’s Chairs
(Second Row)
The second row captain’s chairs can be adjusted
forward or rearward.
There are two adjustment levers on each seat. One is
located below the center, in front of the seat. The other is
located across the rear of the seat.
Lift up either lever to slide the seat forward or rearward.
Release the lever. Push and pull on the seat to make
sure it is locked into place.
Folding or Reclining the Seatbacks
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.To recline the seatback, lift up on the recliner lever,
located on the outboard side of the seat. Use the recliner
lever to move the seatback to the desired position.
It is easier to raise or lower the seatback if you
lean forward, taking the weight off the seatback.
The seatbacks on the second row captain’s chairs also
fold forward to put items behind the left and right seats.
Lift up on the recliner lever and fold the seatback
forward. The seatback will lock into place when you
push it back to the upright position.
The armrests can be lowered or raised for entering or
exiting the vehicle.
1-21

Removing the Captain’s Chairs
1. Pull the nylon strap behind the chair to release the
rear hooks from the oor pins.2. The seat can then be lifted off the front oor pins
and removed from the vehicle.
1-22

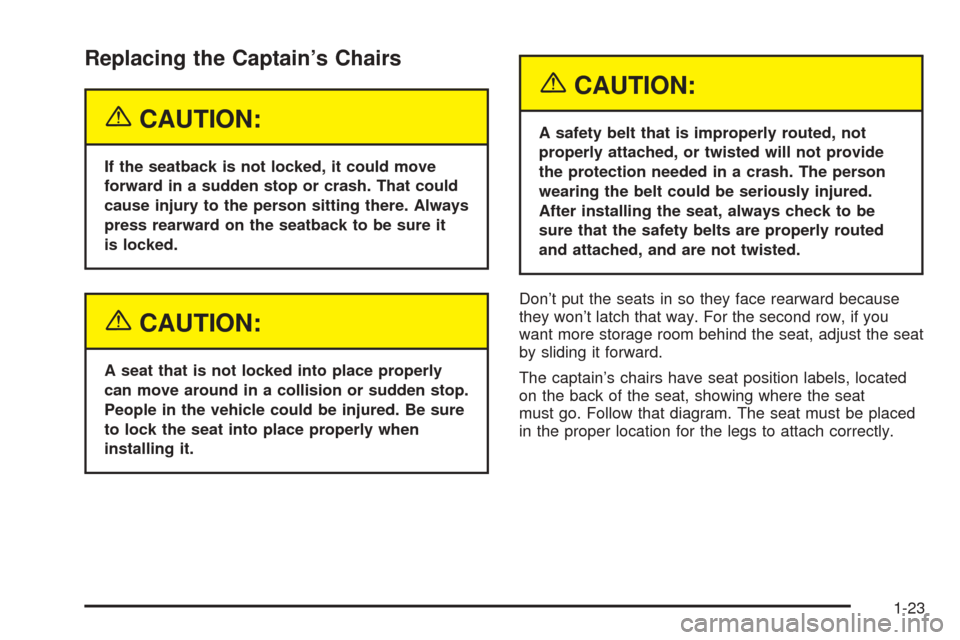

Replacing the Captain’s Chairs
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Don’t put the seats in so they face rearward because
they won’t latch that way. For the second row, if you
want more storage room behind the seat, adjust the seat
by sliding it forward.
The captain’s chairs have seat position labels, located
on the back of the seat, showing where the seat
must go. Follow that diagram. The seat must be placed
in the proper location for the legs to attach correctly.
1-23

Make sure the seatbacks are in the upright position,
the seat belts are on the correct side of the chairs and
the second row captain’s chairs are in the full rear
position before beginning this procedure.
1. Hook the front latches over the front oor pins.2. Push the rear of the seat down to lock the rear
latches onto the rear set of oor pins.
3. Push and pull on the seat to be sure it is properly
attached.
1-24

Stowable Seat
Your vehicle may have a stowable seat. The stowable
seat is a full bench seat and comes with the convenience
center. SeeConvenience Center on page 2-53for more
information. The stowable seat can be removed and
replaced, or with the seatback folded, it can lie ush with
the convenience center.
Folding the Seatback
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.To fold down the seatback,
pull up on the lever located
on the back of the seat,
and push the seatback
down until it is locked
into place.
Push and pull on the seatback to make sure that it is
locked into place.
To raise the seatback, do one of the following:
From the rear of the vehicle, pull up on the lever to
release the seatback, then pull the strap located on
the right side of the seat, to pull the seatback up.
The seatback has a patch of hook and loop fastener
to stow the strap on the rear of the seat when not
in use.
From the passenger’s side sliding door, pull up on
the lever to release the seatback, then push up on
the seatback to raise the seat.
Push and pull on the seatback to make sure that it is
locked into the upright position.
1-25

Removing the Stowable Seat
1. Remove the convenience center, if it is in the
vehicle. SeeConvenience Center on page 2-53
for more information.
2. Make sure all items are off of the stowable seat.
3. If the seatback is down, put the seatback in
its upright position before removing the seat.
See “Folding the Seatback” previously in
this section.
4. From behind the bench seat, push up the release
handles at the base of the seat to release the
latches from the oor pins.
5. While holding onto the crossbar at the bottom of the
seat, remove the seat by rocking it slightly toward
the rear of the vehicle and then pulling it out.
This should be done in one motion.
Notice:If you use the release handles to remove
the seat, the handles could break, and the repairs
would not be covered by your warranty. Use the
crossbar located at the seat bottom to remove
the seat.
1-26
