2005 CHEVROLET VENTURE Owners Manual

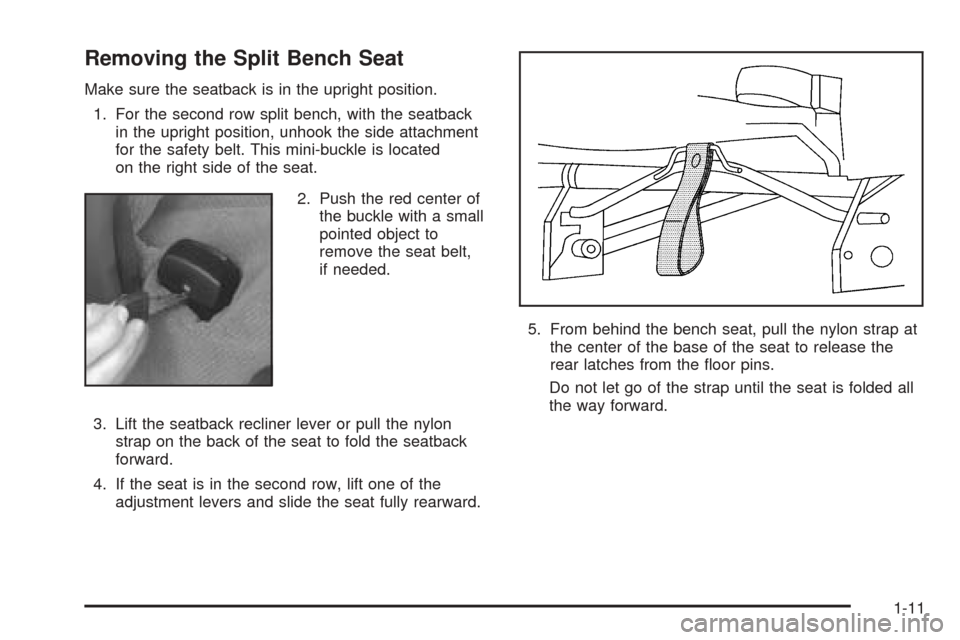

Removing the Split Bench Seat
Make sure the seatback is in the upright position.
1. For the second row split bench, with the seatback
in the upright position, unhook the side attachment
for the safety belt. This mini-buckle is located
on the right side of the seat.
2. Push the red center of
the buckle with a small
pointed object to
remove the seat belt,
if needed.
3. Lift the seatback recliner lever or pull the nylon
strap on the back of the seat to fold the seatback
forward.
4. If the seat is in the second row, lift one of the
adjustment levers and slide the seat fully rearward.5. From behind the bench seat, pull the nylon strap at
the center of the base of the seat to release the
rear latches from the oor pins.
Do not let go of the strap until the seat is folded all
the way forward.
1-11

6. To unlatch the front latches, squeeze the angled
bar toward the straight crossbar.
7. Remove the seat by rocking it slightly forward, then
toward the rear of the vehicle and then pulling it out.
Repeat these steps for the other section of the split
bench seat.
Replacing the Split Bench Seats
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
1-12

{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Make sure the seatback is in the upright position and
the safety belts are on the correct section of the seat.
Don’t put the sections of the bench seat in so they face
rearward because they won’t latch that way. If you
want more storage room behind the second row seat,
adjust each section by sliding it forward.
The split bench seats have seat position labels, located
on the back of each seat, showing where the seat
must go. Follow that diagram.The seat must be placed in the proper location for the
legs to attach correctly.
Make sure the seat is in the full rear position before
beginning this procedure.
1. Squeeze the angled bar toward the solid crossbar
while placing the front hooks of the bench seat onto
the front two oor pins.
1-13

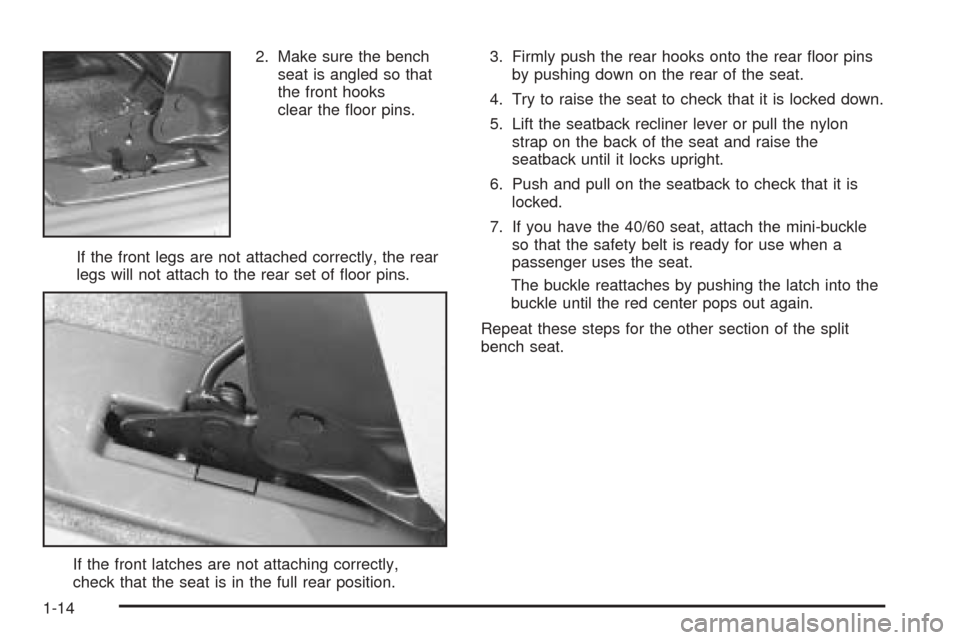

2. Make sure the bench
seat is angled so that
the front hooks
clear the oor pins.
If the front legs are not attached correctly, the rear
legs will not attach to the rear set of oor pins.
If the front latches are not attaching correctly,
check that the seat is in the full rear position.3. Firmly push the rear hooks onto the rear oor pins
by pushing down on the rear of the seat.
4. Try to raise the seat to check that it is locked down.
5. Lift the seatback recliner lever or pull the nylon
strap on the back of the seat and raise the
seatback until it locks upright.
6. Push and pull on the seatback to check that it is
locked.
7. If you have the 40/60 seat, attach the mini-buckle
so that the safety belt is ready for use when a
passenger uses the seat.
The buckle reattaches by pushing the latch into the
buckle until the red center pops out again.
Repeat these steps for the other section of the split
bench seat.
1-14

Bucket Seats
If your vehicle has the bucket seats, the seatbacks can
be folded down or reclined. The seats can also be
adjusted forward or rearward and removed.
One of the bucket seats may be equipped with a built-in
child restraint. SeeBuilt-In Child Restraint on page 1-67.
Adjusting the Bucket Seats
There are two adjustment levers on each seat to adjust
the seat forward or rearward.
One is located below the center, in front of the
bucket seats.The other lever is
located on the rear of the
bucket seat.
Lift up either lever and slide the seat forward or
rearward.
Release the lever. Push and pull on the seat to make
sure it is locked into place.
1-15

Folding or Reclining the Seatbacks
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
The seatback on a bucket seat can be either folded
forward or reclined. The following explains how to use
either the nylon strap or the lever to fold or recline
the seatback.To fold the seatback forward, pull the nylon strap located
on the rear of the seat or lift up on the recliner lever
located on the front of the seatback. The seatback will
lock into place.
To raise a seatback, pull the nylon strap or lift the
recliner lever while raising the seatback until it locks
upright. Push and pull on the seatback to check that it
is locked into place.Nylon Strap
Recliner Lever
1-16

To recline the seatback, pull the nylon strap or lift the
recliner lever. Press back on the seatback until you reach
the desired position, then let go of the strap or lever.
To return the seatback to an upright position, pull on the
nylon strap or lift the recliner lever without putting any
pressure on the seatback. Push and pull on the
seatback to be sure it is locked into place.
Removing the Bucket Seats
Make sure the seatback is in the upright position.
The head restraints should be fully down.
1. Lift the seatback recliner lever or pull the nylon
strap on the back of the seat to fold the seatback
forward.
2. Slide the seat all the way back by lifting either one
of the adjuster levers and sliding the seat fully
rearward.3. From behind the seat, pull the nylon strap, located
at the base of the seat, to release the rear latches
from the oor pins.
1-17

You can also lift the lever on the side of the seat to
release the rear latches from the oor pins.
Do not let go of the strap or lever until the seat is
folded all the way forward.4. To unlatch the front latches, with the seat folded
forward, squeeze the angled bar toward the
straight crossbar.
5. Remove the seat by rocking it slightly forward, then
toward the rear of the vehicle and then pulling it
out. This should be done in one motion.
1-18
