2005 CHEVROLET VENTURE Owners Manual

Front Seats
Manual Seats
Use the lever located on
the front of the seat to
adjust the seat forward or
rearward. Pull up the
lever to unlock the seat.
Slide the seat to where you
want it and release the
lever.
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
To make sure the seat is locked into place, try to move
the seat back and forth with your body.
1-3

Six-Way Power Seats
Your vehicle may have this
feature. If it does, the
six-way power seat control
is located on the outboard
sides of the driver’s and
front passenger’s seats.
Move the front of the control up or down to adjust
the front portion of the cushion up or down.
Move the rear of the control up or down to adjust
the rear portion of the cushion up or down.
Lift up or push down on the whole control to move
the entire seat up or down.
To move the whole seat forward or rearward, slide
the control forward or rearward.
Reclining Seatbacks
To adjust a seatback, pull up on the lever located on
the outboard side of the driver’s or front passenger’s
seats. Release the lever to lock the seatback where you
want it. Push and pull on the seat to make sure it’s
locked into position. Pull up on the lever, and the seat
will go to its original upright position.
1-4

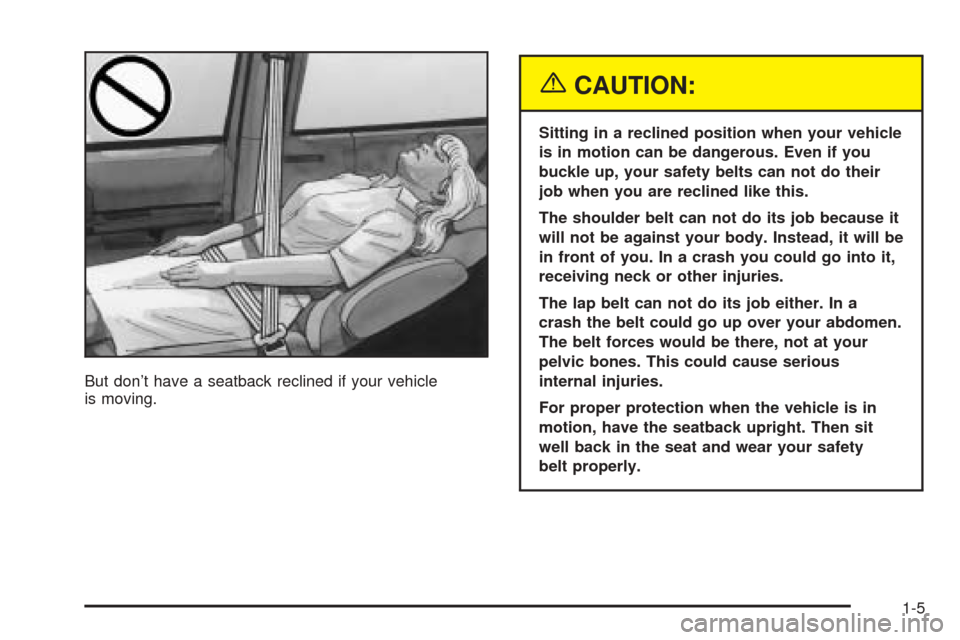

But don’t have a seatback reclined if your vehicle
is moving.
{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts can not do their
job when you are reclined like this.
The shoulder belt can not do its job because it
will not be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can not do its job either. In a
crash the belt could go up over your abdomen.
The belt forces would be there, not at your
pelvic bones. This could cause serious
internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
1-5

Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
Head restraints are xed on some models and
adjustable on others. To adjust a head restraint, slide it
up or down.
Rear Seats
Rear Seat Operation
The rear seats in your vehicle have levers and straps
used to adjust, remove, and reinstall the seats. By using
the levers and straps in the correct order, you can
easily remove the seats from the vehicle.
When you put the seats back in the vehicle, follow the
label on the back of the seat for proper location.
Second Row Safety Belt Stowage
If your vehicle has a split bench seat in the second row,
use the clip on the safety belt to secure the belt after
it is disconnected from the mini-buckle. When removing
the second row split bench seat, secure the loose end
of the safety belt in this clip. This will keep the safety belt
from dangling and possibly striking something.
Do not have the second row outside safety belt stored if
someone is sitting in the second row outside position.
1-6

Flip and Fold Feature
The rear seats in your vehicle can be folded forward.
Use this feature for exiting and entering third row seats.
1. If the seats have the adjustable head restraints,
push them fully down.
2. Fold the seatback at
on the seat, by either
pulling on the nylon
strap on the rear of the
seat or lifting up on
the lever located on the
front of the seatback.
If the seat adjusts, slide
it all the way back.3. Release the rear set of
hooks from the oor
pins by pulling the
nylon strap located at
the base of the seat;
hang on to the strap as
the seat folds forward.
To return the seat(s) to the normal position, do the
following:
1. Push the seat back and rmly push the rear hooks
onto the rear oor pins by pushing down on the
rear of the seat.
2. Try to raise the seat to check that it is locked down.
3. Lift the seatback recliner lever or pull the nylon
strap on the back of the seat and raise the
seatback until it locks upright.
4. Push and pull on the seatback to check that it
is locked.
1-7

Split Bench Seats
If you have the split bench seat (50/50 or 40/60),
the seatbacks can be folded forward or reclined
individually and the seats can be removed individually.
The second row (40/60) sections can also be adjusted
forward or rearward individually.
The second row (40/60) split bench may be equipped
with a built-in child restraint. SeeBuilt-In Child Restraint
on page 1-67.
Adjusting the Split Bench Seats
(Second Row)
The second row bench seats are adjustable. There are
two adjustment levers on each section of the split
bench seats to adjust the seat forward or rearward.One is located below the center, in the front of each
section of the split bench.
1-8

The other lever is located
on the rear of the seat.
Lift up either lever and slide the seat forward or
rearward. Release the lever. Push and pull on the seat
to make sure it is locked into place.Folding or Reclining the Seatbacks
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
The seatbacks on each section of the split bench seat
can be either folded forward or reclined. The following
explains how to use the nylon strap or recliner lever
to fold or recline the seatbacks.
1-9

To fold the seatback forward, pull the nylon strap
located on the rear of the seat or lift up on the recliner
lever located on the front of the seatback. The seatback
will lock into place.To raise a seatback, pull the nylon strap or lift the
recliner lever while raising the seatback until it locks
upright. Push and pull on the seatback to check that it is
locked into place.
To recline the seatback, pull the nylon strap or lift the
recliner lever. Press back on the seatback until you
reach the desired position then let go of the strap
or lever.
To return the seatback to an upright position, pull on the
nylon strap or lift the recliner lever without putting any
pressure on the seatback. Push and pull on the
seatback to be sure it is locked into place.
Nylon Strap
Recliner Lever
1-10
