Safety check

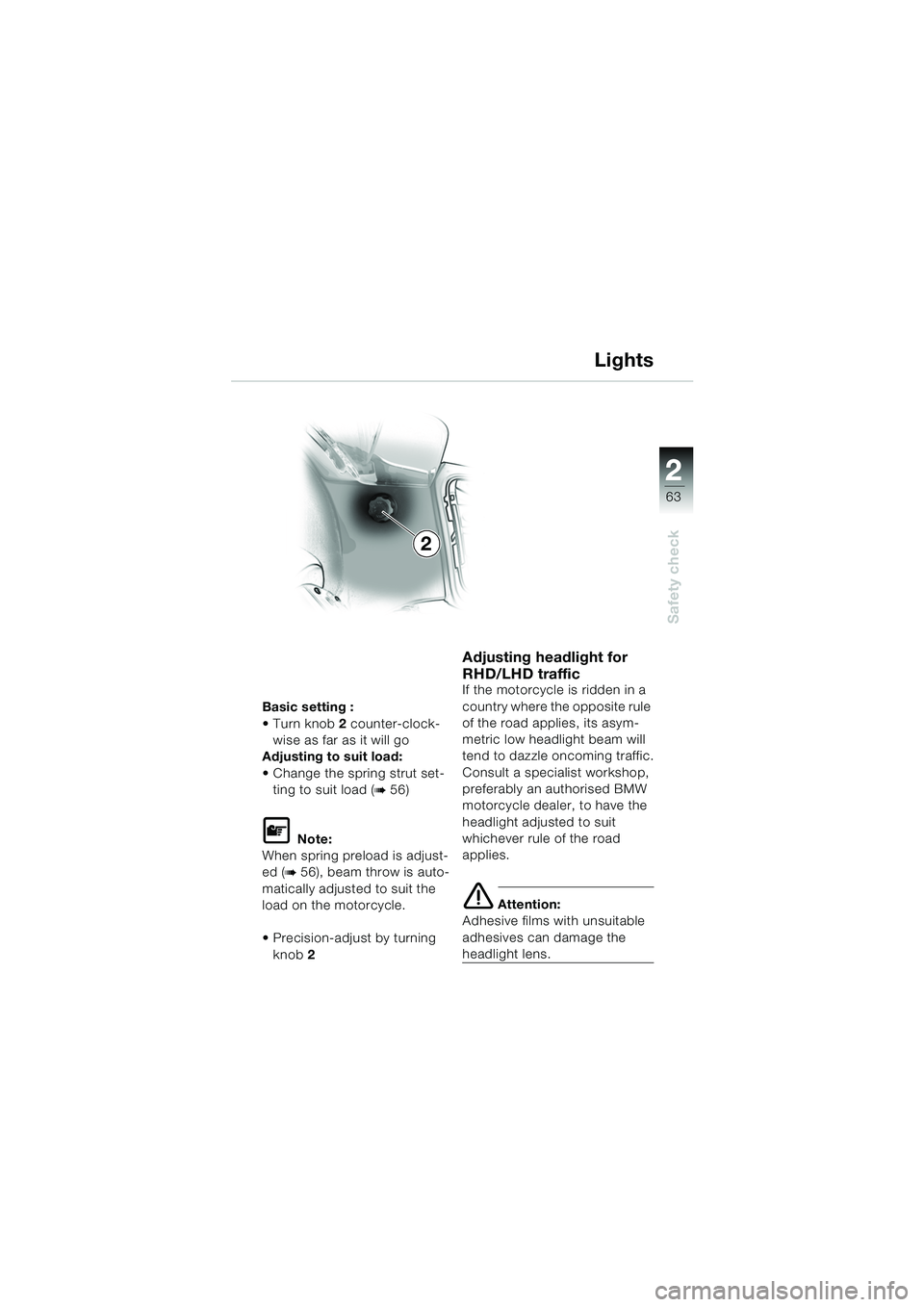

Basic setting :
 Turn knob 2 counter-clock-
wise as far as it will go
Adjusting to suit load:
 Change the spring strut set- ting to suit load (
b56)
L Note:
When spring preload is adjust-
ed (
b56), beam throw is auto-
matically adjusted to suit the
load on the motorcycle.
 Precision-adjust by turning knob 2
Adjusting headlight for
RHD/LHD traffic
If the motorcycle is ridden in a
country where the opposite rule
of the road applies, its asym-
metric low headlight beam will
tend to dazzle oncoming traffic.
Consult a specialist workshop,
preferably an authorised BMW
motorcycle dealer, to have the
headlight adjusted to suit
whichever rule of the road
applies.
e Attention:
Adhesive films with unsuitable
adhesives can damage the
headlight lens.
2 Lights
10LTbkg6.book Seite 63 Freitag, 1. Juli 2005 8:53 08

64
Starting – Riding – Parking
3
First time out
Handling your motorcycle
safely
Each motorcycle has a charac-
ter all its own. It is time now for
you to familiarise yourself with
the way your own motorcycle
behaves:
– acceleration
– roadholding
–cornering
–braking …
These are all things you need to
become familiar with.
Please remember too that if the
motorcycle has not yet covered
1,000 kilometres (600 miles),
the engine is not yet fully run in.
e Attention:
BMW Integral ABS incorporates
a brake booster, so braking ef-
ficiency is significantly higher
than with conventional brake
systems.
d Warning:
The tyres need to cover a cer-
tain distance before they ac-
quire their full road grip
(b74).
If you ride at high speed, always
bear in mind that various
boundary conditions such as
the spring preload setting and
the shock-absorber setting, an
unbalanced luggage load,
loose clothing, low tyre pres-
sure, poor tyre tread, and so on,
can affect the handling of your
motorcycle.
10LTbkg6.book Seite 64 Freitag, 1. Juli 2005 8:53 08

3
65

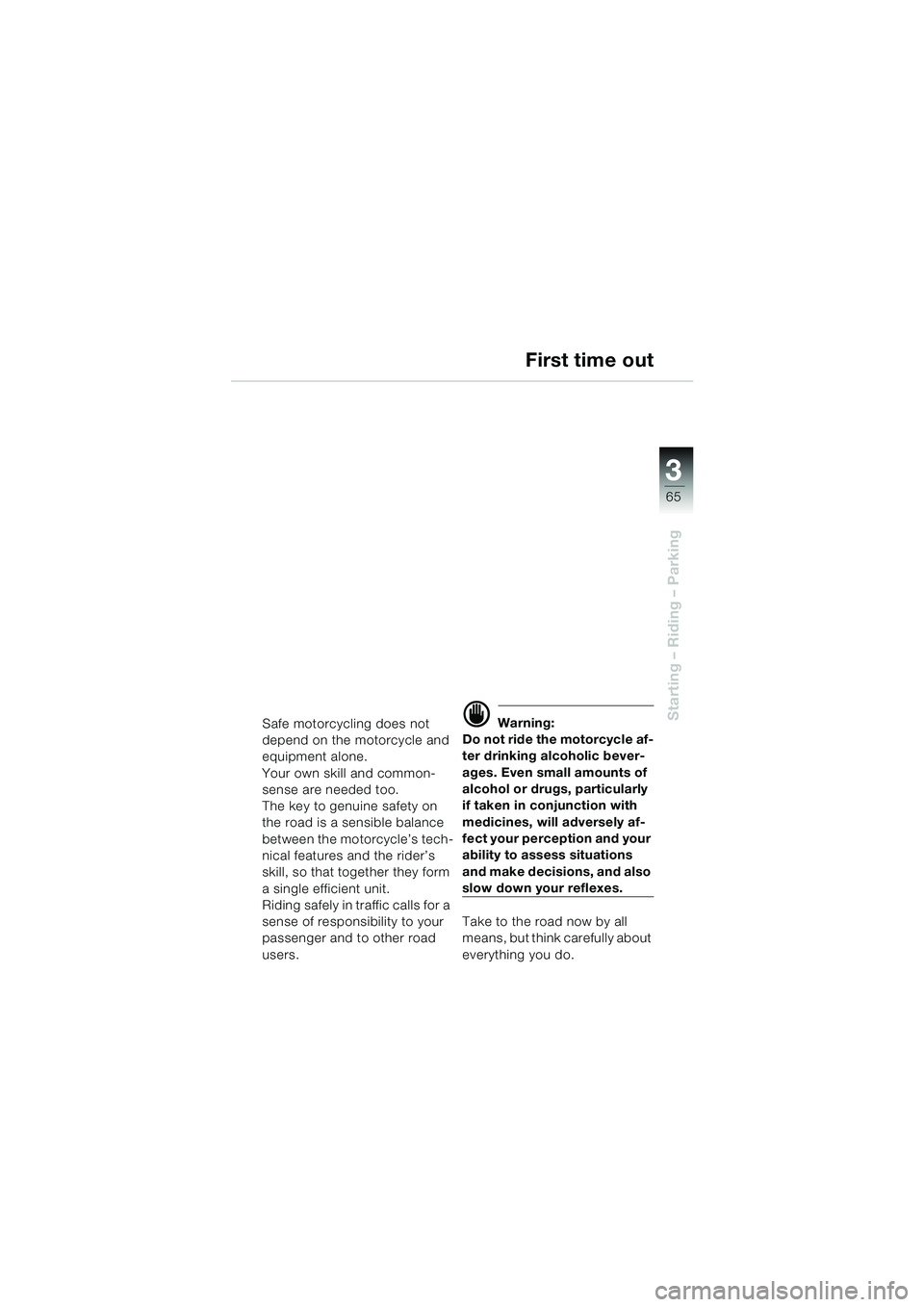

Starting – Riding – ParkingSafe motorcycling does not
depend on the motorcycle and
equipment alone.
Your own skill and common-
sense are needed too.
The key to genuine safety on
the road is a sensible balance
between the motorcycle’s tech-
nical features and the rider’s
skill, so that together they form
a single efficient unit.
Riding safely in traffic calls for a
sense of responsibility to your
passenger and to other road
users.d Warning:
Do not ride the motorcycle af-
ter drinking alcoholic bever-
ages. Even small amounts of
alcohol or drugs, particularly
if taken in conjunction with
medicines, will adversely af-
fect your perception and your
ability to assess situations
and make decisions, and also
slow down your reflexes.
Take to the road now by all
means, but think carefully about
everything you do.
First time out
10LTbkg6.book Seite 65 Freitag, 1. Juli 2005 8:53 08

66
Starting – Riding – Parking
3
Important notes
Risk of fatal accidentYour motorcycle is equipped
with a digital electronic engine
management system and a
high-power ignition system.
d Warning:
When the engine is running or
the ignition switched on, nev-
er touch electrically live parts
of the ignition system or the
digital engine electronics.
BMW Integral ABS
d Warning:
When the ignition is switched
off or if the BMW Integral ABS
fails, only a RESIDUAL BRAK-
ING FUNCTION remains avail-
able for slowing the
motorcycle (
b87).
Under these circumstances
you must apply CONSIDERA-
BLY higher pressure to the
brake levers in order to apply
the brakes, and lever travel is
longer
Risk of poisoningExhaust fumes contain carbon
monoxide, which is colourless
and odourless but highly toxic.
d Warning:
Inhaling the exhaust fumes
therefore represents a health
hazard and can even cause
loss of consciousness with
fatal consequences.
Do not run the engine in an
enclosed space.
10LTbkg6.book Seite 66 Freitag, 1. Juli 2005 8:53 08

3
67
Starting – Riding – Parking
Important notes

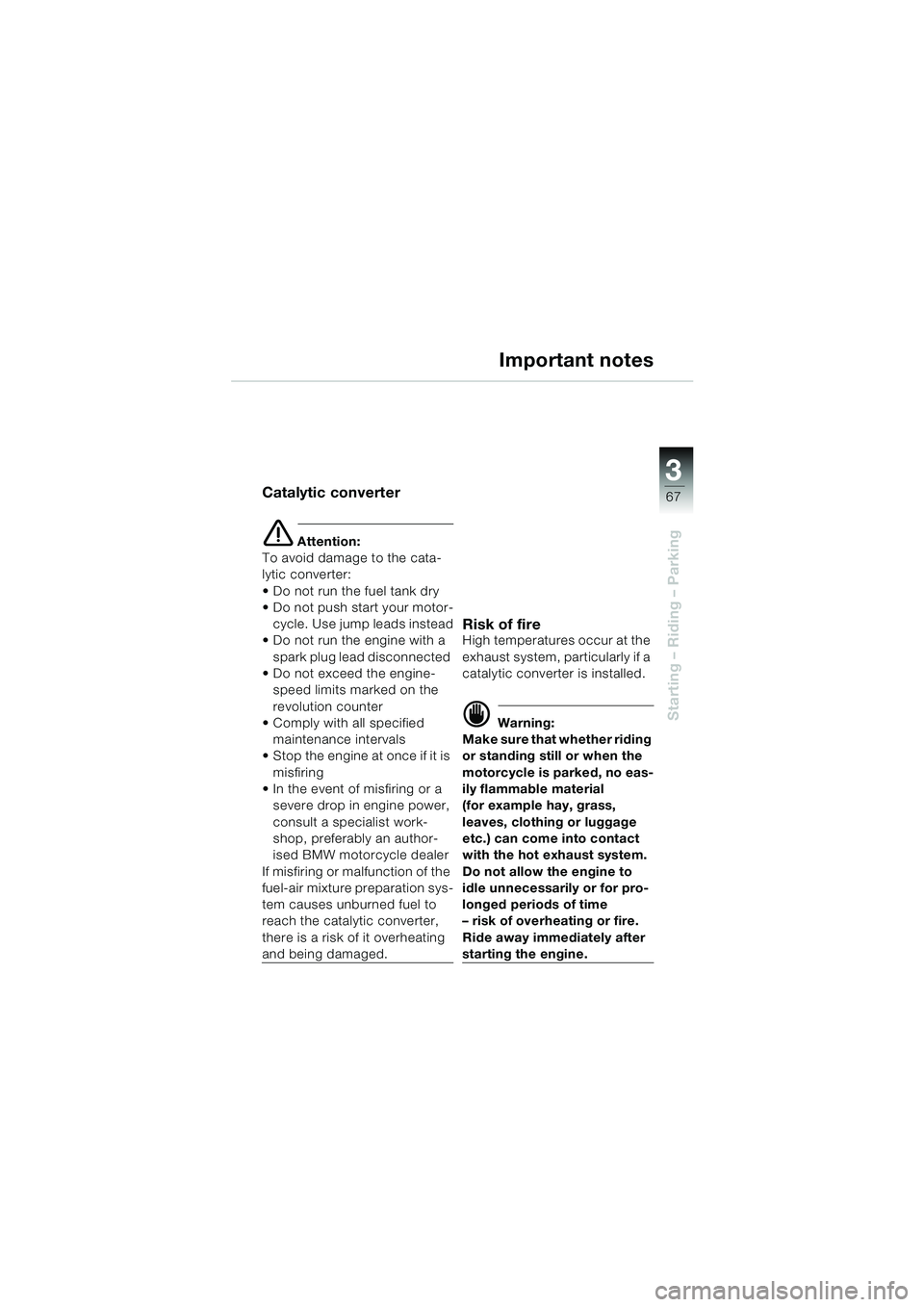

Catalytic converter
e Attention:
To avoid damage to the cata-
lytic converter:
 Do not run the fuel tank dry
 Do not push start your motor-
cycle. Use jump leads instead
 Do not run the engine with a
spark plug lead disconnected
 Do not exceed the engine- speed limits marked on the
revolution counter
 Comply with all specified
maintenance intervals
 Stop the engine at once if it is
misfiring
 In the event of misfiring or a severe drop in engine power,
consult a specialist work-
shop, preferably an author-
ised BMW motorcycle dealer
If misfiring or malfunction of the
fuel-air mixture preparation sys-
tem causes unburned fuel to
reach the catalytic converter,
there is a risk of it overheating
and being damaged.
Risk of fireHigh temperatures occur at the
exhaust system, particularly if a
catalytic converter is installed.
d Warning:
Make sure that whether riding
or standing still or when the
motorcycle is parked, no eas-
ily flammable material
(for example hay, grass,
leaves, clothing or luggage
etc.) can come into contact
with the hot exhaust system.
Do not allow the engine to
idle unnecessarily or for pro-
longed periods of time
– risk of overheating or fire.
Ride away immediately after
starting the engine.
10LTbkg6.book Seite 67 Freitag, 1. Juli 2005 8:53 08

68
Starting – Riding – Parking
3
Placing motorcycle on
side stand
d Warning:
For safety reasons, never sit
on the motorcycle with the
side stand extended.
e Attention:
Stop the engine before using
the side stand.
Make sure the surface under
the stand is firm.
On a gradient, the motorcycle
should always face uphill; se-
lect 1st gear.  Switch off the ignition
 Keep both feet on the ground
 Hold the left handlebar grip
with your left hand
 Keep your right hand on the
right handlebar grip and the
handbrake lever
 Hold the motorcycle upright and balanced
 U s e y o u r le f t f o o t a t t h e e x t e n -
sion pin to extend the side
stand fully (arrow)
 Slowly lean the motorcycle to the side until its weight is
taken by the stand and dis-
mount from the motorcycle
 Turn the handlebars to full left
lock (
b13)
 Check that the motorcycle
is firmly supported
Side stand
10LTbkg6.book Seite 68 Freitag, 1. Juli 2005 8:53 08

3
69
Starting – Riding – Parking
Side stand
Removing motorcycle
from side stand
d Warning:
If the motorcycle is fitted with
BMW Integral ABS, only the
RESIDUAL BRAKING FUNC-
TION is available when the
ignition is switched off (
b87).
Make sure the side stand is
fully retracted before you ride
off.
– Allowing the motorcycle to roll with the side stand
extended represents a
safety risk.  Turn the ignition key to the “
R”
or “ ON” position (
b13)
– handlebars unlocked
 Both feet on the ground, no weight on the motorcycle
 Hold the left handlebar grip
with your left hand
 Keep your right hand on the
right handlebar grip and the
handbrake lever
 Slowly raise the motorcycle to
the upright position and keep
it balanced
 Sit on the motorcycle and use your left foot to retract the
side stand
10LTbkg6.book Seite 69 Freitag, 1. Juli 2005 8:53 08

70
Starting – Riding – Parking
3
Main (centre) stand
Electro-hydraulic centre-stand system EHCS
L Note:
Your motorcycle has an electro-hydraulic centre stand, EHCS for
short, that makes it easy to park the motorcycle on its main stand.
Indicators and telltale lights of the EHCS
Telltale light Indicator in the multi-
function dis-
playMeaning
Flashes at
2Hz
EHCS active (b88)
ON
EHCS at limit position (b88)
Flashes at
4Hz Lightning flash
EHCS system failure– On-board system voltage is below 10 V
– Control unit or its periphery defective
Flashes at
4Hz Hourglass
EHCS system overload– After it has been in operation for
10 seconds, the EHCS is disabled for
10 seconds.
– If the EHCS is used more than three times in succession for 10 seconds, it
is disabled for 3 minutes (you can can-
cel this disabled period by switching
the ignition on and then off again).
Flashes at
4Hz Call symbol
Operator error– Side stand extended
– Gear engaged
– Handbrake/footbrake applied
– Motorcycle not at a standstill
