2005 BMW MOTORRAD K 1200 LT Rider's Manual (in English)

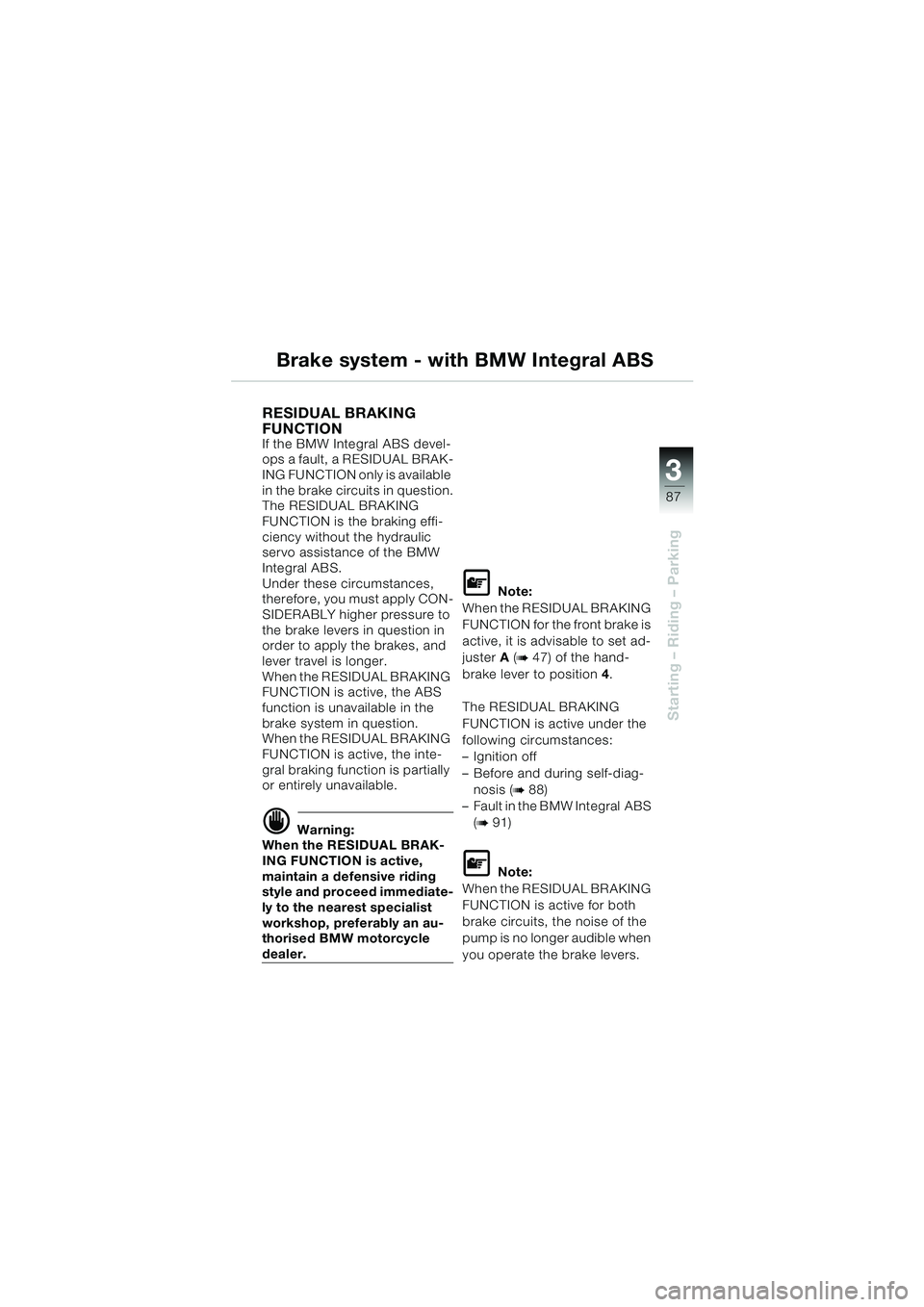

3
87
Starting – Riding – Parking
Brake system - with BMW Integral ABS
RESIDUAL BRAKING
FUNCTION
If the BMW Integral ABS devel-
ops a fault, a RESIDUAL BRAK-
ING FUNCTION only is available
in the brake circuits in question.
The RESIDUAL BRAKING
FUNCTION is the braking effi-
ciency without the hydraulic
servo assistance of the BMW
Integral ABS.
Under these circumstances,
therefore, you must apply CON-
SIDERABLY higher pressure to
the brake levers in question in
order to apply the brakes, and
lever travel is longer.
When the RESIDUAL BRAKING
FUNCTION is active, the ABS
function is unavailable in the
brake system in question.
When the RESIDUAL BRAKING
FUNCTION is active, the inte-
gral braking function is partially
or entirely unavailable.
d Warning:
When the RESIDUAL BRAK-
ING FUNCTION is active,
maintain a defensive riding
style and proceed immediate-
ly to the nearest specialist
workshop, preferably an au-
thorised BMW motorcycle
dealer.
L Note:
When the RESIDUAL BRAKING
FUNCTION for the front brake is
active, it is advisable to set ad-
juster A (
b47) of the hand-
brake lever to position 4.
The RESIDUAL BRAKING
FUNCTION is active under the
following circumstances:
– Ignition off
– Before and during self-diag- nosis (
b88)
– Fault in the BMW Integral ABS (
b91)
L Note:
When the RESIDUAL BRAKING
FUNCTION is active for both
brake circuits, the noise of the
pump is no longer audible when
you operate the brake levers.
10LTbkg6.book Seite 87 Freitag, 1. Juli 2005 8:53 08

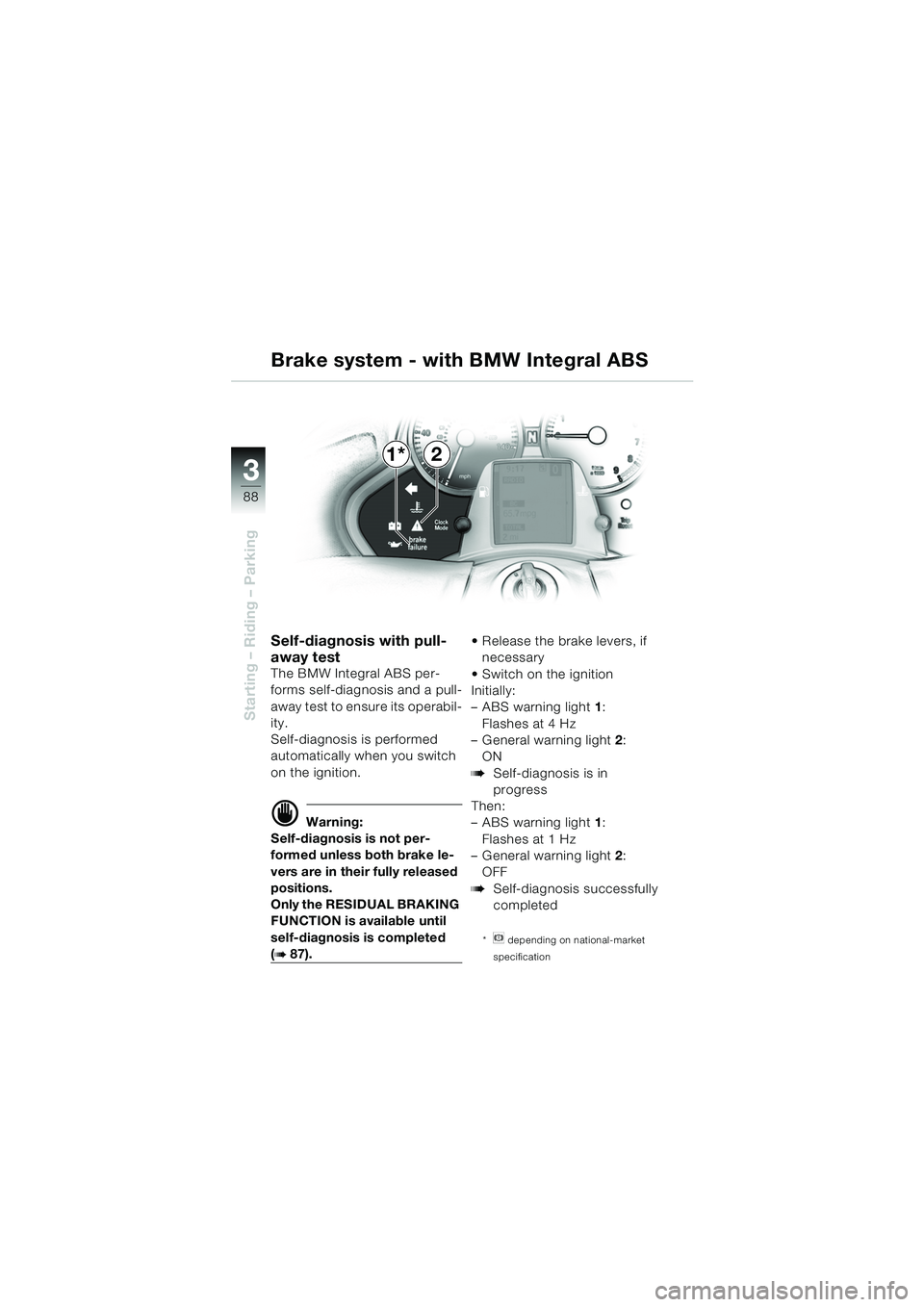

88
Starting – Riding – Parking
3
Self-diagnosis with pull-
away test
The BMW Integral ABS per-
forms self-diagnosis and a pull-
away test to ensure its operabil-
ity.
Self-diagnosis is performed
automatically when you switch
on the ignition.
d Warning:
Self-diagnosis is not per-
formed unless both brake le-
vers are in their fully released
positions.
Only the RESIDUAL BRAKING
FUNCTION is available until
self-diagnosis is completed
(b87).  Release the brake levers, if
necessary
 Switch on the ignition
Initially:
– ABS warning light 1:
Flashes at 4 Hz
– General warning light 2:
ON
bSelf-diagnosis is in
progress
Then:
– ABS warning light 1:
Flashes at 1 Hz
– General warning light 2:
OFF
bSelf-diagnosis successfully
completed
*n depending on national-market
specification
Brake system - with BMW Integral ABS
1*2
10LTbkg6.book Seite 88 Freitag, 1. Juli 2005 8:53 08

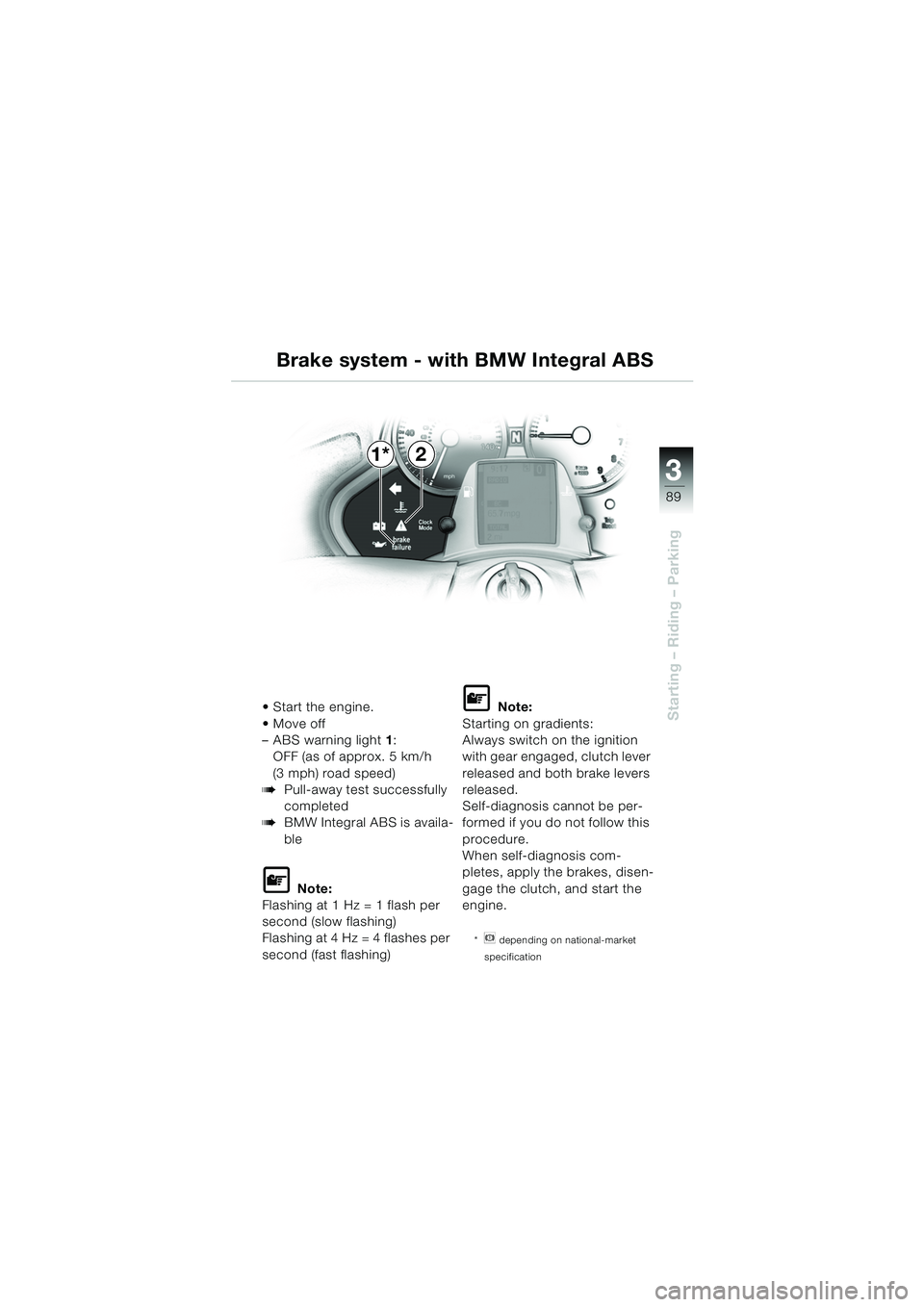

3
89
Starting – Riding – ParkingStart the engine.
 Move off
– ABS warning light 1:
OFF (as of approx. 5 km/h
(3 mph) road speed)
bPull-away test successfully
completed
bBMW Integral ABS is availa-
ble
L Note:
Flashing at 1 Hz = 1 flash per
second (slow flashing)
Flashing at 4 Hz = 4 flashes per
second (fast flashing)
L Note:
Starting on gradients:
Always switch on the ignition
with gear engaged, clutch lever
released and both brake levers
released.
Self-diagnosis cannot be per-
formed if you do not follow this
procedure.
When self-diagnosis com-
pletes, apply the brakes, disen-
gage the clutch, and start the
engine.
*n depending on national-market
specification
Brake system - with BMW Integral ABS
1*2
10LTbkg6.book Seite 89 Freitag, 1. Juli 2005 8:53 08

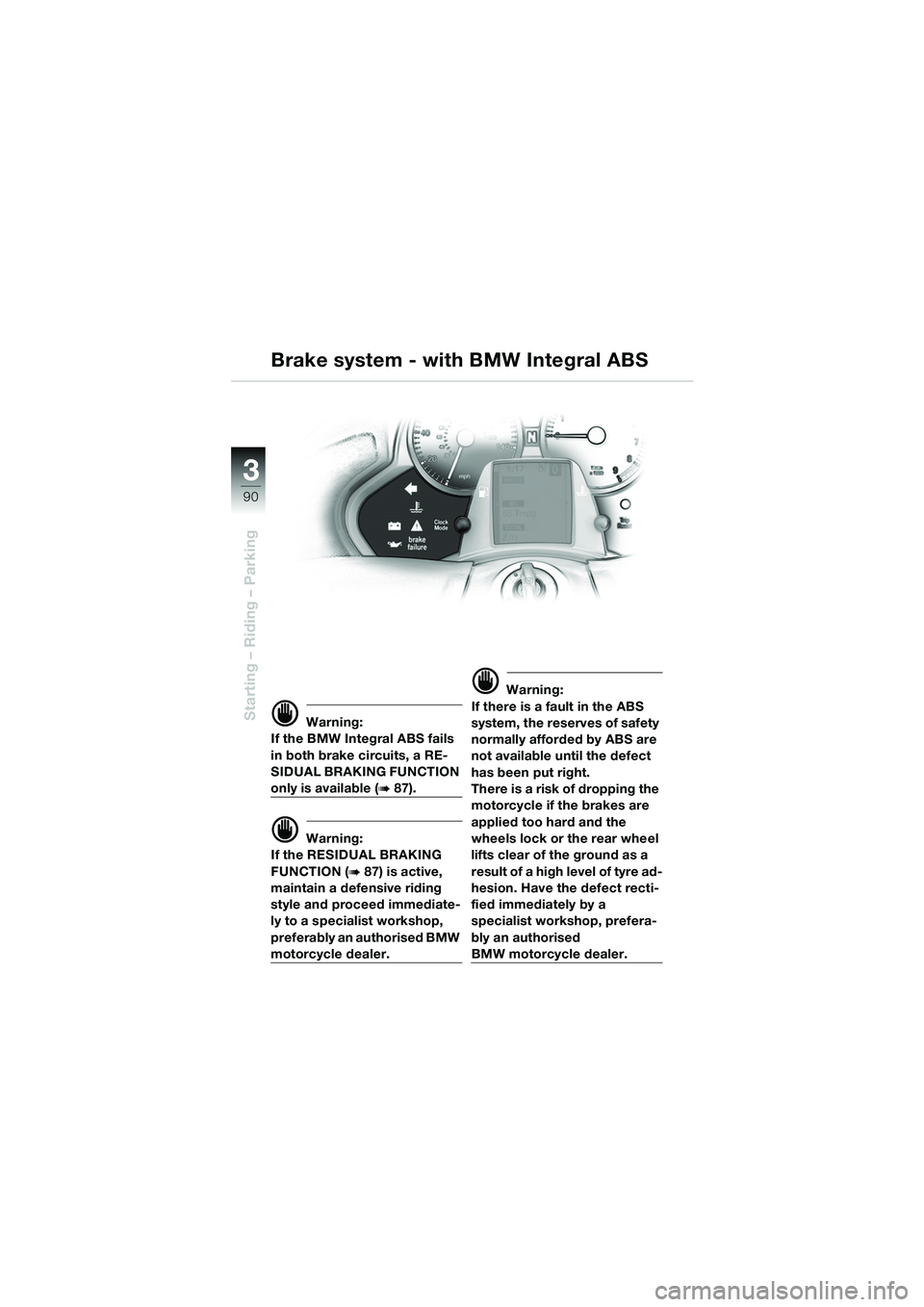

90
Starting – Riding – Parking
3
d Warning:
If the BMW Integral ABS fails
in both brake circuits, a RE-
SIDUAL BRAKING FUNCTION
only is available (b87).
d Warning:
If the RESIDUAL BRAKING
FUNCTION (
b87) is active,
maintain a defensive riding
style and proceed immediate-
ly to a specialist workshop,
preferably an authorised BMW
motorcycle dealer.
d Warning:
If there is a fault in the ABS
system, the reserves of safety
normally afforded by ABS are
not available until the defect
has been put right.
There is a risk of dropping the
motorcycle if the brakes are
applied too hard and the
wheels lock or the rear wheel
lifts clear of the ground as a
r e su l t o f a h i g h le v e l o f t yr e ad -
hesion. Have the defect recti-
fied immediately by a
specialist workshop, prefera-
bly an authorised
BMW motorcycle dealer.
Brake system - with BMW Integral ABS
10LTbkg6.book Seite 90 Freitag, 1. Juli 2005 8:53 08

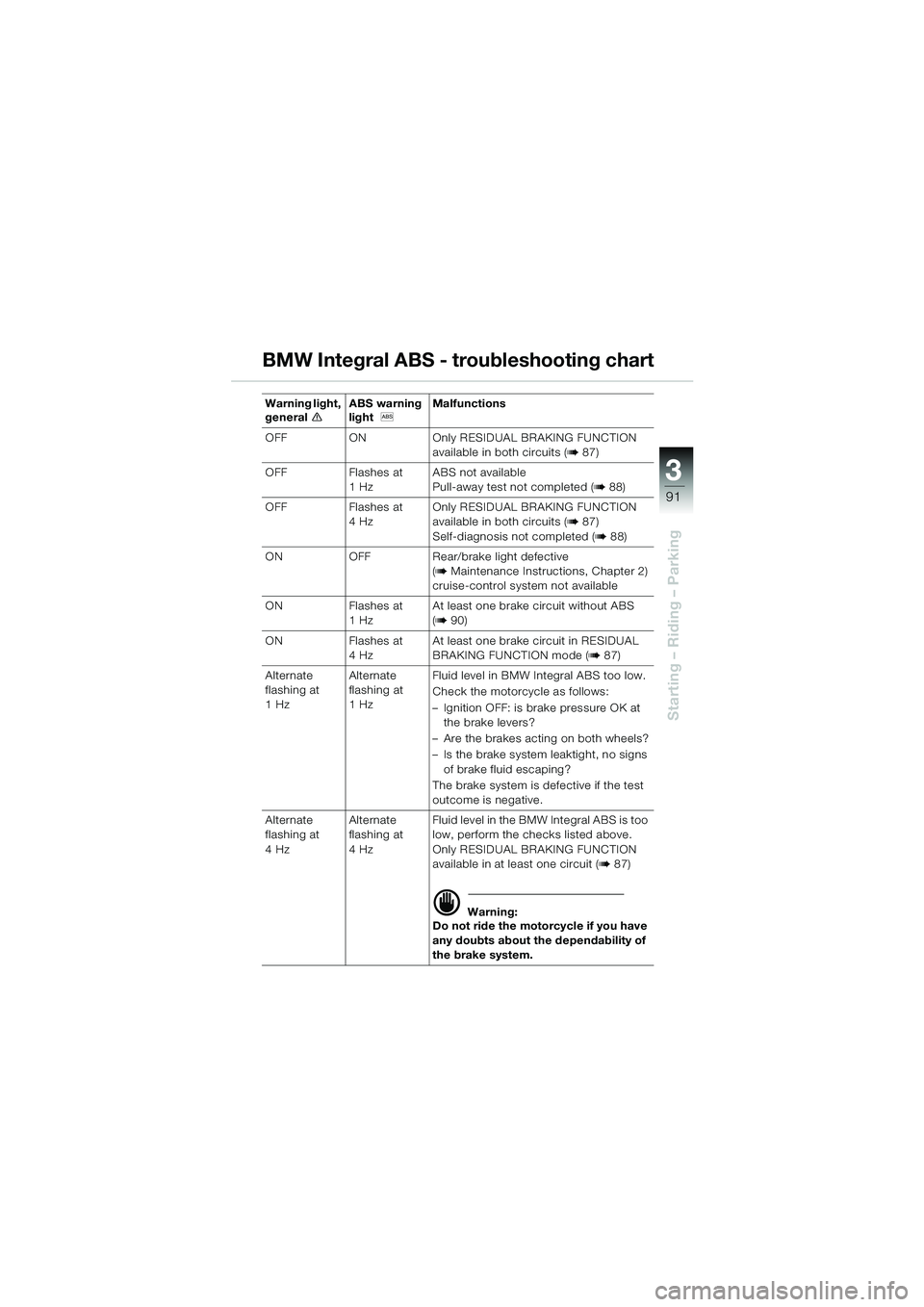

3
91
Starting – Riding – Parking
BMW Integral ABS - troubleshooting chart
Warning light,
generaleABS warning
light
l Malfunctions
OFF ON Only RESIDUAL BRAKING FUNCTION available in both circuits (
b87)
OFF Flashes at 1HzABS not available
Pull-away test not completed (
b88)
OFF Flashes at 4HzOnly RESIDUAL BRAKING FUNCTION
available in both circuits (
b87)
Self-diagnosis not completed (b88)
ON OFF Rear/brake light defective (
b Maintenance Instructions, Chapter 2)
cruise-control system not available
ON Flashes at 1HzAt least one brake circuit without ABS
(
b90)
ON Flashes at 4HzAt least one brake circuit in RESIDUAL
BRAKING FUNCTION mode (
b87)
Alternate
flashing at
1Hz Alternate
flashing at
1HzFluid level in BMW Integral ABS too low.
Check the motorcycle as follows:
– Ignition OFF: is brake pressure OK at
the brake levers?
– Are the brakes acting on both wheels?
– Is the brake system leaktight, no signs of brake fluid escaping?
The brake system is defective if the test
outcome is negative.
Alternate
flashing at
4Hz Alternate
flashing at
4HzFluid level in the BMW Integral ABS is too
low, perform the checks listed above.
Only RESIDUAL BRAKING FUNCTION
available in at least one circuit (
b87)
d Warning:
Do not ride the motorcycle if you have
any doubts about the dependability of
the brake system.
10LTbkg6.book Seite 91 Freitag, 1. Juli 2005 8:53 08

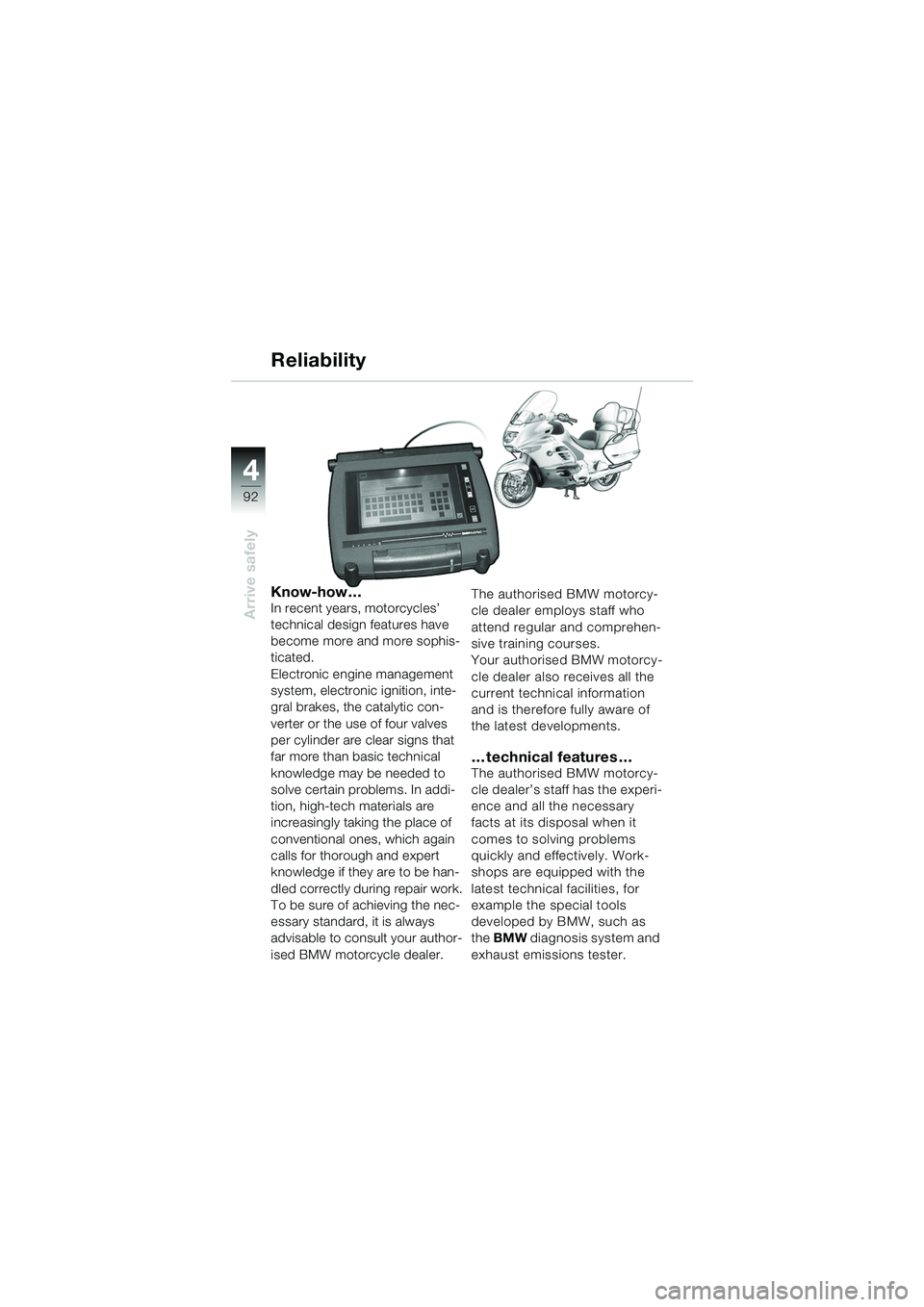

92
Arrive safely
4
Know-how …In recent years, motorcycles’
technical design features have
become more and more sophis-
ticated.
Electronic engine management
system, electronic ignition, inte-
gral brakes, the catalytic con-
verter or the use of four valves
per cylinder are clear signs that
far more than basic technical
knowledge may be needed to
solve certain problems. In addi-
tion, high-tech materials are
increasingly taking the place of
conventional ones, which again
calls for thorough and expert
knowledge if they are to be han-
dled correctly during repair work.
To be sure of achieving the nec-
essary standard, it is always
advisable to consult your author-
ised BMW motorcycle dealer.The authorised BMW motorcy-
cle dealer employs staff who
attend regular and comprehen-
sive training courses.
Your authorised BMW motorcy-
cle dealer also receives all the
current technical information
and is therefore fully aware of
the latest developments.
… technical features …The authorised BMW motorcy-
cle dealer’s staff has the experi-
ence and all the necessary
facts at its disposal when it
comes to solving problems
quickly and effectively. Work-
shops are equipped with the
latest technical facilities, for
example the special tools
developed by BMW, such as
the
BMW diagnosis system and
exhaust emissions tester.
Reliability
10LTbkg6.book Seite 92 Freitag, 1. Juli 2005 8:53 08

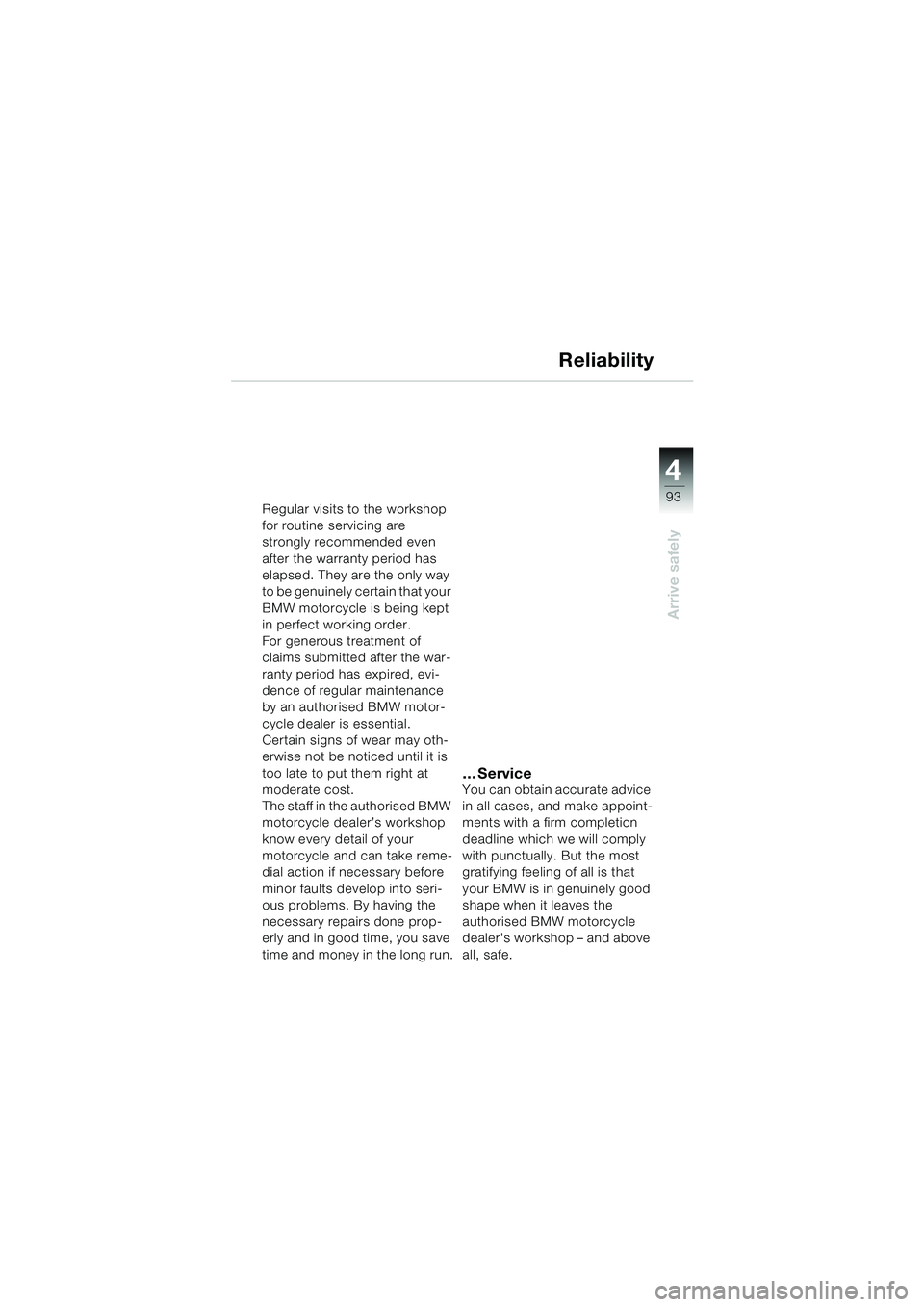

4
93
Arrive safely
Reliability
Regular visits to the workshop
for routine servicing are
strongly recommended even
after the warranty period has
elapsed. They are the only way
to be genuinely certain that your
BMW motorcycle is being kept
in perfect working order.
For generous treatment of
claims submitted after the war-
ranty period has expired, evi-
dence of regular maintenance
by an authorised BMW motor-
cycle dealer is essential.
Certain signs of wear may oth-
erwise not be noticed until it is
too late to put them right at
moderate cost.
The staff in the authorised BMW
motorcycle dealer’s workshop
know every detail of your
motorcycle and can take reme-
dial action if necessary before
minor faults develop into seri-
ous problems. By having the
necessary repairs done prop-
erly and in good time, you save
time and money in the long run.
…ServiceYou can obtain accurate advice
in all cases, and make appoint-
ments with a firm completion
deadline which we will comply
with punctually. But the most
gratifying feeling of all is that
your BMW is in genuinely good
shape when it leaves the
authorised BMW motorcycle
dealer's workshop – and above
all, safe.
10LTbkg6.book Seite 93 Freitag, 1. Juli 2005 8:53 08

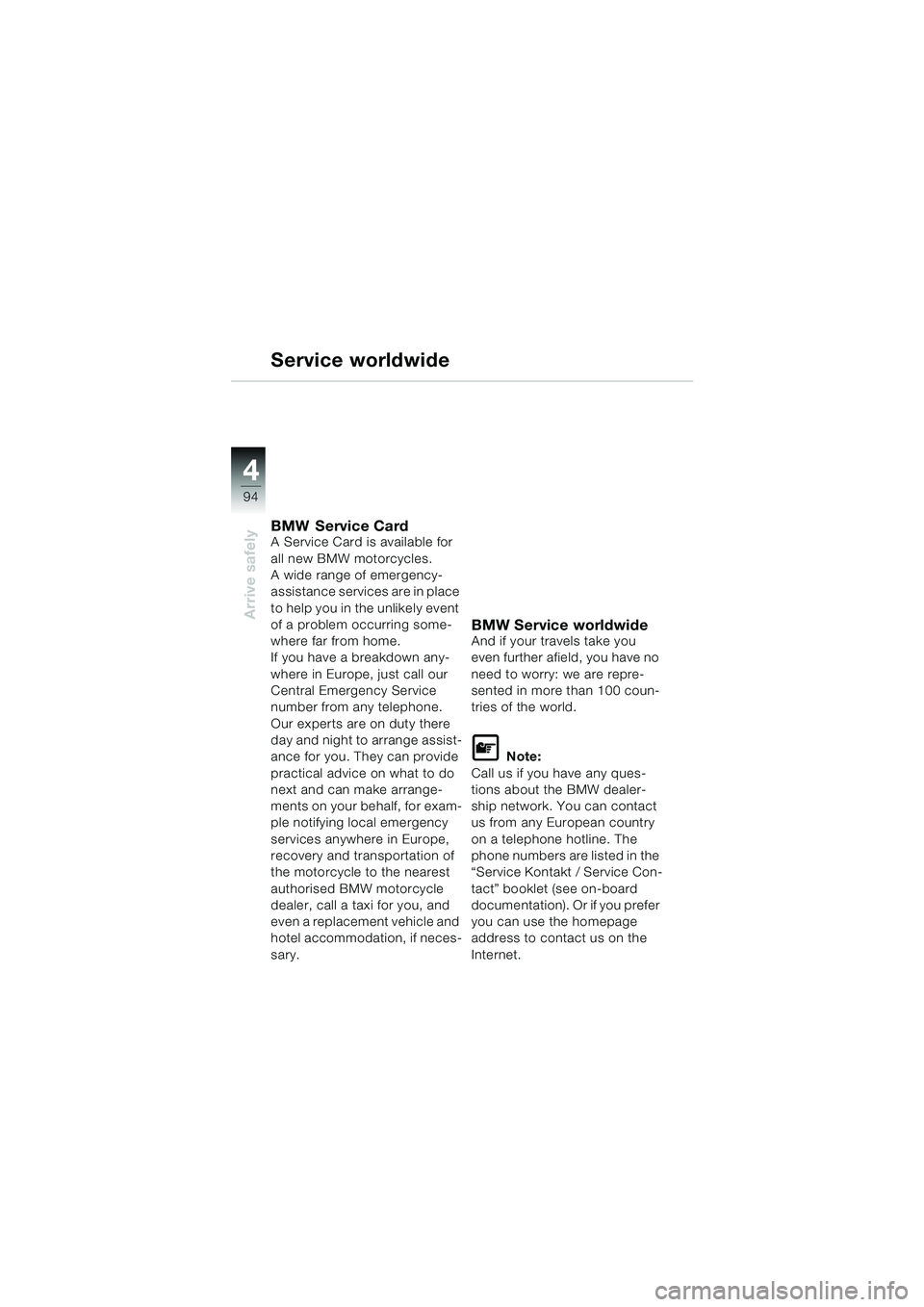

94
Arrive safely
4
Service worldwide
BMW Service CardA Service Card is available for
all new BMW motorcycles.
A wide range of emergency-
assistance services are in place
to help you in the unlikely event
of a problem occurring some-
where far from home.
If you have a breakdown any-
where in Europe, just call our
Central Emergency Service
number from any telephone.
Our experts are on duty there
day and night to arrange assist-
ance for you. They can provide
practical advice on what to do
next and can make arrange-
ments on your behalf, for exam-
ple notifying local emergency
services anywhere in Europe,
recovery and transportation of
the motorcycle to the nearest
authorised BMW motorcycle
dealer, call a taxi for you, and
even a replacement vehicle and
hotel accommodation, if neces-
sary.
BMW Service worldwideAnd if your travels take you
even further afield, you have no
need to worry: we are repre-
sented in more than 100 coun-
tries of the world.
L Note:
Call us if you have any ques-
tions about the BMW dealer-
ship network. You can contact
us from any European country
on a telephone hotline. The
phone numbers are listed in the
“Service Kontakt / Service Con-
tact” booklet (see on-board
documentation). Or if you prefer
you can use the homepage
address to contact us on the
Internet.
