2005 BMW MOTORRAD K 1200 LT Rider's Manual (in English)

4
95
Arrive safely
Protecting the environment
Development …Motorcyclists have an intensive
relationship with nature. BMW
has made sure that they con-
tinue to enjoy the best possible
prospects for successful riding
in the future.
This not only because your new
BMW is available with exhaust
emission control by closed-
loop, three-way catalytic con-
verter.
… waste disposal …Behind the scenes, in the repair
shop, we do not neglect the
pro-environmental aspects of
our work either.
Wherever possible, we use
environmentally acceptable,
biodegradable materials. We
ensure strict compliance with
all environmental legislation, for
example the correct disposal of
old oil, which is now classified
as hazardous waste in many
countries.
…recyclingAlongside the correct disposal
of materials that are potentially
hazardous to the environment,
recycling is being given
increasing priority by BMW.
For example, plastics that are
marked according to type can
more easily be returned to the
materials cycle. Remember:
when it comes to making
repairs to your motorcycle, the
authorised BMW motorcycle
workshop is far better equipped
to protect the environment than
you are at home.
10LTbkg6.book Seite 95 Freitag, 1. Juli 2005 8:53 08

96
Arrive safely
4

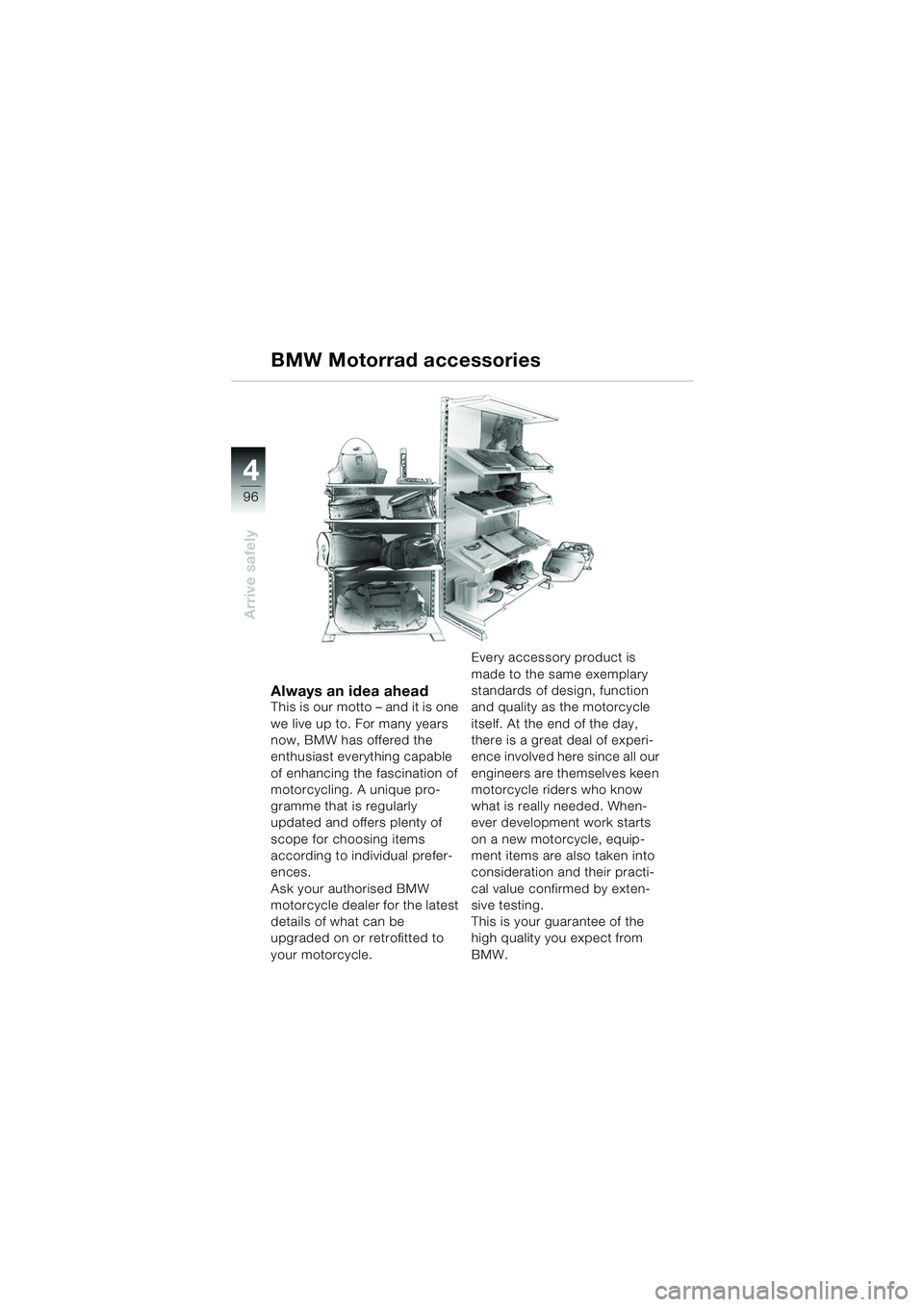

BMW Motorrad accessories
Always an idea aheadThis is our motto – and it is one
we live up to. For many years
now, BMW has offered the
enthusiast everything capable
of enhancing the fascination of
motorcycling. A unique pro-
gramme that is regularly
updated and offers plenty of
scope for choosing items
according to individual prefer-
ences.
Ask your authorised BMW
motorcycle dealer for the latest
details of what can be
upgraded on or retrofitted to
your motorcycle.Every accessory product is
made to the same exemplary
standards of design, function
and quality as the motorcycle
itself. At the end of the day,
there is a great deal of experi-
ence involved here since all our
engineers are themselves keen
motorcycle riders who know
what is really needed. When-
ever development work starts
on a new motorcycle, equip-
ment items are also taken into
consideration and their practi-
cal value confirmed by exten-
sive testing.
This is your guarantee of the
high quality you expect from
BMW.
10LTbkg6.book Seite 96 Freitag, 1. Juli 2005 8:53 08

4
97
Arrive safely

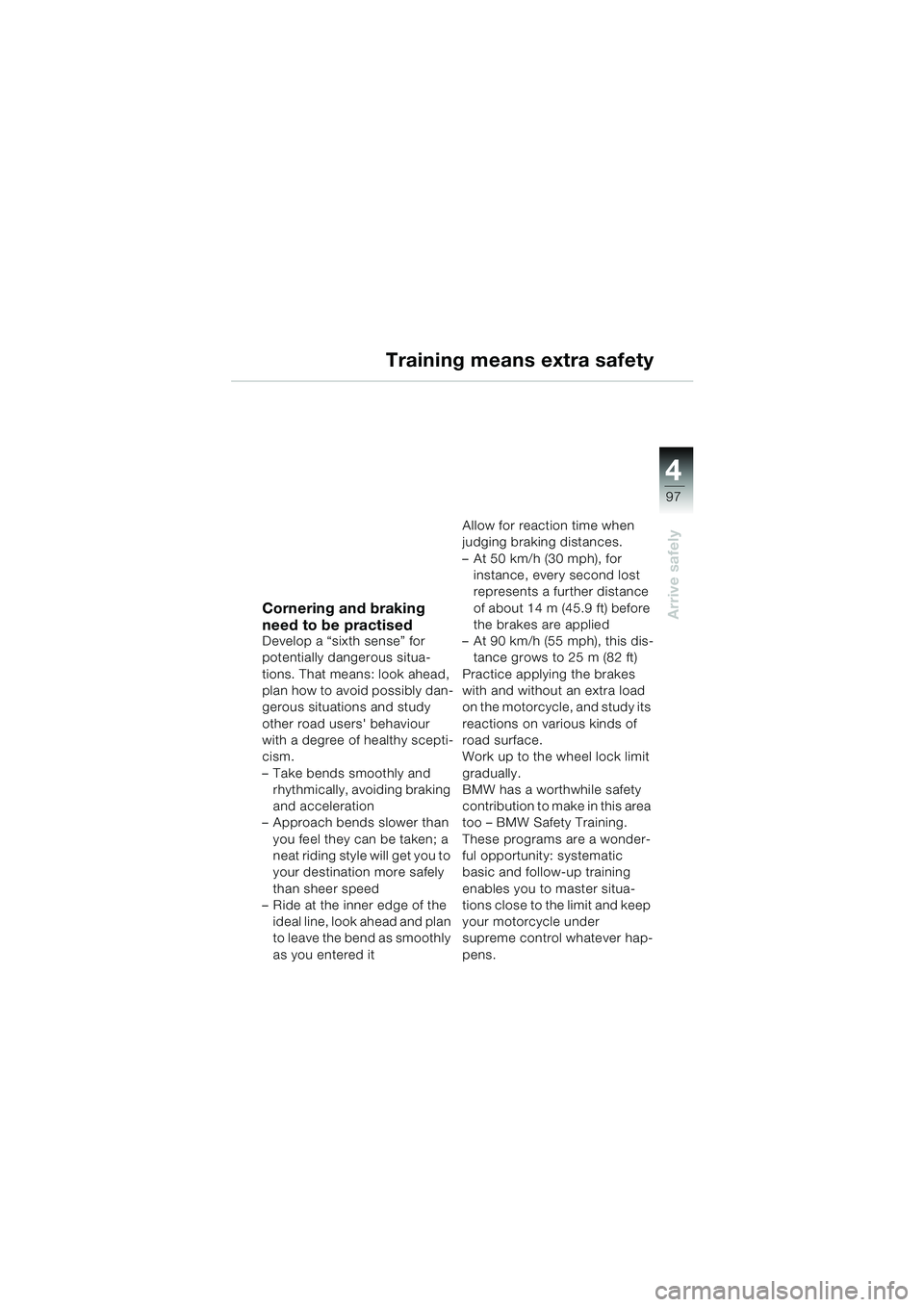

Training means extra safety
Cornering and braking
need to be practised
Develop a “sixth sense” for
potentially dangerous situa-
tions. That means: look ahead,
plan how to avoid possibly dan-
gerous situations and study
other road users' behaviour
with a degree of healthy scepti-
cism.
– Take bends smoothly and rhythmically, avoiding braking
and acceleration
– Approach bends slower than
you feel they can be taken; a
neat riding style will get you to
your destination more safely
than sheer speed
– Ride at the inner edge of the
ideal line, look ahead and plan
to leave the bend as smoothly
as you entered it Allow for reaction time when
judging braking distances.
– At 50 km/h (30 mph), for
instance, every second lost
represents a further distance
of about 14 m (45.9 ft) before
the brakes are applied
– At 90 km/h (55 mph), this dis- tance grows to 25 m (82 ft)
Practice applying the brakes
with and without an extra load
on the motorcycle, and study its
reactions on various kinds of
road surface.
Work up to the wheel lock limit
gradually.
BMW has a worthwhile safety
contribution to make in this area
too – BMW Safety Training.
These programs are a wonder-
ful opportunity: systematic
basic and follow-up training
enables you to master situa-
tions close to the limit and keep
your motorcycle under
supreme control whatever hap-
pens.
10LTbkg6.book Seite 97 Freitag, 1. Juli 2005 8:53 08

98
Arrive safely
4
Concluding thoughts
Now it’s your turn Regular care is important, with all functions checked
before the journey starts.
 Use only genuine BMW
accessories. These satisfy all
safety requirements and are
precisely matched to your
BMW motorcycle.
 Have your motorcycle serv-
iced only by the trained,
expert personnel at your local
authorised BMW motorcycle
dealer.
 Do not under any circum-
stances install unapproved
accessories. This can repre-
sent a safety hazard, invali-
date the motorcycle's general
operating permit or cause you
to lose your insurance cover.
 Technical modifications
should always be entrusted to
your authorised BMW motor-
cycle dealer.
L Note:
Your local authorised BMW
motorcycle dealer can supply
you with useful items to add to
your motorcycle's toolkit and
accompany the maintenance
instructions.
– BMW Repair Manual
– BMW set of circuit diagrams
It's good to know you've
thought of everything, isn't it?
Our aim is to make your
journey safer
We want you to reach all your
destinations safely – and we
want you to enjoy riding your
BMW as a constant source of
relaxed pleasure and satisfac-
tion.
10LTbkg6.book Seite 98 Freitag, 1. Juli 2005 8:53 08

99
Index
i
AABS, 86
Accessories and loads, 60, 61
Adjusting beam throw, 62
Adjusting fins, 17
Adjusting the handbrake lever, 47
Adjusting windscreen, 17
Aerial, 4
Anti-lock brake systemNotes, 84-91
Audio system controls
Passenger, 6
BBMW Integral ABS, 84-90Brake fluid level, 52
Brake-fluid reservoir, front
brakes, 6
Brake-fluid reservoir, rear
brakes, 6
Troubleshooting chart, 91
Warning lights, 10
BMW Service Card, 94
Brake booster, 86
Brake fluid level Check
Rear brake, 53
Brake pads, running in, 74
Brake system General, 48, 49
With BMW Integral ABS, 50-53
Brake system, checking, 48
CCassette recorder/radio, 9
Catalytic converter, 67
Catalytic convertor Safety instructions, 67
Checking brake pads, 49
Checking oil level, 42
Checklist, 41
Clutch
Fluid level, 54
Clutch lever, adjusting, 46
Cockpit Overview,8,9
Coolant level Check, 55
Coolant temperature, 78
Coolant temperature gauge, 8
Cruise-control system
Notes, 21
Operation, 22, 23, 24
Switch, 14
EEmergency off (kill) switch for ignition, 15, 75
Engine oil, 42, 43
Oil filler neck, 43
Engine oil pressure
Telltale light, 78
Engine speed, 80
A - E
10LTbkg6.book Seite 99 Freitag, 1. Juli 2005 8:53 08

100
Index
i
FFront brakeBrake fluid level, 52
Handbrake lever, 47
Front seat Adjusting, 35
Locking, 35
Opening, 34
Front seat heating, 39
Fuel filler cap, 7, 44
Fuel gauge, 8
Fuel grade, 45
Fuel level, 78
Fully integral brakes, 86
Fuse box, 6
GGear shifts, 80, 81
General view
Left side,4,5
Right side,6,7
HHandlebar fittingLeft, 14
Right, 15
Handlebar-mounted remote controls for audio system, 14
Hazard warning flasher switch, 14
Hazard warning flashers, 16
Heated handlebar grips, 15
Helmet holder, 5, 40
High-beam/low-beam headlight switch, 14 Horn, 14
Horn push, 14
IIgnition switch and steering
lock,8,12,13
Instruments, cockpit, 8, 9
Integral brake function, 86
Integral brakes, 86
KKeys, 12, 13
LLeft flashing turn indicator switch, 14
Lights Beam throw, 62, 63
Notes, 62
MMain (centre) stand, 70, 71, 72
Motorcycle accessories, 96
NNeutral (gearbox), 76
Notes on safetyGeneral, 66
OOctane number, fuel, 45
Odometer, 8
Oil filler neck, 6, 42, 43
F - O
10LTbkg6.book Seite 100 Freitag, 1. Juli 2005 8:53 08

101
Index
i
Oil funnelCompartment for, 5
Oil level Check, 42, 43
Engine oil pressure, 11, 78
Sight glass, 6
On-board computer, 8 Ambient temperature, 30
Average consumption, 29
Average speed, 28
Display dimming, 31
Estimated residual range, 28
Handlebar-mounted remote
controls, 27
On-board documentation Compartment for, 5
Opening/closing cases, 32
Opening/closing topcase, 33
Overheating, 67, 77
PPermitted gross weight, 61
Protecting the environment, 95
RRadio/cassette recorder, 9
Rear seat Adjusting backrest, 36, 37, 38
Rear seat heating, 39
Refuelling, 44
Remote control Audio systemHandlebar-mounted, 14
Passenger, 6 Remote controls
On-board computer, 27
Repair kit for tubeless tyres, 4
Repeaters Turn indicator, left, 10
Residual braking function, 51, 87
Reverser, 18
Lever, 5
Revolution counter, 8
Riding, 80
Right flashing turn indicator
switch, 15
Rims, 57
Running-in engine speeds, 73
SSafety check, 41
Safety instructions
Braking, 82
Catalytic converter, 67
Seat
Adjusting, 35
Removing, 35
Seat heating, 7, 39
Seat opener, 4
Service worldwide, 94
Side stand, 68, 69, 75, 76
Socket Rider and passenger, 5
Speedometer, 8
Spring preload, 4, 56
Starter button, 15
Starter switch, 15
O - S
10LTbkg6.book Seite 101 Freitag, 1. Juli 2005 8:53 08

102
Index
i
Starting, 77
Stowage compartmentTorch, 7
Switch on the ignition, 75, 76
TTank cap, 7
Telltale and warning lights ABS, 10, 78
Battery charge light, 10, 79
Coolant temperature, 10, 79
Cruise control, 11
Engine oil pressure, 10, 78
High-beam headlight, 11
Low fuel level, 11, 78
Neutral, 10
Reverser, 11
Turn indicator, right, 11
Tightening torques Topcase, rear seat, 38
Tools, 4
Torch Compartment for, 7
Tread depth, tyres, 58, 59
Trip meter, 8
Troubleshooting chart, 91
Turn indicator cancel switch, 15
Type plate, 7
Tyres Inflation pressure, 59
Running in, 74
Tread depth, 57
VValve caps, 59
WWarning lightLow fuel level, 78
Warning lights ABS, 78
Battery charge light, 79
Coolant temperature, 79
Engine oil pressure, 78
General, 78
Warnings
Braking, 82
Windscreen adjustment Switch, 14
S - Z
